Streamit SAS220 Manual de usuario

SAS220 - User Manual

Project name: SAS220 - User Manual

Version: 1.3

Date: 28/10/2015

THE MATERIAL CONTAINED HEREIN IS COPYRIGHTED AND PROTECTED UNDER NATIONAL

AND INTERNATIONAL COPYRIGHT LAWS AS AN UNPUBLISHED WORK AND UNAUTHORIZED

REPRODUCTION OR MODIFICATION IS PROHIBITED WITHOUT WITHOUT THE EXPRESS PRIOR

WRITTEN CONSENT OF STREAMIT.

CONTENTS

Contents

1 Version history 2

2 Getting started 3

2.1 Firstandforemost... ....................................... 3

2.2 Streamitsupport ......................................... 3

2.3 UnpackingyourSAS220..................................... 3

2.4 FrontView ............................................ 4

2.5 Backview............................................. 4

2.6 BottomView ........................................... 5

3 Installation 6

3.1 Rackmount............................................ 6

3.1.1 Mounting a single SAS220 device in a 19 inch rack . . . . . . . . . . . . . . . . . . 6

3.1.2 Mounting two devices in a 19 inch rack . . . . . . . . . . . . . . . . . . . . . . . . 7

3.2 Tablemount ........................................... 8

3.3 Connecting your SAS220 device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.3.1 Connecting the protective earth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.3.2 Connecting the power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.3.3 Connecting the ethernet cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.3.4 Connecting the audio input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.3.5 Connecting the headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.3.6 Connecting the USB service cable . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4 Basic knowledge 9

4.1 Audio encoding and streaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4.1.1 Whichformattochoose ................................. 10

4.1.2 Encodingquality..................................... 10

4.2 Deviceconﬁguration ....................................... 11

4.3 Streamit device portal the web-interface for SAS220 devices . . . . . . . . . . . . . . . . . 11

4.4 Whyaremoteweb-interface................................... 12

4.5 Restrictions of the web-interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.6 Conﬁgurationupdate....................................... 12

4.7 Remotemonitoring........................................ 13

5 Conﬁguring your SAS220 device 14

5.1 Conﬁguration via web-interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.1.1 Getting started with Streamit device portal . . . . . . . . . . . . . . . . . . . . . . 14

5.2 Telnet ............................................... 15

5.2.1 WhentouseTelnet ................................... 15

5.2.2 Whatdoyouneed .................................... 15

5.2.3 Howdoesitwork..................................... 16

5.3 STP (Streamit Terminal Program) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.3.1 WhentouseSTP .................................... 17

5.3.2 Conﬁguring SAS220 with STP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.4 Switching on your SAS220 device for the ﬁrst time . . . . . . . . . . . . . . . . . . . . . . 20

Version 1.3 28/10/2015 1 of 21

1. Version history

1 Version history

Version Date Editor Changes

1.0 04/01/2012 Arlind Cela Initial version

1.1 10/01/2012 Arlind Cela Created a quickstart guide version from the

user manual resource.

1.2 18/12/2012 Arlind Cela Removed references to the SAS220 Reference

Manual

1.3 28/10/2015 Gerard Hollemans General update

Version 1.3 28/10/2015 2 of 21

2. Getting started

2 Getting started

2.1 First and foremost...

thank you for purchasing the Streamit Audio Streamer (SAS220). We greet you as a new user and hope

that your new device will give you many years of pleasure. The SAS220 is a modern device and we

strongly recommend you to read this user manual thoroughly, before you start installing and using the

device for the ﬁrst time.

The SAS220 is a fully autonomous working IP-audio streamer, able to encode audio in Ogg Vorbis or

MP3 format and stream to SIR and Lisa internet radio devices or to an Icecast2 audio distribution

server.

The SAS220 can be conﬁgured via the web-interface, implemented as part of the Streamit device portal,

but also via network interface (Telnet) and the Streamit Terminal Program(STP).

Streamit device portal (https://devices.streamit.eu) is a webservice that helps users to conﬁgure

and monitor their Streamit devices, straight out of the box.

STP is a user-friendly software application for your Windows PC, meant for advanced conﬁguration and

monitoring of your Streamit devices. This program can be downloaded from the Streamit website free

of charge.

For more information on Streamit products and technologies, we invite you to visit our website https:

//www.streamit.eu.

Finally, we wish you a lot of pleasure using your SAS220 device.

Streamit B.V.

2.2 Streamit support

With this user manual we have tried to clearly describe the operation of your SAS220 device. But we

can imagine you have a question or come across an issue which is not covered in this user manual. In

such case, you are welcome to visit our support website (http://support.streamit.eu), where you will

ﬁnd knowledgebase material, documentation and contact options for the support staﬀ.

When you have purchased your SAS220 device from one of our local dealers, we recommend you contact

your dealer ﬁrst.

2.3 Unpacking your SAS220

Carefully take the device and the supplied materials out of the package. Make sure that all of the

following components are included:

•1x SAS220 device

•1x 12V power supply with screw-on connector

•1x USB-AB cable

•1x SAS220 - Quick Start Guide

Version 1.3 28/10/2015 3 of 21

2.4 Front View

Fig. 1: SAS220 front view

I MMC/SD/SDHC card slot M 2x16 characters LCD display

J Power on/oﬀ button N Product type

K Infrared receiver indicator Q Streamit logo

L Status indicator

2.5 Back view

Fig. 2: SAS220 back view

A - External Protective Earth connector E - 6,3 mm headphone connector connector

B - RJ45 Ethernet connector F - Balanced right XLR connector

C - USB connector G - Balanced left XLR connector

D - Screw power supply connector

Version 1.3 28/10/2015 4 of 21

2.6 Bottom View

Fig. 3: SAS220 bottom view

S Product sticker U 4 x chassis mount openings

T 4 x rubber feet

The unique 5 (hexadecimal) digits serial number located under the barcode is a is

used as an identiﬁcation for registering your device in the Streamit device portal or

other conﬁguration platforms.

Version 1.3 28/10/2015 5 of 21

3. Installation

3 Installation

This section of the user manual will cover the installation of your SAS220 device, including mounting

and connection.

3.1 Rack mount

In line with the other Streamit professional audio devices, the SAS220 design enables you to easily

mount it in a conventional 19 inch (1 inch = 2.54 cm) racks. For rack mounting, the rack-mounting kit

is required.

Fig. 4: Streamit rack mounting kit

This kit can be ordered from Streamit or oﬃcial Streamit dealers and contains 5 mounting plates in total

as shown in the ﬁgure above. Using a combination of these plates, it is possible to mount either one or

two devices in a 19 inch rack.

3.1.1 Mounting a single SAS220 device in a 19 inch rack

To mount a single SAS220 in an 19 inch rack, you make use of the large side mounting plate and one of

the small side mounting plates. At each side of the device, there are two screws and two small slot-like

openings. Start with one side of your device and remove the Phillips-head screws using an appropriate

screwdriver. Place the large side mounting plate as shown in ﬁgure below. You will see that the holes

of the mount plate will match those of the device. Carefully fasten the screws back on to connect the

device to the mounting plate. The same is done for the other side, but in this case one of the small side

mounting plates is used.

Fig. 5: One SAS220 in rack mount conﬁguration

Version 1.3 28/10/2015 6 of 21

3.1 Rack mount

At this point you can mount the whole setup in the rack by bolting the sides to the frame of the rack. In

most cases though, we recommend that the devices are ﬁrst connected and then mounted, for the simple

reason that all connections of the device are located in the back and once mounted, the devices will not

be as easy to access. Connecting the device is described later in this chapter.

3.1.2 Mounting two devices in a 19 inch rack

Mounting two devices in a 19 inch rack requires using the two dev-dev mounting plates and the two

small side mounting plates. Mounting the side plates is done in the same way as when mounting a single

device (see 3.1.1 above). You just have to make sure that the plates are oriented outwardly (see Fig. 6).

Once this is done, you connect the two devices together using the dev-dev mounting plates. Turn the

ﬁrst device over. You will see it has four Phillips-head screws with black rubber feet, two for each side.

Using an appropriate screwdriver, remove the two feet on the opposite side to the side mounting plate.

The openings on the side now form slots with the same width as the dev-dev mounting plates and half

the length of the dev-dev mounting plates.

Fit the dev-dev mounting plates in the slots and you will see its holes matching with the device’s.

Carefully screw the rubber feet back on.

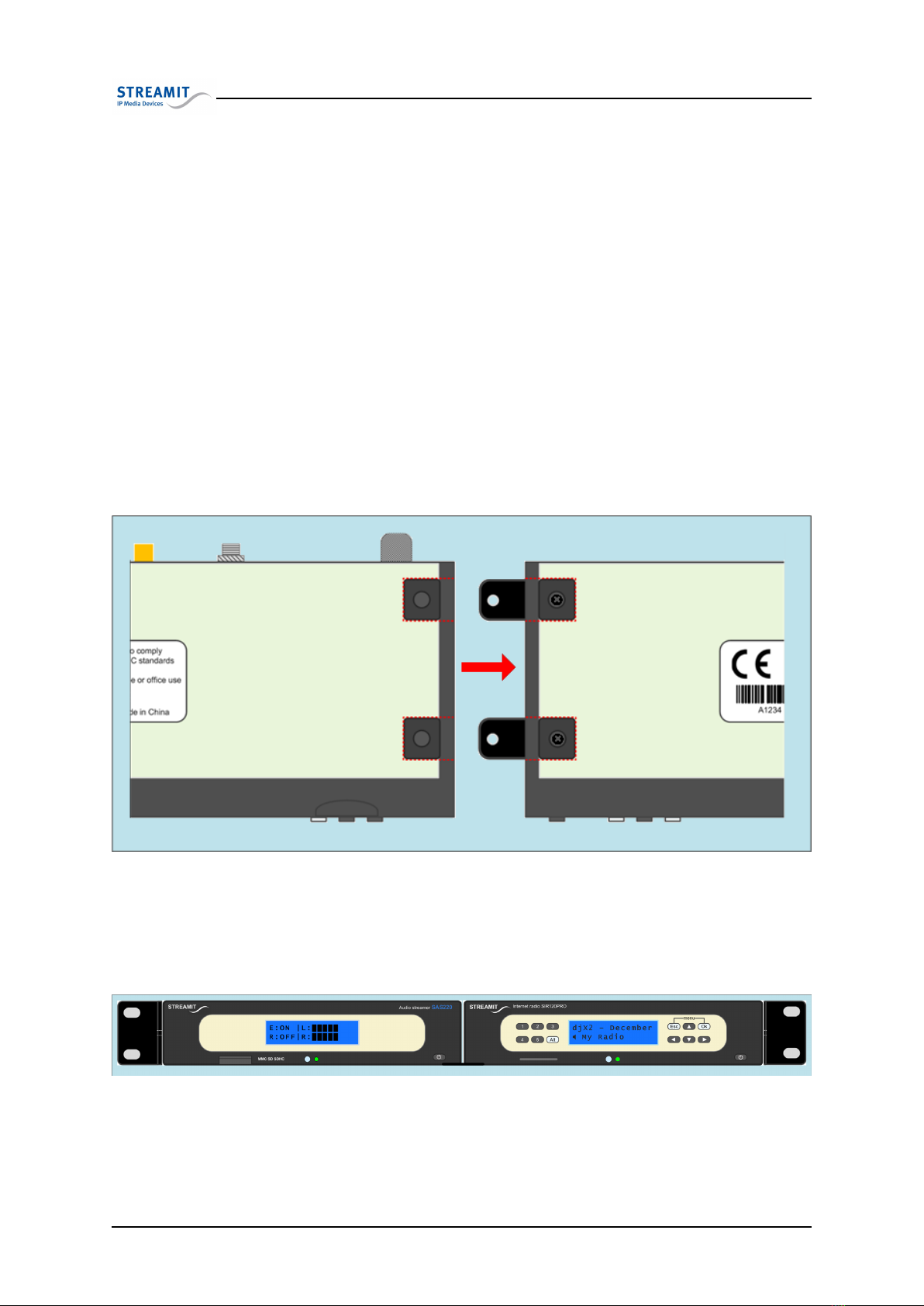

Fig. 6: Connecting two devices together

Now take the second device and remove the rubber feet just like you did with the ﬁrst one, then connect

the two devices together by screwing the rubber feet of the second device back on. When properly done,

the resulting setup will look same as the one shown below.

Fig. 7: Two devices in rack mount conﬁguration

At this point you can mount the whole setup in the rack by bolting the sides to the frame of the rack. In

most cases though, we recommend that the devices are ﬁrst connected and then mounted, for the simple

Version 1.3 28/10/2015 7 of 21

3.2 Table mount

reason that all connections of the device are located in the back and once mounted, the devices will not

be as easy to access. Connecting the device is described later in this chapter.

3.2 Table mount

When used in an oﬃce environment the SAS220 device could be placed on your oﬃce desk, next to your

PC, while in a professional environment your SAS220 device would typically be mounted in a rack.

3.3 Connecting your SAS220 device

Regardless of where you use your SAS220 device and how it is mounted, it is important that you connect

it properly.

3.3.1 Connecting the protective earth

The SAS220 device features an external Protective Earth (PE) connector. This connection ensures that

all exposed conductive surfaces are at the same electrical potential as the surface of the Earth, to avoid

the risk of electrical shock if a person touches a device in which an insulation fault has occurred.

In an oﬃce environment, you would normally connect the PE to the chassis of your desktop com-

puter.

Normally all devices mounted in a rack have the PE (when applicable) connected to the frame of the

whole setup. When this scenario applies to you, simply connect the PE connector of the SAS220 device

to the frame of your setup with a conductive wire. The following steps are followed:

•Unscrew the connectors head until you see the complete hole in the con-

nector.

•Put the stripped part of the conductive wire in the hole.

•Screw the connector head back on. Make sure that the wire is ﬁxed.

•Connect the other side of the wire to the chassis of your computer or the

frame of the rack.

•You could use a digital multi-meter to verify that there is indeed connec-

tion between the chassis (rack) and your SAS220 device.

3.3.2 Connecting the power supply

Plug the power adapter to the mains outlet and then screw the connector on to you SAS220 device. In

the process we ask that you careful attention to the following instructions:

Never use wet hands when plugging the power adapter in the mains and never remove

the power adapter from the mains with wet hands.

Do not cut or damage the cord of the power adapter; do not place heavy objects on

the cord. This can cause short-circuit, resulting in electrical shocks or ﬁre.

Pulling the cord can also damage the wire and/or isolation causing electrical shocks

or ﬁre.

Version 1.3 28/10/2015 8 of 21

4. Basic knowledge

Using power adapters other than the one recommended for your SAS220 device, can

result in overheating and damage you device. This can cause ﬁre, electrical shocks

and other hazards. Only use the supplied power adapter.

Applying your SAS220 device to situations with rapid changing temperatures can

result in condensation (small amount of water) on the inner and outer surface of your

device. To ensure a long lifetime of your SAS220 device, this should be prevented. In

case of such a scenario, wait until you device is ’dry’ before you use it again.

All our power adapters currently are wide-range 90-240VAC.

3.3.3 Connecting the ethernet cable

Use the provided Ethernet cable to connect your SAS220 device with your cable modem, ADSL modem

or router. If everything is OK (and the power supply has also been connected) the yellow LED of the

Ethernet connector will light-up yellow continuously while being connected. The green led will blink

randomly.

3.3.4 Connecting the audio input

Connect the line output of your audio source to the audio input of your SAS220 device, using XLR audio

cables with male connectors. No audio cables are included with your SAS220 device.

3.3.5 Connecting the headphones

To listen to the input signal of the SAS220 a headphone with 6,3 mm connector can be connected. The

audio is only available while the SAS220 is encoding/streaming.

3.3.6 Connecting the USB service cable

The USB connection is used for service purposes, which include programming your device, software up-

date and monitoring of the communication between the SAS220 device and the internet. The B-connector

of the USB cable is plugged in the device, while the A-connector connects to your Windows PC. Before

making this connection we recommend that the Streamit Terminal Program is ﬁrst installed.

4 Basic knowledge

The SAS220 is an internet audio encoding and streaming device. It can encode the audio into Ogg Vorbis

or MP3 and stream it to an Icecast distribution server. The SAS220 can also be used as a server, so

that client devices can connect directly to the SAS220. In this case, the SAS220 device can serve up to

2 connected client devices.

Version 1.3 28/10/2015 9 of 21

Tabla de contenidos

Otros manuales de Convertidor de medios de Streamit

Streamit

Streamit Maven Manual de usuario

Streamit

Streamit SAS100 Manual de usuario

Streamit

Streamit SAS310 Manual de usuario

Streamit

Streamit Lisa Compact Manual de usuario

Streamit

Streamit Maven Manual de usuario

Streamit

Streamit SAS310 Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
