Steren COM-437 Manual de usuario

Before using your new USB 4-Channel Video Capture,

please read this instruction manual to prevent any damage.

Put it away in a safe place for future references.

Important Considerations Before Using this

Device

It is possible that sometimes when the device is connected to

your computer’s USB port, the computer might not recognize the

device. If this error happens, you should try some of the

following possible solutions:

Disconnect the device, wait a few seconds, and

reconnect the device

Connect the device to another available USB port on

your computer.

Restart your computer after having connected the

device.

Characteristics

Visualization and recording of four video channels

simultaneously and on a single viewable screen

Visualization:

· Supports the following visualization modes: One image,

four images, and sequence mode.

· Supports full screen display

· Display for camera identiﬁcation, date, and time

· Allows you to change camera names

Recording:

· Instant or programmed recording

· Frames per second settings

· Supports linear or circular modes (when writing)

· Allows for independant recording for multiple cameras

· Audio recording

Playback:

· Allows for search by hour, date, camera ID, etc.

· Video search bar

· Exact duration time

· Playback speed controls

· Take still-frame pictures during playback

•

ENGLISH

ENGLISH-2

Before usin

our new USB 4-Channel Video Capture,

lease read this instruction manual to prevent an

dama

ut it awa

in a safe place for future references

Motion Detector:

· Camera selection

· Adjustment of motion detector sensitivity (Low, medium,

high)

· Detection action (Record, alarm)

Minimum System Requirements

Video card (devices with video cards included in the

motherboard are not recommended)

1 available USB 2.0 port

DirectX 9.0 or higher

Intel Pentium 4 at 1 Ghz or better or equivalent AMD

processor

128 MB RAM

Windows 2000 with SP4 or Windows XP with SP1 or better

Contained Within

1 Video Capture Device

1 CD with drivers and utilities

1 Instruction Manual

•

ENGLISH

ENGLISH-3

ENGLISH

ENGLISH-4

Controls

1. Composite Video Input

Allows for the connection of up to four video cameras with RCA

connectors

2. USB jack

Allows you to connect the video capture device to your computer

Make sure that your computer has USB 2.0 ports before

installing this device.

Driver Installation

Make sure to install the corresponding drivers before

connecting the video capture device to your computer.

1. Insert the included disc in your computers disc drive.

2. Click the windows start menu and then the RUN option. Type

the following command: XX:\4eyeGrab\Driver\Setup.exe, where

XX is the drive where the disc is located.

3. On the welcome screen that appears, click the NEXT button in

order to continue.

4. The installation process will now begin.

5. In order to conclude the installation, click the FINISH button.

You will now need to restart your computer.

ENGLISH

ENGLISH-5

6. After your computer has been restarted, connect the video

capture device in one of your USB 2.0 ports.

7. Your computer will automatically detect a new device and will

make the necessary updates. After a few seconds, the video

capture device will be completely ready for use.

If you wish to verify that the device has been properly

installed, follow these steps: Open the control panel,

system, hardware, device administrator. Here you should

ﬁnd the driver USB 2.0 A/V Converter.

ENGLISH

ENGLISH-6

ou wish to verif

that the device has been properl

nstalled, follow these ste

s: O

en the control

anel,

stem, hardware, device administrator. Here

ou should

ﬁ

nd the driver USB 2.0 A/V Converter

Application Software Installation

1. Insert the included disc in your computers disc drive.

2. Click the windows start menu and then the RUN option. Type

the following command: XX:\4eyeGrab\AP\Software\Setup.exe,

where XX is the drive where the disc is located.

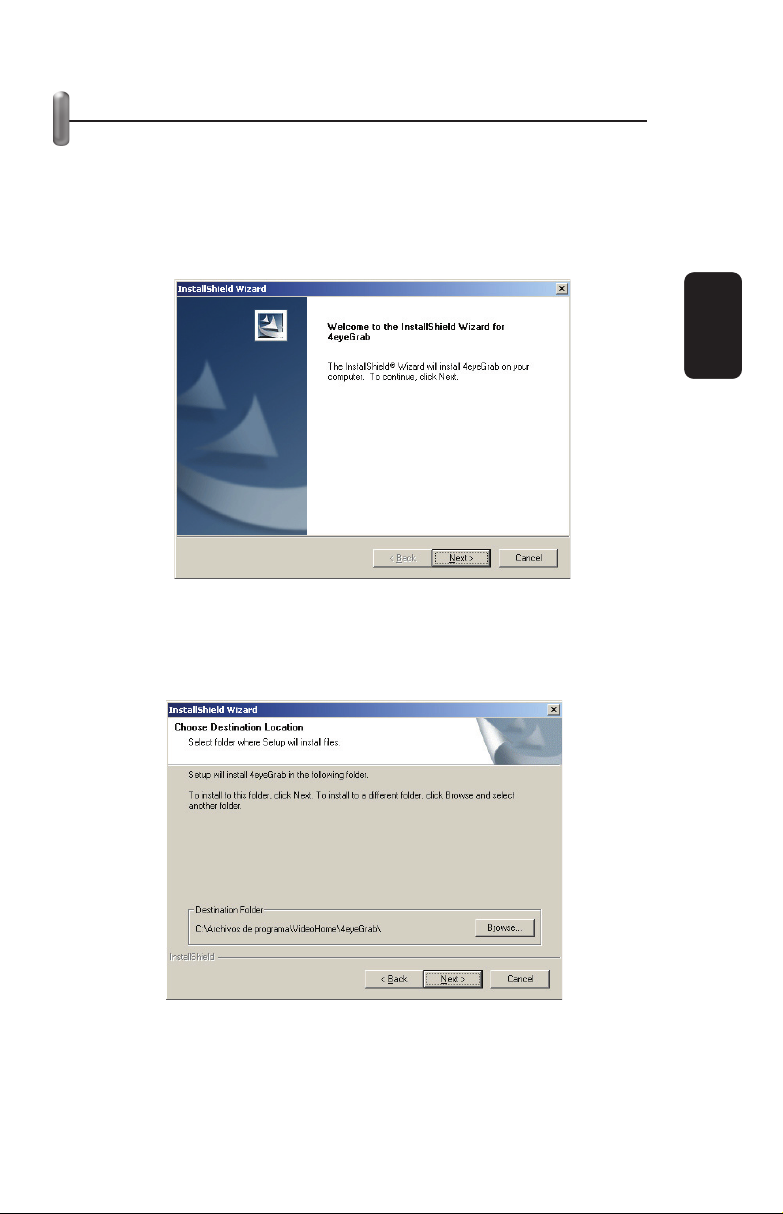

3. On the welcome screen that appears, click the NEXT button in

order to continue.

4. Click the NEXT button in order to select a destination folder.

ENGLISH

ENGLISH-7

5. The installation process will begin.

6. During the process, it will be necessary to install Windows

Media Tools. A new installation window will appear on the

screen. Click YES in order to continue with the installation

process.

7. On the Windows Media Tools start window click NEXT in order

to continue with the installation process.

ENGLISH

ENGLISH-8

8. Select COMPLETE INSTALLATION and click NEXT. It is

possible that a warning window will appear. If this is the case,

simply click OK.

9. On the next window, click FINISH. The installation will begin.

ENGLISH

ENGLISH-9

10. Click OK in order to conclude the installation of Windows

Media Tools.

11. Click FINISH in order to conclude the entire installation

process for the application software.

12. You will ﬁnd a 4 eyeGrab icon on your Windows desktop.

ENGLISH

ENGLISH-10
