STEININGER ROCK.AIR Manual de usuario

ROCK.AIR

OUTDOOR KITCHEN

USER MANUAL

Showrooms: Sankt Martin .Linz .Vienna (A) .Hamburg (D) .London (GB) .St. Gallen (CH)

KITCHEN INTERIOR DESIGN ARCHITECTURE

www.steiningerdesigners.com

CONTENTS

SAFETY INSTRUCTIONS p. 3

INSTALLATION INSTRUCTIONS p. 4

PLANNING INSTRUCTIONS p. 6

ROCK.AIR.FIRE p. 7

ROCK.AIR.WASH p. 10

ROCK.AIR.COOL p. 14

ROCK.AIR.COOK p. 18

CLEANING AND CARE p. 24

WINTERIZATION & DEWINTERIZATION p. 25

SAFETY INSTRUCTIONS

• Please read this user manual and the safety instructions carefully.

• The unit may only be connected to the gas line by a specialist.

• For units operated using natural gas, the connection must always be carried out

in coordination with the local gas works.

• When connecting the gas, care must be taken to ensure that the main gas shut-off valve is

easily accessible and that the gas pressure reducer is installed close to the unit and in an

easily accessible position, as specified on the type plate.

• For propane gas units, the connection to the gas supply must be carried out by an expert

and approved by an expert with the requisite authorisation.

• In propane gas systems, only gas regulators marked “50 mbar” are permitted for

installation in the supply line between the gas canisters and the unit itself.

• The use of regulators with adjustable operating pressure or high-pressure regulators is

strictly prohibited.

• Propane gas systems must be secured with sheet cladding to prevent access by

unauthorised persons.

• Always check the unit and the gas supply system for leaks after moving them.

• Gas canisters or tanks weighing more than 14 kg must not be kept indoors or close to the

unit.

• The unit may only be converted to a different type of gas by a specialist.

• Units that carry water must be protected against frost.

INSTALLATION INSTRUCTIONS

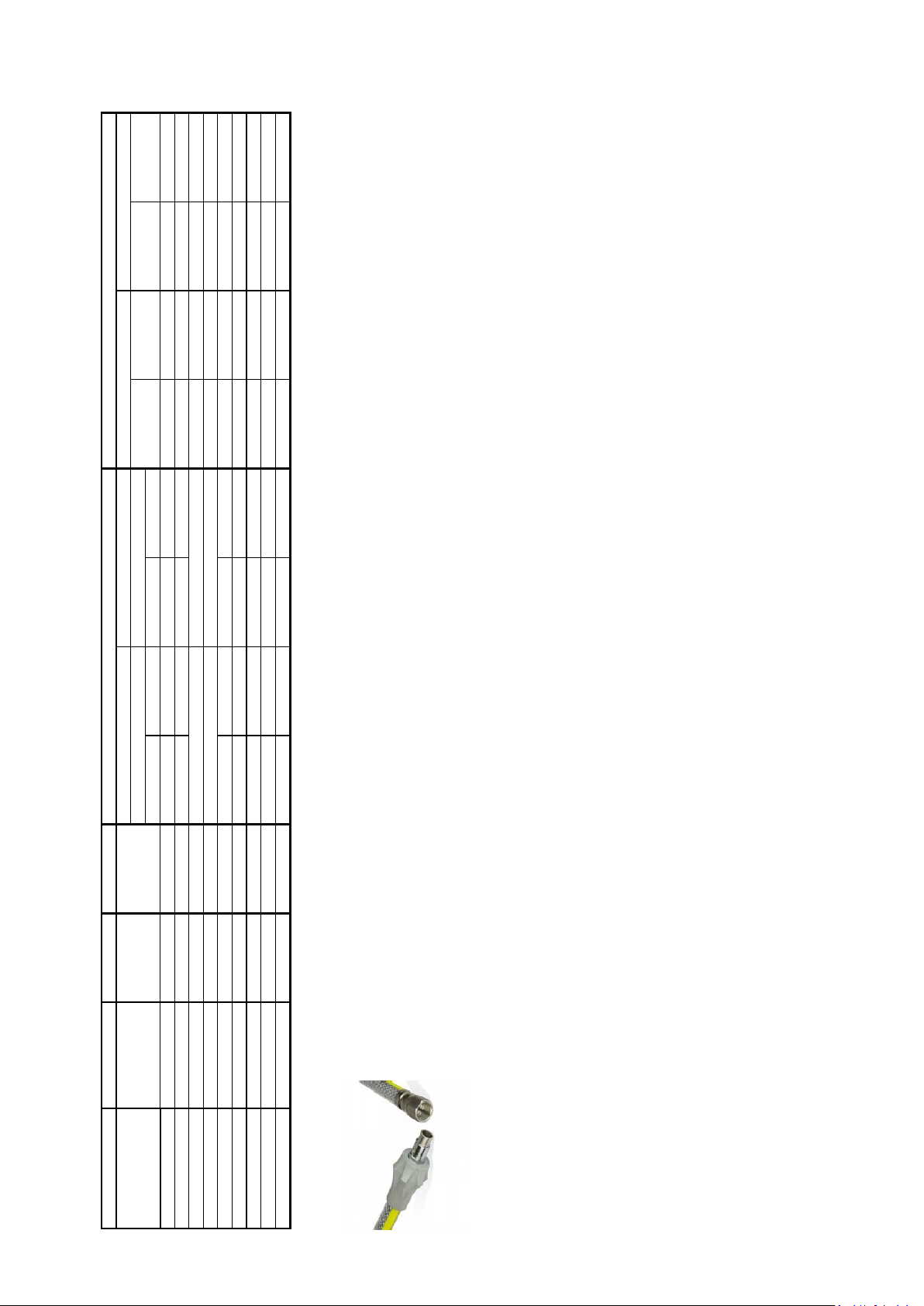

MODEL ITEM ELECTRIC WEIGHT

Gas connection Ø Nozzles Ø Gas connection Ø Nozzles Ø

Rock.Air Cook electric sm-ro-air-cook-el 400 V / 9 KW 250 Kg - - - - - - - -

Rock.Air Cook gas sm-ro-air-cook-gas 250 Kg 1/2" 1.6mm 15mm 0.97mm - -

Rock.Air.Fire Gas small sm-ro-air-fire-gs 240 VAC / 16A 150 Kg - - - -

Rock.Air.Fire Gas tall sm-ro-air-fire-gt 240 VAC / 16A 200 Kg - - - -

Rock.Air.Wash sm-ro-air-wash - 200 Kg - - - - 1/2" 1/2" 50mm -

Rock.Air.Wash + FP sm-ro-air-wash-fp 240 VAC / 16A 250 Kg - - - - 3/4" - 38mm 19mm

Rock.Air.Cool FP sm-ro-air-cool-fp 240 VAC / 16A 200 Kg - - - - - - - -

Rock.Air.Cool SZ sm-ro-air-cool-sz 240 VAC / 16A 240 Kg - - - - - - - -

Rock.Air Freeze SZ sm-ro-air-freeze-szi 240 VAC / 16A 250 Kg - - - - 3/8" - - -

Gas connection acc. To DIN EN 3383

GAS WATER

1/2" DIN EN 3383 1/2" DIN EN 3383

Water supply Ø Water drain Ø

Cold Hot

Direct drainage

connection

Connection on

siphon (for GS)

Domestic gas line

Natural gas 20mbar

Gas canister

Propane 50mbar

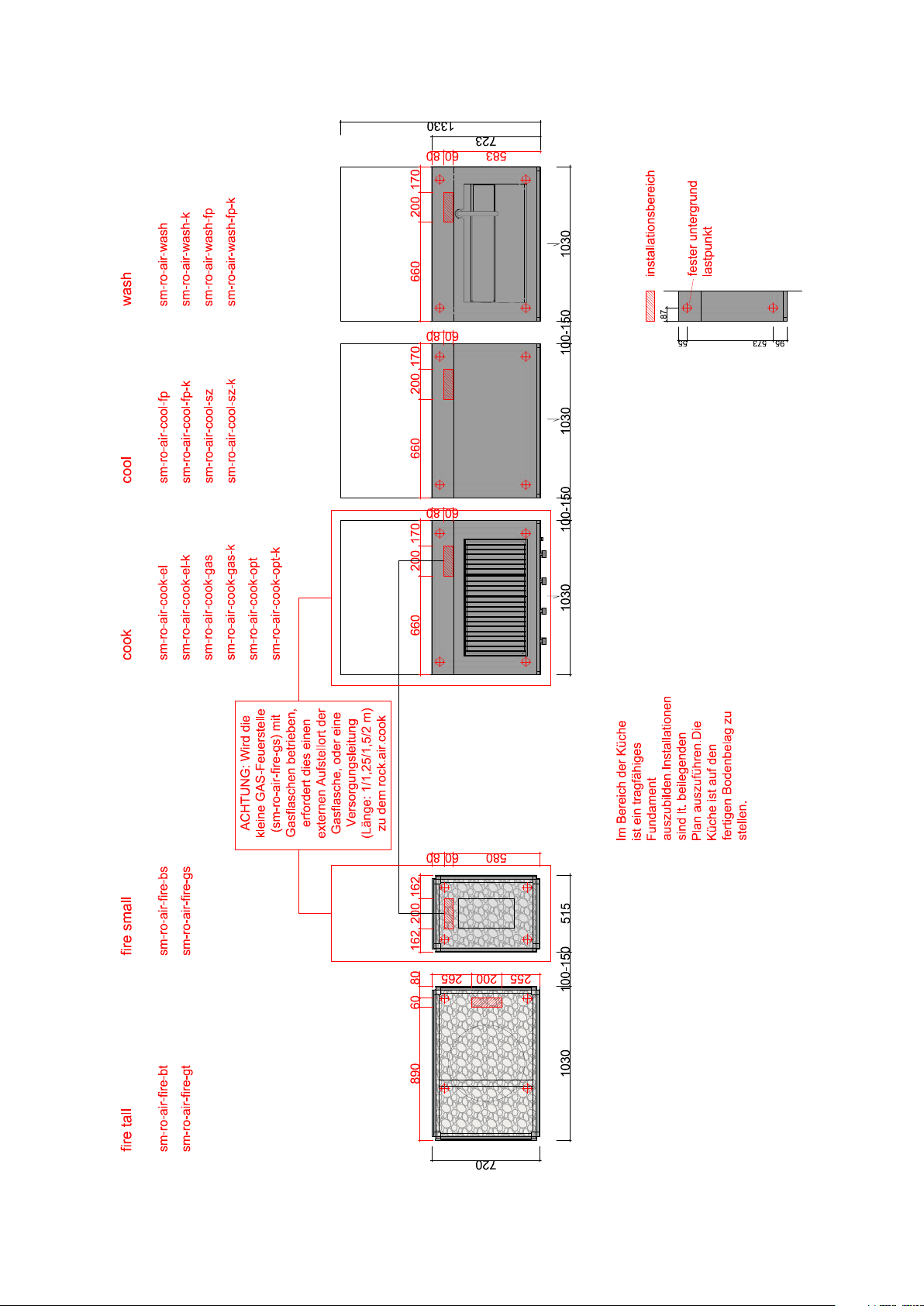

INSTALLATION INSTRUCTIONS

PLANNING INSTRUCTIONS

• When setting up the individual cubes, make sure that the load points are positioned on a solid base.

• The tools supplied with the unit can be used to adjust the height of the feet and level the cubes. Level

the bodies carefully.

ROCK.AIR.FIRE

A Glass front

To open, lift up and pull away

towards your body.

D Infra-red receiver for remote control

Hold the remote control close to the sensor

to turn the flame on/off.

C Gas canisters

Turn open before operation and turn closed

afterwards.

Available items • sm-ro-air-fire-bs ...

• sm-ro-air-fire-bt ...

• sm-ro-air-fire-gs ...

• sm-ro-air-fire-gt ...

B Lava rock/gas ignition

Do not place lava rocks in front of the gas ignition.

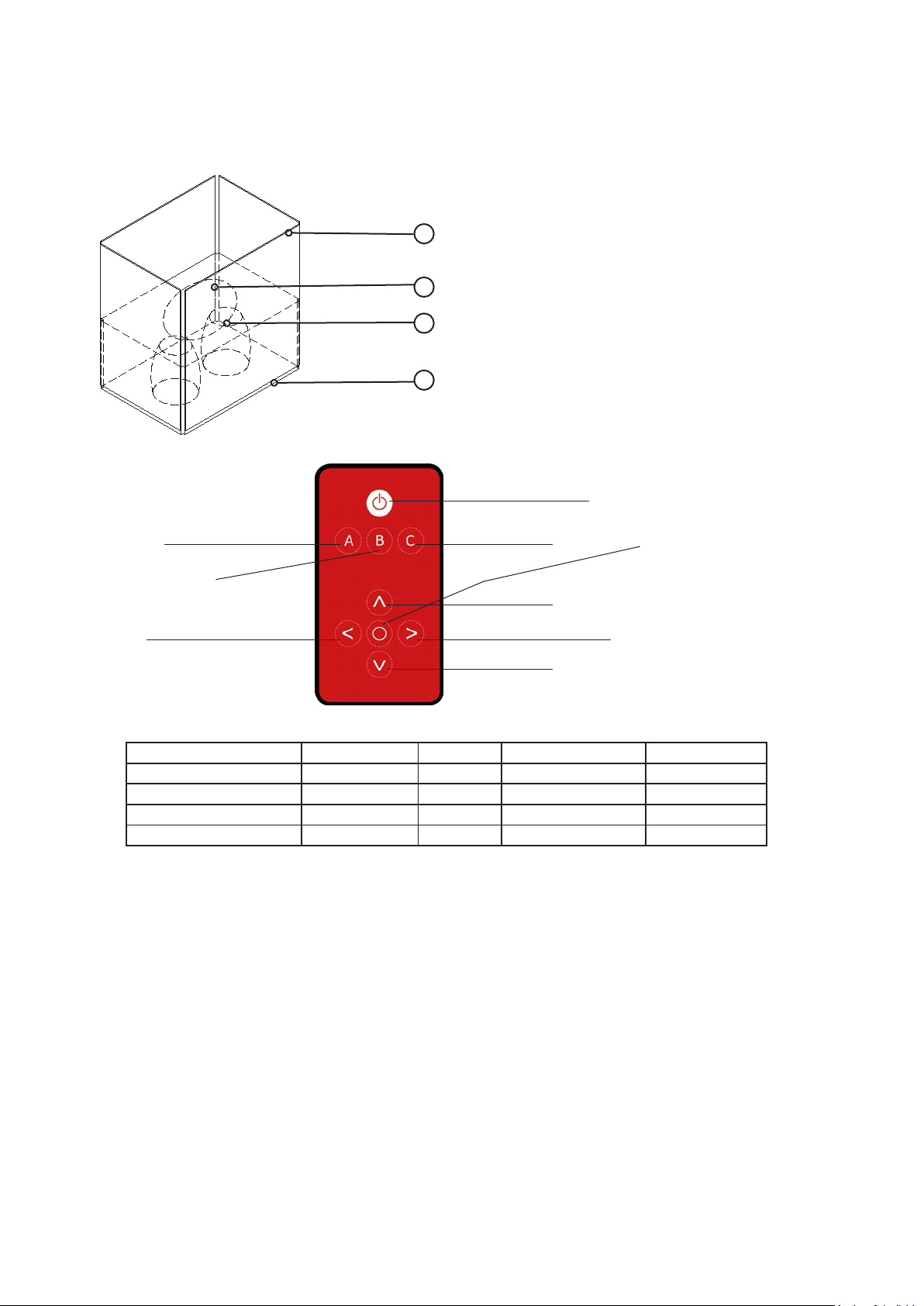

• POWER ON Press buttons 1 and 10 successi-

vely within 2 seconds. The ignition sequence

is initiated. First, the pilot burner starts to

ignite (ticking sound). As soon as the pilot

flame burns stably, the main burner also ig-

nites (also audible). The gas fire burns at the

factory-preset level.

• POWER OFF Press button 1 for at least 3

seconds. The gas supply is interrupted imme-

diately. The remaining gas that is still inside

the gas fire burns completely. The gas fire

extinguishes.

• FLAMES HEIGHER

• Press button 5 once, several times or conti-

nuously until the desired flame height is rea-

ched. If the button is pressed for longer than

30 seconds, or if the maximum flame height

is reached, an acoustic signal is emitted.

Model Item Gas Pressure Connection Gas consumption

ROCK.AIR Fire Gas Tall sm-ro-air-fire-gt Natural gas 20 n.s.

ROCK.AIR Fire Gas Tall sm-ro-air-fire-gt Liquid gas 50 3-5 kg/h

ROCK.AIR Fire Gas Small sm-ro-air-fire-gs Natural gas 20 1,42 m³/h

ROCK.AIR Fire Gas Small sm-ro-air-fire-gs Liquid gas 50 1,17 kg/h

• FLAMES LOWER

Press button 9 once, several times or conti-

nuously until the desired flame height is rea-

ched. If the button is pressed for longer than

30 seconds, or if the minimum flame height is

reached, an acoustic signal is emitted.

• MODULATING FLAMES AUTOMATICALLY

Press button B (3) once. This is confirmed by a

single acknowledgement tone. The flames are

periodically enlarged and reduced.

• DEBUGGING / RESET

In the event of a fault, the gas fire switches off

for safety reasons. Before it can be restarted,

the control unit must be reset. Press button C.

If the fault occurs again, consult a specialist.

Power off 1

Power on:

Press 1 and 10 successively

within 2 sec

Debugging 4

Flame higher 5

Flame smaller 9

Fire noise generator (opt.) higher 8

Round button 10

Fire noise generator optional 2

Fire noise generator (opt.) lower 6

Automatic flame

modulation / Eco-

wave 3

ROCK.AIR.FIRE

Removing the glass front A for gas inspection:

• Take the glass front in both hands.

• Lift upwards.

• Pull it away towards your body.

Mounting the glass front A

• Take the glass front in both hands

and hang it on the hooks (two on

each side, top and bottom) from above.

Connecting the gas canister:

• Connect the connection hose on the gas canister C

to the fireplace and turn the locking mechanism until

the green symbol appears.

Keep lava rocks away from the gas ignition B , other-

wise the unit may not ignite.

The infra-red receiver D for the remote control must

be kept clear.

Warnings:

• Never leave the open fire burning unattended.

• Never throw flammable materials (cigarette stubs, wood, etc.) or other waste into the fire.

• Never allow the burner’s electrical system to come into contact with water.

• It is prohibited to re-ignite the burner immediately after it has been turned off. Please wait approx. 10

minutes to ensure that all the parts have stopped glowing.

• If you smell gas: Immediately close the gas supply using the connection fitting on the unit. Extinguish

all ignition sources immediately (e.g. burning candles, cigarettes, cigars, pipes). Do not press any

electrical switches. Do not use any telephones (mobile or landline). Notify the installation company.

ROCK.AIR.FIRE

ATTENTION

The ROCK.AIR fireplaces may only be heated or fired with the fuels intended for them (= burning gel or

gas). These are only suitable for outdoor use.

• Lighting a fire in any other way (with wood, coal or other combustible materials) is strictly prohibited!

• Furthermore, burning or introducing highly flammable or explosive substances into the ROCK.AIR

fireplaces as well as their storage in the immediate vicinity of the ROCK.AIR fireplaces is also strictly

prohibited due to the risk of explosion!

• Use the ROCK.AIR fireplaces only as described in this manual. Any use other than specified may result

in material damages or even personal injuries. Steininger does not assume any liability for damages

caused by improper use

BURNING GEL

• Spread the burning gel in the metal tray provided, so that the bottom is covered.

Steininger recommends „BLOMUS Burning Gel 1000 ml“.

• Fill in the desired amount depending on the desired burning time

1000 ml are enough for about 40 minutes

• The flame must not be covered or extinguished. The fire must extinguish without intervention.

• Refilling is only allowed in a cooled down state.

POWER CONNECTION

A 230 VAC/16A socket must be provided for the power connection. The connection must be made via

a separate main switch in order to be able to switch off the gas fire in an emergency (e.g. if IR remote

control fails).

The burner is phase sensitive. If the burner beeps continuously -> unplug it, turn it 180° and

plug it back in.

When positioning the socket, please take into account that the connection cable ( I I ) has a

length of 1,200 mm.

If the power cable of this appliance is damaged, it must be replaced by the manufacturer or

their service agent or a similarly qualified person in order to avoid hazards.

ROCK.AIR.WASH

Extendible tap B

Extending:

• Pull the tap upwards.

Retracting:

• Press down firmly on the top of the water outlet.

Drain cover C

Opening the drain:

• Pull the drain cover off from above.

Sealing the drain:

• Re-insert the cover, starting with the edge closest to

your body.

Sieve cover C

Drain:

• Pull up - open

• Press in - closed

A Cover

To open, lift up and slide back.

E Siphon (rear)

D Drawer: To open, pull out at left or right side.

Gas canister and replacement utensils in drawer.

Available items • sm-ro-air-wash ...

• sm-ro-air-wash-fp ...

C Drain cover and, below, sieve cover.

B Extendible tap

F Inspection flap (rear)
