SteelFlex XT-3300 Manual de usuario

Treadmill XT-3300 VERSION

The assembly of the parts S/N：0405

Page 1 of 11

Paint Color

國麗3124S Silver

Item Part No.

Operation Manual 9430-014

Illustration Manual K3300

Console Display

Left Upright

Frame Assembl

Right Uprigh

Console Frame Assembl

Rear Foot Assembly

Handle Bar Assembl

Running Belt, Dec

and Rolle

Treadmill XT-3300 VERSION

The assembly of the parts S/N：0405

Page 2 of 11

Rectangular Cap

9211-067

M4 Screw Clamp

Motor Cover

9264-007

M4×15 Round

Cross Tap Screw

Side Railing (aluminum)

8910-017

One-Faced Adhesive

9190-028

M4×15 Taper Cross

Tap Screw

Rear End Cap

(Right) 9261-020

Rear End Cap

(Left) 9261-021

LOGO Sticke

9441-066

Treadmill XT-3300 VERSION

The assembly of the parts S/N：0405

Page 3 of 11

Running Dec

9710-010

Rear Roller Se

9812-010

Front Roller Se

9812-009

Driving Bel

9252-022

M6×25 Tape

Inner Hex Screw

M8×70 Socket Head Cap Screw

Running Belt

9251-021

M8×40 Socke

Head Cap Screw

M5×6 Round

Cross Screw

M5 Washer

M8×25 Socket Head Cap Screw

M5 Toothed Lock Washer

M4×15 Round Cross Screw

M4 Toothed Lock Washe

M4 Washe

Grounding Wire

9543-003

Adjusting Clasp

8292-007

M10×110 Hex

Screw

M10 Nut lock washer

5-16 UNC Nut

5-16 Spring Washer

M10 Washer

Treadmill XT-3300 VERSION

The assembly of the parts S/N：0405

Page 4 of 11

Plastic Part

9260-040

Power Switch

9545-010

Lift Motor

9510-022 (110V)

9510-020 (220V)

M10×45 Hex Screw

M4×8 Round Cross Tap Screw

M4 Washer

M10 Nut loc

washe

Current Protector

9546-067 (110V)

9546-026 (220V)

ψ18 Disc Washer

ψ4 Pulling Nail

Power Cord Socke

9546-025

MCB Driving Boar

9520-012 (110V)

9520-011 (220V)

Fastener

9260-014

Cushion

9214-019

Adjusting Bolt Spring

8840-023

O-Type Terminal

9546-056

Anti-Static Electricity

Device 8890-032

M4×15 Round Cross Screw

M4 Washer

Hall Sensor

Assembly

Rear Wheel

9266-002

1/2” Nut Loc

Washe

1/2” 2Hex Screw

M4×12 Round Cross Tap Screw

M4×15 Round

Cross Screw

M4 Washe

Treadmill XT-3300 VERSION

The assembly of the parts S/N：0405

Page 5 of 11

M6 Nut lock washer

3/8” Pull Nu

Base Frame

20XT3300B

Adjustable Foot

9214-010

Fixed Bracket

9260-028

M3×8 Round Cross Screw

Hall Senso

9545-009

Fastener

9260-030

M3 Nut

Sticker for adjustable foot

9441-063

Rectangular Cap

9211-010S1

Wheel

9213-014

Adjusting Washer

8381-035

M6×50 Round Inner Hex Screw ψ11×ψ20 Plastic Bush

9260-038

Treadmill XT-3300 VERSION

The assembly of the parts S/N：0405

Page 6 of 11

End Cap

9211-001

M10 Washe

M10 Nut lock washe

M10×45 Hex

Screw

Adjusting Set

8250-036

M10×30 Round

Inner Hex Screw

M10 Nut lock washe

Oil Pressure

Rod with Air

8830-005

1/2” 2-UNC Screw M10×50 Hex

Screw

1/2” Nut lock Washe

M10×60 Hex Screw

Rectangular Cap

9211-008

Electroplated Tube

260510

Adjustable Tube

20XT3300H

Treadmill XT-3300 VERSION

The assembly of the parts S/N：0405

Page 7 of 11

Console Display

9471-013 (XT3300)

9471-014 (XT3300H)

Nameplate Sticke

9441-065

M2.6×15 Round Cross Screw

M2.6 Nut

Sensor Switch

9545-011

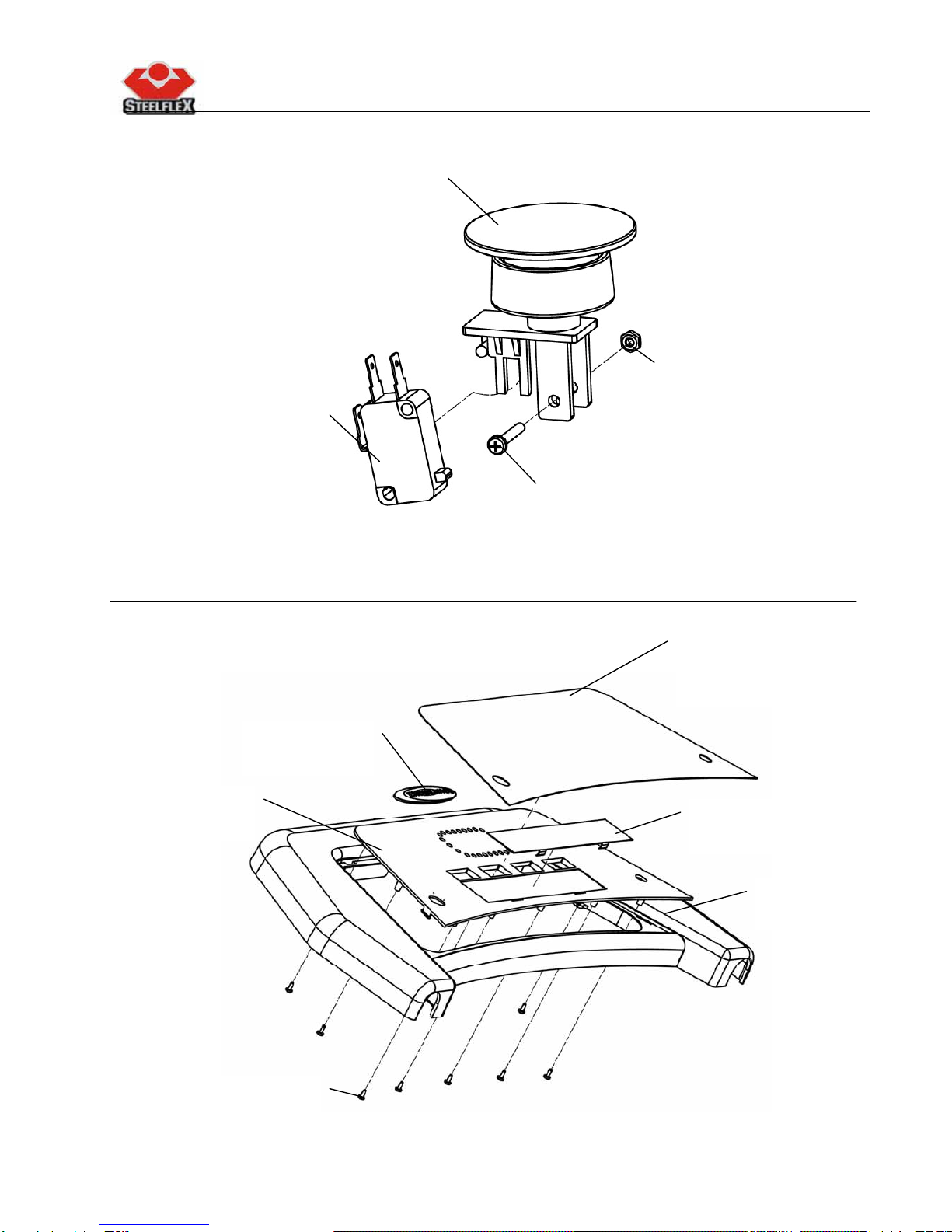

Stop Switch Assembly

9545-005

Top Console

9263-006

Printing Circuit

9472-001

M4×10 Round Cross

Tap Screw

Console Plate

9263-008

Treadmill XT-3300 VERSION

The assembly of the parts S/N：0405

Page 8 of 11

M3×8 Round Cross Tap

Screw

PC Board

9530-048

ψ14×ψ25×2t Rubber Washer

M3 Bakelite Washer

Stop Switch Assembly

Heart Rate PC Boar

9530-022

Hall Sensor

9545-006

Wire Holde

9260-016

PC Board Wire

9542-063

Hand Pulse Connector

Wiring 9542-013

Hand Pulse Connecto

Wiring 9542-013

Treadmill XT-3300 VERSION

The assembly of the parts S/N：0405

Page 9 of 11

M5×16 Roun

Cross Tap Screw Bottom Console

9263-007S1

M4 Washer

M4×16 Round Cross Screw

M4 Toothed

Lock Washe

Grounding Wire

9543-005

Grounding Wire of Hear

Rate PC Boar

Console Frame Wel

20XT3300-F

Handle Bar Assembly

22XT3300-2

Rubber Sleeve

9163-013

3/8” Spring Washer

M10×50 Roun

Inner Hex Screw

Rubber Sleeve

9163-012

Handle Bar Wel

20XT3300-G

Treadmill XT-3300 VERSION

The assembly of the parts S/N：0405

Page 10 of 11

【22XT3300H】

DC Motor Set

9510-050 (110V)

9510-053 (220V)

M8 Washer

M8 Spring Washe

Adjusting Spring

8840-013

M8 Nut

M8×20 Hex

Screw

M8×15 Hex Screw

M8 Spring Washer

Fixed Bracke

8410-028

M3×30 Round

Cross Screw

Rubber Sleeve

9163-021

Hand Pulse (Plastic)

9260-035

M3 Nut

Rubber Sleeve

9163-015

Hand Pulse (Iron)

8387-031

Hand Pulse Connector

Wiring 9542-013

Handle Bar Weld

20XT3300H-G
