STATESMAN CGH60GS Manual de usuario
Please read these instructions carefully before use and retain for future reference.
Before switching on your appliance – Always check for any damage that may have been caused in transit.
Instruction Manual
CGH60GS / CGH90GS
CHIMNEY HOOD STAINLESS STEEL
CURVED GLASS
Serial number:
2
CONTENTS
Important Safety Instructions ........................................3
Specication.............................................................. 4-5
Appliance Overview.......................................................6
Installation ................................................................. 6-8
Operating Instructions...................................................9
Cleaning and Maintenance...................................... 9-10
Fuse Replacement ......................................................11
Disposal Information ...................................................11
Trouble Shooting Guide...............................................12
3
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all of the instructions even if you feel you are familiar with the product, and nd a
place to keep this manual handy for future reference.
Important: This product is intended for indoor domestic household use only.
When using electrical appliances, basic safety precautions should always be followed:
1. Only a qualied engineer can install, connect or repair this appliance. Do not install or operate
the appliance if it has been damaged.
2. Ensure the appliance is installed according to the installation instructions provided.
3. Do not change the specications or modify this appliance.
4. Before installing ensure to turn o the gas and electricity supply to the appliance.
5. Check the voltage of the appliance matches the household voltage, which is located on the
rating label. The operating voltage of the appliance is 220-240V at 50Hz. Check the rating label
and specication page for further information.
6. All appliances containing any electrical components must be earthed.
7. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge.
8. Cleaning and user maintenance shall not be made by children
9. Keep the appliance and its cord out of reach of children.
10. Children shall not play with the appliance.
11. The appliance plug must be accessible after installation. Always unplug the appliance before
cleaning.
12. Use of an extension cord is not recommended with this product.
13. The appliance is not intended to be operated by means of an external timer or remote control.
14. When disconnecting from the electricity supply, pull the plug, not the cord.
15. There should be adequate ventilation of the room when using the appliance along with other
appliances burning gas or other fuels.
16. Regular cleaning should be maintained to prevent the risk of re.
17. It is not recommended to expose the appliance to a direct heat source from cooking appliances
below i.e. naked ame from a gas burner or heat from electric hob zones without a pan on.
18. If the cooker hood is installed for use above a gas appliance then the provision for ventilation
must be in accordance with the Gas Safety Codes of Practice, the Gas Safety (Installation
& Use) Regulations, the Building Regulations issued by the Department of the Environment,
the Building standards (Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
19. It is not recommended to ambé cook under appliance.
20. The appliance only extracts vapours and odours occurred during cooking, it does not
remove steam.
21. Ensure that the appliance is only used in accordance with the instruction manual.
22. Ensure the appliance is switched on when using the cooking appliance below otherwise
condensation may collect in the appliance and cause corrosion.
WARNING: Do not connect the exhaust hose to an existing ventilation system that is
currently in use.
4
TECHNICAL SPECIFICATIONS - CGH60GS
Trade Mark Statesman
Model Number CGH60GS
Category Type Hood
Energy Eciency Class C
Annual Energy Consumption (kWh/a) 95
Fluid Dynamic Eciency 17.2 (D)
Lighting Eciency 64.6 lux/W (A)
Grease Filter Eciency 81.5 (C)
Time Increase Factor 1.4
Measured Air Flow Rate at Best Eciency Point (m3/h) 341.9
Measured Air Pressure at Best Eciency Point (Pa) 330
Maximum Air Flow (m3/h) 612.5
Measured Electric Power Input at Best Eciency Point (W) 182.0
Nominal Power of the Lighting System (W) 3
Average Illumination of the Lighting System on the Cooking Surface (lux) 181
Measured Power Consumption in Standby Mode (W) 0.41
Measured Power Consumption in O Mode (W) 0
Sound Power Level (dB) 65
Rated Power (W) 213
Voltage (V) 220-240
Frequency (Hz) 50
Dimensions (mm) 485(H) x 600(W) x 500(D)mm
Chimney Height (mm) 455-825
Outlet Dimensions (mm) 150
5
TECHNICAL SPECIFICATIONS - CGH90GS
Trade Mark Statesman
Model Number CGH90GS
Category Type Hood
Energy Eciency Class C
Annual Energy Consumption (kWh/a) 89.4
Fluid Dynamic Eciency 18.3 (C)
Lighting Eciency 34.6lux/W (A)
Grease Filter Eciency 82.8 (C)
Time Increase Factor 1.3
Measured Air Flow Rate at Best Eciency Point (m3/h) 327.6
Measured Air Pressure at Best Eciency Point (Pa) 326
Maximum Air Flow (m3/h) 631.0
Measured Electric Power Input at Best Eciency Point (W) 184.2
Nominal Power of the Lighting System (W) 3
Average Illumination of the Lighting System on the Cooking Surface (lux) 97
Measured Power Consumption in Standby Mode (W) 0.41
Measured Power Consumption in O Mode (W) 0
Sound Power Level (dB) 66
Rated Power (W) 213
Voltage (V) 220-240
Frequency (Hz) 50
Dimensions (mm) 485(H) x 900(W) x 500(D)mm
Chimney Height (mm) 485-855
Outlet Dimensions (mm) 150
6

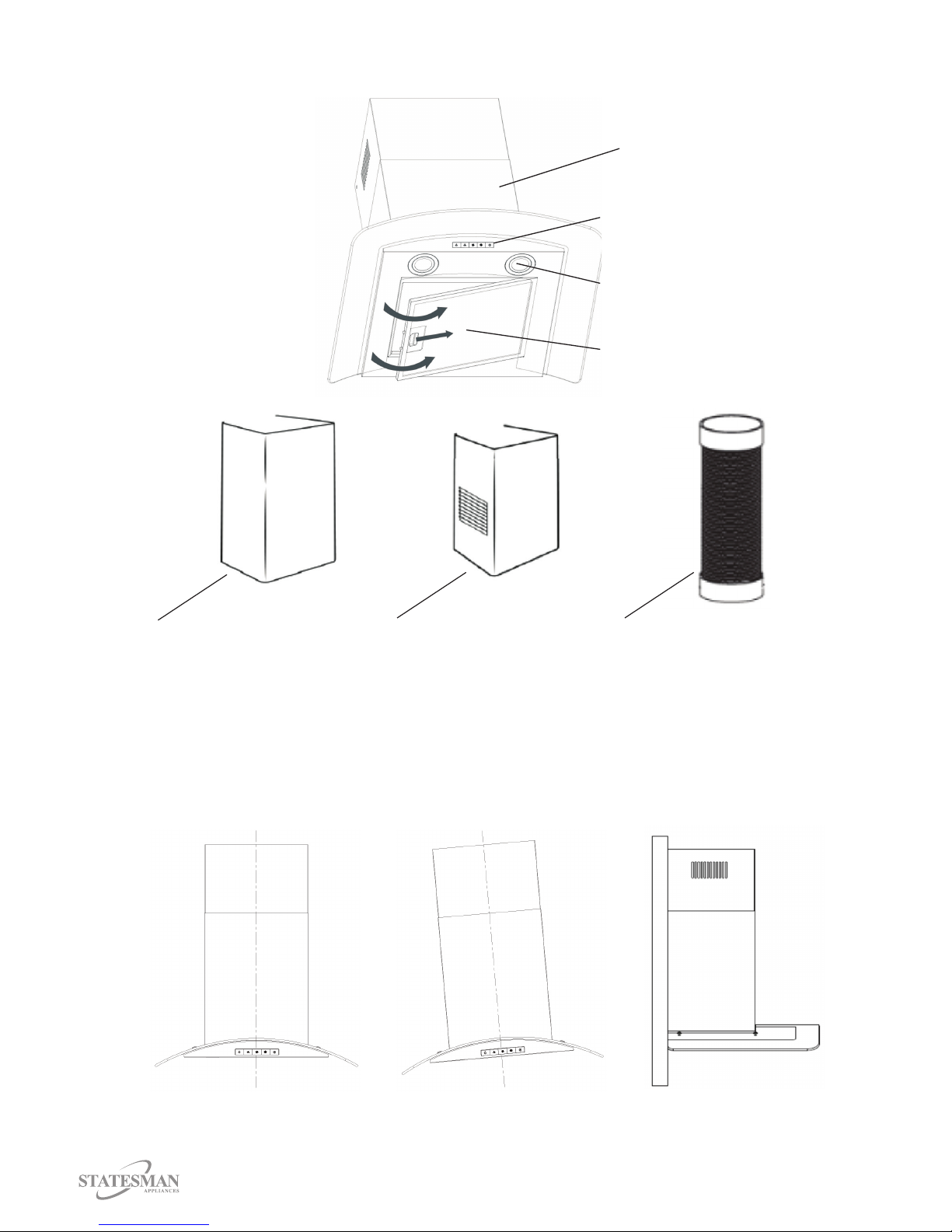

APPLIANCE OVERVIEW
Main Body
Chimney Chimney Extension Exhaust Hose
INSTALLATION
• Do not connect the exhaust hose to an existing ventilation system that is currently in use.
• It is not recommended to bend the exhaust hose more than 90° as this may aect the
performance of the appliance.
• Ensure the appliance is horizontal to avoid grease collection at one end.
Correct Wrong Side View
Control Panel
Lights
Grease Filter
7
• After installation ensure that the appliances plug can be easily removed.

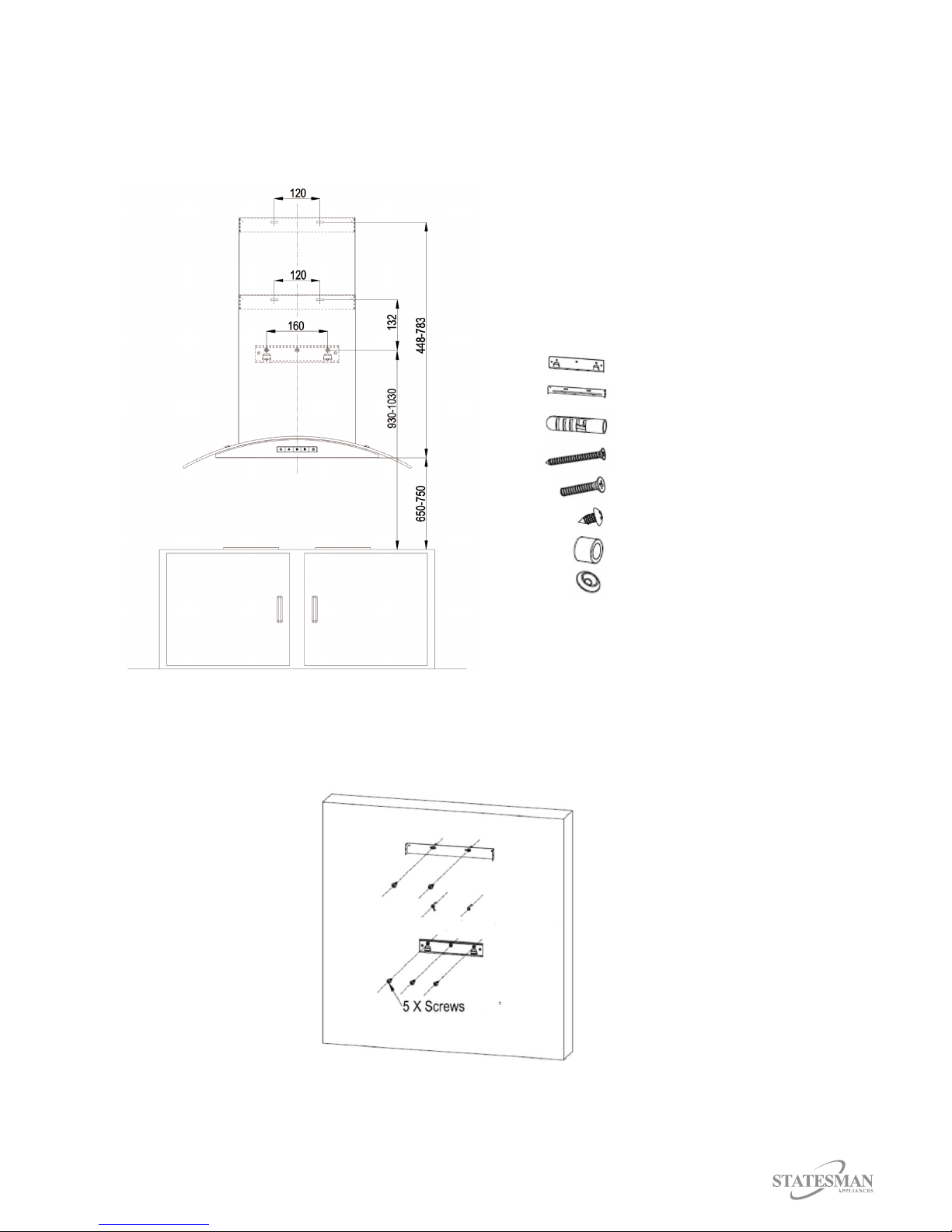

• The appliance should be placed 650 – 750 mm from the cooking surface below.
• Ensure adequate ventilation in the room whilst the appliance is in operation.
• Ensure all masonry work is complete before installing the appliance.
• It is not recommended to install this appliance above a cooker with a high level grill.
1 x Installation Plate
2 x Chimney Installation Plates
7 x Rawl Plugs
7 x Screws (M5*50)
4 x Screws (M4*20)
6 x Screws (ST4.2*9.5)
4 x Spacers
14 x Decorative Washers
1. Drill holes for the 3 Installation Plates; see above diagram for all measurements.
2. Insert Rawl Plugs into the drilled holes.
8

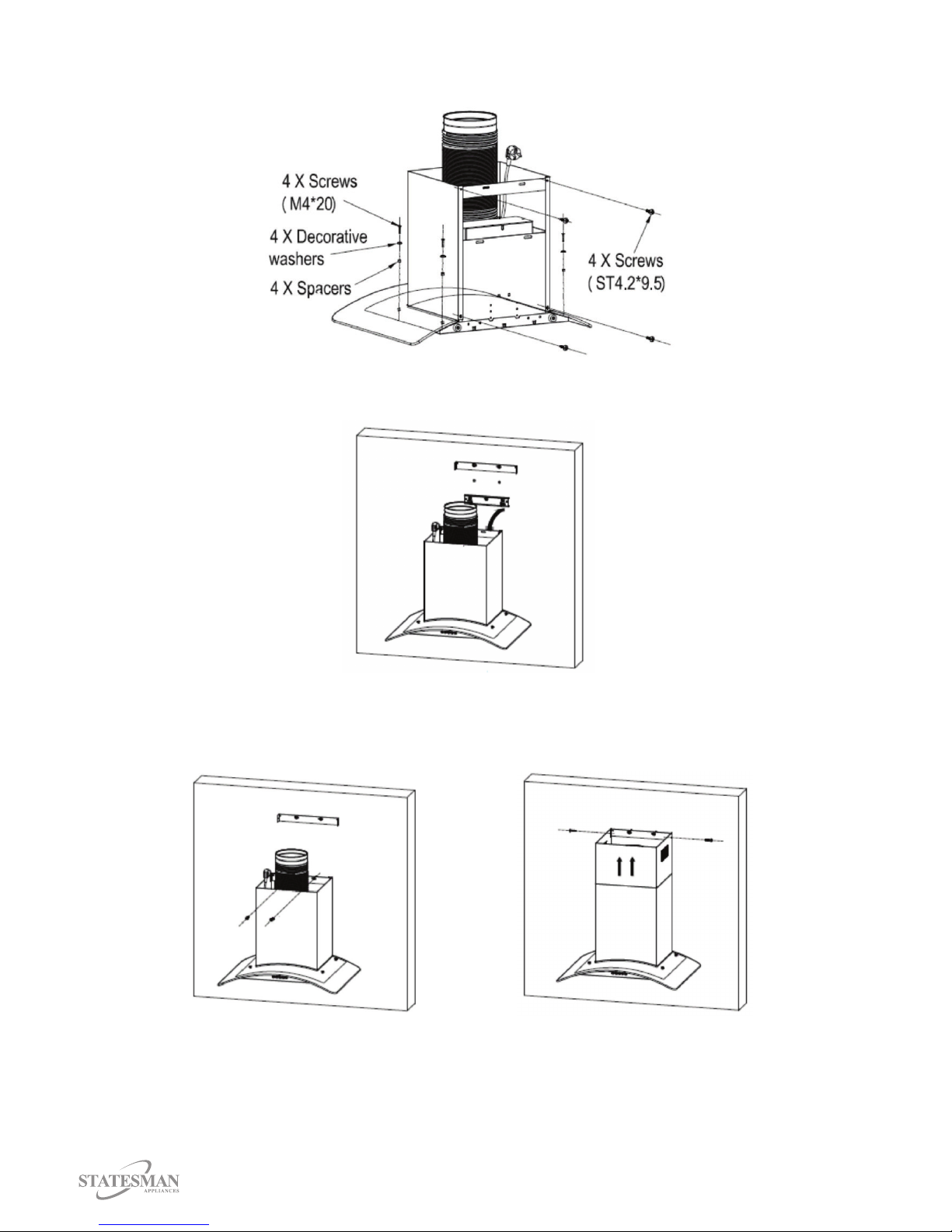

3. Install the Installation Plate and Chimney Installation Plates using the Screws (M5*50) provided.
4. Fit the Exhaust Hose and Chimney onto the Main Body of the appliance.
5. Hang the appliance on the bottom Installation Plate.
6. Connect the exhaust pipe to the pre-drilled ventilation hole.
7. Screw the appliance to the middle Installation Plate using the Screws (ST4.2*9.5) provided.
This will prevent the appliance from accidently sliding o the Installation Chimney Plate.
8. Fit the Chimney Extension to the appliance and Installation Chimney Plate.
9. Use the Screws (ST4.2*9.5) provided to secure the Chimney Extension to the Chimney
Installation Plates.
9

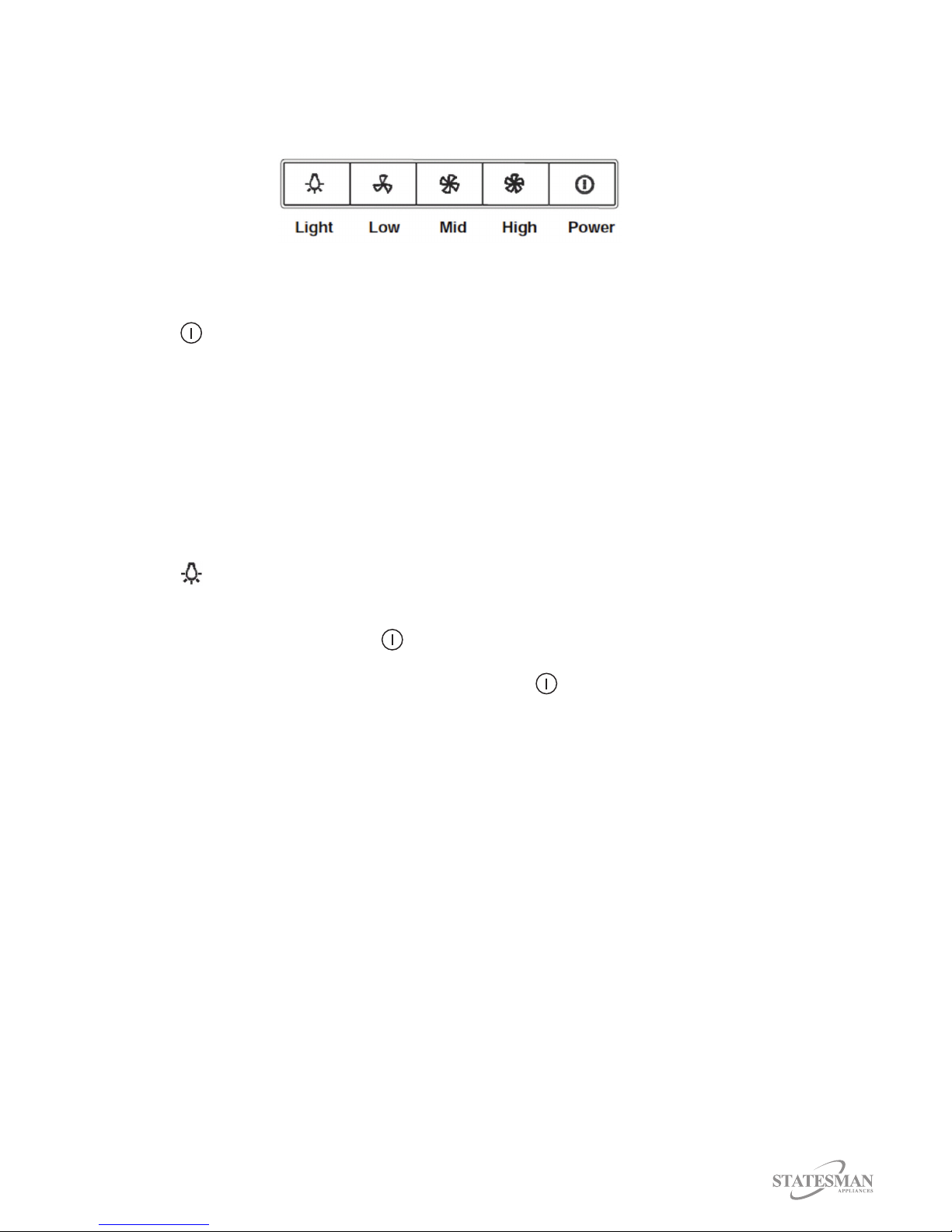

OPERATING INSTRUCTIONS
• It is recommended to only use 4 cooking elements at the same time as using more may aect
the ability of the appliance.
Switching on the Appliance
• Plug the appliance into the mains supply, the appliance will buzz to indicate power.
• Press the button, the fan will switch on at low speed, the power and low speed buttons will
illuminate.
Selecting the Power Level
• Select the required fan setting by pressing the required button, the selected button will
illuminate.
• It is recommended when frying or cooking foods with strong aromas to select the highest
setting.
Lighting
• The light can be used with or without the fan function.
• Press the button once to switch on and press again to switch o.
Delay Shut Down
• When the appliance is on press the button.
• The appliance will automatically shut down within 3 minutes.
• To switch the appliance o without the delay, press the button again.
CLEANING AND MAINTENANCE
Before cleaning and maintenance ensure the appliance is disconnected from the mains electricity
supply.
Important: Do not allow moisture or liquids to get into the appliance.
Important: Do not use abrasive cloths, powders, household cleaners, bleach or wax polish to
clean the appliance as these can damage the appliance.
Cleaning the Exterior
• Use a clean, damp soft cloth to wipe the exterior surface of the appliance and dry thoroughly.
• Dry the appliance thoroughly with a clean dry cloth before connecting into the mains electricity
supply.
10

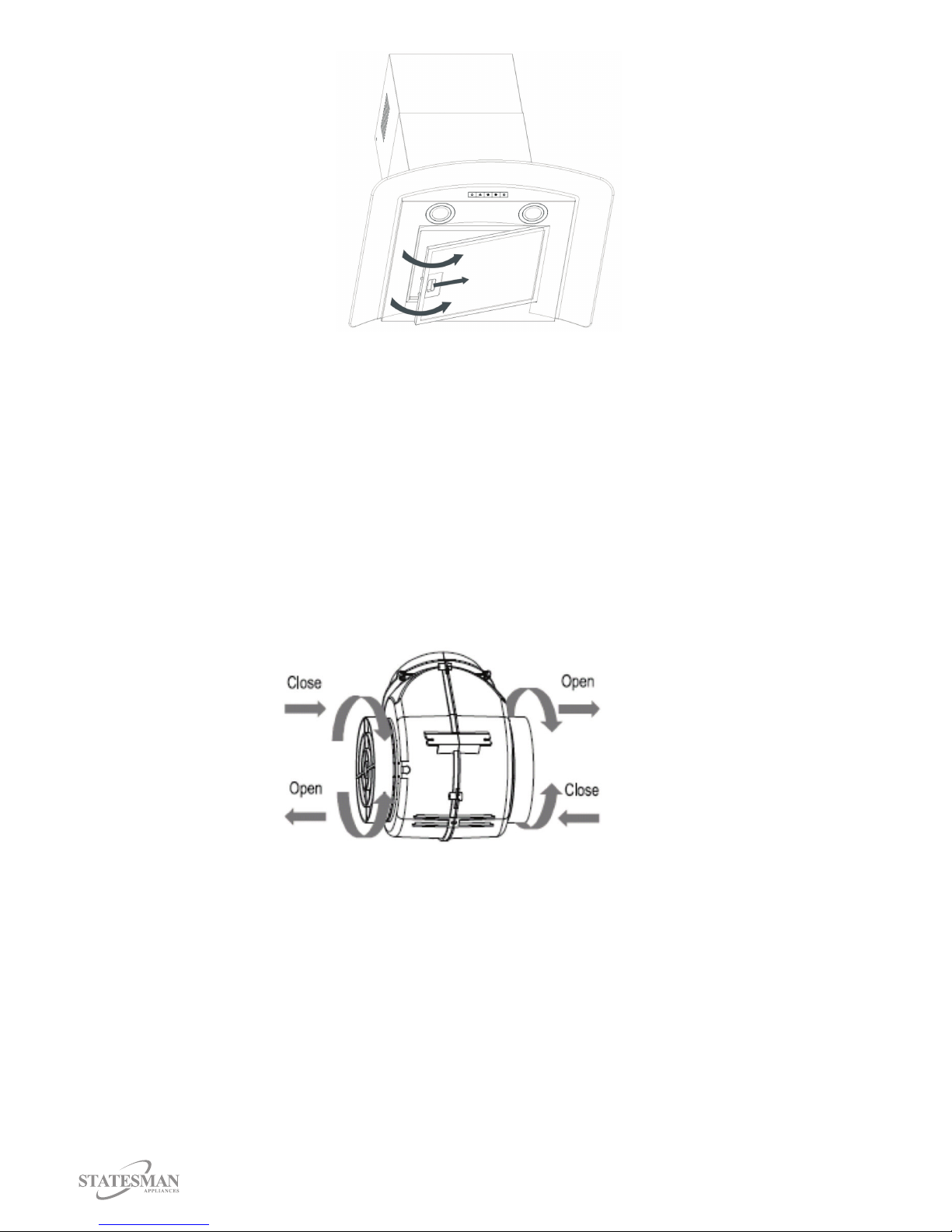

Cleaning the Filter
• Remove the grease lter by pushing the catch on the handle in and then pulling the grease lter
downwards and away from the appliance.
• Put the lter into a dishwasher set to a temperature below 60°C or if a dishwasher is not available
wash in hot water with a little washing up liquid.
• If washing by hand you may need to soak the lter beforehand for up to 1 hour in warm soapy
water to help dissolve some of the grease.
Inserting a Carbon Filter
A carbon lter is not included with this appliance but can be purchased at your local distributor.
• Remove the grease lter by pushing the catch on the handle in and then pulling the grease lter
downwards and away from the appliance.
• The carbon lter slots are located at both ends of the motor.
• Turn the ends of the motor in an anti-clockwise direction to open.
• Insert the carbon lter and replace the ends of the motor.
• Turn in a clockwise direction to lock.
Important: Carbon lters must not be washed or recycled and should be replaced every
2 to 3 months.
