StarTech.com S3540BU33E Manual de usuario

Manual Revision: 05/20/2014

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

S3540BU33E

USB 3.0/eSATA 4-Bay 3.5” SATA Hard

Drive Enclosure with UASP

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Product Diagram ....................................................................................1

Front View .................................................................................................................................................... 1

Rear View...................................................................................................................................................... 2

Introduction............................................................................................3

Packaging Contents ................................................................................................................................. 3

System Requirements.............................................................................................................................. 3

Hardware Installation............................................................................4

How to Use ..............................................................................................7

Connecting the Hard Drive.................................................................................................................... 7

LED Indicator .............................................................................................................................................. 7

Disconnecting the Hard Drive.............................................................................................................. 7

Mac OS X ...................................................................................................................................................... 8

Initializing the Hard Drive ...................................................................................................................... 8

Technical Support ..................................................................................10

Warranty Information............................................................................10

Instruction Manual

Product Diagram

Front View

1. Front Panel

2. Power & Drive Activity LEDs

3. Power Button

Instruction Manual

Rear View

1. eSATA port

2. USB 3.0 port

3. Power adapter port

4. Drive Fan

2 3

Instruction Manual

Introduction

Packaging Contents

• USB 3.0/eSATA 4-Bay 3.5” SATA Hard Drive Enclosure

• eSATA Cable

• USB 3.0 Cable

• Universal Power Adapter (NA/UK/EU)

• Instruction manual

System Requirements

• 1x Computer system with available USB 3.0 (5 Gbit/s) port/USB 2.0 port (480Mbps)

or eSATA port

Microsoft® Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7/8/8.1 (32/64-bit)

Apple® Mac® OS 9.x/10

Linux®

Google Chrome OS™

• 4x 3.5” SATA Hard Drive

Instruction Manual

Hardware Installation

WARNING! Hard drives and storage enclosures require careful handling, especially

when being transported. If you are not careful with your hard disk, lost data may

result. Always handle your hard drive and storage device with caution. Be sure that

you are properly grounded by wearing an anti-static strap when handling computer

components or discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds.

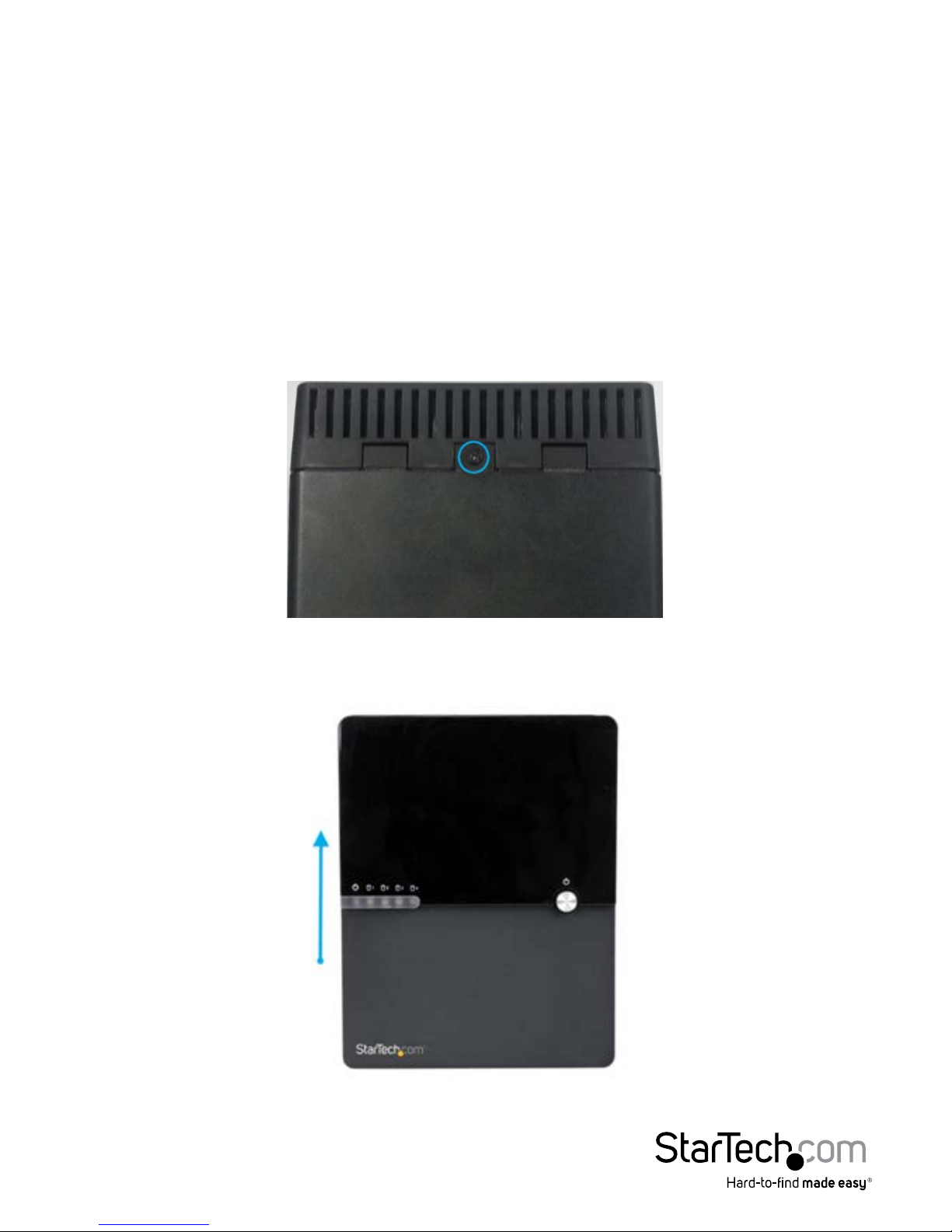

1. Using a Phillips head screw driver (not included) remove the screw from the bottom

of the enclosure.

2. Slide the “front panel” upward toward the top of the enclosure.

Instruction Manual

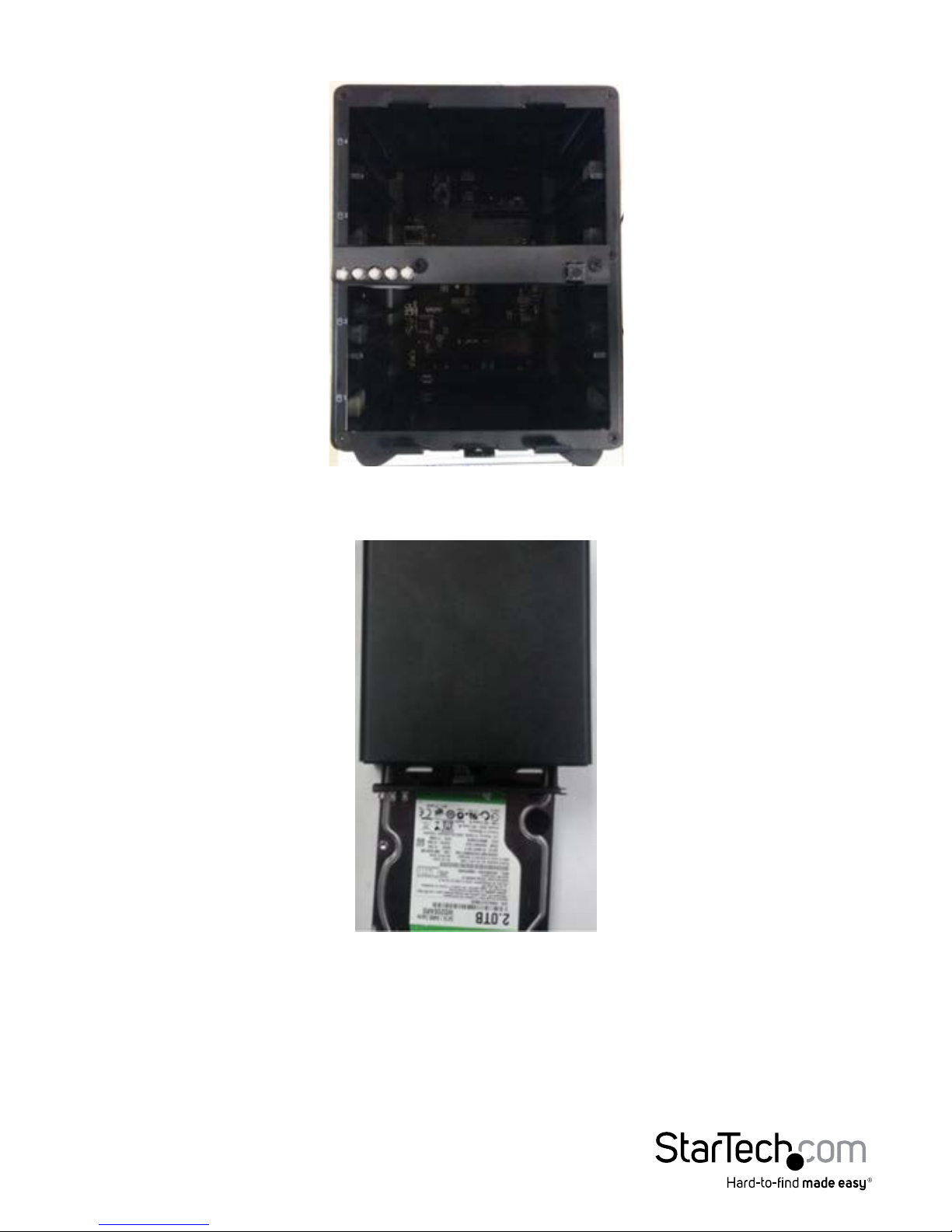

3. Lift the panel o to reveal the drive bays.

4. Gently slide each of your 3.5”hard drives into a bay.

Instruction Manual

5. Place the front panl back on by placing it over the drive bay, and sliding it into place.

6. Replace the screw using the Phillips head screw driver.

7. If using eSATA, connect the the included eSATA cable from an available eSATA port

on your computer system to the eSATA port on the enclosure.

Note: For all 4 drives to be detected by your computer when connected via eSATA.

The eSATA port on your computer system must support Port Multiplier.

If using USB, connect the the included USB 3.0 cable from an available USB port on

your computer system to the USB 3.0 port on the enclosure.

8. Turn on the unit, by Pushing the Power button on the front panel.

Instruction Manual

How to Use

Connecting the Hard Drive

Once the enclosure has been attached to a computer, and powered on, your computer

system will automatically recognize the drive(s) and it will be accessible as though it

were installed in the system internally.

Note: If your computer fails to automatically recognize your drive it is likely your

drive has not been initialized or formatted correctly. (See Drive Initialization below for

further instructions.)

LED Indicator

The hard drive enclosure oers LED indicators for each drive, so you can monitor drive

activity. The LED will ash while the hard drive is being accessed. Do not remove the

enclosure from the host computer while the LED is ashing, as it could damage the

drive or the enclosure, resulting in data loss.

Disconnecting the Hard Drive

Windows

1. Select the “Safely remove Hardware and Eject Media” icon, located in the task bar.

2. Select the Mass Storage Device from the list that appears.

3. Wait for the message indicating that it is now safe to remove the device.

Note: Removing the connected drive prior to receiving notication that it is safe to

do so, could result in losing or corrupting data stored on the drive. Once the Safe

to Remove Hardware message appears, please disconnect the enclosure from the

computer by removing the USB connection.
