StarTech.com PEX4SFF8639 Manual de usuario

Manual Revision: 03/21/2017

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/PEX4SFF8639.

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

PEX4SFF8639

U.2 (SFF-8639) Drive to PCIe

Host Adapter

*actual product may vary from photos

Instruction manual

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other

countries.

Instruction manual

Table of Contents

Introduction............................................................................................1

Product diagram........................................................................................................................................ 1

Package contents...................................................................................................................................... 2

Requirements ............................................................................................................................................. 2

Connect an SSD to the adapter card...................................................3

Install the adapter card.........................................................................3

About the LED terminal.........................................................................4

Technical support...................................................................................5

Warranty information............................................................................5

Instruction manual

Introduction

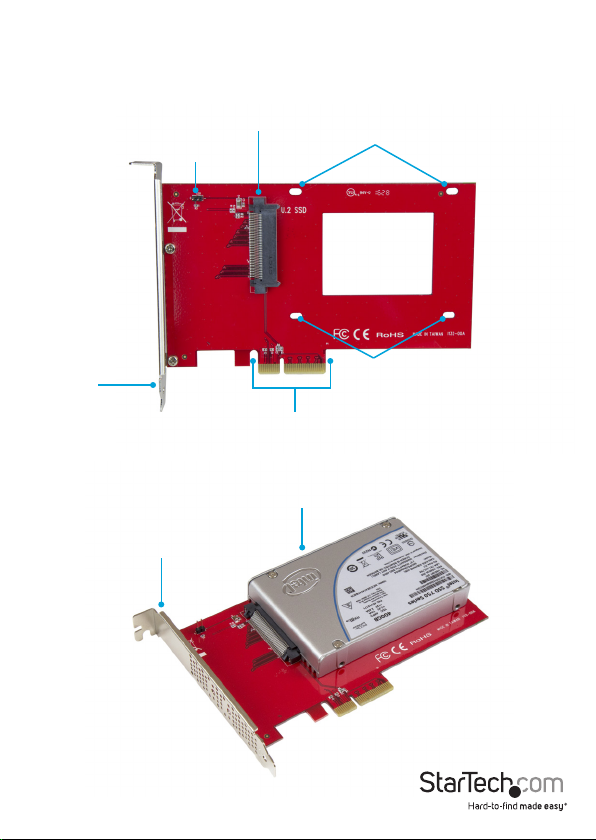

Product diagram

Top view

Bracket

PCIe x4 connector

SSD mounting holes

SFF-8639 connector

LED terminal

Application image

Drive adapter card

SSD

(not included)

Instruction manual

Package contents

• 1 x drive adapter card

• 4 x drive-mounting screws

• 1 x quick-start guide

Application image

(underside)

SSD

(not included)

Drive adapter card

Drive-mounting screw

Requirements

• Computer or server enabled with PCI Express and an available PCIe x4, x8, or x16

slot

• Phillips screwdriver

• U.2 compatible SSD

The PEX4SFF8639 is OS independent and doesn’t require any additional drivers or

software.

Note: To determine if the drive and motherboard that you’re using are compatible,

consult the technical specications that came with the drive and motherboard.

System requirements are subject to change. For the latest requirements, please visit

www.StarTech.com/PEX4SFF8639.

Instruction manual

Connect an SSD to the adapter card

Warning! Drives should be handled carefully, especially when you transport them. If

you’re not careful with your drives, you may experience lost or corrupted data. Make

sure that you’re properly grounded by wearing an anti-static strap when you install

any computer component. If an anti-static strap isn’t available, touch a large, grounded

metal surface for several seconds to discharge any built-up static electricity.

1. Carefully slide the SSD into the drive adapter card and connect it to the SFF-8639

connector on the card.

2. Turn the drive adapter card over.

3. Use a Phillips screwdriver and insert the four drive-mounting screws into the

mounting holes on the drive adapter card and into the SSD.

4. Tighten the screws.

Install the adapter card

Warning! PC components can be severely damaged by static electricity. If an anti-

static strap isn’t available, discharge any built-up static electricity by touching a large,

grounded metal surface for several seconds.

1. Turn o your computer and any devices or peripherals that are connected to it

(for example, printers, external storage, and so on).

2. Unplug the power cable from the back of your computer.

3. Disconnect any peripheral devices that are connected to your computer.

4. Open your computer case. For more information about how to do this, consult

the documentation that came with your computer system.

5. Locate an open PCIe slot and remove the corresponding metal cover plate from

the back of your computer case. Consult the documentation that came with your

computer system for detailed instructions about how to do this.

Note: This drive adapter card works in PCIe slots of x4, x8, or x16 lanes.

6. Gently insert the drive adapter card into the open PCIe slot and use a computer

case screw (not included) to fasten the bracket to the back of the case.

7. Place the cover back onto your computer case.

Instruction manual

8. Reconnect the power cable to the back of your computer and reconnect all of

the peripheral devices that you disconnected in step 3.

9. Turn on your computer.

There may be additional steps required to enable drive functionality, such as installing

drivers or updating the rmware for the drive or motherboard. For more information,

consult the documentation that came with the drive or motherboard.

About the LED terminal

You can connect an LED (not included) to the LED terminal on the drive adapter card.

The LED terminal generates an activity LED, but the exact behavior of the LED indicator

is dependent upon the SSD connected to the drive adapter card.

Instruction manual

Technical support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship

for the periods noted, following the initial date of purchase. During this period,

the products may be returned for repair, or replacement with equivalent

products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
