ABLE OF CONTENTS
T
PART 1 PRODUCT (GENERAL)................................................................. 1.

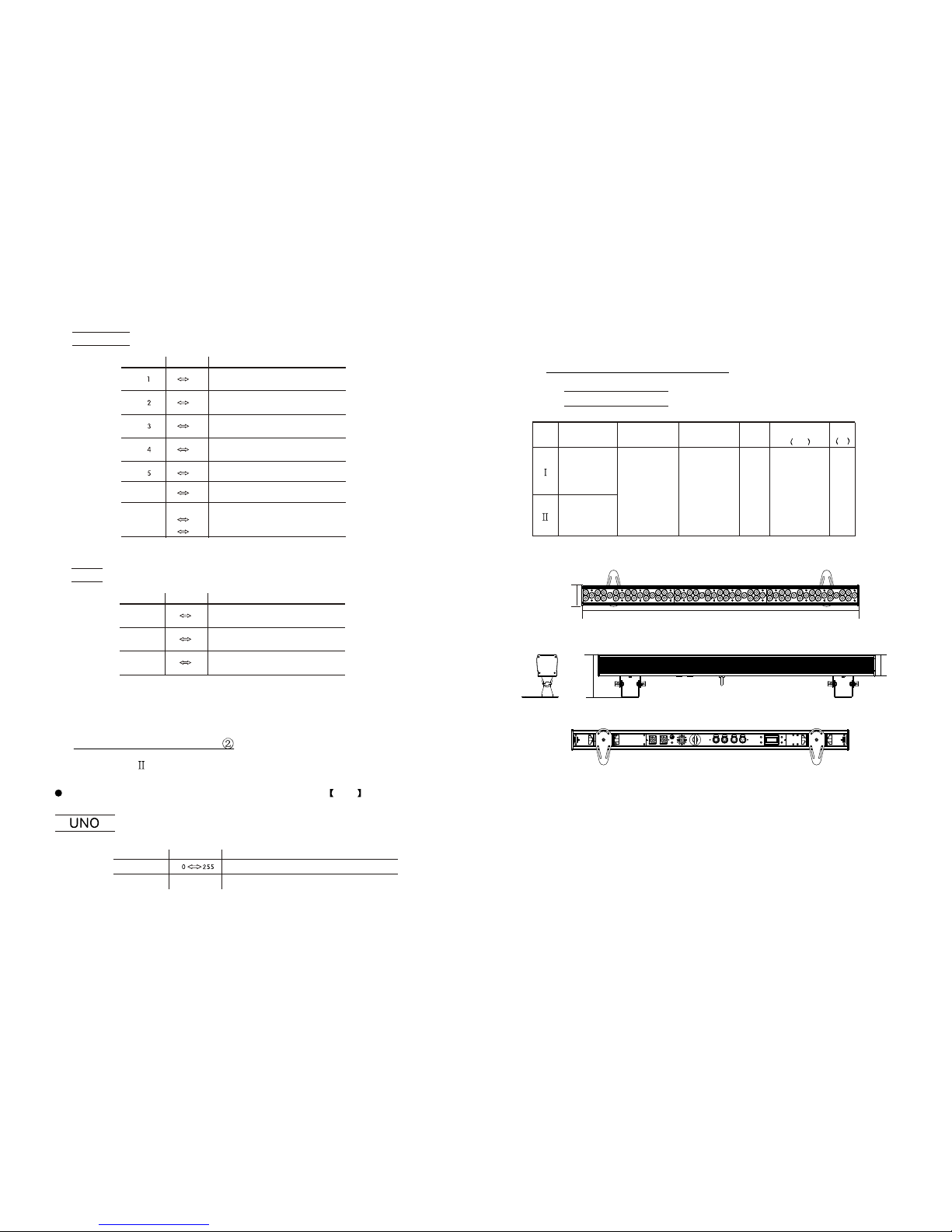

1.1--TECHNICAL SPECIFICATIONS................................................................... 1.
1.2--SAFETY WARNING.....................................................................................2.
PART 2 INSTALLATION ............................................................................3.

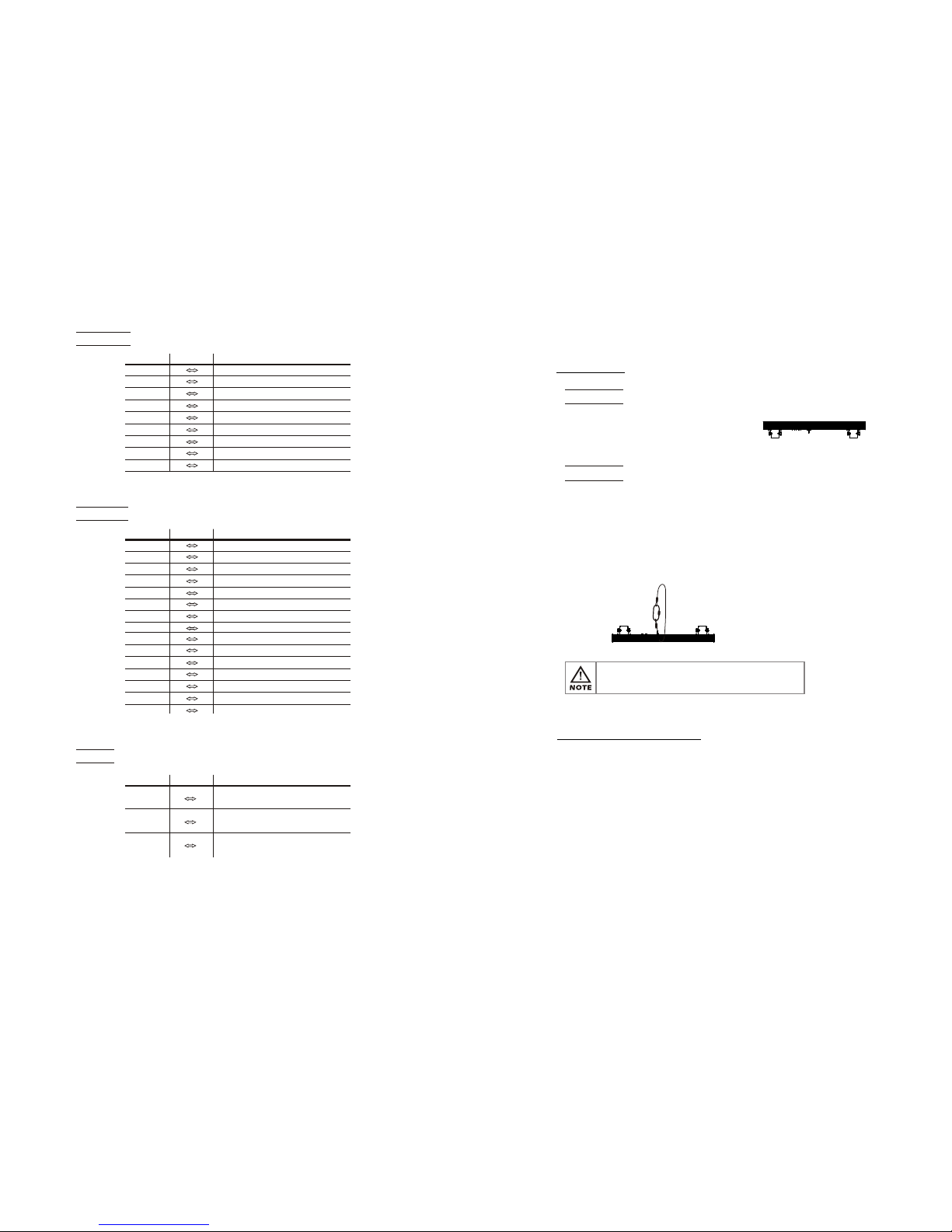

2.1--MOUNTING................................................................................................ 3.
2.2--POWER CONNECTIONS.............................................................................3.
PART 3 DISPLAY PANEL OPERATION.......................................................4.
3.1--BASIC........................................................................................................4.

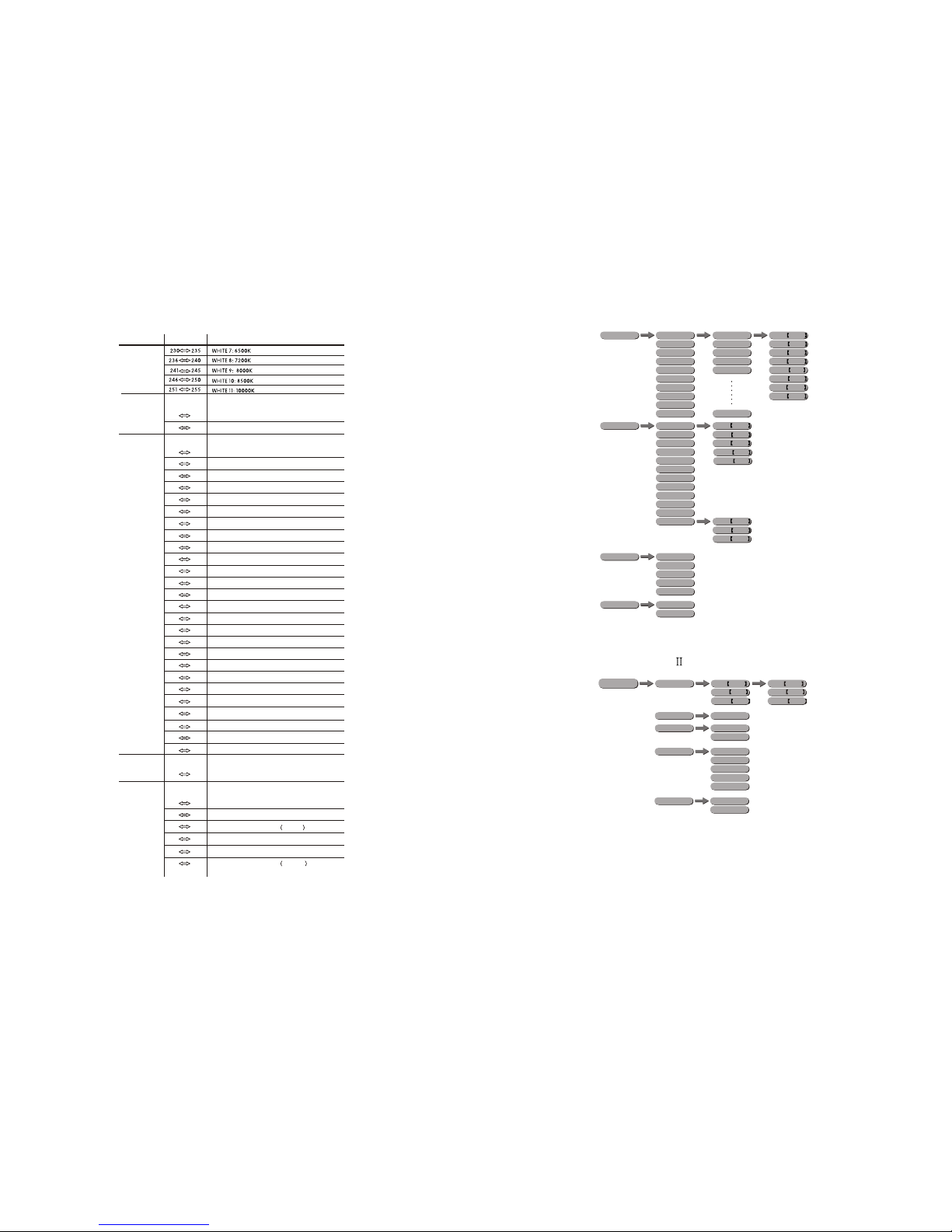

3.2--MENU...................................................................................................... .4.

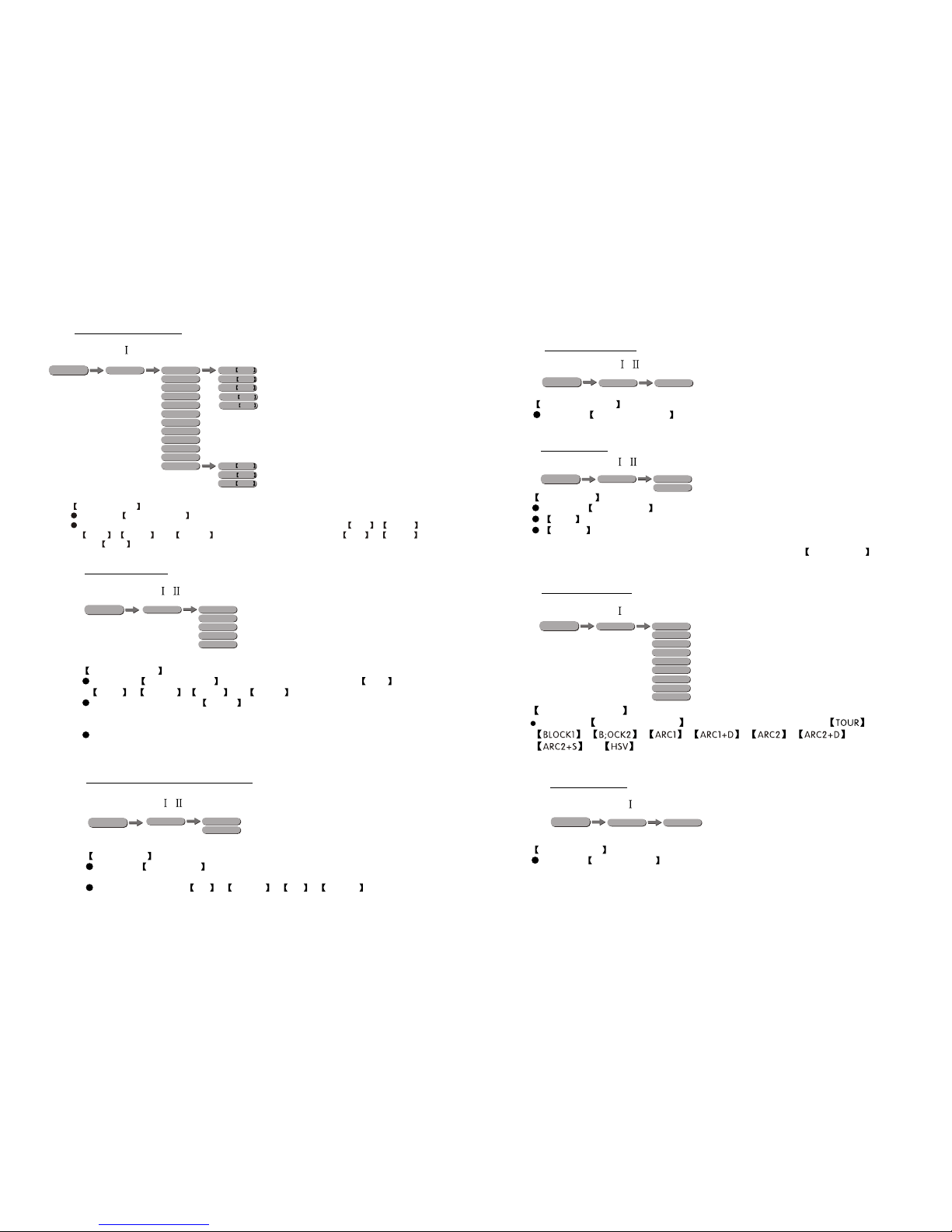

3.3--STATIC......................................................................................................6.
3.4--AUTO PLAYMODE.....................................................................................6.
3.5-- DMX ADDRESS.........................................................................................7.
3.6--RUN MODE................................................................................................7.
3.7--PERSONALITY...........................................................................................7.
3.8--ID ADDRESS..............................................................................................7.

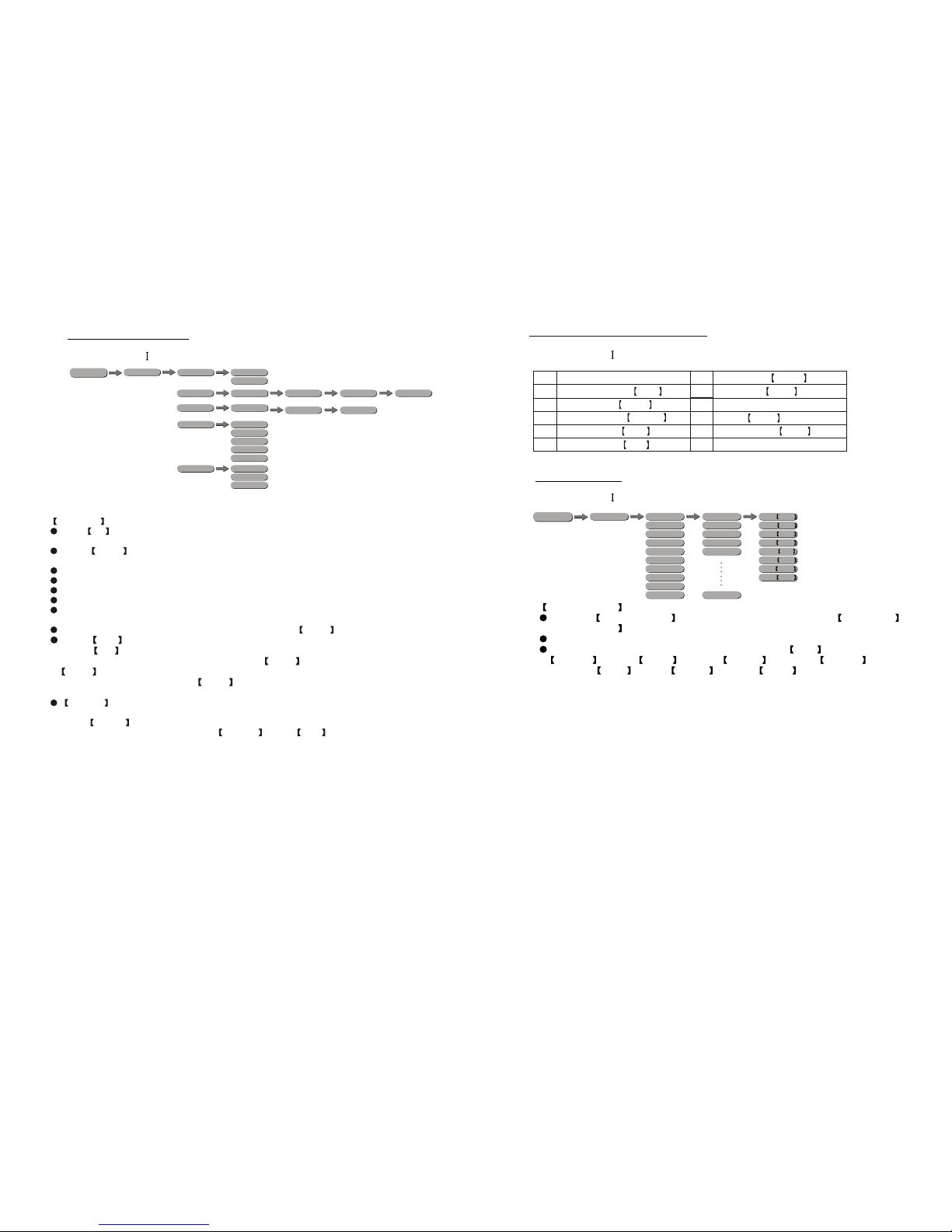

3.9--SPECIAL SETTINGS ..................................................................................8.
3.10--FACTORYDEFAULTSETTING...................................................................9.
3.11--EDIT CUSTOM.........................................................................................9.
3.12-- WHITES SETTING.................................................................................10.
3.13--FAN SETTING........................................................................................10.
3.14--ACTIVATETHE PASSWORD....................................................................10.
.
PART 4 USING ADMX512 CONTROLLER..................................................11.
4.1--BASIC ADDRESSING................................................................................. 11.
4.21--CHANNEL ASSIGNMENT.......................................................................... 11.
4.3--BASIC INSTRUCTIONS FOR DMX512 OPERATION(TOUR) ....................... 17.
4.4--BASIC INSTRUCTIONS FOR DMX512 OPERATION (BLOCK 1 & 2).............. 17.
PART 5 APPENDIX..................................................................................18.
5.1--MAINTENANCE........................................................................................18.
17
4.3 BASIC INSTRUCTIONS FOR DMX512
OPERATION (TOUR)
MASTER DIMMER
CH1 controls theintensity of thecurrently projected color
When the slideris at thehighest position (255) the intensity of the output is the
maximum
RED, GREEN BLUE, WHITE & AMBER COLOR SELECTION
CH2, CH3 &Ch4, Ch5 &CH6 control the intensity ratio of each of the RED,
GREEN, BLUE, WHITE& AMBER LEDs.
When the slideris at thehighest position (255) the intensity of the color is the
maximum.
CH2, CH3, Ch4, Ch5 &CH6can be combined together to create over 16
million colors.
COLOR MACROS AND WHITE BALANCE
CH7 selects therequired COLOR MACROand whites indifferent color temp.
Ch7 has priorityover CH2, CH3, CH4, CH5 ,Ch6 & CH9.
CH1 is usedto control theintensity of the COLOR MACRO
STROBE
CH 8 controlsthe strobe of CH2 to CH7.
ID ADDRESS SELECTION
CH12 is usedto select thetarget ID address.
Each independent DMXaddress may haveupto 66 independent ID addresses.
An IDaddress of 0will activate all ID address locations.
AUTO
CH9 selects thepreset AUTO programsAUTO 1-AUTO10 or the custom
programs CUSTOM1-CUSTOM 10.
Ch9 has priorityover Ch2, Ch3,Ch4 , Ch5 & Ch6..
BLOCK SELECTION
Ch13 channel allowsthe user to select from combinationsof different
colors and LEDblocks in aquick-and-easy action
4.4 BASIC INSTRUCTIONS FOR DMX512
OPERATION (BLOCK 1 & 2)
BLOCK 1
All ledsdivided as 3blocks, each blockinclude 6 redleds, 6 greenleds and 6
blue leds.
BLOCK2
All ledsdivided as 3blocks, each blockinclude 6 redleds, 6 greenleds, 6 blue
leds, 3 whiteleds and 3amber leds.
