SSF BAT 2 Manual de usuario

•2 parallel working ways of detection

1. manually operated: mixer mode (Heterodyne)

2. automatically operated: scanner with frequency

indicator and spectrogram of bat calls (frequency

devisor) – so no bat call gets lost anymore!

•Applicable for expert as well as for beginners

•Frequency range 15 kHz to 130 kHz infinitely

adjustable in steps of 1 kHz

•Continuous display of maximum values while scan-

ning, ideal for easy bat detection

•Up to 4 fixed frequency programmable for fast

accessing of known bat species

•Easy to handle, adjustments are saved

•Very good sensibility, because of special ultrasonic

microphone in combination with a high quality pre-

amplifier stage

•High quality of sound and volume, brilliant clear

and differentiated transfer of bat call through inte-

grated 1,5 W speaker

•Modern microprocessor technology, LCD with

adjustable backlight (which can be switched off)

•Auto shut-off for battery protection (adjustable from

1 min to ∞)

•Optimally suitable for use in eavesdrop boxes

•Indication of status of battery charge

•3,5 mm earphone jack plug

•power supply: 4x AA Mignon alkaline battery or rechargeable NiMH bat-

tery

•battery life according to mode of operation up to 40 hours

•power consumption ca. 30 mA

•weight including battery ca. 230 g

•dimensions ca. length=185mm, width=65 mm, height=28 mm

Characteristics

Technical details

SSF BAT 2

Ultrasonic detector

microelectronic VOLKMANN

040kHz

2345678901 038

VOL

020.

040

045

000

The implementation of European law in national laws and directives obliges you to dispose of consum-

able goods appropriately. This serves to protect both persons and the environment.

Batteries, electrical and electronic products no longer required must be disposed of separate from do-

mestic waste. For proper treatment, recovery and recycling of old products and used batteries, please

take them to a suitable collection point provided by public waste authorities, in accordance with your

national legislation and the directive 2002/96/EC and 2006/66/EC.

For more information about collection and recycling of old products and batteries please contact your

local municipality or your waste disposal service. Alternatively you can send your old SSF2 detector via

sufficient stamped mail back to:

BUND Naturschutzzentrum Westlicher Hegau

Erwin-Dietrich-Str. 3

D-78244 Gottmadingen

Information on disposal in other countries outside the European Union: If you wish to discard your SSF2

detector please contact your local authorities and ask for the correct method of disposal.

Disposal of electrical and electronic products

Table of contents

Characteristics ______________________________________________ 1

Technical details _____________________________________________ 1

Disposal of electrical and electronic products _____________________ 2

Table of contents ____________________________________________ 3

1. Technical manual _________________________________________ 4

Earphone access _______________________________________ 4

Batteries ______________________________________________ 4

2. Quick guide _______________________________________________ 5

Adjustments- and On-/Off- button ________________________ 5

Up-/Down-button ______________________________________ 5

Frequency-button ______________________________________ 5

3. Handling _________________________________________________ 6

Switch On/Off ________________________________________ 6

Default setting after switch on ___________________________ 6

Volume setting ________________________________________ 7

Adjustment of Mixer frequency ___________________________ 7

Use of frequency division & heterodyne ____________________ 7

Use of fixed frequencies ________________________________ 7

4. Settings __________________________________________________ 8

Volume ______________________________________________ 8

Store ________________________________________________ 8

Light ________________________________________________ 9

Off __________________________________________________ 9

5. Supplement _______________________________________________ 10

Technical specifications _________________________________ 10

Block diagram ________________________________________ 11

Overview of operation __________________________________ 12

Important information concerning the microphone __________ 14

Instructions for a microphone exchange __________________ 15

Battery regulation ___________________________________________ 16

1. Technical manual

3,5 mm stereo- jack plug on the side. Please do not use mono jack! Speaker switches

off automatically while using the earphone.

Device will not be delivered with batteries.

4 alkaline- type mignon (AA) or rechargeable batteries (NiMH) are needed for use.

Please use only leakage free batteries.

The battery case is located on the back. Please un-

bolt for opening. Please pay attention to correct in-

sertion of batteries.

Please remove batteries while not using device for a

long period (several months).

Please pay attention to the hints of the Battery

regulation on the last page of this manual.

Earphone access

Batteries

Microphone

(front)

LCD-Graphic-

Display

Speake

Earphone access

(on the side)

Button for changing

peak frequency and fixed

frequency

On-/Of

-button,

olume, adjustments

Up-/Down-button

for frequency,

olume

Battery case

for 4x AA (Mignon)

(back)

040kHz

2345678 038

020.

040

045

000

2. Quick guide

Device is switched off:

short push Ædevice is switched on

Device is switched on:

(Also see chapter „4. Settings“ on page 8)

1x short push Æmenu Volume (volume)

2x short push Æmenu Store (frequency save/delete)

3x short push Æmenu Light (LCD backlight)

4x short push Æmenu Off (automatic shutoff)

Long push (2 sec.) Æswitch off device

Normal-mode:

Short push Æmixer frequency +/- 1 kHz

Long push Æmixer frequency fast run

Programmer-mode:

Volume Ævolume +/- 1

Store Æmixer frequency +/- 1 kHz

Light Æbacklight 3 levels and switch off

Off Ætime for automatic switch off 1 min. to ∞

Normal-mode:

Short push Ætake scanner frequency for mixer

Long push Ætake fixed frequency for mixer

Programmer-mode Store:

Short push Æselect storage space

Long push Æstorage of indicated mixer frequency

Long push 4 sec. Ædeletion of stored frequency

Adjustments- and On-/Off-button

Up-/Down-button

Frequency-button

3. Handling

Switch-On

Press adjustments- and On-/Off-button , and

afterwards UP button within 1 sec., otherwise device automatically switches off.

This procedure serves to avoid an accidential switch on of the device e. g, in a bag.

After switching on device is ready for use.

Switch-Off

For switch-off press adjustments- and On-/Off-button

for more than 2 sec.

Furthermore if device is switched on and not used within a certain time, device

switches off automatically for protection of batteries. Default time is 5 minutes. (See

programming „Off“ on page 9).

* Display shows 4 level of charge state.

Switch On/Off

Default display after switch on

Einschalten:

Taste:

fixed frequencies

mixer frequency battery*

olume

strongest located frequency

(peak)

040kHz

23456789012 038

VOL

020.

040

045

000

bat-spectrogram

Gerätwird

abgeschaltet!

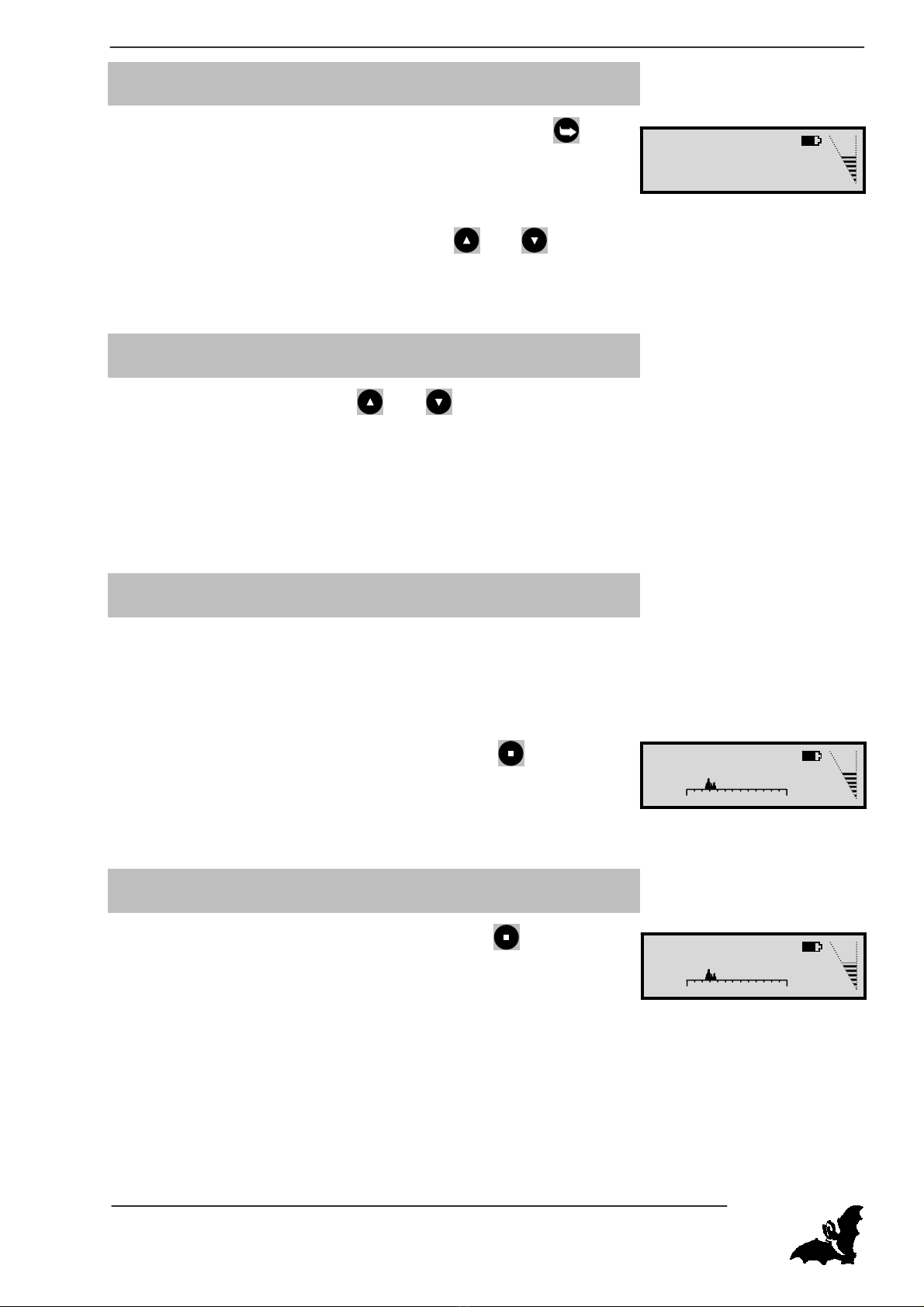

Short push of adjustments- and On-/Off-button

switches on the mode “Volume” in which you can adjust

the volume. This function ends automatically after 5 sec.

with no push.

Adjust the volume by pressing the and button (16 stages). Graphic on the right

side of the LCD shows the current stage.

Use Up-/Down-button and in normal-mode for adjustment of mixer frequency

for Heterodyne-receiver. With every push frequency changes by +/- 1 kHz, while a

longer push switches to fast run. Frequency, resulting of mix of ultrasonic frequency

and appointed mixer-frequency, will be transmitted via speaker (or headphones).

Adjustment of frequency is continuously variable from 15 kHz to 130 kHz.

Parallel to mixer-mode the SSF BAT2 is also scanning the whole spectrum for

ultrasonic frequencies using frequency division. The located frequency will be displayed

in a graphic. At the same time, strongest located frequency will be displayed on the

right (peak-frequency).

Through short push of frequency-button this located

peak-frequency will be taken as mixer frequency and

hearable.

Through long push of frequency-button one of the

programmed and stored fixed frequencies will be taken

as mixer-frequency using the heterodyne-receiver.

Dot to the right of the fixed frequency shows frequency which will be taken next.

While pushing dot always jumps to the next stored frequency. Storage space not used

(display: „000“) will be skipped.

3 frequencies are programmed as a default setting:

20 kHz, 40 kHz und 45 kHz

Fourth storage space is left empty. See chapter „Store“ at the end of this page for more

information about programming of fixed frequency.

Volume setting

Adjustment of mixer frequency

Use of frequency division & heterodyne

Use of fixed frequencies

040kHz VOL

020.

040

045

000 Volume

038kHz

23456789012 038

VOL

020.

040

045

000

020kHz

23456789012 038

VOL

020

040.

045

000

4. Settings

Short push of adjustments- and On-/Off-button switches through different adjust-

ments and programming functions:

Volume, Store, Light, Off.

Function ends automatically after 5 sec. with no input.

(Exception: „Store“ – ends after 10 sec.)

SSF BAT2 saves settings after switch off.

Arrow keys and adjust volume in 16 stages.
