Squareled Modular Series Manual de usuario

User Manual: Squareled Modular Series 1x 15W RGB

Thank you for purchasing our product!

This product complies with the following standards:

IEC60598-1:2003

IEC60598-2-17:1984+A2:1990

On receiving products, please carefully check that there has been no damage caused in transportation

and that the following parts are enclosed:

Main features:

»The lightings can be spliced easily by every 30 degrees direction to a bar, square, round, S curve, arc and

so on .

»high-power RGB 3-in-1 LED

»Four digital LED display control board

»Stand alone,DMX,Master-slave control mode

»Over temperature protection

Safety information

Important: Every person involved with the installation, operation and maintenance of this device has

to be qualied and follow the instructions of this manual. Manufacturer will not with responsibility

for those operations not according to this Instruction.

»Verify that the voltage matches the rated voltage.

»Before using the xture, check that all power distribution equipment and cables are in perfect condition

and rated for the current requirements of all connected devices.

»Always ground (earth) the xture electrically.

»Avoiding hit the Light when you are move or install the light.

»The minimum distance between light-output and the illuminated surface must be more than 0.3

meters. Keep all combustible materials (for example fabric, wood, paper) at least 0.2 meters away from

the xture .

»Do not expose the xture to rain or moisture.

»Avoid looking directly into the light source (especially those who suer from epileptic ts)

»Maximum ambient temperature (Ta) is 40°C.

»The Maximum surface temperature is 65°C

»When suspending the xture above ground level, verify that the structure can hold at least 10 times the

weight of all installed devices.

»Verify that all external covers and rigging hardware are securely fastened and use an approved means of

secondary attachment such as a safety cable.

Manual | Modular Series 1x15W RGB

Overview and Dimensions:

Power in Power out

DMX in DMX out

Control

panel

All dimensions are in millimeters

Splicing

The lightings can be spliced easily by every 30 degrees direction to a bar, square, round, S curve, arc and so on.

Splicing method:

»Install the splicer, limit buckle and turn knob together, it is no need to install tightly.

»Insert the splicer into the space between the lightings, then tight the turn knob, and make the limit buckle buckle

the limit screws tightly.

Manual | Modular Series 1x15W RGB

splicer

limit

screw

limit

buckle

turn

knob



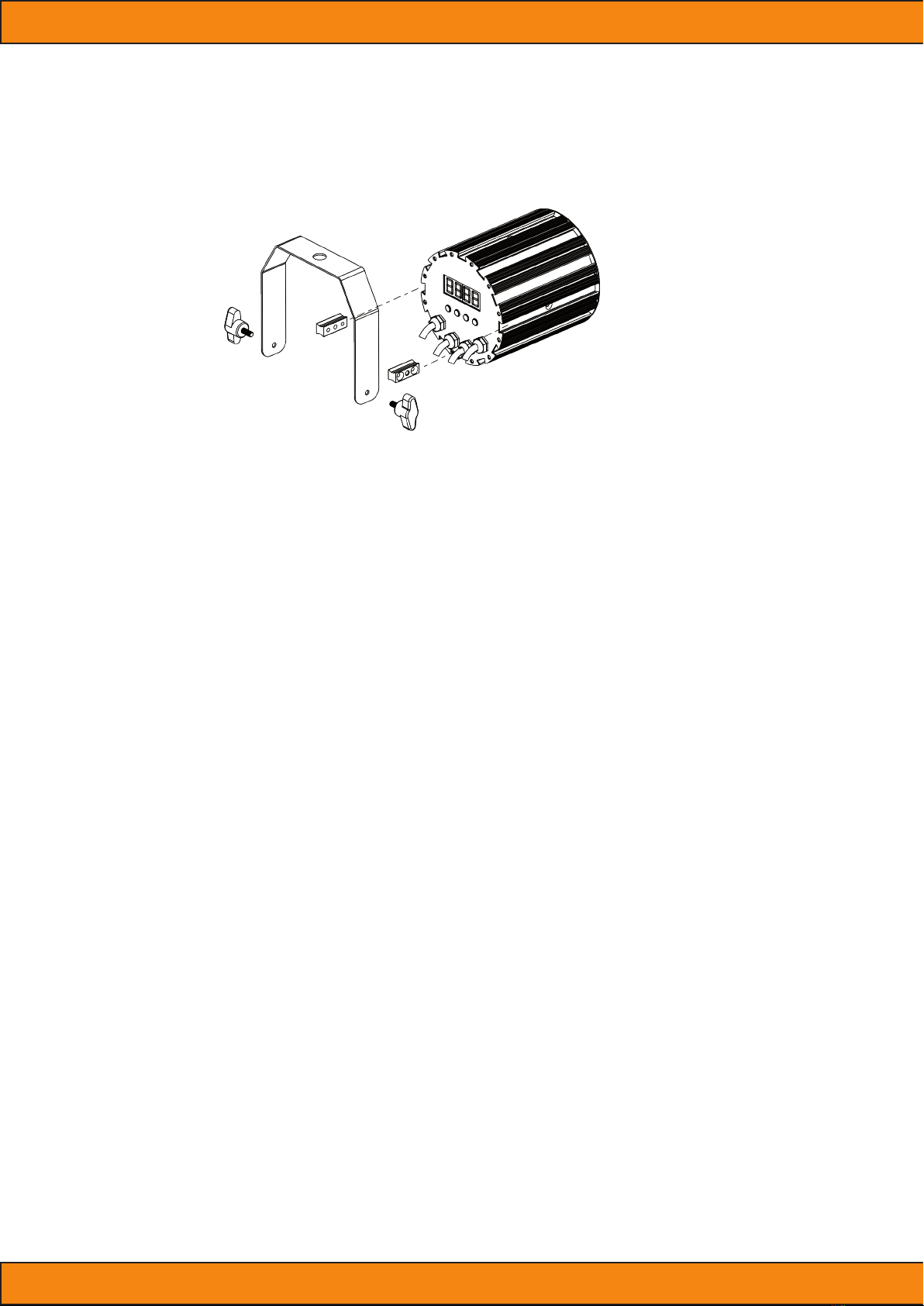

Install handle

Control panel - Button

»SET: Call the main menu, or escape the current menu(i.e. return to the upper menu and give

up the selected item or parameter) .

»UP: Browse the menu item forward or increase the parameter.

»DOWN: Browse the menu item backward or decrease the parameter.

»ENTER: Conrm the selected item or parameter(i.e. enter the next menu, or escape the current

menu and save the selected item or parameter)

Control panel - Indicator

There are 4 dots at the bottom of the digital tube , from left to right as:

»DMX signal LED indicator

»Memory writing indicator , (Press ENTER after amending the DATA ,This Dot will be light up , it means

the Data is saving )

»Power indicator

»Keyboard available indicator

Common operation - Stand-alone mode

In Stand-alone mode , the lighting out of control of any exterior signal , run solely . Setting method is:

Enter SET(set menu)

Press UP or DOWN-button to browse to MAAL

Press ENTER-button

Press UP or DOWN-button to browse to ALON (alone)

Press ENTER-button to conrm .

Manual | Modular Series 1x15W RGB



Common operation - Master/slave mode

Set one lighting to master-device and others to slave-device so all lightings run synchronously

follow the master-device .

1. Setting Master-device

Enter SET(set menu)

Press ENTER-button

Press UP or DOWN-button to browse to MAAL

Press ENTER-button

Press UP or DOWN-button to browse to MAST(master)

Press ENTER-button to conrm .

2. Slave-device setting

Press the lighting to DMX mode position.

Common operation - DMX mode

In DMX mode the lighting can controlled by controller. When the display shows A001 or the other

actual stored addresses.The lighting is in DMX mode.

Common operation - Setting DMX start address

In DMX mode , a xture requiring one or more channels for control begins to read the data on the

channel indicated by the start address.

For example, a xture that uses 3 DMX channels and was addressed to start on DMX channel 1,

would read data from channels: 1, 2, 3.

Choose start addresses so that the channels used do not overlap, and note the start address

selected for future reference.

Note that assign the same address to the dierent lightings , they will receive the same signal.

Common operation - Selecting 6/7/9/3/4 channels mode

Enter DMX(DMX menu)

Browse to CHS

Press ENTER

Browse to your desired channel mode

Press ENTER to conrm

Manual | Modular Series 1x15W RGB

Common operation - Run if there is no signal in DMX mode

Enter DMX(DMX menu)

Press UP or DOWN to browse to AUSO

Press ENTER

Press UP or DOWN to browse to STOP (stop) / AUTO (auto) / HOLD (hold)

Press ENTER to conrm

Common operation - ID addressing

ID code is used to extend DMX . Any DMX address in the range from 001 to 512 may be used so

a limited xtures are controlled by DMX controller respectively in a series. However , the ID code

function allows each DMX address may carry up to 66 separate ID addresses , so 66 xtures could

be respectively controlled with the same DMX address.

For example: if the controller can control 63 xtures in series and the ID code function extend the

quantity to 63×66=4158

Enter SET menu and nd ID menu could set the ID code . ID addresses are accessible from CH4 on

the DMX512 controller. If you don’t want ID code function , CH4 must be inactive ( CH4=0 ).

Manual | Modular Series 1x15W RGB

Channel function

This lighting has ve channel modes STAGE 3 channel mode is the default setting. The channel modes could be

selected by DMX menu.

3 channel mode

Channel Value Function

CH1 000-255 Red dimmer 0~100%

CH2 000-255 Green dimmer 0~100%

CH3 000-255 Blue dimmer 0~100%

6 channel mode

Channel Value Function

CH1 000-255 Global dimmer 0~100%

CH2

000-020

021-064

065-069

070-084

085-089

090-104

105-109

110-124

125-129

130-144

145-149

150-164

165-169

170-184

185-189

190-204

205-255

strobe

shutter open

strobe1(fast to slow)

shutter open

strobe2:opening pulse(fast to slow)

shutter open

strobe3: closing pulse (fast to slow)

shutter open

strobe4:random strobe(fast to slow)

shutter open

strobe5:random opening pulse(fast to slow)

shutter open

strobe6: random closing pulse (fast to slow)

shutter open

strobe7:burst pulse(fast to slow)

shutter open

strobe8:random burst pulse (fast to slow)

shutter open

CH3

0- 9

10-174

175-194

195-199

200-219

220-224

225-229

230-234

235-239

240-244

245-249

Built-in program

No eect

Static color wheel

Clockwise

Stop (this will stop wherever the color is at the time)

Counter-clockwise

Random color (fast)

Random color (Medium)

Random color (Slow)

Pulse /(control speed by CH2)

Strobe /(control speed by CH2)

Fade /(control speed by CH2)

CH4 000-255 Red dimmer 0~100%

CH5 000-255 Green dimmer 0~100%

CH6 000-255 Blue dimmer 0~100%

Manual | Modular Series 1x15W RGB

7 channel mode

Channel Value Function

CH1 000-255

Global dimmer

0~100%

CH2

000-020

021-064

065-069

070-084

085-089

090-104

105-109

110-124

125-129

130-144

145-149

150-164

165-169

170-184

185-189

190-204

205-255

strobe

shutter open

strobe1(fast to slow)

shutter open

strobe2:opening pulse(fast to slow)

shutter open

strobe3: closing pulse (fast to slow)

shutter open

strobe4:random strobe(fast to slow)

shutter open

strobe5:random opening pulse(fast to slow)

shutter open

strobe6: random closing pulse (fast to slow)

shutter open

strobe7:burst pulse(fast to slow)

shutter open

strobe8:random burst pulse (fast to slow)

shutter open

CH3

0- 9

10-174

175-194

195-199

200-219

220-224

225-229

230-234

235-239

240-244

245-249

Built-in program

No eect

Static color wheel

Clockwise

Stop (this will stop wherever the color is at the time)

Counter-clockwise

Random color (fast)

Random color (Medium)

Random color (Slow)

Pulse /(control speed by CH2)

Strobe /(control speed by CH2)

Fade /(control speed by CH2)

Manual | Modular Series 1x15W RGB

CH4

0~9

10~19

20~29

30~39

40~49

50~59

60~69

70~79

80~89

90~99

100~109

110~119

120~129

130~139

140~149

150~159

160~169

170~179

180~189

190~199

200~209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

ID code

ID1~66

ID1

ID2

ID3

ID4

ID5

ID6

ID7

ID8

ID9

ID10

ID11

ID12

ID13

ID14

ID15

ID16

ID17

ID18

ID19

ID20

ID21

ID22

ID23

ID24

ID25

ID26

ID27

ID28

ID29

ID30

ID31

ID32

ID33

ID34

ID35

ID36

ID37

ID38

ID39

ID40

ID41

ID42

ID43

ID44

ID45
