Squareled Dancefloor Manual de usuario

User Manual: Squareled Dancefloor

USER MANUAL

BEFORE YOU BEGIN

Unpacking Instructions

Immediately upon receiving a fixture, carefully unpack the carton, check the contents

to ensure that all parts are present, and have been received in good condition. Notify

the shipper immediately and retain packing material for inspection if any parts appear

damaged from shipping or the carton itself shows signs of mishandling. Save the carton

and all packing materials. In the event that a fixture must be returned to the factory, it

is important that the fixture be returned in the original factory box and packing.

Specification

Control mode

SD Control(remote control)

Dimension(mm)

L500*W500*H70cm

Quantity（pcs/unit）

Light Resource

5050 SMD 3in 1

Max.power

24W

Input voltage

AC100-260V

Net weight

8.0KG

Refresh rate

400Hz

Brightness(CD/㎡)

700

Resolution （L*W）

8*8

Cover color

Black

Housing Material

ABS

Supporting weight

500KG/m2

Protection Level

Front：IP65 Back:IP54

Cover Material

Tempered glass

Beam angle

120°

Life span

≥50，000 hours

Working temperature

-20~ +60℃

Isolating Grade

CLASSE II

SET UP

1. Before installation, please be sureto distinguish clearly theac power input port

of lamps and lanterns and the controller signal input port, avoid the wrong line

and burn the lamps and lanterns.

g n a

l I

n p u

P ow e

np u

g n a

u p u

P o w e

2. The fixed base

3. The laying of lamps and lanterns, the starting point to put the SD card

controller of lamps and lanterns and power socket as abenchmark.

4 、Place the first piece of lamps and lanterns, and connect the power cord and

signal lines (avoid signal input and output port position against), orderly

arrangement is put in turn.

5. With a fixed base connection between various pieces of lamps andlanterns.

6. Each column of the first piece of lamps and lanterns is connected to external

power and signal lines. The same column of lamps and lanterns, connect the power

cord after a signal lines and before a signal wire and powercable.

7. A controller can control eight columns, 16 pieces, each column can meet

multiple controller to control the effect of the lamps and lanterns can joining

together. 8 signal output to a controller according to the order, in turn, connect the

corresponding column (that is, the controller signal output end of serial number

and arrangement of lamps and lanterns column number).

8. Controller can connect DMX controller, the effect of the lamps and lanterns is

controlled by DMX controller

4.Control method:

1, SD controller, as below. Attention:Plug in or pull out plug signal and SD card in

power up situation are notallowed.

（LED Controller）

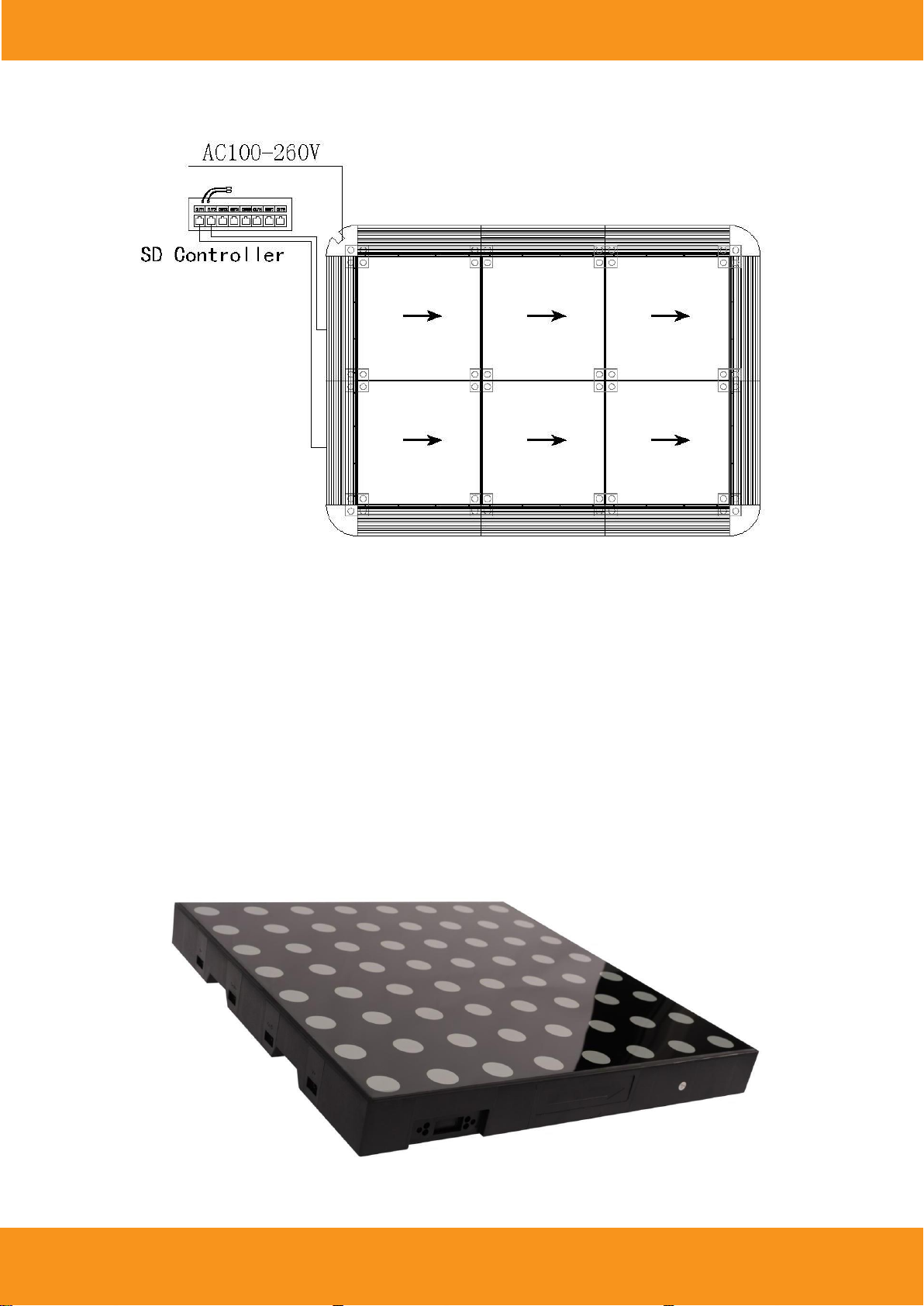

SD controller splicing diagram

Attention:

1.Plug in or pull out plug signal and SD card in power up situation are not allowed. 2，

Please do not turn on light and SD controller at the same time, it will cause the current to

impact SD controller easily.

3，Please do not put the product on the easy-loose or easy-shock place.

4，To avoid the electric shock, please ask the technical people to fix this product.

5，Please do not combine or break up the lights under power on.

6，Please read the user manual and instruction of controllers before using this product.

Pictures:

Connection base:

Das Lichttechnikhaus Vertriebs GmbH

Rudolf-Diesel-Str. 3, D-89312 Günzburg

Telefon +49 (0) 82 21 207 98-0

Fax +49 (0) 82 21 207 98-69

E-Mail [email protected]

Web www.lth-gmbh.de
