SPYKER 88 Manual de usuario
spread with confidence
Spreading Chart
Operation Guide
Service Manual
Parts List
spread with confidence
It’s the spread that counts
It’s the spread that counts
For Models:
88, 296, 298
298
296
88
P.O. Box 210
810 W. Main Street
N. Manchester, IN
46962 USA
1-800-972-6130
Fax: 219-774-3416
Tools You will Need:
Screwdriver
7/16 Wrench
3/8 Wrench
Mallet
Parts You will Use:
Parts for Models:
296, 298
• (1) Drive Wheel
• (1) Idle Wheel
• (2) Handle - SS.
• (2) Bump Bar - SS.
• (1) Screw 10-24x1-3/4 Bolt
• (1) Nut 1/4 - 20
• (2) Washer - Finishing
• (2) Handle Grip
• (9) Nut
• (1) Agitator Wire
• (1) Felt Washer
• (1) Upper Spinner Shaft
• (1) Coupling
• (1) Spring Clip
• (1) Cotter Pin
• (6) 1/4 - 20x1-1/2 Bolt
• (3) 1/4 - 20x2-3/4 Bolt
• (1) Screen
• (1) Spinner
For Quick and Easy Assembly - First Read Entire Procedure
Then Follow Carefully The Step by Step Instructions
2
Assembly Instructions
NOTE: Painted model 296 shown in assembly instructions. 298 is stainless
frame (not shown).
1.
Insert the ground
prop (46) into the
frame and fasten
with two bolts
(47) and nuts (5)
supplied.
Spreader Assembly
3
2.
a. Mount tires on
axle as shown to
the right, noting
that the drive
wheel (33) has a
hole in the hub
for the bolt (42)
to go through the
axle and fasten
with nut (44) as
illustrated with an
arrow in diagram
2b.
34
33
2b. Washers (50)
go on either side.
4
Spreader Assembly
continued
3.
Attach the idle (34)
wheel to axle with
the washer (45)
and cotter pin (25)
as shown right.
4.
Insert handles (40)
into frame as
shown right and
fasten handles
loosely (40) to
frame (14) with 4
bolts (48) and 4
nuts (5). Attach
handles (40)
loosely together
with 1 bolt (41)
and nut (5) at
location illustrated
with arrow. Leave
the top two holes
empty until you
attach the levers.
5.
Attach on/off
control lever (37)
and Accuway
control lever (38)
to the handles as
shown and bolt
together with two
of the longer bolts
(41) supplied (5).
Tighten all nuts &
bolts at this time.
38 37
41
48
5
Cable Adjustment Procedure
for Model 88 and Current Models 296 & 298
1.
Make sure that both levers are pulled all the way
back towards the handles.
6
Cable Adjustment Procedure
for Model 88 and Current Models 296 & 298
2.
Turn the rate control dial (10) to the highest
setting, (all the way past the number (9) until the
notch on the linkage stops against the flat surface
of the dial. Insert control cables in the holes in the
cable mount bracket (3) and guide the inner wire
through the hole in the cable fasteners (13). Slide
cables over so that the slots in the cable ends are
held firmly by cable mount bracket. NOTE: The
on/off control lever (37) goes into the lower hole in
this illustration which then attaches to the rate gate
linkage (9). Secure cable by inserting screw (52)
into hole of cable retainer (53) and screwing into
cable mount bracket (3). Make sure that the
diffuser assembly (12) is slid back completely
against the upper spinner shaft (28), and the rate
gate linkage (9) is slid back against the dial (10).
Now tighten the set screws in the cable fasteners
(13) to secure the wires to the fasteners.
28
3
13
13
53
12
9
10
52
1.
Insert upper
spinner shaft (28)
into the bottom of
hopper so that
the end with the
hole for the
agitator wire goes
up into the
hopper.
Spreader Assembly
continued
Spinner Assembly
7
6.
Insert the bump
bar (46) into
frame as shown
to the right and
fasten with two
bolts (15) that
fasten the front of
the hopper to the
frame. The bolts
go through the
bump bar and are
fastened with
nuts (5).
2.
Slide spinner (31)
onto upper spinner
shaft (28).

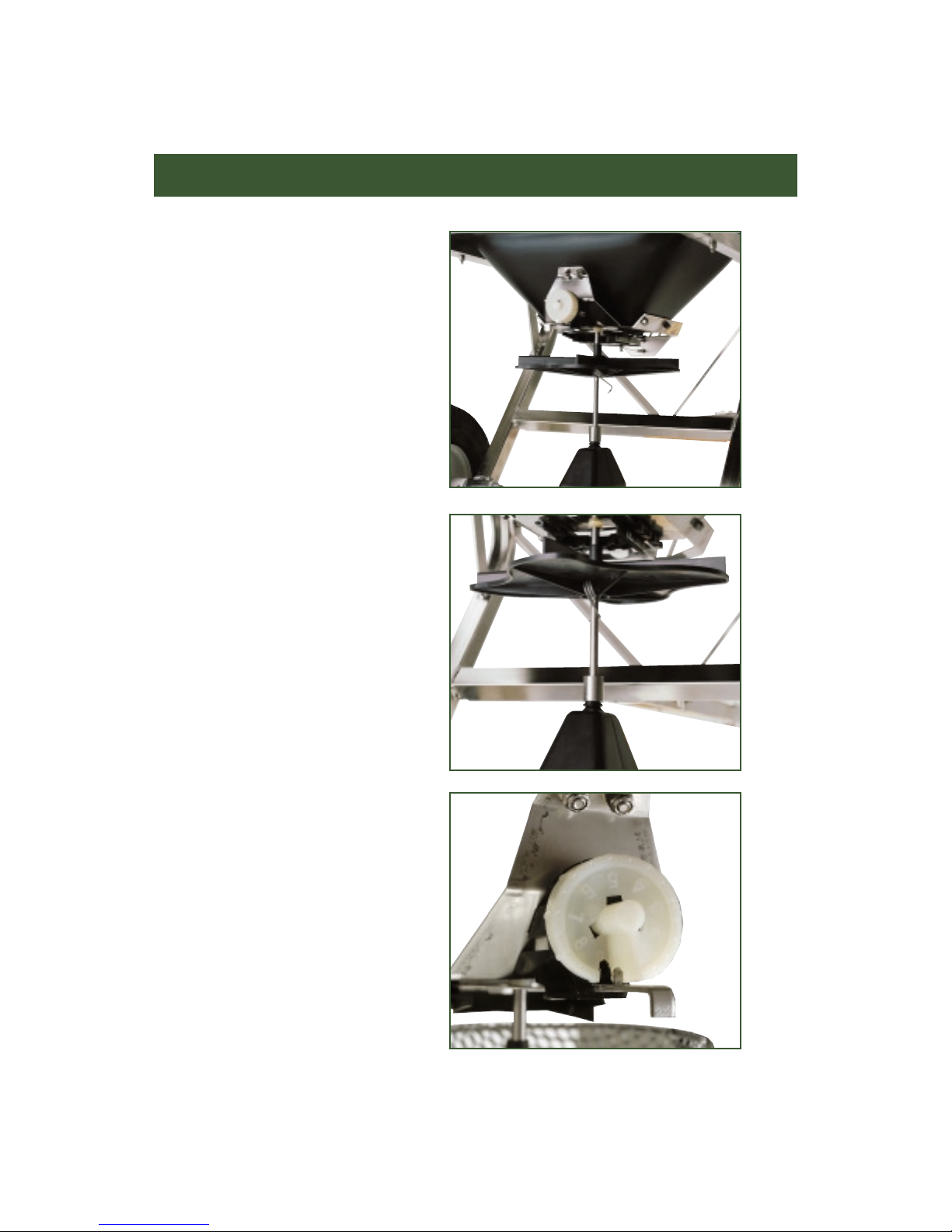

Spinner Assembly
continued
8
4.
Connect upper
spinner shaft (28)
and lower spinner
shaft (23).
3
.
Slide coupling (29)
onto upper spinner
shaft (28).
5.
Slide coupling (29)
down to secure
connection of
upper & lower
spinner shafts.
Spinner Assembly
continued
9
7.
Snap the loop of
the spinner clip
(30) around upper
spinner shaft (28)
to secure spinner
(31).
6.
Insert spinner clip
(30) through hole
in spinner (31) and
hole in upper
spinner shaft (28).
NOTE: Use upper
hole in spinner
shaft for the
regular spinner
(31) and use the
lower hole for the
mulch spinner.
8.
The slot in the dial
is to allow the rate
gate linkage to
travel all the way
open for the mulch
setting on models
296 & 298 only.
18
20
18
32
18
20
18
42
19
19
25
15
16
15
16
15
16
15
16
1
5
5
5
46
33
34
55
5
48
38
41
40
47
47
5
46
5
47
14
5
5
37
44
50
50
10
Exploded View Model 88
Rear View
39 Screen
54 Retainer Wire
Hopper & Frame
Assembly
