SPT Labtech apricot S1 Manual de usuario
© 2021 SPT Labtech Ltd
sptlabtech.com/support
2
Introduction

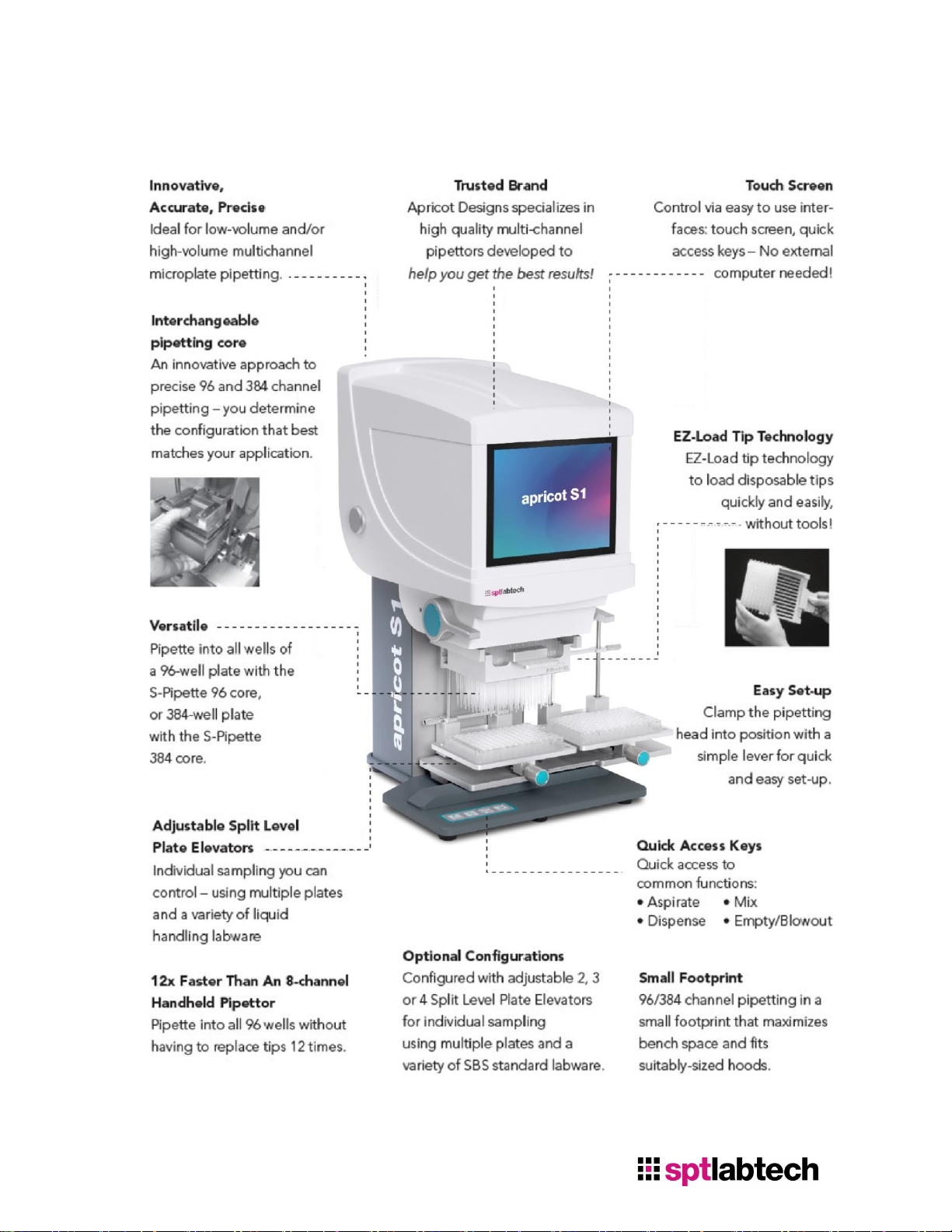

Thank you for purchasing the apricot S1 –the innovative multi-channel liquid
handling system with the Interchangeable Pipetting Core!
Our ongoing commitment is to help you get the best results, so we designed and
manufactured this instrument with you in mind. With the apricot S1, access to the
pipetting core is quick and easy for greater flexibility in pipettor operation. Just
determine the pipetting configuration that best matches the applications you want to
perform. Then, load a 96 or 384 channel core into the pipettor (without tools!) and
you’re ready to go.
With proper handling and maintenance, as detailed in this manual, this instrument
will provide years of efficient and reliable service. This manual is your ready
reference to the care, maintenance, and operation of the instrument and should be
stored in a convenient place. Failure to adhere to proper care, maintenance, and
operation of the instrument may lead to poor experimental results, reduced
equipment life, and the possibility of injury to the operator.
We truly appreciate your business and the trust you have placed in us. Should you
have any questions, comments or suggestions regarding this instrument, please
Frequency Interference
There are a variety of external causes for frequency interference and/or
interruptions in connectivity or loss of data/information.
Frequency interference can occur when another signal passes through your location
corrupting the signal.
Frequency interference is location specific and not device dependent and may result
from the location of the device and nearby competing signals.
SPT Labtech staff does not provide any technical support relating to troubleshooting
or identifying frequency interference.
SPT Latbtech is not responsible and assumes no liability for interruptions in
connectivity or loss of data/information due to frequency interference.
© 2021 SPT Labtech Ltd
3
Table of Contents
1. SPECIFICATIONS ........................................................................................4
1.1 Safety Precautions ............................................................................................................5
1.2 Inspection and Set-Up ......................................................................................................6
1.3 Moving the apricot S1 .......................................................................................................7
1.4 Software Specs and Requirements..................................................................................8
2. FEATURES .....................................................................................................9
2.1 Applications .....................................................................................................................10
2.2 Core, Tip & Head Compatibility ......................................................................................11
2.3 Pipettor + Head + Tips = Repeatable Results ................................................................12
2.4 EZ-Load Tip Technology ..................................................................................................12
2.5 Adjustable Plate Elevators ..............................................................................................13
2.6 Adjustable Split-Level Shuttles .......................................................................................13
2.7 Accessing the Pipetting Core ..........................................................................................14
2.8 Loading a 96 or 384 Channel Core.................................................................................14
3. OPERATION OVERVIEW .............................................................................15
4. MAIN SCREEN OVERVIEW........................................................................16
4.1 Pipettor Control Interfaces .............................................................................................16
4.2 Touch Screen (User Interface) ........................................................................................17
4.3 Settings Screen ................................................................................................................19
4.4 Quick Access Keys (User Interface) ................................................................................20
5. CARE AND MAINTENANCE......................................................................21
6. TROUBLESHOOTING ...............................................................................22
TECHNICAL SUPPORT CONTACT INFORMATION .........................................23
© 2021 SPT Labtech Ltd
sptlabtech.com/support
4
1. Specifications
The following is a list of the ideal operating parameters for the S-Pipette. This
instrument will perform optimally and safely under standard laboratory settings. The
use of this instrument in other environments is not recommended, and results may
prove unsatisfactory.
Model
apricot S1
DispensingPrecision
(1250) <3% CV at 10µL
*Note
: 1250µL Aluminum Core
(1000) <3% CV at 10µL
(500) <3% CV at 5µL
(125) <3% CV at 1µL
Dispensing Accuracy
(1250) +/–2% error at 10µL
(1000) +/–2% error at 10µL
(500) +/–2% error at 5µL
(125) +/–2% error at 1µL
Resolution
(1250/1000/500) 1µL
(125) 0.1µL
Volume
Max channel capacity 1250µL
Dispense range
(1250) 5–1000µL
(1000) 5–1000µL
(500) 1–500µL
(125) 0.5–125µL
ParticleSize
< 0.032” diameter to prevent tip blockage
Current
3 Amp
Power
(Input)
100 –240VAC, 50 –60Hz
Power Consumption (MAX)
130W
Power Consumption Idle
60W
Operating Temperature
40 –104°F, 5 –40°C
Relative Humidity
(MAX)
80% (non-condensing)
Equipment Ratings
Indoor use only, temperature regulated, non-dusty
Altitude
Up to 2000m
Pollution degree
2
Powersupplyvoltage
Fluctuations not exceeding ± 10% of the nominal voltage
Transient overvoltage
According to Category II (Installation Category)
Dimensions
11.5”W x 13”D x 20.5”H
(292mm W x 330mm D x 521mm H)
Weight
Approx. 44lbs (20kg)
© 2021 SPT Labtech Ltd
5
1.1 Safety Precautions
The apricot S1 is designed and engineered with your safety in mind. However, failure
to adhere to proper care, maintenance, and operation of the instrument may lead to
poor experimental results, reduced equipment life, and the possibility of injury to the
operator.
Please adhere to the following safety guidelines when working with the apricot
S1:
oOpen the hood to exchange cores only!
oDo not attempt to make an adjustment or try to repair something that is not
working correctly –this could result in injury and will void the warranty. If you
encounter a problem with the instrument, please contact Apricot Designs, Inc. or
your distributor.
oOperate the instrument in an indoor environment only!
oAvoid exposure to direct sunlight and excessive humidity. Also, for safe
operation, do not operate the instrument with wet hands.
oAlways connect the instrument via a grounded power outlet.
oUse only Apricot Designs optional tools, equipment, and peripherals!
oOur optional tools, equipment, and peripherals will enhance the performance of
the manufactured instrument to help you get the best results.
oIt is highly recommended that you use disposable tips manufactured by Apricot
Designs because they are designed to perform optimally with our instruments.
oUsing add-on products or modifications not supplied by Apricot will void the
warranty and likely affect the performance of the instrument as well as lead to
poor experimental results, reduced equipment life, and the possibility of injury
to the operator.
oUnder no circumstances should any part of the operator’s body or any foreign
object(s), except the labware in use, enter the area directly under the pipetting
tips and above the elevator. In case of emergency, turn the power off
immediately.
oPlace the instrument on a sturdy and level surface. Use appropriate caution
when operating this instrument.
oWear protective clothing/goggles when dealing with dangerous, corrosive, or
radioactive substances.
oThis instrument is designed to fit inside a suitably-sized fume hood when
working with volatile organic solvents.
For full instructions regarding the handling of pathogens or biological hazards in Risk
Group 2 or higher, please refer to the current edition of the Laboratory Biosafety
Manual, published by the World Health Organization
© 2021 SPT Labtech Ltd
sptlabtech.com/support
6
1.2 –Inspection and Set-Up

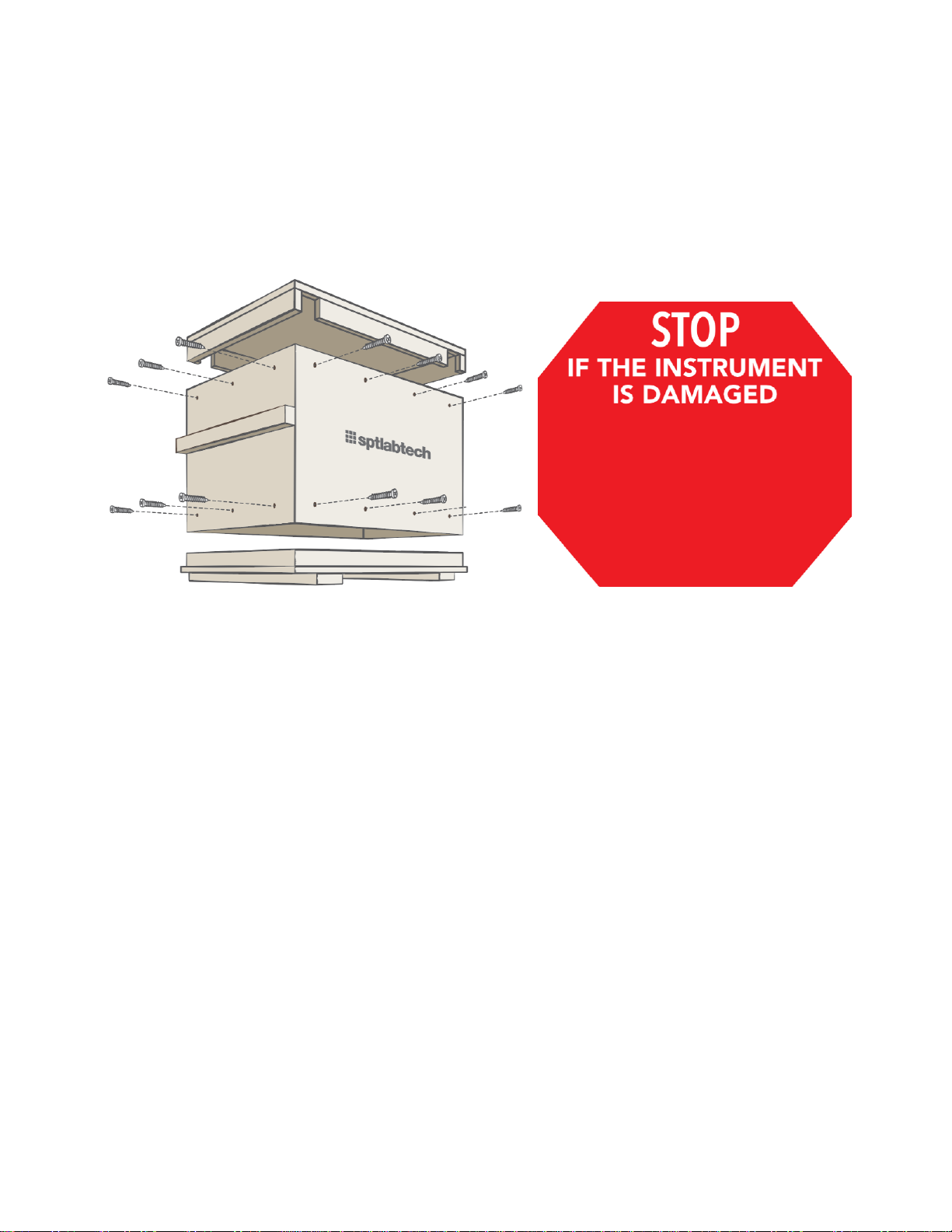

Care should be exercised when unpacking the crate.
oInspect the instrument for any visible damage that may have occurred during
shipping.
After confirming that there is no damage you can start the installation of the apricot
S1.
oRe-assemble and save the shipping crate for future use.
oWe recommend that you read through the Operating Instructions Manual before
you start the install process.
oPlace the instrument on a sturdy and level surface.
oUse appropriate caution when operating this instrument.
oVerify that the ON/OFF switch is in the OFF position.
oUsing the power cord provided connect the instrument entry connector and
connect the opposite end to a power outlet with a ground connection.
oThe instrument is ready to turn on. Press the ON/OFF switch to the ON position.
DO NOT PLUG IN OR TURN ON
THE SYSTEM
Contact SPT Labtech immediately –
take a picture of the damage and
send it to
apricotsupport@sptlabtech.com, and
contact the freight carrier.
© 2021 SPT Labtech Ltd
7
1.3 –Moving the apricot S1

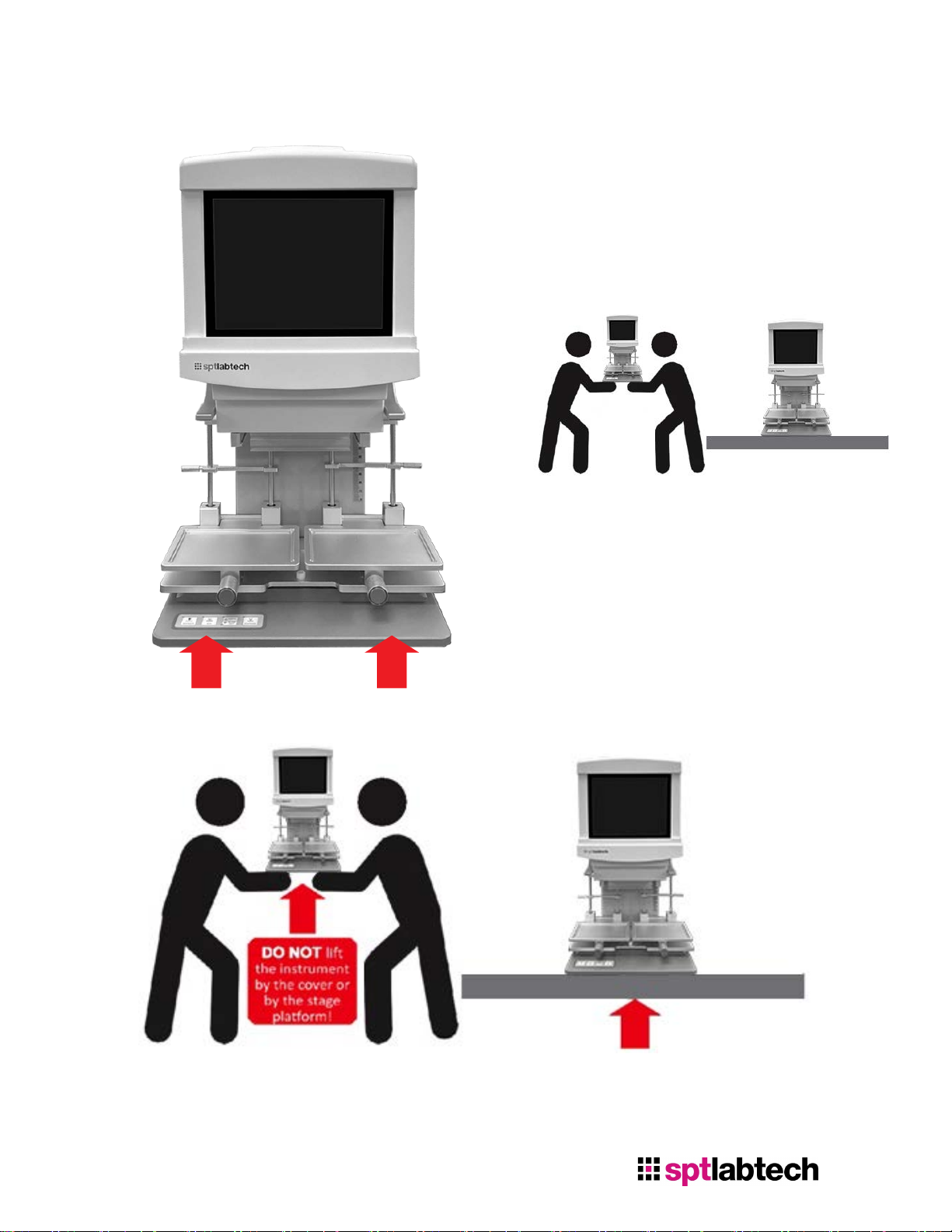

Keep your back straight and lift with
your legs to avoid possible injury.
The instrument is quite heavy, so
several people are required to move it.
Place the instrument on a steady, sturdy, flat and level surface.
Lift the S-Pipettor unit by the base plate of the instrument.
