SPRT SP-TL51 Manual de usuario

SPRT®

SP-TL51

THERMAL BARCODE PRINTER

Users’ Manual（Ver 1.02）

Beijing Spirit Technology Development Co., Ltd

Content

Introduction.....................................................................................................................................................1

Chapter 1 Feature and Function..............................................................................................................1

1.1 Printing Function.............................................................................................................................1

1.2 Print Paper....................................................................................................................................... 1

1.3 Print Font..........................................................................................................................................2

1.4 Interface........................................................................................................................................... 2

1.5 Print Control Commands............................................................................................................... 2

1.6 Power Supply.................................................................................................................................. 3

1.7 Operation Environment..................................................................................................................3

1.8 Outline Dimension.......................................................................................................................... 3

1.9 Model classification........................................................................................................................ 3

Chapter 2 Operation Instruction...............................................................................................................4

2.1 Printer Appearance........................................................................................................................ 4

2.2 Paper Installation............................................................................................................................ 5

2.2.1 Paper Loading..................................................................................................................... 5

2.3 Interface Connection......................................................................................................................6

2.3.1 Serial Interface Connection............................................................................................... 6

2.3.2 Parallel Interface Connection......................................................................................... 8

Fig.2-8 Signal Timing Chart of Parallel Interface..................................................................... 9

2.3.3 Power Connection............................................................................................................9

2.4 Indicators, Buzzer and Button Operation................................................................................. 10

2.6 Self-test.......................................................................................................................................... 11

2.7 Hexadecimal Printing................................................................................................................... 11

Introduction

TL51 printer is a new line thermal printer model, with high printing speed, low noise, high

reliability, high printing quality, and ribbon needless, avoid daily maintenance trouble.

TL51 is with small size, simple operating method, and wide application field, especially

for business field like warehousing, logistics, and courier express, etc.

Statement

This is Grade A product, it may lead to Radio interference in life environment,

so may need users to take practical measures under this situation.

Chapter 1 Feature and Function

1.1 Printing Function

●Printing method: Direct thermal printing

●Printing width: 112±0.5mm

●Printing density: 8 dot/mm, 864 dot/line

●Printing speed: 150mm/s(max)

●Reliability: TPH: 100km

Using condition:

* Print 12X24 ASCII characters, print 50 lines each time, intermittent print repeatedly.

* Use specified thermal paper

●Effective printing width: 108mm

1.2 Print Paper

●Thermal paper roll: Paper width ---------- 112±0.5mm

Outer Diameter ---------- ф127mm（max）

Inner Diameter ---------- ф13mm（min）

Normal Paper Thickness ---------- 0.06mm～0.20mm

Label PaperThickness ---------- 0.12mm～0.20mm(label length≥3cm, gap≥2mm)

●Paper type: Normal thermal paper, label paper, black sense paper.

1.3 Print Font

●ANK Character Set:

12*24 dot, 1.5(W)*3.00(H)mm, 9*17dot, 1.125(W)*2.125(H)mm

●Chinese characters:

24*24dot, 3.00(W)*3.00(H)mm

1.4 Interface

●RS－232CSerial Interface:

DB-25 socket (female), DB-9 socket (female), support XON/XOFF and DTR/DSR protocols.

Baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps adjustable.

Data structure: 1start bit + (7 or 8) data bits + 1 stop bit.

Parity checking: no parity or odd, even parity optional.

●Parallel Interface:

36-pin, 8-bit parallel interface, BUSY/ACK handshaking protocol, TTL signal level.

●Ethernet Interface: Standard Ethernet interface.

●USB interface: Standard USB interface.

1.5 Print Control Commands

●Character print commands: support double-width, double height printing of ANK characters,

self-defined characters, and Chinese characters, the character line spacing is adjustable.

●Graphics print commands: support print of bit-map graphics and download bit-map graphics

with different density.

●GS bar code print commands: support printing UPC-A, UPC-E, EAN-13, EAN-8, CODE39,

ITF25, CODABAR, CODE93, CODE128, PDF417, QR Code, and DATA Matrix.

1.6 Power Supply

●DC24V±10％, 2A, A-1009-3P power socket.

1.7 Operation Environment

●Operation temperature: 0℃～50℃Relative operation humidity: 10％～80％

●Storage temperature: -20℃～60℃Relative storage humidity: 10％～90％

1.8 Outline Dimension

●240mm(L)X180mm(W)X157mm(L)

1.9 Model classification

Model

Interface

SP-TL51M

RS－232C (DB9 female), USB, Ethernet, 3 in 1

SP-TL51E

Only Ethernet(interface board not removable)

SP- TL51S

RS－232C(DB25 female)

SP- TL51P

Parallel

SP- TL51U

USB

Chapter 2 Operation Instruction

2.1 Printer Appearance

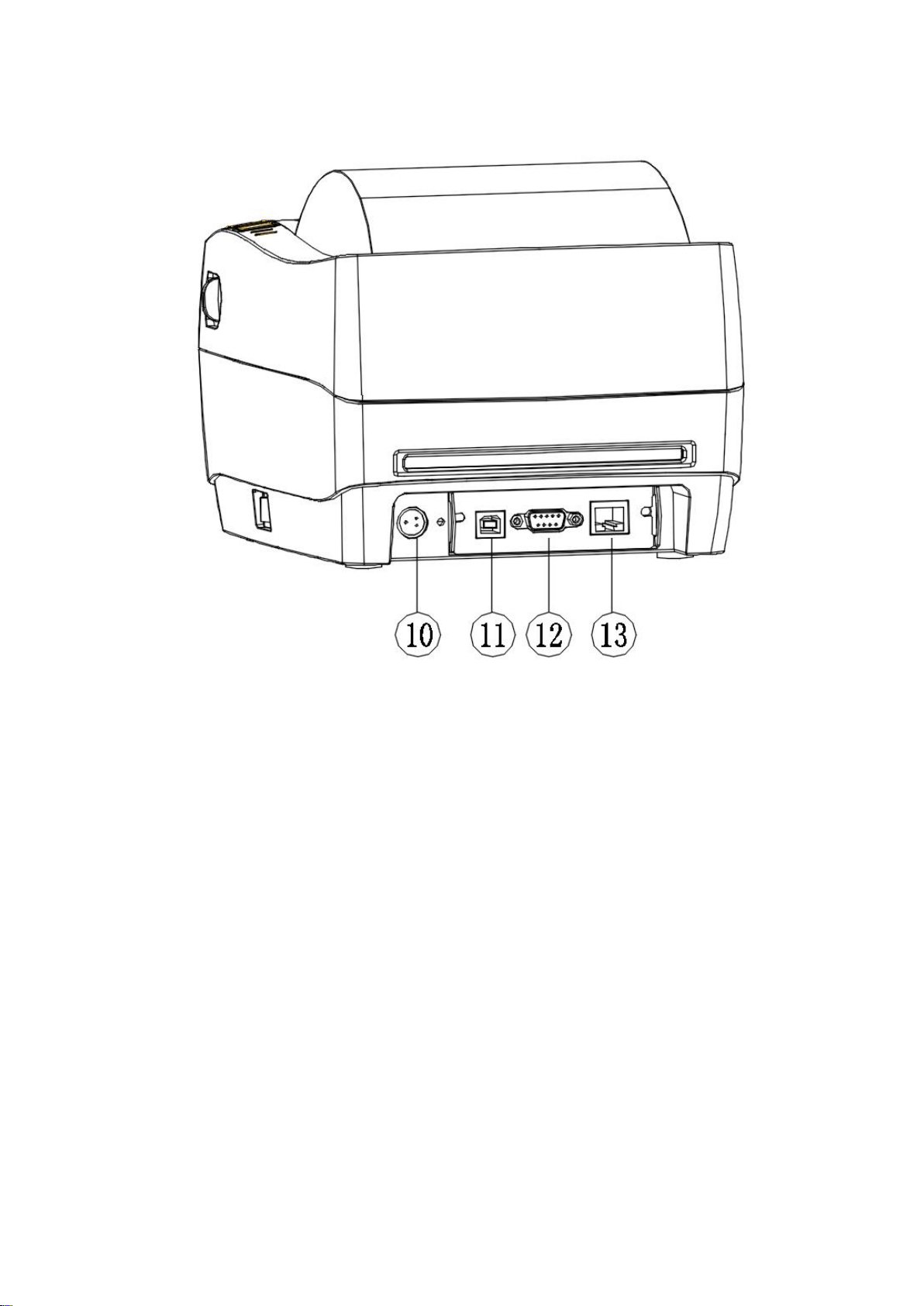

1.Feed button 2. Pause button 3.Error light indicator 4.Power light indicator

5.Transparent paper house 6.Top enclosure body 7. Cover open button

8. Bottom enclosure body 9. Power switch 10. Power socket 11. USB interface

12. DB9 serial interface 13.Ethernet interface

Fig 2-1. Printer part name

2.2 Paper Installation

2.2.1 Paper Loading

TL51 printer uses thermal paper roll with 112±0.5m width.

Thermal paper roll installation steps as below:

Press the upper cover button on the left side, open the movable upper cover, draw a certain

length of the paper roll, put the paper end on the print head, close the upper cover and press

it downwards lightly.

1. Pay attention to the direction of loading paper, make the printing

surface face to the print head.

2. Please don’t feed or draw the paper forwards or backwards by

hands.

3. Keep clean of the print head, avoid to influence the printing

quality.

2.3 Interface Connection

2.3.1 Serial Interface Connection

The serial interface of TL51 printer is compatible with RS-232C, supports DTR/DSR and

XON/XOFF handshake protocol, the interface socket is DB-25 socket (female) and DB-9

socket(female). The pin order of the serial port is as Fig 2-2, 2-3:

Fig 2-2 Pin order of DB-25socket (female)serial port

Fig 2-3 Pin order of DB-9socket(female) serial port

!Caution

Caution!

The pin assignment of serial interface is shown as 2-4, 2-5:

Pin No.

Signal

Name

Signal

Direction

Source

Description

----

Cover ground

TXD

Output

Printer

Printer transmits control code X-ON/X-OFF and data

to host

RXD

Input

Host

Printer receives data from host

RTS

Output

Printer

Same with 20pins DTR signal

DSR

Input

Host

Signal “MARK” means the host is busy and can not

receive data. Signal “SPACE” means the host is

ready to receive data.

GND

----------

-------

Signal Ground

DTR

Output

Printer

Signal “MARK” means the host is busy and can not

receive data.Signal “SPACE” means the host is

ready to receive data.

Fig. 2-4 Pin assignment of DB-25 socket serial port

Pin No.

Signal

Name

Signal

Direction

Source

Description

----

RXD

Input

Host

Printer receives data from host

TXD

Output

Printer

Printer transmits control code X-ON/X-OFF and data

to host

DSR

Output

Printer

Signal “MARK” means the host is busy and can not

receive data.Signal “SPACE” means the host is

ready to receive data.

GND

----

Cover ground

DTR

Input

Host

Signal “MARK” means the host is busy and can not

receive data.Signal “SPACE” means the host is

ready to receive data.

CTS

Output

Printer

Same with DSR

RTS

Input

Host

Same withDTR

----

Fig. 2-5 Pin assignment of DB-9 hole socket(female) serial port

Note: (1)”Source” means the source where signal come from;

(2) Signal logic level is EIA.

The baud rate and data structure in serial interface mode is 9600bps, 8-bit data bits, no

parity bit and 1 stop bit. The serial interface of SP-TL51 can be connected to standard

RS-232C interface. When it is connected to IBM PC or its compatible machine, connection

can refer to Fig.2-6.

Fig.2-6 Connection between SP-TL51 and IBM PC Serial Interface Sketch Map

2.3.2 Parallel Interface Connection

The parallel interface of SP-TL51 printer is compatible with CENTRONICS, supports

BUSY or ACK handshaking protocol. The pin assignment of 36 PIN parallel interface is as

Fig. 2-7 shows:

Pin No.

Signal

Direction

Description

STROBE

Gated file-flop, reading data at the rising edge.

These signals represent the 1st bit to 8th bit of the parallel

data respectively, each signal is at HIGH level when data is

logic 1, and LOW when data is logic 0.

ACK

Out

Response impulse, LOW level signal indicates that data has

already been received and the printer gets ready to receive.

the next data.

BUSY

Out

HIGH level signal indicates that the printer is BUSY and can

not receive data.

Out

HIGH level signal indicates that paper is end.
