WELL WATER FILTER SYSTEM
MODELS: WS1, WS4
Installation Instructions
CUSTOMER SERVICE IS AVAILABLE MON-FRI 9AM-6PM EST
800-589-5592
WWW.SPRINGWELLWATER.COM
SpringWell Water Systems has once again taken the
latest technologies in water filtration and designed a
more economical and environmentally friendly well
water system."
#
$
2
Additional Parts Included
PLEASE READ INSTRUCTIONS FULLY BEFORE INSTALLATION.
Be sure to follow all applicable plumbing codes. The system must be
installed on main water supply line.
CAUTION: Do not install on well water unless you have spoken to a
customer service representative first.
NOTE: This system does require electricity.

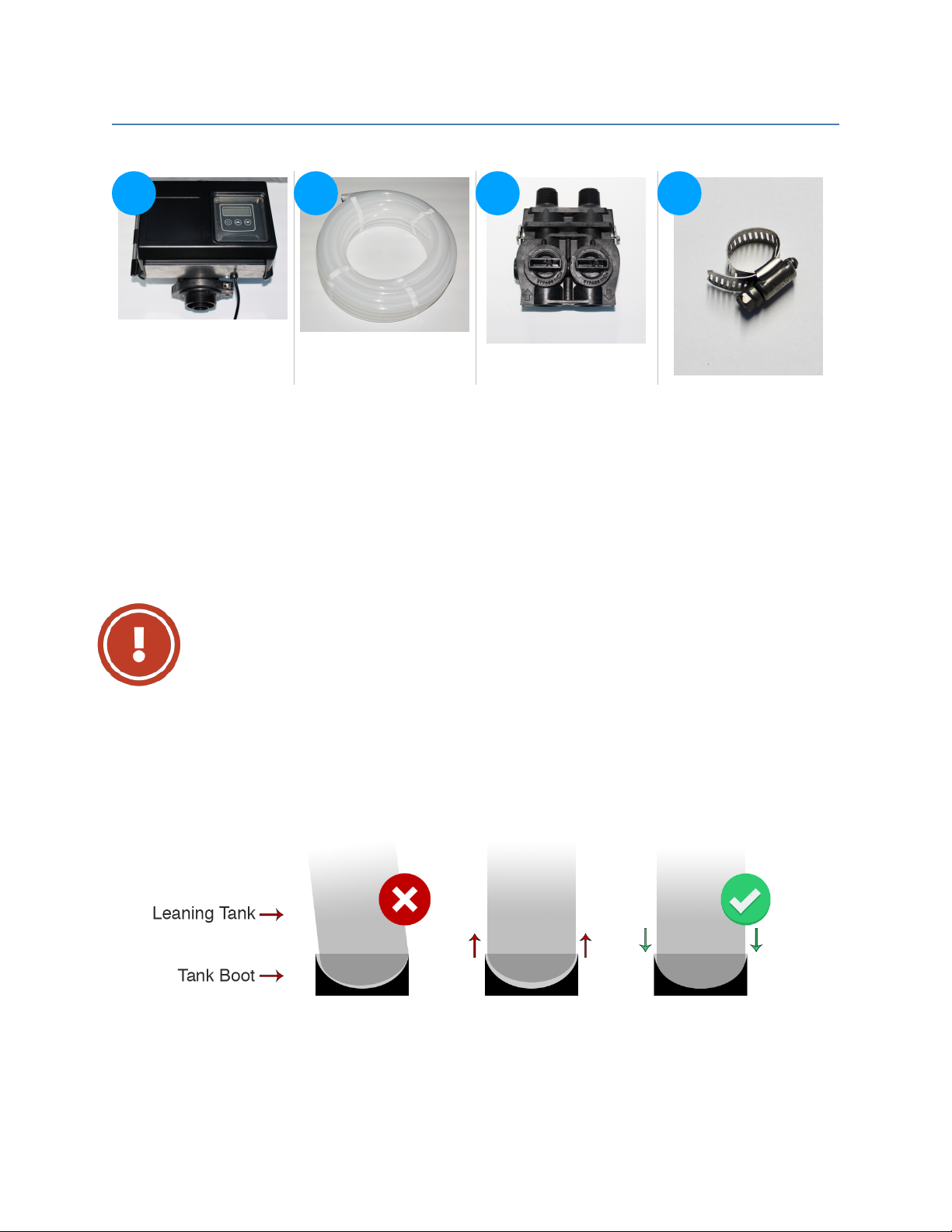

1. Electronic Head
2. 50’ Drain Line
3. Bypass Valve
4. Hose Clamp
1
2
3
4
8
If the tank is not perfectly straight, carefully lift the tank straight up a few
inches and tap it on the ground until the tank stands vertical and fits
snuggly into the tank boot.
3
Product Specs
WS1
Tank Width
10”
Tank Height
54” (64” with head)
Flow Rate
12 GPM Service
Connection Size
3/4”
Backwash Rate
5 GPM
Operating Pressure
25-80 PSI
Operating Temperatures
36 - 120 F
pH Range
6.8 - 10
For replacement filters, please visit: www.springwellwater.com/replacements
WS4
Tank Width
13”
Tank Height
54” (64” with head)
Flow Rate
18 GPM Service
Connection Size
3/4”
Backwash Rate
7 GPM
Operating Pressure
25-80 PSI
Operating Temperatures
36 - 120 F
pH Range
6.8 - 10
#
1#
4#
2#
3#
4
Installation Instructions
Locate main tank box and unpack the tank. Next, unpack the small box of parts
and the electronic head.
Remove the gray cap on top of the main tank. Remove the blue cap from the
distributor tube. Be sure Diffuser is 1” below the neck of the tank. Place the
electronic head on top of the distributor tube and press down, then screw down
hand tight.
#
#
5
Locate the bypass valve and push it onto the head following the arrows on top.
Next secure the bypass by hooking metal tab to edge and tightening down the
screws. Be sure to tighten screws all the way down as there will be pressure on
the bypass.
Install Bypass
#
6
Note: This is the point where you will install the system into your main
plumbing. This system should be installed before water softeners,
chlorinators, etc. This system should be installed after sediment filters, or
neutralizing filters. (calcite, corosex)
Determine the area where you want to install your system. Be sure there is an
electrical outlet for the electronic head. Follow the arrows on top of the bypass
valve to determine the flow of the water. Adapt your plumbing in and through the
head.
Now finish by plumbing back into your main water supply.
Install Bypass
(Example using SharkBite Fittings)
1#
4#
2#
3#
7
Connect Drain Line
Locate the drain line. Connect the drain line to the white barb fitting on the
electronic head. Slip the drain line over the barb then secure it with the hose
clamp provided. Due to the release of air during regeneration, the drain line
must be plumbed in Schedule 40 PVC Pipe and securely fastened or
anchored throughout the run.
8
1. Hold up or down button until you get to 12:01 PM.
2. Hit the regen button once to set time.
3. Hold the up and down arrows at the same time until it reads DF
GAL.
4. Hit regen button should read VT df 1b.
5. Hit regen button should read CT tc.
6. Hit regen button should read NT ——— 1.
7. Hit regen button should read DO 1. If not hit up or down arrow to
set to 1.
8. Hit regen should read 12:00. This is the time the system will
regenerate. Pick the best time no one is using water inside the
house, we typically will set for 2:00 AM. If the system is in line with
another system that back washes stagger the times by at least 2
hours.
9. Hit regen should read BW 14.
10. Hit regen should read BD 40.
11. Hit regen should read RR 1.
12. Hit regen should read BF off
13. Set time again and hit regen.
Setting The Electronic Head
Plug the electronic head into the outlet and it will automatically come on. To set
the head the time must always be on 12:01 PM.
(on position)
9
Turning Main Water Back On
Once the settings are all done you should be ready to turn the water back on.
Turn on slowly. Once water is on be sure to check the bypass valve. It needs to
be in the on position.
Finish The Install:
Now that the water is back on check for leaks and make sure there are none.
Check drain hose and make sure it’s in the drain or run to the outside. It’s time
now to do a manual regeneration of the system. At this time you can’t use water
as the system will be using the water. On the head simply hold down the regen
button until you hear it start then release the button. This will take about one
hour.
Install is Complete!
