Spraying Systems TeeJet TECHNOLOGIES BoomPilot Manual de usuario
BOOMPILOT®
INSTALLATION MANUAL
Automatic boom section control installation manual
for use with ARAG BRAVO 180 controller w/Matrix® Pro
Copyrights
© 2013 TeeJet Technologies. All rights reserved. No part of this document or the computer programs described in it may be reproduced,
copied, photocopied, translated, or reduced in any form or by any means, electronic or machine readable, recording or otherwise, without
prior written consent from TeeJet Technologies.
Trademarks
Unless otherwise noted, all other brand or product names are trademarks or registered trademarks of their respective companies or
organizations.
Limitation of liability
TEEJET TECHNOLOGIES PROVIDES THIS MATERIAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR
IMPLIED. NO COPYRIGHT LIABILITY OR PATENT IS ASSUMED. IN NO EVENT SHALL TEEJET TECHNOLOGIES BE LIABLE FOR ANY
LOSS OF BUSINESS, LOSS OF PROFIT, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS, OR FOR INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND, EVEN IF TEEJET TECHNOLOGIES HAS BEEN ADVISED OF SUCH
DAMAGES ARISING FROM TEEJET TECHNOLOGIES SOFTWARE.
Safety information
TeeJet Technologies is not responsible for damage or physical harm caused by failure to adhere to the following safety
requirements.
As the operator of the vehicle, you are responsible for its safe operation.
The BoomPilot is not designed to replace the vehicle’s operator.
Do not leave a vehicle while the BoomPilot is engaged.
Be sure that the area around the vehicle is clear of people and obstacles before and during engagement.
The BoomPilot is designed to support and improve efciency while working in the eld. The driver has full responsibility for the quality and
work related results.
Disengage BoomPilot before operating on public roads or when not in use to prevent loss of vehicle control.
1
020-042-UK R1
BoomPilot®
Table of contents
REQUIRED COMPONENTS 2
PRINCIPLE OF OPERATION 4
INSTALLATION 4
1. INSTALLING THE ARAG 180 ADAPTER CABLE ...................................................................................................................................... 4
2. MOUNT & CONNECT ABSC ADAPTER BOX............................................................................................................................................ 6
3. DISCONNECT & RECONNECT HARNESSES & CABLES ....................................................................................................................... 6
4. CONNECT POWER/CAN/DATA CABLE TO BOOMPILOT ADAPTER CABLE................................................................................. 7
5. CONNECTING TO POWER............................................................................................................................................................................. 8
Optional Battery Cable...................................................................................................................................................................8
6. RECOMMENDED ELECTRONICS INSTALLATION ................................................................................................................................. 8
7. COMPLETE ELECTRONIC INSTALLATION ............................................................................................................................................... 8
SYSTEM CHECK 9
Check AUTOMATIC mode:............................................................................................................................................................9
ARAG BRAVO 180: ...............................................................................................................................................................9
Matrix Pro:..............................................................................................................................................................................9
Check MANUAL mode:..................................................................................................................................................................9
ARAG BRAVO 180: ...............................................................................................................................................................9
Matrix Pro:..............................................................................................................................................................................9
2www.teejet.com
BoomPilot®
REQUIRED COMPONENTS
Unpack the installation kit and identify the required parts for your installation.
Item Part Number Description Quantity
A 90-xxxxx* Matrix Pro guidance controller kit ....................................................................................................................................1
B 45-05845 Power/CAN/data cable ....................................................................................................................................................1
C 199-263 BoomPilot adapter cable..................................................................................................................................................1
D 902-363 ABSC adapter box...........................................................................................................................................................1
E 903-330 ABSC adapter box kit for ARAG 180, 4 sections .............................................................................................................1
903-331 ABSC adapter box kit for ARAG 180, 5 sections .............................................................................................................1
F 020-042 Installation manual, ARAG BRAVO 180...........................................................................................................................1
G 98-05243 Matrix Pro BoomPilot setup guide ...................................................................................................................................1
*Part number is dependent on kit contents
Item Part # Description Illustration
A
Part
number is
dependent
on kit
contents
Matrix Pro guidance controller kit Matrix Pro 570G Matrix Pro 840G
B 45-05845 Power/CAN/data cable
POWER IN
CAN
RS-232
Power/DATA
45-05626
C 199-263 BoomPilot adapter cable
B A
B A A B
D 902-363 ABSC adapter box
AUTMATIC
BOM SECTION
CONTROL
E
903-330 ABSC adapter box kit for ARAG 180, 4
sections
903-331 ABSC adapter box kit for ARAG 180, 5
sections
F 020-042 Installation manual, ARAG BRAVO 180
G 98-05243 Matrix Pro BoomPilot setup guide
3
020-042-UK R1
BoomPilot®
Figure 1: System diagram
POWER IN
CAN
RS-232
Power/DATA
45-05626
45-05845 3.3 m
Power/CAN/data cable
(included with FieldPilot
and BoomPilot kits)
10A fuseto RS-232
902-363
ABSC adapter box
199-263
BoomPilot harness
to Power connector
from ABSC adapter box
Machine connector
(from sprayer)
Machine connector
(from ABSC box)
ARAG 180 adapter cable
903-330, 4 sections
903-331, 5 sections
Adapter cable end cap
(To be mounted when
spraying without ABSC)
Power
45-05625
45-05625 Power cable, COBO
(included with Matrix Pro kits)
NOT NEEDED WITH BOOMPILOT
AUTMATIC
BOM SECTION
CONTROL
B A
B A
A B
CAN
Tilt gyro
module (TGM)
TGM harness
Matrix Pro 570 Matrix Pro 840
ARAG 180 controller
Existing system
Not needed
BoomPilot
Optional accessory
4www.teejet.com
BoomPilot®
PRINCIPLE OF OPERATION
The BoomPilot system controls the sections valves according to the GPS position. The GPS makes it possible to avoid overlaps or skips.
The ABSC (automatic boom section control) box is designed for switching active high when spraying. This means that a 12V signal is issued
to control the corresponding section valve.
The ABSC box is connected in parallel with the controller section switches.
The BoomPilot controls the section valves in automatic mode, and the controller section switches should be set to off unless the operator
wants to override the auto mode and thus force spraying.
The BoomPilot monitors the controller section switches that controls the valves in manual mode. The the Master switch can be used both in
automatic mode as well as in manual mode.
Figure 2: Principle of operation
ABSC box
Controller Section Switch
Valve
INSTALLATION
If there are questions concerning the installation of the BoomPilot system on this vehicle, or due to the changes in component
specications the parts supplied in the kit are not exactly as presented in this document, please contact your dealer or TeeJet
Customer service representative for clarication before installation. TeeJet Technologies is not responsible for misuse or incorrect
installation of the system.
NOTE: All references to left and right are stated as if the user is seated in the driver’s seat.
NOTE: BE VERY CAREFUL TO ABSOLUTELY SECURE ALL CABLES AND HOSES SO THAT THEY DON’T INTERFERE WITH THE MANY
MOVING PARTS OF THE MACHINE!
1. INSTALLING THE ARAG 180 ADAPTER CABLE
To get electrical contact with the sections and the Master switch in the ARAG 180, it’s necessary to install the adapter cable (E), in the
ARAG 180 controller. This is a critical operation and must only be conducted of persons with the necessary skills.
NOTE: In case the ARAG 180 controller is damaged during the installation, it’s on the buyers sole risk and therefore the buyer is not entitled
to any form for compensation.
Figure 3: ARAG 180 adapter cable
5
020-042-UK R1
BoomPilot®

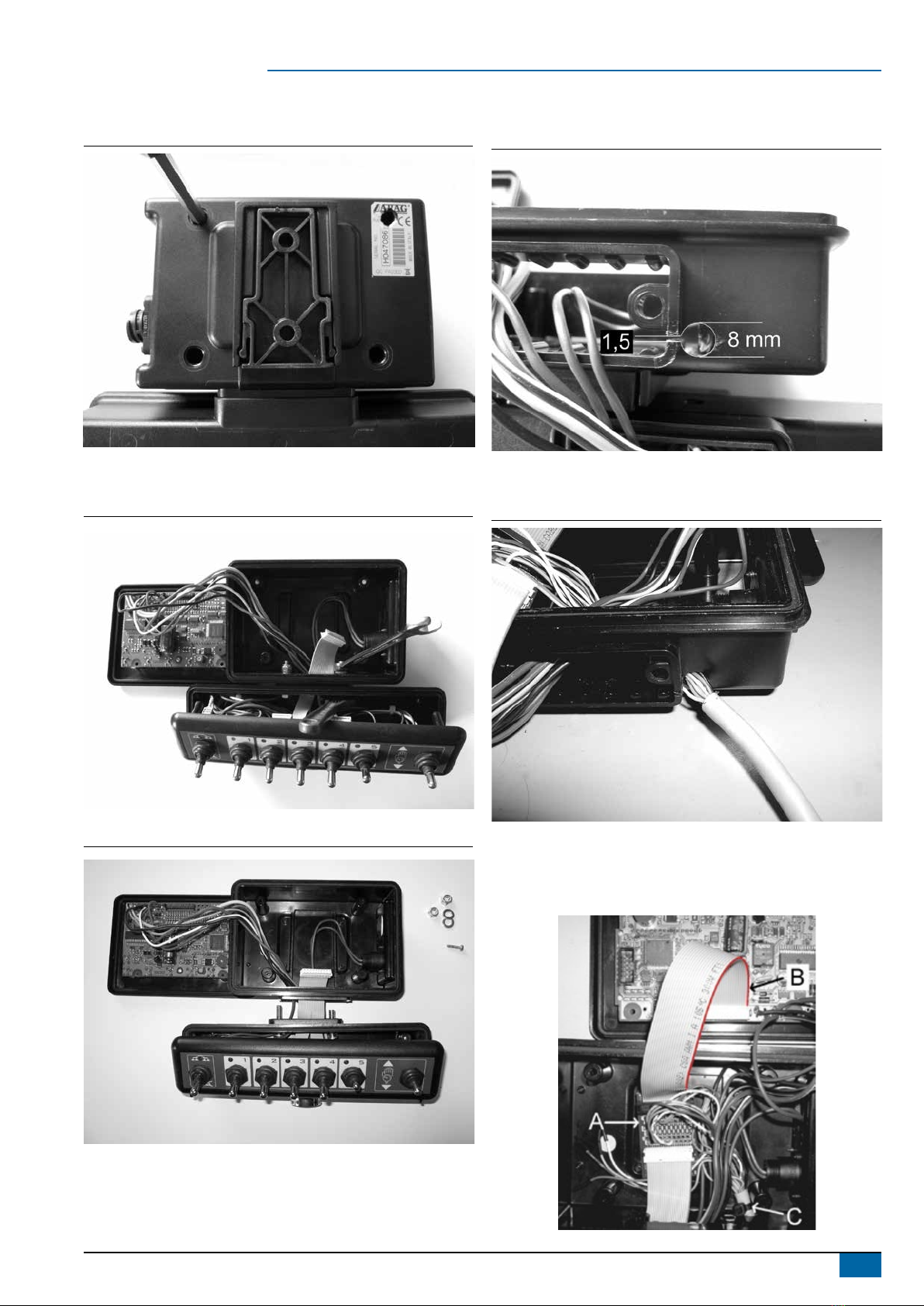

1. Disassemble the ARAG 180 controller by unscrewing the screws
on the rear side (Controller and switch box).
Figure 4:
2. Unscrew the two 6 mm bolts which x the controller to the switch
box part.
Figure 5:
Figure 6:
3. Drill a 8 mm hole in the bottom of the controller housing.
4. Make a 1.5 mm gab as shown on the picture.
Figure 7:
5. Place the free wires of the ARAG 180 adapter cable one by one
in the hole and pull the cable trough as shown.
Figure 8:
6. Place the Circuit board on in the bottom of the controller housing
and fasten it with the adhesive tape. [A]
7. Connect the at cables as shown on the picture. [B]
8. Secure the cable with a cable strip. [C]
6www.teejet.com
BoomPilot®
9. Organize the wires inside carefully and assemble the unit again.
Figure 9:
2. MOUNT & CONNECT ABSC ADAPTER BOX
1. Mount ABSC box (E) as shown where LED’s can be seen for troubleshooting.
2. Connect BoomPilot adapter cable (C) to ABSC box (E).
Figure 10: Connect ABSC box
AUTMATIC
BOM SECTION
CONTROL
B A
B A A B
E
C
3. DISCONNECT & RECONNECT HARNESSES & CABLES
The BoomPilot adapter cable (C) tees into the existing system’s connection between the ARAG BRAVO 180 rate controller and ow control
harness.
1. Disconnect existing connection at the back of the ARAG BRAVO 180 console.
2. Connect BoomPilot adapter cable (C) to ARAG BRAVO 180 console.
3. Connect BoomPilot adapter cable (C) to existing ARAG BRAVO 180 ow control harness.
7
020-042-UK R1
BoomPilot®
Figure 11: Disconnect existing connection
Disconnect
existing cable
from console
Figure 12: Existing system cable to ABSC box ABSC box to controller
AUTMATIC
BOM SECTION
CONTROL
Connect
existing cable
Connect C
ABSC box
4. CONNECT POWER/CAN/DATA CABLE TO BOOMPILOT ADAPTER CABLE
Connect Power/CAN/data cable (B) to BoomPilot adapter cable (C).
Figure 13: Connect power/CAN/data cable to BoomPilot adapter cable
POWER IN
CAN
RS-232
Power/DATA
45-05626
Power/CAN/Data Cable
BoomPilot adapter cable
B A
B A A B
B
C
8www.teejet.com
BoomPilot®
5. CONNECTING TO POWER
The power supply must be strong enough to operate the Section and Master valves. The total current will depend on the used valve type.
Warning: When connecting the system to 12V power it’s very important that the polarity is correct, if not the system will be damaged.
Figure 14: COBO cable
+-
15/30
82
31
+12V (15/30) +12V (15/30) Ground (31)Ground (31)
Optional Battery Cable
If a power connector (Socket) isn’t available in the tractor cabin, a optional battery cable can be used (PN 96ET14).
6. RECOMMENDED ELECTRONICS INSTALLATION
The control console can be mounted to the operator’s preference. The GPS antenna should be mounted in the center on top of the cab on a
metal surface of at least 10 cm square.
Figure 15: Recommended electronics installation
Console
GPS
7. COMPLETE ELECTRONIC INSTALLATION
Refer to the Matrix Pro BoomPilot Setup Guide for further instructions on setting up and using your Matrix Pro for ABSC.
If not using a Matrix Pro, please refer to the owner’s manual supplied with the guidance system to complete the electronic installation and
setup.
