GREETING!

We are geateful for your purchase of our company’s VHF/UHF FM Handheld

Transceiver.We believe our transceivers, which with slim size, latest fashion

design,stabled performance , easy use and powerful function can bring great

convecience to your life and work.

CAUTION

yPlease read this instruction manual carefully before using this transceiver

yThe maintaining of transceiver only can be done by professional technician

yDo not use the transceiver or charging the battery while taking on fuel or

while parking in a gasoline service station

yDo not expose the transceiver to direct sunlight for a long time, or place it

close to heating appliances

yDo not place the transceiver in excessively dusty areas, humid areas, wet

areas, or on unstable surfaces

yDo not use defective antenna, otherwise this defective antenna may burn you

if it touch your skin

yIf an abnormal odor or smoke is detected coming from the transceiver, turn

off the power immediately and remove the battery pack from the

transceiver.Contacr our service station or your dealer.

SAFFETY: it is very important for end-of user to know the caution for using

transceiver .

UNPACKING AND CHECKING EQUIPMENT

Note: The following unpacking instructions are for use by your dealer, an

authorized service facility,or the factory.

Carefully unpack the transceiver. We recommend that you identify the items listed in

the following table before discarding the packing material. lf any items are missing or

have been damaged during shipment, file a claim with the carrier immediately.

SUPPLIED ACCESSORIES

ITEM QUANTITY

Antenna 1

Li-ion Battery pack(7.4v) 1

Adapter 1

Desktop Charger 1

Belt Clip 1

User’s Manual 1

Vehicle Charge 1

TC-245S คูมือการใชเครื่อง

CONTENTS

A.PREPARATION------------------------------------------------------------------ 5

(1)CHARGING THE BATTERY PACK-------------------------------- 5

(2)INSTALLING/REMOVING THE BATTERY PACK------------- 5

(3)INSTALLING THE ANTENNA-------------------------------------- 6

(4)INSTALLING THE BELT CLIP-------------------------------------- 6

(5)INSTALLING THE SPEAKER/MICROPHONE------------------- 6

B. GETTING ACQUAINTED----------------------------------------------------- 7

KEYS AND CONTROLS-------------------------------------------------- 7

LCD DISPLAY-------------------------------------------------------------- 8

C. FEATURES AND OPERATION---------------------------------------9

(1) BASIC OPERATION---------------------------------------------------9

SWITCHING POWER ON/OFF--------------------------------------9

ADJUSTING VOLUME-----------------------------------------------9

ADJUSTING SQUENCY----------------------------------------------9

SELECTINC FREQUENCY------------------------------------------10

TRANSMITTING-------------------------------------------------------10

(2) SCAN----------------------------------------------------------------------11

SCAN RESUME METHOD--------------------------------------------11

SELECTING SCAN RESUME METHOD---------------------------11

CHANNEL SCAN--------------------------------------------------------12

(3) CTCSS---------------------------------------------------------------------13

USING CTCSS-----------------------------------------------------------13

STANDARD TONE AND CTCSS TABLE-------------------------14

SELECTING A TONE AND CTCSS TABLE-----------------------14

D. OPERATOR CONVENIENCES------------------------------------------------15

KEYPAD LOCK FUNDTION-------------------------------------------15

LAMP FUNCTION--------------------------------------------------------15

BATTERY SAVER--------------------------------------------------------15

APO (AUTO POWER OFF)----------------------------------------------16

BEEP FUNCTION---------------------------------------------------------16

CHANNEL DISPLAY FUNCTION------------------------------------17

TIME-OUT TIMER (TOT)-----------------------------------------------17

STOP WATCH-------------------------------------------------------------17

BEAT SHIFT---------------------------------------------------------------18

SELECTING AN OUTPUT POWER-----------------------------------18

FULL RESET---------------------------------------------------------------18

E.SPECIFICATION-------------------------------------------------------------------19

TC-245S คูมือการใชเครื่อง

A. PREPARATION

(1) CHRGING THE BATTERY PACK

A. After purchasing or extended storage (more than 2 months), the

battery can not reach its maximum capacity for the first time

recharging.

After repeating the charging/discharging the battery two or three

times, the capacity will reach its best status.

B. Slide the battery pack or the transceiver with the battery pack into

the charger. Make sure the battery pack contacts are in charging

terminals ,the charger LED turn to be red and charging begins. The

red LED will disappear and turn to be yellow if the charging is full.

(2) INSTALLING/REMOVING THE BATTERY PACK

A. Match the two troves of the battery pack with the corresponding

guides on the back of the transceiver. Slide the battery pack along

the back of the transceiver until you hear *kata*.

B. To remove the battery pack, turn the transceiver off first ,then push

the release latch on top and slide the battery pack down.

(3) INTSTALLING THE ANTENNA

Hold the base of supplied antenna, and let it insert connector on the top

panel of the transceiver, then screw clockwise until secure.

(4) INSTALLING THE CLIP

Match the belt clip with the corresponding grooves on the battery and

slide down the belt clip. Toe remove the belt clip, slide up the belt clip

using you hail or tools.

(5) INSTALLING THE SPEAKER/MICROPHONE

Turn counterclockwise screw and unover the Mic’s cover, then Insert the

speaker/microphone plugs into the speaker/microphone jacks.

TC-245S คูมือการใชเครื่อง

B.GETTING ACQUAINTED

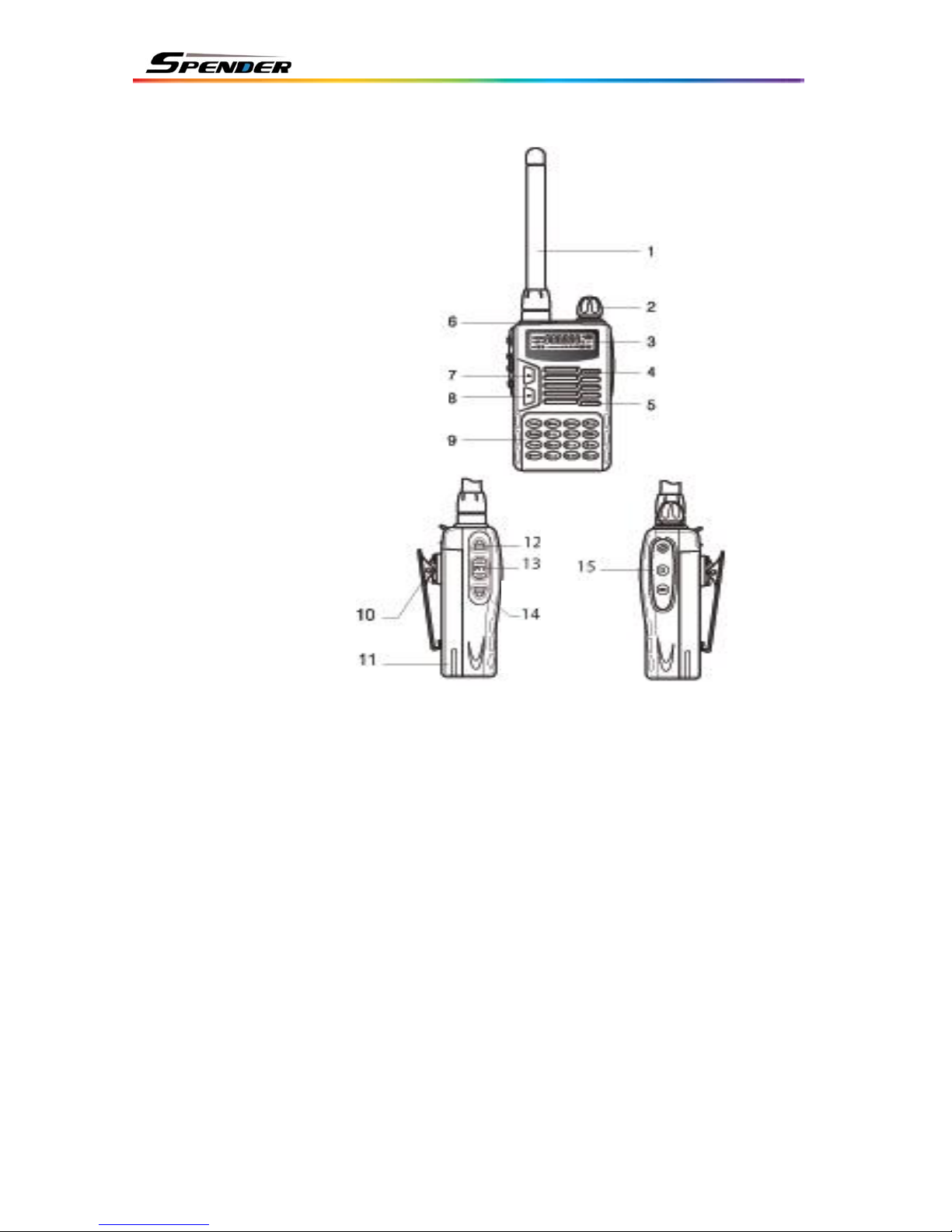

KEYS AND CONTROLS

Antenn

Power/Volume Knob

LCD Display

Speaker

Microphone

LED Indicator

UP Key

DOWN Key

Keypad/

Function Key

Belt Clip

Battery Pack

LAMP

PTT

Monitor

Button

MIC- SP

Jack

TC-245S คูมือการใชเครื่อง

LCD DISPLAY

In LCD screen, displays all kinds of symbol,different symbol different meaning, please

see below table,it will helpful for your operation

Appears when the function key is pressed

S-meter (RX) and relative RF power meter (TX)

Appears when the transmit output power is set to Low

Shows the battery life.

Appears when the displayed memory channel has been

locked out.

Appears when the memory channel contained data.

Display the current memory channel when in Memory

Recall mode.

Display various alphanumeric information such as an

operating channel or menu selection.

Appears when the Auto Power Off function is activated.

“CT” appears when the CTCSS function is activated.

Appears when the Frequency Shift function is activated

Appears when the [Up] , [Down] key unlock function is

activated.

Appears when the Lock function id ON.

C.FEATURES AND OPERATION

(1).BASIC OPERATION

SWITCHING POWER ON/OFF

1. Turn the {POWER] switch clockwise to turn ON the transceiver

yA music tone sounds.

2. To turn OFF the transceiver, turn the [POWER] switch counter clockwise

again.

ADJUSTING VOLUME

Turn the [VOLUME] control clockwise to increase the audio output level and

counterclockwise to decrease the output level.

yIf you want to check whether there is interference on this channel, please

press (Moin) button andd turn (VOL), then you will hear the squelch or

interference sounds.

TC-245S คูมือการใชเครื่อง

ADJUSTING SQUELCH

The purpose of the Squelch is to mute the speaker when no signals are present.

With the squelch level correctly set, you will hear sound only while actually

receiving signals. The higher the selected squelch level, the stronger the signals

must be, to receive. The appropriate sqrelch level depends on the ambient RF

noise conditions.

a, Press [F ] , [1SQL].

yThe current squelch level appears.

b, Use the [ ] , [ ] key to select the squelch level from 0 to 9.

ySelect just the level at which the background noise is eliminated when no

signal is present.

yThe larger the level number you select, the stronger the signals you need to

receive to hear.

c, Press any key other than [LAMP] and[MONI] to complete the setting.

SELECTING FREQUENCY

Use [ ] key to increase the frequency,and [ ].to decrease the frequency.

yIf you cannot select a particular frequency, the frequency step size needs to be

changed.See “CHANGING FREQUENCY STEP SIZE” .

yYou can also select frequencies with the numeric keys.

TRANSMITTING

a, To transmit ,hold the transceiver approximately 5 cm ( 2 inches) from your

mouth, then press and hold the [PTT] switch and speak into the microphone in your

normal tone of voice.

yThe status LED on the top panel lights red and bar-graph meter appears

b, When you finish speaking. Release the [PTT] switch.

(2) SCAN

Scan is useful function for hands-off monitoring of your favorite channels. By

becoming comfortable with all types of Scan, you will increase your operating

efficiency.

SCAN RESUME METHOD

Before using Scan, it’s necessary to decide under what condition you want your

transceiver to continue scanning after detecting and stopping for a signal. You can

choose one of the following modes. The default is Time-Operated mode.

yTime-Operated Mode (Default)

Your transceiver stops scanning when detecting a signal, remains there for

approximately 5 seconds, and then continues to scan even if the signal is still present.

yCarrier-Operated Mode

Your transceiver stops scanning when detecting a signal and remains on the same

channel until the signal drops out. There is a 2 seconds delay between signal drop-out

and scan resumption to allow time for any responding stations to begin transmitting.

Note: Pressing and holding [MONI] causes the transceiver to stop scanning; releasing

[MONI] causes it resume scanning.

TC-245S คูมือการใชเครื่อง

SELECTING SCAN RESUME METHOD

a. Press [F] ,[SCC] to enter Scan Menu mode.

b. Press [ ],[ ] key to select Time-Operated(TO), or Carrier- Operated (CO) mode

c. Press any key other then [LAMP],[MONI] to exit Menu mode.

CHANNEL SCAN

Channel Scan allows you to scan all frequencies from the lowest to the highest

frequency. On the band. Before scanning, make sure the squelch is closed.

1.Press[SCC].

yScan starts with the channel last recalled.

yTo reverse the scan direction, use [ ] (upward scan)or [ ] (downward scan).

2. To quit Channel Scan, press any key other than[LAMP],[MONI].

(3) CTCSS

You may sometimes want to hear calls from only specific persons or groups. The

Continuous Tone Coded Squelch System(CTCSS) allows you to ignore (not hear)

unwanted calls from other persons who are using the same frequency. Simply select the

same CTCSS tone as selected by the other persons in your group. A CTCSS tone is

subaudible tone and is selectable from among the 50 tone frequencies.

Note: CTCSS does not cause your conversation to be private.If only relieves you of

listening to unwanted conversation.

USING CTCSS

a. Select the desired channel number.

b. Press[F ],[6CTC] to switch the CTCSS function ON(or OFF).

yCTappears on left top of LCD when CTCSS is ON

c. Press[F ],[9T.S].

yThe current CTCSS frequency appears.

d. Use[ ],[ ] to select a tone frequency.

e. Press[PTT] to complete setting.

TC-245S คูมือการใชเครื่อง

STANDARD TONE AND CTCSS TABLE

CTCSS Frequency (Hz)

67.0 69.3 71.9 74.4 77.0 79.7 82.5 85.4 88.5

91.5 94.8 97.4 100.0 103.5 107.2 110.9 114.8 118.8

123.0 127.3 131.8 136.5 141.3 146.2 151.4 156.7 159.8

162.2 165.5 167.9 171.3 173.8 177.6 179.9 183.5 186.2

189.9 192.8 196.6 199.5 203.5 206.5 210.7 218.1 225.7

229.1 233.6 241.8 250.3 254.1

SELECTING A TONE FREQUENCY

1.Press [F ],[7TON] to activate the function.

2.Press[F ],[9T.S].

yThe current tone frequency appears.

3. Use the [ ],[ ] to select a tone frequency.

4. Press any key other than [LAMP] and[MONI] to complete the setting.

D.OPERATOR CONVENIENCES

KEYPAD LOCK FUNCTION

The Lock function disables most of the keys to prevent you from accidentally

activating a function.

a.Press [F] (1 second).

yAppears when this function id ON.

b. Press[F](1 second) to unlock the keys.

c. [ ] / [ ] keys enable

Sometimes you would like to use [ ],[ ] key to change the memory channel when

the keypad lock function is ON, you can unlock the [ ],[ ] key to function even the

keypad lock function is ON.

yPress [F] ,[5KL] to activate, " " Appears.

LAMP FUNCTION

You can illuminate the transceiver display by pressing [LAMP].

Approximately 5 seconds after releasing [LAMP], the light goes OFF if no other

key is pressed. Pressing any key other than [LAMP] while the display is lit restarts

the 5 second timer; pressing[LAMP] turns the OFF the light immediately.

BATTERY SAVER

Battery Saver extends the operating time of the transceiver. It automatically

activates when the squelch is closed and no key is pressed for more than 5

seconds.To reduce the battery consumption, it shuts the receiver circuit OFF for

the programmed time then momentarily turn it back ON to detect a signal. To

program the receiver shut-off period for battery saver.

a. Press

[F] ,[2SAV] to switch the Battery Saver ON/OFF.

yWhen the Battery Saver ON, " ". Appears.

APO (AUTO POWER OFF)

The transceiver switches OFF automatically if no keys and controls are pressed or

adjusted, and no signal is received for 2 hours.1 minute before the transceiver

switch OFF, warning beeps sound for few seconds and "A" blinks. Then, the

TC-245S คูมือการใชเครื่อง

transceiver turns OFF automatically.

a. Press[F] ,[3APO] to switch ON the APO

y"APO" appears.

b. To OFF the APO,press [F] ,[3APO] again.

BEEP FUNCTION

The Beep function provides you confirmation of entry, error status, and

malfunctions of the transceiver. We recommend you leave it ON in order to detect

erroneous operations and malfunctions.

However, to turn the Beep function OFF:

a. Press[F][4BEE] to enter the Beep menu mode.

b. Press[ ] / [ ] key to switch between ON/OFF.

c. Press any key other than[LAMP] and[MONI] to complete the setting.

CHANNEL DISPLAY FUNCTION

When this function is switched ON, the transceiver displays only a memory

channel number instead of a frequency.

1.Press[V/MR] and then switched ON to switch this function ON(or OFF).

TIME-OUT TIMER (TOT)

The Time-Out Timer (TOT) limits the time of each transmission. The built-in

time-out timer limits each transmission time to a maximum of 7 minutes. Just

before the transceiver stops the transmission, a warning beeps sounds. It is

necessary to protect the transceiver from thermal damage. You can turn this

function OFF.

a. Press[F] ,[H/LTOT] to enter the TOT menu mode.

yPress[ ] / [ ] key to select your desired time (from1-7 minutes) or switch or

OFF.

yIf your transmitting time is longer than TOT’s time(factory default time is 4

minutes), transceiver will stop to transmit and sounds "Bi".

To stop "Bi" sounds ,release [PTT] Key and start to transmit again.

STOP WATCH

This is an additional function for your convenience.

a. Press[F][8S.W] to starts the counting.

b. To stop, press[F]key press [8S.W] key again to restart.Press any other key to

quit other than [LAMP]and[MONI].

BEAT SHIFT

Since the transceiver uses a microprocessor to control various functions of the

transceiver, the CPU clock oscillators harmonics or image may appear on some

spots of the receiving frequencies. In this case, turn the Beat Shift function ON.

1.Press[F],[#SHI] to switch between ON/OFF.

y"t" appears when ON.

SELECTING AN OUTPUT POWER

Selection lower transmission power is the best way to reduce the battery

consumption, if communication is still reliable. You can configure different power

levels for transmission.

a. Press [H/LTOT] key to switch between high and low output power, when you

TC-245S คูมือการใชเครื่อง

switch to low output power status, " ".symbol displays in LCD.

FULL RESET

Use to initialize all settings.

1.Press[F]then Power ON the transceiver.

yA confirmation message appears.

yTo quit reseting , press any key other than[F].

2. Press [F]again.

E.SPECIFICATION GENERAL

Frequency Range 245.0000-245.9875MKz

Working Temperature Range -10ºC~+60ºC

Frequency Mode PLL Frequency

Channel Space 12.5Khz

Power Supply DC7.4V(Li-ion Battery 1100Mah)

Memory Channel 80 Channel

Antenna Rubber Antenna

Antenna Impedance 50Ω

Working Mode Same Frequency Simplex Operation Or

Different Frequency Simplex Operation

Dimension 93*50*23.5(Do Not Include Antenna)

Weight About 230g

RECEIVING

Sensitivity <0.18 μV (12dB SINAD)

Squelch Sensitivity <0.15 μV

Intermodulation Interference

Resistance

>60dB

Audio Power ≥400mW

Receiving Current ≤150mA

Standby 20mA

TRANSMITTING

Output Power 5W/1W

Modulation Mode 8KOF3E

Max.Frequency Devision ≤±2.5KHz

Sparious Radiation ≤-60dB

Preemphasis Character 6dB

Emmission Current HI: ≤1.5A LO: ≤0.7A

*Sqecifications are subject to change for improvements without notice.

Tabla de contenidos

Otros manuales de Transceptor de Spender

Spender

Spender DHS3600 Manual de usuario

Manuales populares de Transceptor de otras marcas

Yaesu

Yaesu FT-7B Manual de usuario

Kenwood

Kenwood ProTalk TK-3201 Manual de usuario

Texas Instruments

Texas Instruments TLK10232 Manual de usuario

Mizuho

Mizuho MX-2 Guía del producto

Kenwood

Kenwood TK-3180 Manual de operación y mantenimiento

Blitz

Blitz MJ-398U Manual de usuario

Utilicom

Utilicom LongRanger 2050 Manual de usuario

Standart

Standart HX290UKA Manual de usuario

Altronix

Altronix Pace1PTM Manual de usuario

Kirisun

Kirisun PT2208 Manual de usuario

ELECRAFT

ELECRAFT KX2 Manual de usuario

Zodiac

Zodiac K3 Manual de usuario

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manual de usuario

Kenwood

Kenwood TK-2217 Manual de usuario

Siemens

Siemens PSO 4000 Manual de usuario

Kenwood

Kenwood TS-590SG Manual de usuario

Midland

Midland G8E-BT Manual

ComNav

ComNav Mariner X2 Manual de usuario
