Speco EZVR4/8 Manual de usuario

EZVR4/8 DVR

SATA HDD

User’s Manual

Speco Technologies

200 New Highway

Amityville, NY 11701

800-645-5516

www.specotech.com

CAUTION

RISK OF ELECTRICAL

SHOCK. DO NOT OPEN !

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,

DO NOT REMOVE COVER (OR BACK), NO USER

SERVICEABLE PARTS REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

Safety Precautions

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of insulated

dangerous Voltage within the product’s enclosure that may be of

sufficient magnitude to constitute risk of electrical shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operational and maintenance

(servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

EXPOSE UNITS NOT SPECIFICALLY DESIGNED FOR

OUTDOOR USE TO RAIN OR MOISTURE.

Attention: Installation should be performed by qualified service

Personnel only in accordance with the National Electrical Code or

applicable local codes.

Power Disconnect. Units with or without ON-OFF switches have

power supplied to the unit whenever the power cord is inserted into

the power source, however, the unit is operational only when the

ON-OFF switch is the ON position. The power cord is the main power

disconnect for all units.

There are no user serviceable parts for this unit, call the factory for

service details.

Warranty

and Service

Before installing the unit, be sure to thoroughly review and follow the instructions in this User’s

Manual. Pay particular attention to the parts that are marked NOTICE.

When connecting with external application, first turn the power OFF and follow manual

instructions for appropriate installation.

1. This manual contains information for configuring, managing and using the EZVR DVR.

2. To prevent fire or electrical shock, do not expose the product to heat or moisture

4. Be sure to read this manual before operating the unit.

5. For questions and technical assistance of this product contact your local dealer.

►Strong recommendation on installation of the unit

1. Confirm that electricity at the place you want to install the EZVR DVR is stable and

meets the electrical requirements. Unstable electricity can cause malfunctions of the

unit or give critical damage to the unit.

2. Several chips on the main board of the unit and hard disk drive inside the unit generate

heat which must be properly discharged. Do not place any objects adjacent to the

ventilation openings on the sides of the unit.

3. Put the EZVR DVR in a well-ventilated place and do not put heat-generating objects

on the unit.

About this document

Before reading this document

FCC Statement:

WARNING

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference. (2) This device must

accept any interference received including interference that may cause undesired

operation."

* Federal Communications Commission (FCC) Statement

WARNING

This Equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

* You are cautioned that changes or modifications not expressly approved by the party

responsible for compliance could void your authority to operate the equipment.

1. The package 2. Un-packed

MOD

ELNO

ADEINTAIWAN

ODE

LNO

NO.:

EINT

AIWA

3. Take the unit out from the package 4. Put on a flat desk

5. Connect your camera cables to the BNC

connectors on the rear.

6. Connect your monitor cable to the BNC

connector labeled “Monitor” on the rear.

INSTALLATION

7. Connect the power adaptor.

8. Turn on the “Power” switch after the

cameras are installed. The EZVR will

then “boot” up and begin recording.

Please operate the keypad function according to the DVR model that you purchased

Screenmode

EZVR4

1. :Quad screen mode button

2. CHANNEL 1 : Channel 1 full screen button

3. CHANNEL 2 : Channel 2 full screen button

4. CHANNEL 3 : Channel 3 full screen button

5. CHANNEL 4 : Channel 4 full screen button

Screenmode

EZVR8

1. / :Split screen mode button

2. CHANNEL 1 : Channel 1 full screen button

3. CHANNEL 2 : Channel 2 full screen button

4. CHANNEL 3 : Channel 3 full screen button

5. CHANNEL 4 : Channel 4 full screen button

6. CHANNEL 5 : Channel 5 full screen button

7. CHANNEL 6 : Channel 6 full screen button

8. CHANNEL 7 : Channel 7 full screen button

9. CHANNEL 8 : Channel 8 full screen button

FRONT PANEL KEYPAD

Recordmode

EZVR4 / EZVR8

1. 24H : 24 hour recording mode

2. 72H : 72 hour recording mode

3. 240H : 240 hour recording mode

4. 480H : 480 hour recording mode

5. 960H : 960 hour recording mode

6. REC : Press this button to start recording. Press again to stop.

Miscellaneous

EZVR4 / EZVR8

1. MENU : Press this button to display the menu setup

2. SEARCH : Press this button to search for a specific playback time

3. BACKUP : Copies Playback video onto a USB device

4. UP/STOP :Move cursor UP - Stop button in Playback /

Also: In live mode Press the UP button for 5 seconds to lock the

front panel buttons. Repeat to unlock.

5. DOWN / PAUSE : Move Cursor down - Pause in Playback /

6. REW : Reverse playback – Playback speed – Frame by frame /

7. FF : Forward playback – Playback speed – Frame by frame /

8. ENTER : Enter button - Value change in menus

REAR PANEL CONNECTOR

Power cord in 12VDC / 5A, Power Switch (ON / OFF)

EZVR4: Camera 1 ~ 4 input BNC type

Main monitor output x 2

Audio channel input x 4 and output x 2 – RCA Type

Alarm / Relay / RS485 connector

EZVR8: Camera 1 ~ 8 input BNC type

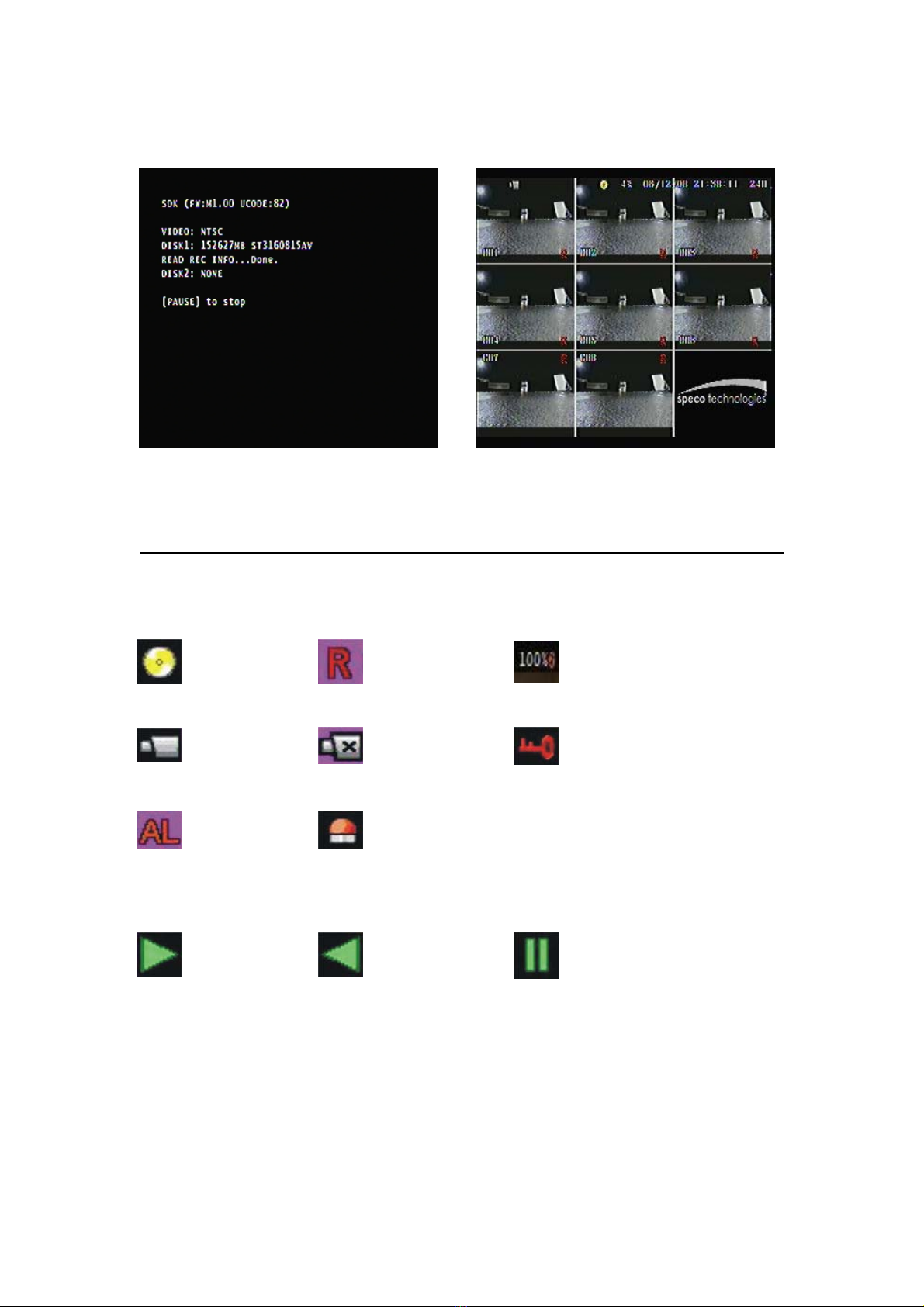

BootingUp Detectingtheharddisk

Indicator:

Live:

Playback:

Recording Overwrite

Alarm Input Alarm Output

HDD installed

Live screen

Live mode Video loss Key lock

Forward Reverse Pause
