Pi Servo Hat Hookup Guide





Introduction

The SparkFun Pi Servo Hat allows your Raspberry Pi to control up to 16

servo motors via I2C connection. This saves GPIO and lets you use the

onboard GPIO for other purposes. Furthermore, the Pi Servo Shield adds a

serial terminal connection which will allow you to bring up a Raspberry Pi

without having to hook it up to a monitor and keyboard.

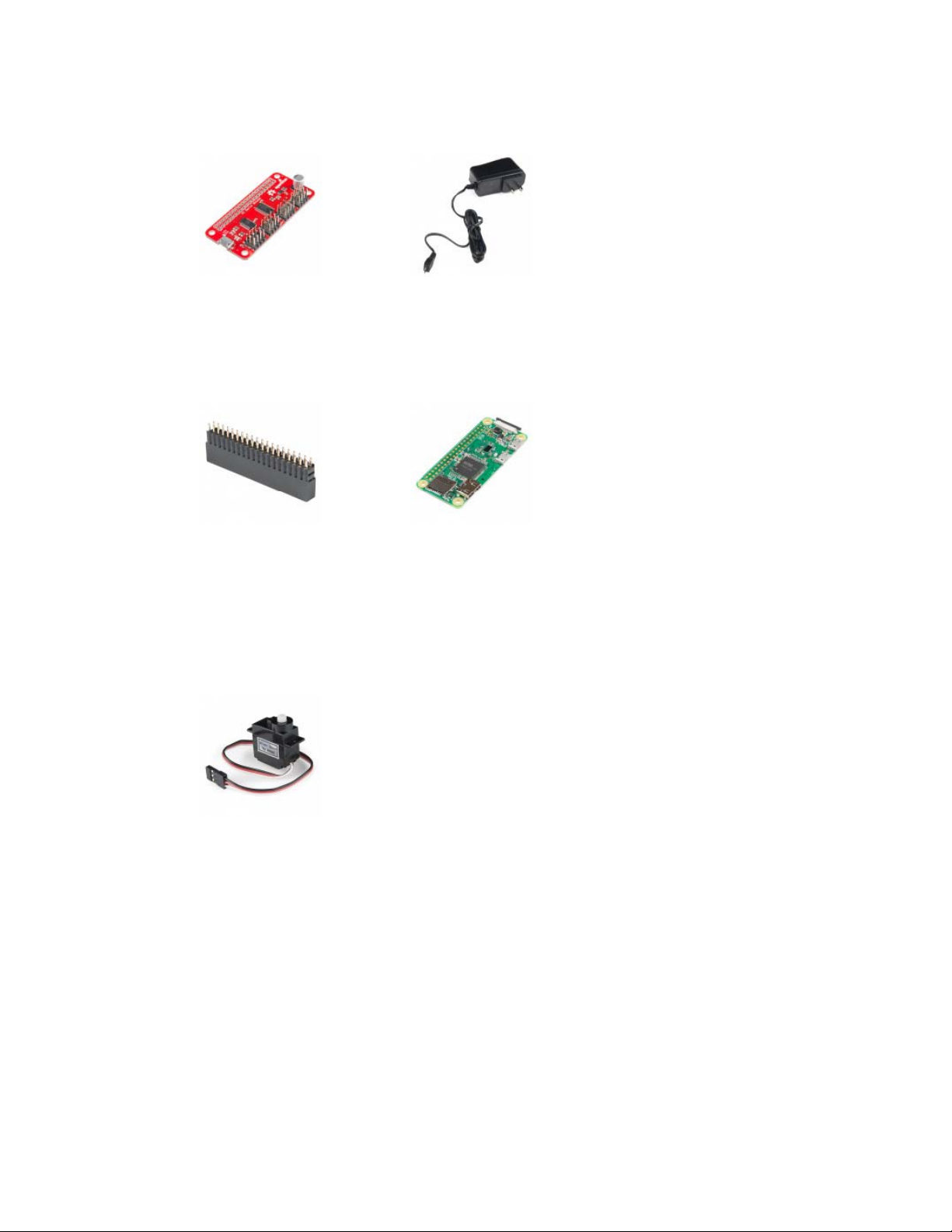

Required Materials

Here’s what you need to follow along with this tutorial. We suggest

purchasing a blank microSD card rather than a NOOBS ready card, since

the NOOBS ready cards may not have a new enough OS to support the Pi

Zero W.

SparkFun Pi Servo HAT

DEV-14328

microSD Card with Adapter -

16GB (Class 10)

COM-13833

Break Away Headers -

Straight

PRT-00116

Page 1 of 10

In addition, you’ll want some kind of servo motor to test the setup. Try

testing the examples provided later in the tutorial with the generic sub-micro

servo first.

Required Tools

No special tools are required to follow this product assembly. You will need

a soldering iron, solder, and general soldering accessories.

SparkFun Pi Servo HAT

DEV-14328

Wall Adapter Power Supply -

5.1V DC 2.5A (USB Micro-B)

TOL-13831

Raspberry Pi GPIO Tall

Header - 2x20

PRT-14017

Raspberry Pi Zero W

DEV-14277

Servo - Generic (Sub-Micro

Size)

ROB-09065

Page 2 of 10

Suggested Reading

You may want to review these tutorials before undertaking this one.

Hardware Overview

There are only a few items of interest on the board, as it is a hat designed

to be minimally difficult to use.

USB Micro B Connector - This connector can be used to power the servo

motors only, or to power the servo motors as well as the Pi that is

connected to the hat. It can also be used to connect to the Pi via serial port

connection to avoid having to use a monitor and keyboard for setting up the

Pi.

Soldering Iron - 30W (US,

110V)

TOL-09507

Solder Lead Free - 15-gram

Tube

TOL-09163

How to Solder: Through

Hole Solderin

This tutorial covers everything you

need to know about through-hole

soldering.

Raspberry Pi SPI and I2C

Tutorial

How to use the serial buses on your

Raspberry Pi.

Hobby Servo Tutoria

Servos are motors that allow you to

accurately control the rotation of the

output shaft, opening up all kinds of

possibilities for robotics and other

projects.

Getting Started with the

Raspberry Pi Zero Wireless

Learn how to setup, configure and

use the smallest Raspberry Pi yet,

the Raspberry Pi Zero - Wireless.

Page 3 of 10

Power supply isolation jumper - This jumper can be cleared (it is closed

by default) to isolate the servo power rail from the Pi 5V power rail. Why

would you want to do that? If there are several servos, or large servos with

a heavy load on them, the noise created on the power supply rail by the

servo motors can cause undesired operation in the Pi, up to a complete

reset or shutdown. Note that, so long as the Pi is powered, the serial

interface will still work regardless of the state of this jumper.

Servo motor pin headers - These headers are spaced out to make it

easier to attach servo motors to them. They are pinned out in the proper

order for most hobby-type servo motor connectors.

Hardware Assembly

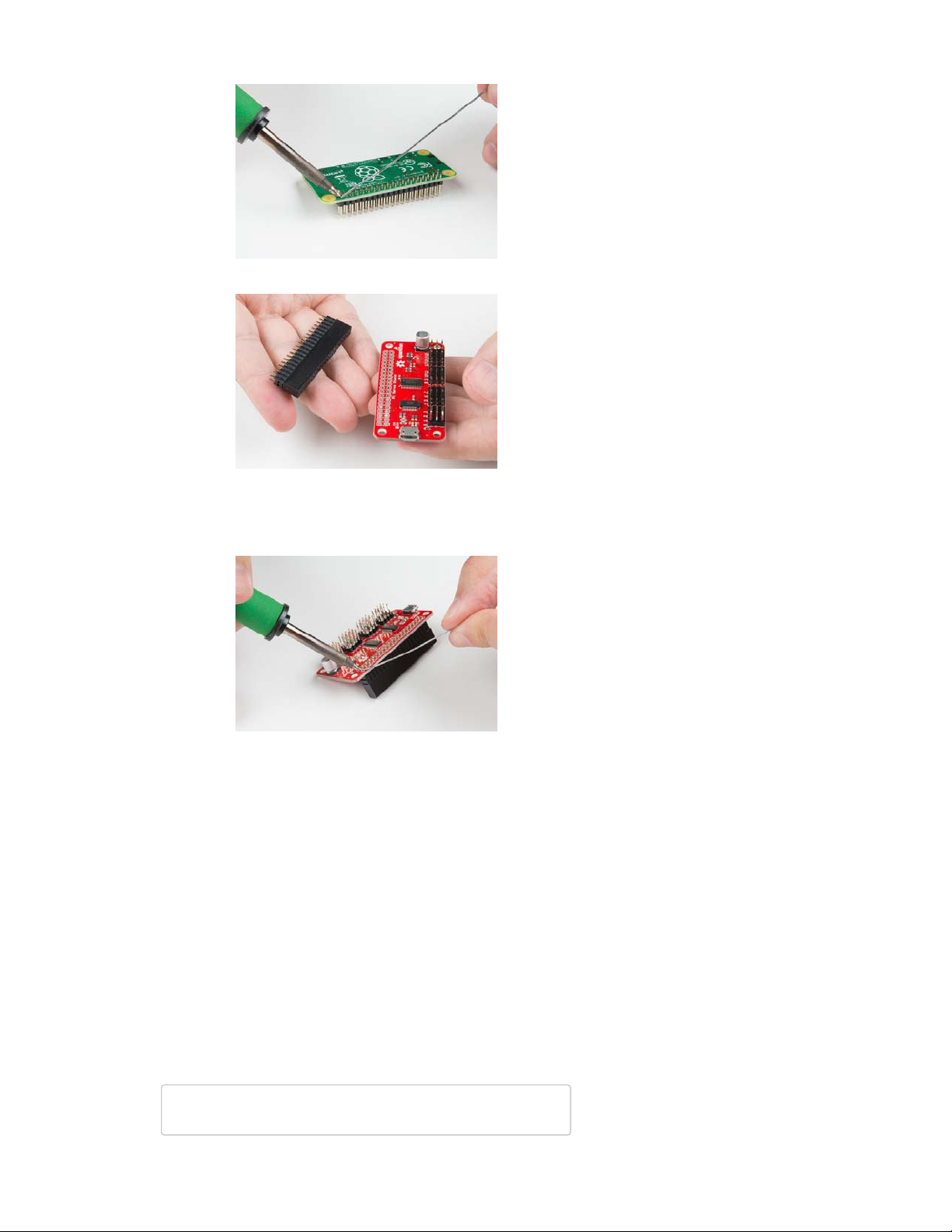

We suggest soldering the male headers onto the Pi Zero W.

My favorite trick for this type of situtaion is to solder down one pin, then

melt the solder on that pin with the iron held in my right hand and use my

left hand to adjust the header until it sits flat as shown below. Make sure

that you are soldering with the header’s shorter side and the longer pins are

on the component side. After tacking down one pin, finish soldering all the

pins down to the Pi Zero W.

Page 4 of 10

Repeat the steps with the female header and the Pi Servo Hat.

Make sure to insert the short pins from the bottom of the board and add

solder to the component side so that the Pi Servo Hat stacks on top of the

Pi Zero W’s male header pins. You will also need to make sure that the

header is sitting level before soldering down all the pins.

Once the headers have been soldered, stack the Pi Servo Hat on the Pi

Zero W. Then connect a hobby servo to a channel “0” based on the servo

that you are using. Try looking at the hobby servo’s datasheet or referring

to some of the standard servo connector pinouts listed in this tutorial. Using

a sufficient 5V wall adapter, we can power the Pi Zero W. Plug the wall

adapter into a wall outlet for power and connect the micro-B connector

labeled as the “PWR IN” port on the Pi Zero W.

Software - Python

We’ll go over in some detail here how to access and use the pi servo hat in

Python.

Full example code is available in the product GitHub repository.

Set Up Access to SMBus Resources

First point: in most OS level interactions, the I C bus is referred to as

SMBus. Thus we get our first lines of code. This imports the smbus module,

creates an object of type SMBus , and attaches it to bus “1” of the Pi’s

various SMBuses.

import smbus

bus = smbus.SMBus(1)

Page 5 of 10

We have to tell the program the part’s address. By default, it is 0x20, so set

a variable to that for later use.

addr= 0x20

Next, we want to enable the PWM chip and tell it to automatically increment

addresses after a write (that lets us do single-operation multi-byte writes).

bus.write_byte_data(addr,0,0x20)

bus.write_byte_data(addr,0xfe,0x1e)

Write Values to the PWM Registers

That’s all the setup that needs to be done. From here on out, we can write

data to the PWM chip and expect to have it respond. Here’s an example.

bus.write_word_data(addr,0x06,0)

bus.write_word_data(addr,0x08,1250)

The first write is to the “start time” register for channel 0. By default, the

PWM frequency of the chip is 200Hz, or one pulse every 5ms. The start

time register determines when the pulse goes high in the 5ms cycle. All

channels are synchronized to that cycle. Generally, this should be written to

0. The second write is to the “stop time” register, and it controls when the

pulse should go low. The range for this value is from 0 to 4095, and each

count represents one slice of that 5ms period (5ms/4095), or about 1.2us.

Thus, the value of 1250 written above represents about 1.5ms of high time

per 5ms period.

Servo motors get their control signal from that pulse width. Generally

speaking, a pulse width of 1.5ms yields a “neutral” position, halfway

between the extremes of the motor’s range. 1.0ms yields approximately 90

degrees off center, and 2.0ms yields -90 degrees off center. In practice,

those values may be slightly more or less than 90 degrees, and the motor

may be capable of slightly more or less than 90 degrees of motion in either

direction.

To address other channels, simply increase the address of the two registers

above by 4. Thus, start time for channel 1 is 0x0A, for channel 2 is 0x0E,

channel 3 is 0x12, etc. and stop time address for channel 1 is 0x0C, for

channel 2 is 0x10, channel 3 is 0x14, etc. See the table below.

Channel # Start Address Stop Address

Ch 0 0x06 0x08

Ch 1 0x0A 0x0C

Ch 2 0x0E 0x10

Ch 3 0x12 0x14

Ch 4 0x16 0x18

Ch 5 0x1A 0x1C

Ch 6 0x1E 0x20

Ch 7 0x22 0x24

Ch 8 0x26 0x28

Ch 9 0x2A 0x2C

Page 6 of 10

Ch 10 0x2E 0x30

Ch 11 0x32 0x34

Ch 12 0x36 0x38

Ch 13 0x3A 0x3C

Ch 14 0x3E 0x40

Ch 15 0x42 0x44

If you write a 0 to the start address, every degree of offset from 90 degrees

requires 4.6 counts written to the stop address. In other words, multiply the

number of degrees offset from neutral you wish to achieve by 4.6, then

either add or subtract that result from 1250, depending on the direction of

motion you wish. For example, a 45 degree offset from center would be 207

(45x4.6) counts either more or less than 1250, depending upon the

direction you desire the motion to be in.

Software - C++

We’ll go over in some detail here how to access and use the pi servo hat in

C++. Note that it’s much harder than it is in Python, so maybe now’s the

time to learn Python?

Full example code is available in the product GitHub repository.

Include the Necessary Files

We’ll start by going over the files which must be included.

#include<unistd.h>//requiredforI2Cdeviceaccess

#include<fcntl.h>//requiredforI2Cdeviceconfiguration

#include<sys/ioctl.h>//requiredforI2Cdeviceusage

#include<linux/i2cdev.h>//requiredforconstantdefinition

#include<stdio.h>//requiredforprintfstatements

Open the I2C Device File

Start by opening the i2c1file in /dev for reading and writing.

char *filename= (char*)"/dev/i2c1";//Definethefilename

int file_i2c= open(filename,O_RDWR);//openfileforR/W

You may wish to check the value returned by the open() function to make

sure the file was opened successfully. Successful opening of the file results

in a positive integer. Otherwise, the result will be negative.

if (file_i2c<0)

{

printf("Failedtoopenfile!");

return 1;

}

Set Up the Slave Address for the Write

Unlike Python (and Arduino), where the slave address is set on a per-

transaction basis, we’ll be setting up an “until further notice” address. To do

this, we use the ioctl() function:

Page 7 of 10

int addr= 0x40;//PCA9685address

ioctl(file_i2c,I2C_SLAVE,addr);//SettheI2Caddressforu

pcoming

//transactions

ioctl() is a general purpose function not specifically limited to working

with I2C.

Configure the PCA9685 Chip for Proper

Operation

The default setup of the PCA9685 chip is not quite right for our purposes.

We need to write to a couple of registers on the chip to make things right.

First we must enable the chip, turning on the PWM output. This is

accomplished by writing the value 0x20 to register 0.

buffer[0]=0;//targetregister

buffer[1]= 0x20;//desiredvalue

length=2;//numberofbytes,includingaddress

write(file_i2c,buffer,length);//initiatewrite

Next, we must enable multi-byte writing, as we’ll be writing two bytes at a

time later when we set the PWM values. This time we don’t need to set the

length variable as it’s already correctly configured.

buffer[0]= 0xfe;

buffer[1]= 0x1e;

write(file_i2c,buffer,length);

Write Values to the PWM Registers

That’s all the setup that needs to be done. From here on out, we can write

data to the PWM chip and expect to have it respond. Here’s an example.

buffer[0]= 0x06;//"starttime"regforchannel0

buffer[1]=0;//Wewantthepulsetostartattimet=0

buffer[2]=0;

length=3;//3bytestotalwritten

write(file_i2c,buffer,length);//initiatethewrite

buffer[0]= 0x08;//"stoptime"regforchannel0

buffer[1]= 1250 & 0xff;//The"low"bytecomesfirst...

buffer[2]=(1250>>8)&0xff;//followedbythehighbyte.

write(file_i2c,buffer,length);//Initiatethewrite.
