SOYO SY-7IZM Manual de usuario
SY-7IZM
Motherboard
****************************************************
Socket 370 for Intel CeleronTM Processor
Intel 440 ZX AGP/PCI Motherboard
66&100MHz Front Side Bus supported
Micro-ATX Form Factor
****************************************************
User's Guide
&
Technical Reference
SOYO™SY-7IZM
ii
About This Guide
This User's Guide is for assisting system manufacturers and end users in setting up
and installing the Motherboard. Information in this guide has been carefully checked
for reliability; however, no guarantee is given as to the correctness of the contents.
The information in this document is subject to change without notice.
Copyright Notice
Copyright 1998, Soyo Computer Inc. All rights reserved. This manual is copyrighted
by Soyo Computer Inc. You may not reproduce, transmit, transcribe, store in a
retrieval system, or translate into any language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of
this publication without express written permission of Soyo Computer Inc.
Trademarks
Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property
of their owners.
Disclaimer
Soyo Computer Inc. makes no representations or warranties regarding the contents
of this manual. We reserve the right to revise the manual or make changes in the
specifications of the product described within it at any time without notice and without
obligation to notify any person of such revision or change. The information contained
in this manual is provided for general use by our customers. Our customers should be
aware that the personal computer field is the subject of many patents. Our customers
should ensure that their use of our products does not infringe upon any patents. It is
the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and
not to infringe upon or assist others to infringe upon such rights.
Restricted Rights Legend
Use, duplication, or disclosure by the Government is subject to restrictions set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause
at 252.277-7013.
Product Rights
Products mentioned in this manual are mentioned for identification purpose only.
Product names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies.
If you need any further information, please come to our home page on the Internet.
The address is "http://www.soyo.com.tw".
Edition: February 1999
Version 1.0
7IZM SERIAL
FC
CTested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
POST CONSUMER
RECYCLED PAPER
100%
Table of Contents SY-7IZM
iii
Table of Contents
SY-7IZM MOTHERBOARD LAYOUT ............................................1
CHAPTER 1 INTRODUCTION .....................................................2
1-1 KEY FEATURES......................................................2
1-2 HANDLING THE MOTHERBOARD..........................5
1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS....5
CHAPTER 2 HARDWARE SETUP...............................................6
2-1 PREPARATIONS .....................................................6
2-2 UNPACKING THE MOTHERBOARD .......................7
2-3 INSTALLATION GUIDE............................................7
CHAPTER 3 BIOS SETUP UTILITY...........................................27
3-1 SOYO COMBO SETUP .........................................29
3-2 STANDARD CMOS SETUP ...................................34
3-3 BIOS FEATURES SETUP......................................37
3-4 CHIPSET FEATURES SETUP...............................41
3-5 POWER MANAGEMENT SETUP...........................44
3-6 PNP/PCI CONFIGURATION SETUP......................48
3-7 LOAD SETUP DEFAULTS .....................................51
3-8 INTEGRATED PERIPHERALS...............................52
3-9 SUPERVISOR PASSWORD ..................................56
3-10 USER PASSWORD ...............................................58
3-11 IDE HDD AUTO DETECTION................................59
CHAPTER 4 3D PnP AUDIO ONBOARD....................................60
CHAPTER 5 DRIVERS INSTALLATION......................................63
Motherboard Features SY-7IZM
1

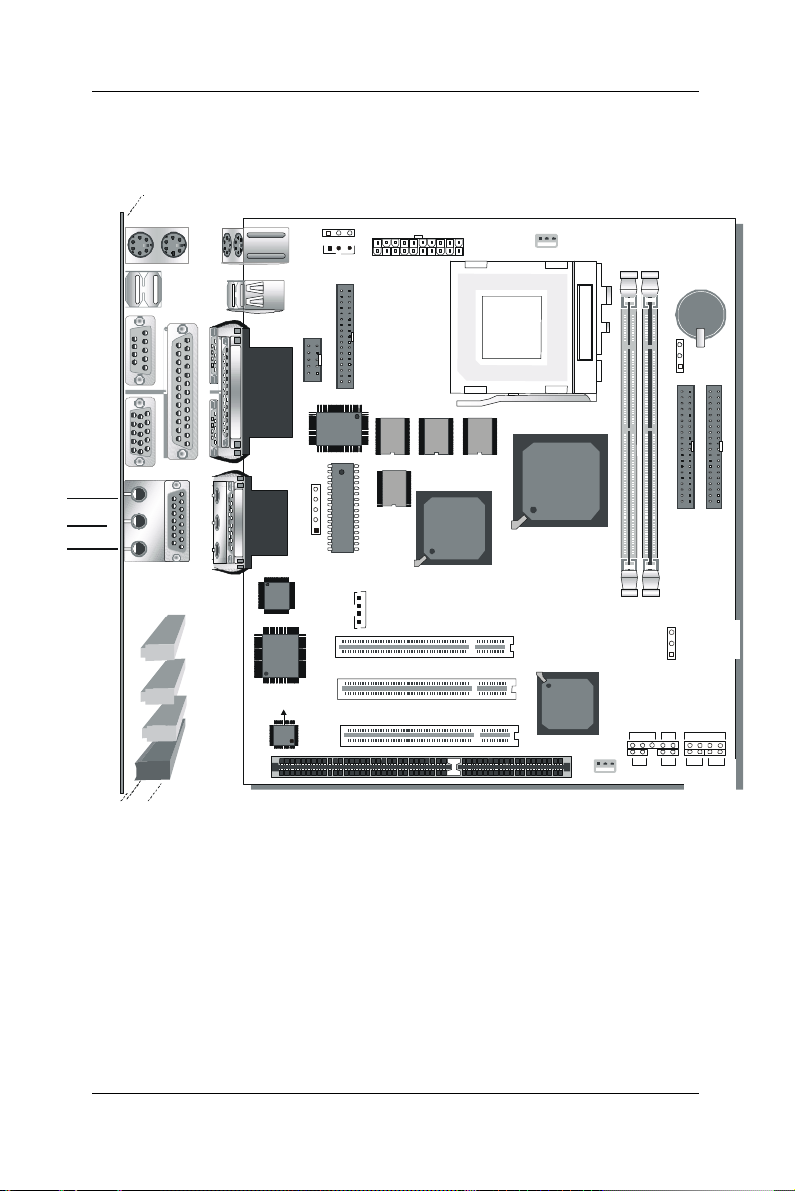

SY-7IZM MOTHERBOARD LAYOUT
Back Panel SY-7IZM Platform
COM 1
VGA
PRT
USB 1
USB 2
PS/2 KB
Connector
PS/2 Mouse
Connector
PCI Slot #1
PCI Slot #2
PCI Slot #3
3V
Lithium
Battery
1
CPUFAN
Winbond
83977EF-AW
I/O Chipset
IDE 2 IDE 1
1
1
1
FDC
ISA Slot #1
ATX
Power
1
Flash BIOS
LINE-OUT
LINE-IN
MIC JACK
JOYSTICK
JP9
1
3
JP10
13
JP44
WOL
Header
3
1
Intel
82371 EB
Intel
82443ZX
ATI
RAGE
PRO
IR1
1
5
Hardware
Monitoring
Winbond
W83782
Socket 370
1
3
JP5
Jumper
CMOS Clear
DIMM 1
DIMM 2
Speaker
Keylock
Power
LED
Reset
Turbo
LEDHDD
LED
_
+
_
+
_
+
_
+
PWRBT
CHAFAN
COM2
CDIN
1
4
CODEC
CT1297
YMF740-V
YAMAHA
SDRAM
SDRAM
SDRAM
SDRAM
Introduction SY-7IZM
2
Chapter 1
INTRODUCTION
The SY-7IZM AGP/PCI Motherboard is a high-performance
Celeron®
processor supported Micro-ATX form-factor system board.
SY-7IZM uses the 440 ZX Chipset technology and supports Socket
370 CeleronTM processors. This Motherboard is fully compatible with
industry standards and adds many technical enhancements.
1-1 KEY FEATURES
Supports Intel Socket 370 CeleronTM processor (300A~500 MHz)
Auto-detect CPU voltage
PC98, ACPI, Ultra DMA/33
3D YAMAHA YMF740 Audio
ATI Rage Pro Graphics/Video with 8MB Video memory on board
Supports system memory up to 256 MBytes
Power-on by modem or alarm
Supports power-on by keyboard
Supports onboard hardware monitoring
and includes Hardware Doctor™utility
1 x 32-bit AGP slot
3 x 32-bit bus mastering PCI slots
1 x 32-bit bus slaving PCI slot
2 x USB ports onboard
1 x IrDA port
Supports multiple-boot function
SOYO COMBO Setup
Supports power failure resume
Supports Fan speed control
Supports Hardware suspend (APM mode only)
Introduction SY-7IZM
3
SY-7IZM PLATFORM FEATURES
Board Size 4-layer PCB, 24.4x22.0cm(9.6”x8.7”), Micro-ATX
Form Factor
Socket 370 66/100MHz FSB
ØCeleronProcessor 300A~500 MHz
ØBuilt-in full speed 128KB L2 cache.
ØFeatures Auto-detection of CPU voltage
Chipset 440 ZX AGP Set
ATX Power 20-pin Male Connector
CPUFAN 3-pin CPU Cooling Fan Connector
Memory DIMM Bank (DIMM1~2)
ØTwo strips of 168-pin Unbuffered SDRAM DIMM
ØSupports 8/16/32/64/128MB DIMM modules in each
bank
ØSupports up to 256 MBytes of main memory
BIOS System BIOS built-in, Award BIOS
ØAPM, ACPI and "Plug-and-Play" function
ØSupports multiple-boot function
ØOnboard FLASH memory for easy upgrade
Bus Controller Compliant with PCI specifications version 2.1
PCI Slots 3 x 32-bit Bus Mastering Slots
ISA Slots 1 x 16-bit ISA Slots
IDE1, IDE2 2 x 40-pin Bus Mastering E-IDE/ATAPI Ports
ØIDE1: Primary IDE Device Connector
ØIDE2: Secondary IDE Device Connector
ØSupports Ultra DMA/33MHz
COM2 1 x 9-pin RS-232 Serial Connector
FDC 1 Floppy Disk Drive (FDD) Port
(Supports 1.2MB/1.44MB/2.88MB and LS120/3-mode FDD)
IR1 5-pin Serial Infrared Device Header
Keylock 5-pin KeyLock Header
Reset 2-pin Reset Switch Header
Speaker 4-pin PC Speaker Header
TB_LED 2-pin Turbo LED Header
Introduction SY-7IZM
4
HDD_LED 2-pin IDE Device LED Header
PWRBT ATX Power On/Off Switch 2-pin Header
CDIN 1 x CD Line-in 4-pin Header
JP5 CMOS Clear Jumper
JP9 AGP operating speed Select Jumper
JP10 Power-On by Keyboard Jumper
JP44 WOL (Wake-On-LAN) 3-pin Header
SY-7IZM BACK-PANEL FEATURES
PRT 1 x Onboard 25-pin Female Parallel Printer Port
ØECP/EPP/SPP multi-mode parallel printer port
COM1 1 x Onboard RS-232 Serial Port
ØFeature 2 x high-speed UARTs (with 16550 FIFO)
PS/2 KB 1 x Onboard PS/2 Keyboard Port
PS/2 Mouse 1 x Onboard PS/2 Mouse Port
USB1, USB2 2 x Onboard USB
(Universal Serial Bus)
Ports
JOYSTICK 1 x Onboard 15-pin Joystick Port
LINE-OUT 1 x Onboard Line-out Audio Stereo Jack
LINE-IN 1 x Onboard Line-in Audio Stereo Jack
MIC JACK 1 x Onboard Microphone Stereo Jack
Introduction SY-7IZM
5
1-2 HANDLING THE MOTHERBOARD
To avoid damage to your Motherboard, follow these simple rules
while unpacking:
ØBefore handling the Motherboard, ground yourself by grasping
an unpainted portion of the system's metal chassis.
ØRemove the Motherboard from its anti-static packaging. Hold
the Motherboard by the edges and avoid touching its
components.
ØCheck the Motherboard for damage. If any chip appears loose,
press carefully to seat it firmly in its socket.
Warning: Do not apply power if the Motherboard appears
damaged. If there is damage to the board, contact your
dealer immediately.
1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS
Make sure to ground yourself before handling the Motherboard or
other system components. Electrostatic discharge can easily
damage the components. Note that you must take special
precautions when handling the Motherboard in dry or air-conditioned
environment.
To protect your equipment from electrostatic discharge, take the
following precautions:
ØDo not remove the anti-static packaging until you are ready to
install.
ØGround yourself before removing any system component from its
protective anti-static packaging. (To ground yourself, grasp the
expansion slot covers or other unpainted portions of the computer
chassis.)
ØFrequently ground yourself while working or use a grounding strap.
ØHandle the Motherboard by its edges and avoid touching its
components.
Hardware Setup SY-7IZM
6
Chapter 2
HARDWARE SETUP
Congratulations on your purchase of SY-7IZM Motherboard. You are
about to install and connect your new Motherboard.
Note: Do not unpack the Motherboard from its protective
anti-static packaging until you have made the following
preparations.
2-1 PREPARATIONS
Gather and prepare all the following hardware equipment to
complete the installation successfully:
1. Celeron™processor with built-in CPU cooling fan (boxed
type).
Note: This Motherboard supports non-boxed type CPUs. The
heavier CPU cooling fan requires the installation of a CPU
support stand included in the Motherboard package.
2. DIMM memory module
3. Computer case and chassis with adequate power supply unit
4. Monitor
5. Keyboard
6. Pointing Device (PS/2 mouse)
7. Speaker(s) (optional)
8. Disk Drives: HDD, CD-ROM, Floppy drive…
9. External Peripherals: Printer, Plotter, and Modem (optional)
10. Internal Peripherals: Modem and LAN cards (optional)
Frequently Asked Questions:
lDo I need to install a VGA card?
lDo I also need to install a sound card?
The answer is NO to both questions above, since, for your
convenience, the SY-7IZM Motherboard already features one built-
in VGA port and three built-in audio-stereo ports (Line-out, Line-in,
Microphone).
lWhat kind of speaker can connect to "Line-out" port?
This Motherboard requires a speaker with built-in amplifier to
generate proper output sound volume.
Hardware Setup SY-7IZM
7
2-2 UNPACKING THE MOTHERBOARD
When unpacking the Motherboard, check for the following items:
ØThe SY-7IZM 440 ZX AGP/PCI Motherboard
ØThis Quick Start Guide *
ØThe Installation CD-ROM *
ØOne IDE Device Flat Cable
ØOne Floppy Disk Drive Flat Cable
ØSerial port flat cable with a 9-pin connector bracket
* If your board comes with a driver disc and a paper manual, the Quick Start Guide
and the CD-ROM are not included in the package.
Warning: Do not unpack the Motherboard from its anti-
static packaging until you are ready to install it.
Like most electronic equipment, your Motherboard may be damaged
by electrostatic discharge. To avoid permanent damage to
components ground yourself while working by using a grounding
strap. Otherwise, ground yourself frequently by touching the
unpainted portion of the computer chassis to drain the static
charges.
Handle the Motherboard carefully, holding it by the edges.
You are now ready to start the installation.
2-3 INSTALLATION GUIDE
We will now begin the installation of the Motherboard. Please follow
the step-by-step procedure designed to lead you to a complete and
correct installation.
Warning: Turn off the power to the Motherboard, system
chassis, and peripheral devices before performing any
work on the Motherboard or system.
Otros manuales para SY-7IZM
2
Tabla de contenidos
Otros manuales de Placa madre de SOYO
SOYO
SOYO SY-7ISA+ Manual de usuario
SOYO
SOYO SY-7VCA Manual de usuario
SOYO
SOYO SY-K7VTA PRO Manual de usuario
SOYO
SOYO SY-D6IBA2 Manual de usuario
SOYO
SOYO TechAID Manual de usuario
SOYO
SOYO 6BE+ Manual de usuario
SOYO
SOYO SY-K7ADA Manual de usuario
SOYO
SOYO SY-6BB V1.0 Manual de usuario
SOYO
SOYO SY-5SSM Manual de usuario
SOYO
SOYO SC-6TFx Manual de usuario
SOYO
SOYO SY-5EMM Manual de uso y cuidado
SOYO
SOYO SY-6IWM/L Manual de usuario
SOYO
SOYO SY-7IWM-X Manual de usuario
SOYO
SOYO SY-P4X400 DRAGON Lite Manual de usuario
SOYO
SOYO SY-6VBA 133 Manual de usuario
SOYO
SOYO SY-K7VLM-B Manual de usuario
SOYO
SOYO SY-7IS2 Manual de usuario
SOYO
SOYO SY-P4I875P DRAGON 2 V1.0 Manual de usuario
SOYO
SOYO 486 PCI/VESA Manual de uso y cuidado
SOYO
SOYO SY-P4I875P DRAGON 2 V1.0 Manual de usuario
Manuales populares de Placa madre de otras marcas
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manual de usuario
Gigabyte
Gigabyte GA-9IVDT Manual de usuario
Texas Instruments
Texas Instruments ADS8372EVM Manual de usuario
Commell
Commell MS-C73 Manual de usuario
IBT Technologies
IBT Technologies MB860 Manual de usuario
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manual de usuario
