SY-7IZB+N

Quick Start Guide

Introduction

Congratulations on your purchase of the

SY-7IZB+N

Motherboard. This Quick Start Guide

describes the steps for installing and setting up your new Motherboard.

This guide is designed for all users to provide the basic steps of Motherboard setting and

operation. For further information, please refer to SY-7IZB+N Motherboard User's Manual

and Technical Reference online manual included on the CD-ROM packed with your

Motherboard.

Unpacking

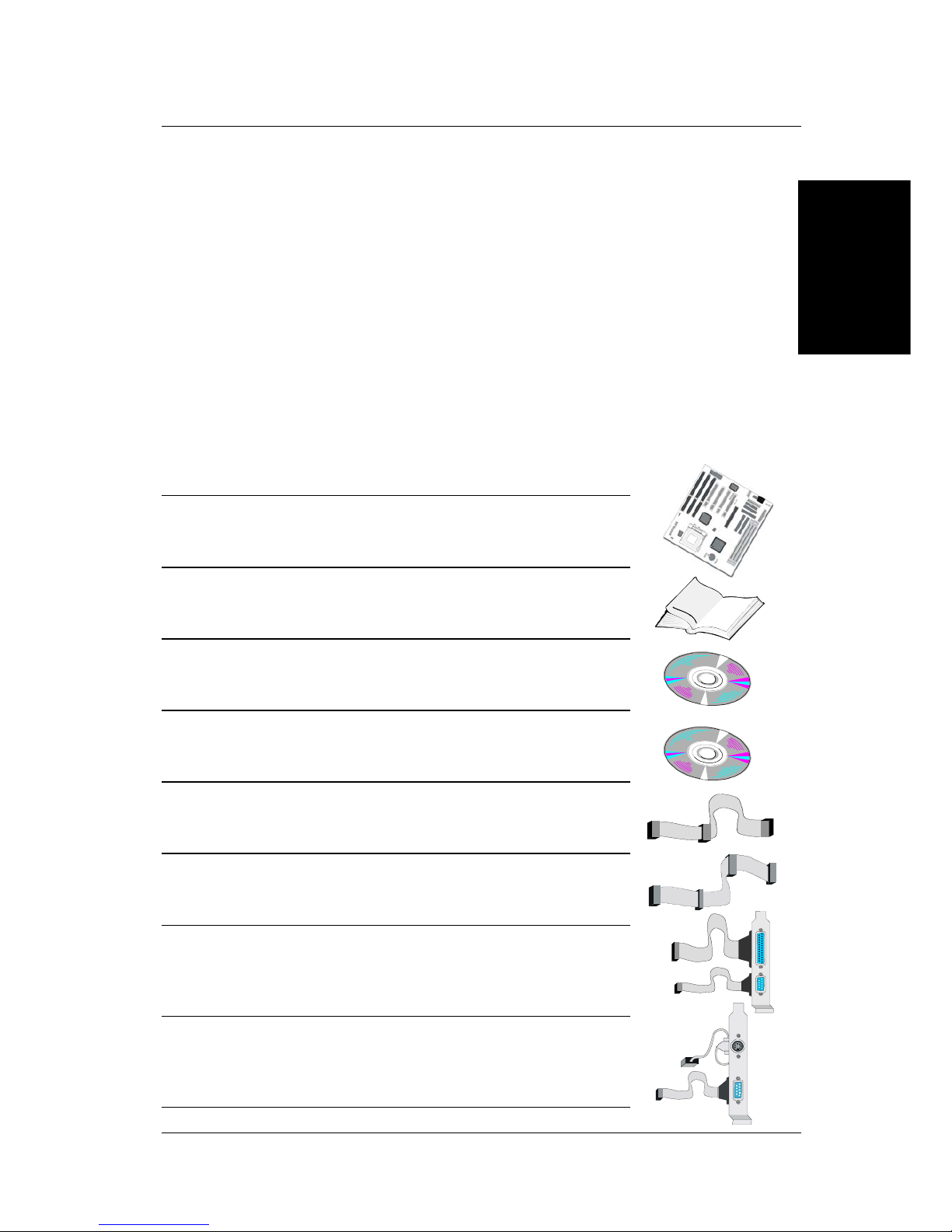

When unpacking the Motherboard, check for the following items:



The SY-7IZB+N 82440ZX AGP/PCI Motherboard



This Quick Start Guide



The Installation CD-ROM



SOYO Bonus Pack CD-ROM



One IDE Device Flat Cable



One Floppy Disk Drive Flat Cable



One dual 25-pin parallel with 25-pin flat cable and 9-pin serial

with 9-pin flat cable external connector



One dual 6-pin PS/2 mouse connector with 6-pin flat cable

and 9-pin serial connector with 9-pin flat cable

SY-7IZB+N

Quick Start Guide

Introduction

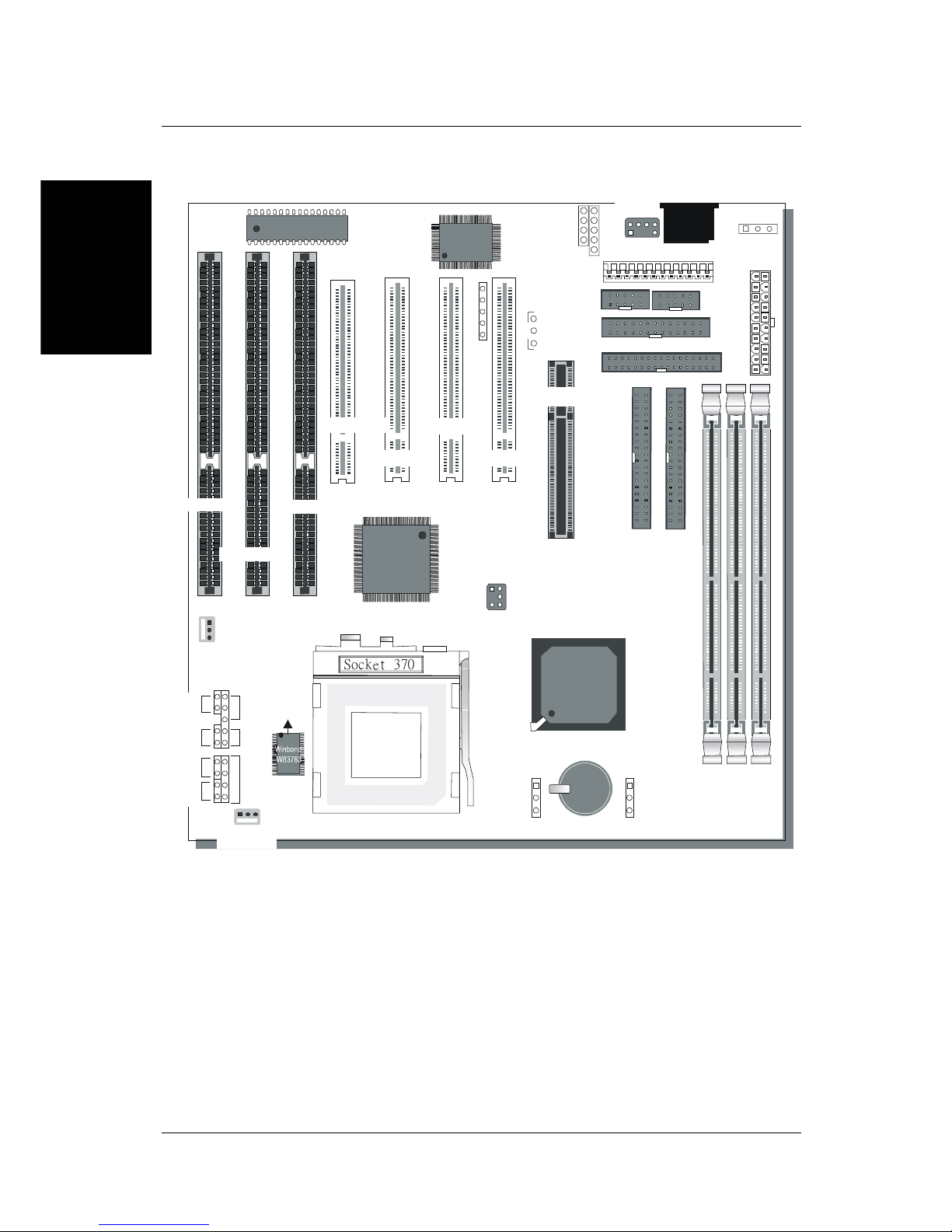

SY-7IZB+N Motherboard Layout

Key Features



Supports Intel Celeron

processors

(300A-MHz)



Auto-detect CPU voltage



PC98, ACPI, Ultra DMA/33



Supports system memory up to 256 Mbytes



SOYO COMBO Setup



Power-on by modem or alarm



Supports Wake-On-LAN (WOL)



Supports onboard hardware monitoring and

includes Hardware Doctor™ utility



Supports Creative SB-LINK™ (PC-PCI) for

PCI audio card



1 x 64-bit AGP slot



4 x 32-bit bus mastering PCI slots



3 x 16-bit ISA slot



2 x USB ports onboard



1 x IrDA port



Supports multiple-boot function



AT & ATX power connectors



Year 2000 Capable

Flash BIOS

AGP Slot

Connector

PS/2 Mouse

Connector

ATX Power

AT Power

PRT 1

COM 2

FDC

IDE 1

IDE 2

Lithium

Battery

COM 1

82440ZX

IR1

PCI Slot #2

PCI Slot #1

PCI Slot #3

PCI Slot #4

USB1

DIMM 2

DIMM 1

DIMM 3

Speaker

Keylock

Power

LED

RST

PWR

ACPI

LED

HDD

LED

Intel

371EB

ISA Slot #1

ISA Slot #3

ISA Slot #2

JP10

CPU FAN

CHAFAN

JP5

JP44

(PC-PCI)

SB-LINK

Hardware

Monitoring

JP9

Winbond

83977

Intel

SY-7IZB+N

Quick Start Guide

Hardware

Installation

To avoid damage to your Motherboard, follow these simple rules while

handling this equipment:



Before handling the Motherboard, ground yourself by grasping an unpainted portion

of the system's metal chassis.



Remove the Motherboard from its anti-static packaging. Hold it by the edges and

avoid touching its components.



Check the Motherboard for damage. If any chip appears loose, press carefully to seat

it firmly in its socket.

Follow the directions in this section designed to guide you through a quick and correct

installation of your new

SY-7IZB+N

Motherboard. For detailed information, please refer to

SY-7IZB+N Motherboard User's Guide and Technical Reference online manual included on

the CD-ROM packed with your Motherboard.

PREPARATIONS

Gather and prepare all the necessary hardware equipment to complete the installation

successfully:



Celeron



processor with built-in CPU cooling fan (boxed type)



SDRAM module(s)



Computer case and chassis with adequate power supply unit



Monitor



PS/2 Keyboard



Pointing Device (PS/2 Mouse)



VGA Card



Speaker(s) (optional)



Disk Drives: HDD, CD-ROM, Floppy drive…



External Peripherals: Printer, Plotter, and Modem (optional)



Internal Peripherals: Modem and LAN cards (optional)

SY-7IZB+N

Quick Start Guide

Hardware

Installation

Install the Motherboard

Follow the steps below in order to perform the installation of your new

SY-7IZB+N

Motherboard.

Step 1. Install the CPU

Mark your CPU Frequency:

Record the working frequency of your CPU

that should be clearly marked on the CPU cover.

300MHz (66 x 4.5) 333MHz (66 x 5.0) 366MHz (66 x 5.5) 400MHz (66 x 6.0)

433MHz (66 x 6.5) 466MHz (66 x 7.0) 500MHz (66 x 7.5) 533MHz (66 x 8.0)

This Motherboard is designed to be able to support processors with 100MHz FSB. However,

Socket 370 processors with 100MHz FSB are not available yet at this moment for testing.

CPU Mount Procedure:

To mount the Celeron

processor that you have

purchased separately, follow these instructions.

1. Lift the socket handle up to a vertical position.

2. Align the blunt edge of the CPU with the matching pinhole distinctive edge on the

socket.

3. Seat the processor in the socket completely and without forcing.

4. Then close the socket handle to secure the CPU in place.

Remember to connect the CPU Cooling Fan to the appropriate power

connector on the Motherboard. The fan is a key component that will ensure

system stability. The fan prevents overheating, therefore prolonging the life of

your CPU.

1 2

3 4

Socket370

SY-7IZB+N

Quick Start Guide

Hardware

Installation

Step 2. Make Connections to the Motherboard

This section tells how to connect internal peripherals and power supply to the Motherboard.

Internal peripherals include IDE devices (HDD, CD-ROM), Floppy Disk Drive, Chassis Fan,

Front Panel Devices (ACPI LED, Internal Speaker, Reset Button, IDE LED, and KeyLock

Switch.), Wake-On-LAN card, VGA card, Sound Card, and other devices.

For more details on how to connect internal and external peripherals to your new SY-7IZB+N

Motherboard, please refer to SY-7IZB+N Motherboard User's Guide and Technical

Reference online manual on CD-ROM.

Connectors and Plug-ins

PCI Audio Card Header: SB-Link™ (PC-PCI) Wake-On-LAN Header: JP44

Pin1 Pin2 Pin3

Connect the SB-Link™ (PC-PCI) cable from your PCI audio

card to this header. 5VSB GND MP-Wakeup

CPU Cooling Fan: CPUFAN Chassis Fan: CHAFAN

Pin1 Pin2 Pin3 Pin1 Pin2 Pin3

GND 12V SENSOR GND 12V SENSOR

Power LED Keylock

Pin1 Pin2 Pin3

Pin1 Pin2

5V NC GND

Control Pin GND

Speaker

Pin1 Pin2 Pin3 Pin4

5V NC NC Speaker out

HDD LED ACPI LED PWRBT RESET

Pin1 Pin2 Pin1 Pin2 Pin1 Pin2 Pin1 Pin2

LED Anode LED

Cathode LED Anode LED

Cathode

Power

On/Off GND Power

Good GND

IrDA (Infrared Device Header): IR1 AT Power Cable

Pin1 Pin2 Pin3 Pin4 Pin5

VCC None IRRX GND IRTX

Connect the AT Power cable to this

connector. If you use AT power supply.

ATX Power On/Off: PWRBT ATX Power Supply: ATX PW

Connect your power switch to this

header (momentary switch type).

To turn off the system,

please press this switch and

hold down for longer than

4 seconds.

Attach the ATX Power cable to this connector.

When using the Power-On by PS/2 Keyboard function, please

make sure the ATX power supply is able to be loaded at least

720mA on the 5V Standby lead (5VSB) in order to meet the

standard ATX specifications.

Note: Use only ONE type of power supply. If an AT power

supply is used, do not attach an ATX power supply.

Power LED Key Lock Speaker

Reset PWRBT ACPI LED HDD LED

SY-7IZB+N

Quick Start Guide

Hardware

Installation

Step 3. Configure Memory

Your board comes with three DIMM sockets, providing support for up to 256MB of main

memory using DIMM modules from 8MB to 128MB.

Memory Configuration Table

Number of

Memory Modules DIMM 1 DIMM 2 DIMM 3

1 Double-sided/Single-sided Double-sided

2 Double-sided/Single-sided Double-sided

3 Double-sided/Single-sided Single-sided Single-sided

RAM Type SDRAM

Memory Module Size (MB) 8/16/32/64/128 Mbytes

Note:

Because DIMM banks 2 and 3 are shared, double-sided DIMMs

(having ICs on both sides of the module) can be used in only one of

thebanks.Withsingle-sided DIMM both bank 2 and 3 can be used.

Step 4. Set JP9 for power up FSB clock and AGP bus clock.

JP9 is used to adjust AGP bus clock frequency depending on the value of the front side bus

(FSB) clock, also the setting of the JP9 determines the power up FSB clock which will

remain effective until the BIOS set the FSB clock to the CMOS setting.

JP9 Setting

Power up FSB Clock 66MHz 100MHz

AGP Clock AGP Clock = FSB Clock ÷1 AGP Clock = FSB Clock ÷1.5

Note: The specification of maximum AGP bus Clock frequency is 66.6MHz.

∗

Set JP9 to pin 1-2 short when you use a FSB 100MHz CPU.

∗

Set JP9 to pin 2-3 short when you use a FSB 66MHz CPU.

∗

Set JP9 to pin 1-2 short when you use a FSB 66MHz CPU but want to over clock the

FSB clock to 100MHz via the BIOS setting.

Step 5. Set the CPU Frequency

You do not need to set any jumper for the CPU frequency. Instead, CPU settings are

changed through the BIOS

[SOYO COMBO SETUP].

Please refer to Chapter 3 - Quick

BIOS Setup for details on how to set the Celeron



processor frequency.

SY-7IZB+N

Quick Start Guide

Hardware

Installation

Step 6. Enable/Disable the Keyboard Power-On (JP10)

You can choose to enable the Wake-Up by Keyboard or Mouse function by shorting pin 1-2

on jumper JP1, otherwise, short pin 2-3 to disable this function.

Support Power-On

by Keyboard Enable Disable

JP10 Setting

Enable

Power-On by

Keyboard

function

(short pin 1-2)

Disable Power-On

by Keyboard

function

(short pin 2-3)

Important:

1.When using the Keyboard Power-On function, please make sure the ATX power

supply can take at least 720mA load on the 5V Standby lead (5VSB) to meet the

standard ATX specifications.

2.If you use an AT power supply, make sure that JP10 is setting 2-3.

Clear CMOS Data (JP5)

In some cases the CMOS memory may contain wrong data, follow the steps below to clear

the CMOS memory.

1. Clear the CMOS memory by momentarily shorting pin 2-3 on jumper JP5. This jumper

can be easily identified by its white colored cap.

2. Then put the jumper back to 1-2 to allow writing new of data into the CMOS memory.

CMOS Clearing Retain CMOS Data Clear CMOS Data

JP5 Setting

Short pin 1-2 to retain

the new settings.

Short pin 2-3 for

at least 5

seconds

to clear the CMOS.

Note: You must unplug the AT/ATX power cable from the AT/ATX power connector

when performing the CMOS Clear operation.

SY-7IZB+N

Quick Start Guide

Hardware

Installation

Note on Over-clocking Capability

The SY-7IZB+N Motherboard provides over-clocking capability. Due to the over-clocking

setting your system may fail to boot up or hang during run time. If this occurs, please perform

the following steps to recover your system from the abnormal situation:

1. Turn off system power. (If you use an ATX power supply, and depending on your

system, you may have to press the power button for more than 4 seconds to shut

down the system.)

2. Set JP9 to pin 2-3 if you use a FSB 66MHz CPU

3. Press and hold down the <Insert> key while turning on the system power. Keep

holding down the <Insert> key until you see the message of the CPU type and your

CPU frequency (66MHz x CPU Multiplier) appear on screen.

4. Press the <Del> key during the system diagnostic checks to enter the Award BIOS

Setup program.

5. From the BIOS main menu, select [SOYO COMBO SETUP] and move the cursor to

the [CPU Frequency] field to set the proper working frequency.

6. Select [Save & Exit SETUP] and press <Enter> to save the configuration to the

CMOS memory, and continue the boot sequence.

Note: SOYO does not guarantee system stability if the user over clocks the system.

Any malfunctions due to over-clocking are not covered by the warranty.

Otros manuales para SY-7IZB+N

Tabla de contenidos

Otros manuales de Placa madre de SOYO

SOYO

SOYO SC-6TFx Manual de usuario

SOYO

SOYO SY-P4I845PEISA Manual de usuario

SOYO

SOYO 82440 FX Manual de uso y cuidado

SOYO

SOYO SY-7VBA133U Manual de usuario

SOYO

SOYO SY-6IWM Manual de usuario

SOYO

SOYO SY-P4RS350 Manual de usuario

SOYO

SOYO SY-6BA+ Manual de usuario

SOYO

SOYO SY-7SBB Manual de usuario

SOYO

SOYO SY-P4VTE Manual de usuario

SOYO

SOYO SY-7VCA2 Manual de usuario

SOYO

SOYO SY-7IWM/L V1.0 Manual de usuario

SOYO

SOYO Pentium SiS 551x Manual de uso y cuidado

SOYO

SOYO SY-K7VTA-B Manual de usuario

SOYO

SOYO SY-6KE Manual de usuario

SOYO

SOYO DRAGON 2 Motherboard 2 Manual de usuario

SOYO

SOYO SY-K7VLM-B Manual de usuario

SOYO

SOYO SY-6BA+ III Manual de uso y cuidado

SOYO

SOYO SY-6BB Manual de usuario

SOYO

SOYO SY-7VCA Manual de usuario

SOYO

SOYO SY-K7VTA-B Manual de usuario

SOYO

SOYO SY-6IEB Manual de uso y cuidado

SOYO

SOYO SY-7ISA plus Manual de usuario

SOYO

SOYO Pentium P54C Manual de uso y cuidado

SOYO

SOYO SY-P4X400 DRAGON Lite Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
