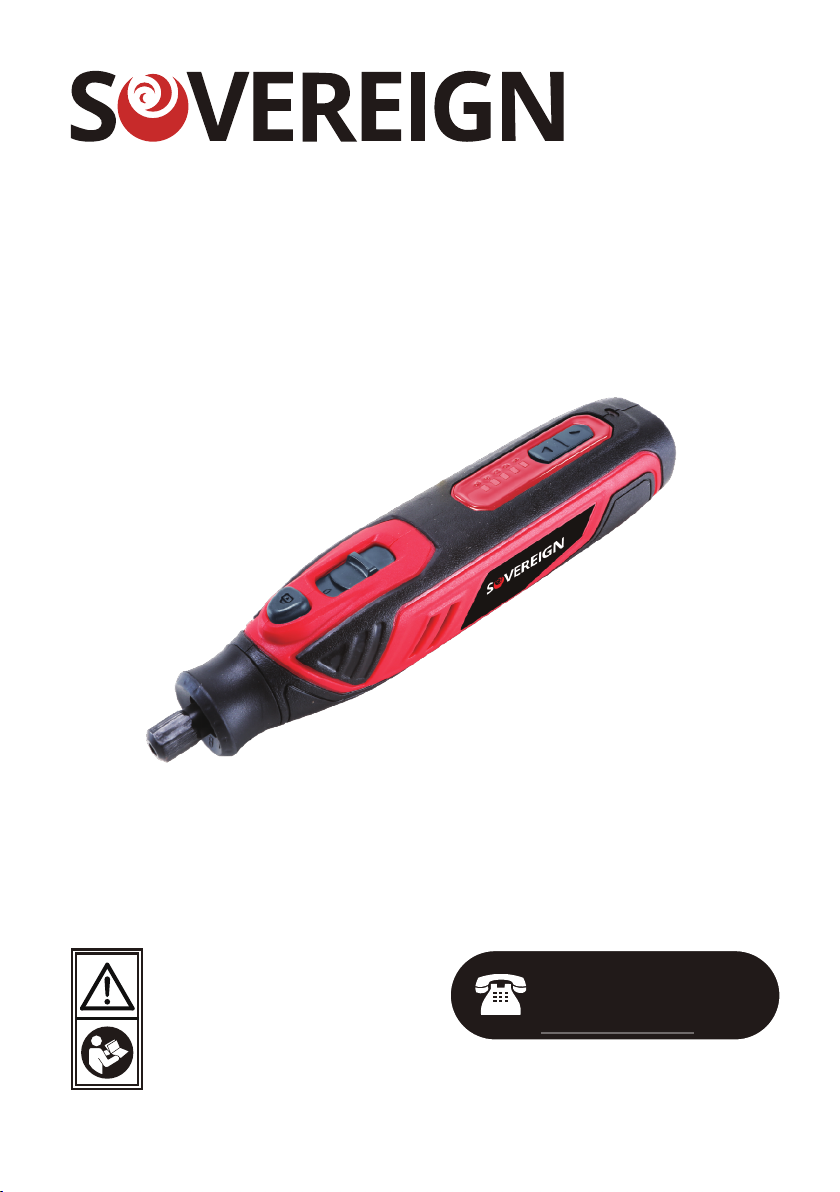

Sovereign Q0M-DC-4E1 Guía del usuario
3.6V CORDLESS ROTARY TOOL KIT
Item No. 612324
Model No. Q0M-DC-4E1
HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576 June 21
ORIGINAL INSTRUCTION MANUAL
Please read these instructions fully before starting assembly.
www.coreservice.co.uk
Technical Support & Parts
01904 727509
Mon-Fri 9am-5pm Sat-Sun 11am-4pm
2
CONTENTS
Contents 2
General safety warnings 3
Warning symbols 21
In the box 22
Operation 23
Maintenance and storage 29
Technical data 30
Recycling and disposal 32
Getting help 32
Warranty 33
3
GENERAL SAFETY INFORMATION
WARNING! Read all safety warnings,
provided with this power tool.
Failure to follow all instructions listed below
injury.
Save all warnings and instructions for future
reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) Work area safety
a. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of
Power tools
create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2) Electrical safety
a. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adaptor plugs with earthed (grounded) power
4
tools.
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
f. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3) Personal safety
a. Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
5
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b.
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
c. Prevent unintentional starting. Ensure the
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
these devices can reduce dust-related hazards.
6
h.
of tools allow you to become complacent and
ignore tool safety principles. A careless action
can cause severe injury within a fraction of a
second.
4) Power tool use and care
a. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b. Do not use the power tool if the switch does
not turn it on and Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
c. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
power tools operation. If damaged, have the
7
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits,
etc., in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
result in a hazardous situation.
h. Keep handles and gripping surfaces dry, clean
and free from oil and grease. Slippery handles
and gripping surfaces do not allow for safe
handling and control of the tool in unexpected
situations.
Service
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
8
SAFETY INSTRUCTIONS FOR ALL OPERATIONS
Safety Warnings common for grinding, sanding,
wire brushing, polishing, carving or abrasive
a) This power tool is intended to function as a
grinder, sander, wire brush, polisher, carver or
ad all safety warnings, instructions,
power tool. Failure to follow all instructions listed
injury.
b) Operations such as polishing is not
recommended to be performed with this power
tool. Operations for which the power tool was not
designed may create a hazard and cause personal
injury.
c) Do not use accessories which are not
tool manufacturer. Just because the accessory can
be attached to your power tool, it does not assure
safe operation.
d) The rated speed of the grinding accessories
marked on the power tool. Grinding accessories
running faster than their rated speed can break and
e) The outside diameter and the thickness of your
accessory must be within the capacity rating
of your power tool. Incorrectly sized accessories
cannot be adequately controlled.
9
f) The arbour size of wheels, sanding drums or
or collet of the power tool. Accessories that do not
match the mounting hardware of the power tool will
run out of balance, vibrate excessively and may cause
loss of control.
g) Mandrel mounted wheels, sanding drums,
cutters or other accessories must be fully
inserted into the collet or chuck. If the mandrel is
is too long, the mounted wheel may become loose
and be ejected at high velocity.
h) Do not use a damaged accessory. Before each
use, inspect the accessory, such as abrasive
wheels for chips and cracks, sanding drum for
cracks, tear or excess wear, wire brush for loose
or cracked wires. If the power tool or accessory
is dropped, inspect for damage or install an
undamaged accessory. After inspecting and
installing an accessory, position yourself and
bystanders away from the plane of the rotating
accessory and run the power tool at maximum no-
load speed for one minute. Damaged accessories
will normally break apart during this test time.
Depending on application, use a face shield,
safety goggles or safety glasses. As appropriate,
wear a dust mask, hearing protectors, gloves
and workshop apron capable of stopping small
abrasive or workpiece fragments. The eye
10
generated by various operations. The dust mask
generated by your operation. Prolonged exposure to
high intensity noise may cause hearing loss.
j) Keep bystanders a safe distance away from the
work area. Anyone entering the work area must
wear personal protectit. Fragments of
cause injury beyond immediate area of operation.
k) Hold the power tool by insulated gripping
surfaces only, when performing an operation
where the cutting accessory may contact hidden
wiring or its own cord. Cutting accessory contacting
a “live” wire may make exposed metal parts of the
power tool “live” and could give the operator an
electric shock.
during the start up. The reaction torque of the
motor, as it accelerates to full speed, can cause the
tool to twist.
m) Use clamps to support the workpiece
whenever practical. Never hold a small workpiece
in one hand and the tool in the other hand while
in use. Clamping a small workpiece allows you to use
your hand(s) to control the tool. Round material, such
as dowel rods, pipes or tubing, have a tendency to
roll while being cut, and may cause the bit to bind or
jump toward you.
