Installation Guide for SBOL 450 / SBOL 750
Only branded lamps are recommended
Installation Sheet
Read these instructions before commencing installation. Please retain for future reference.

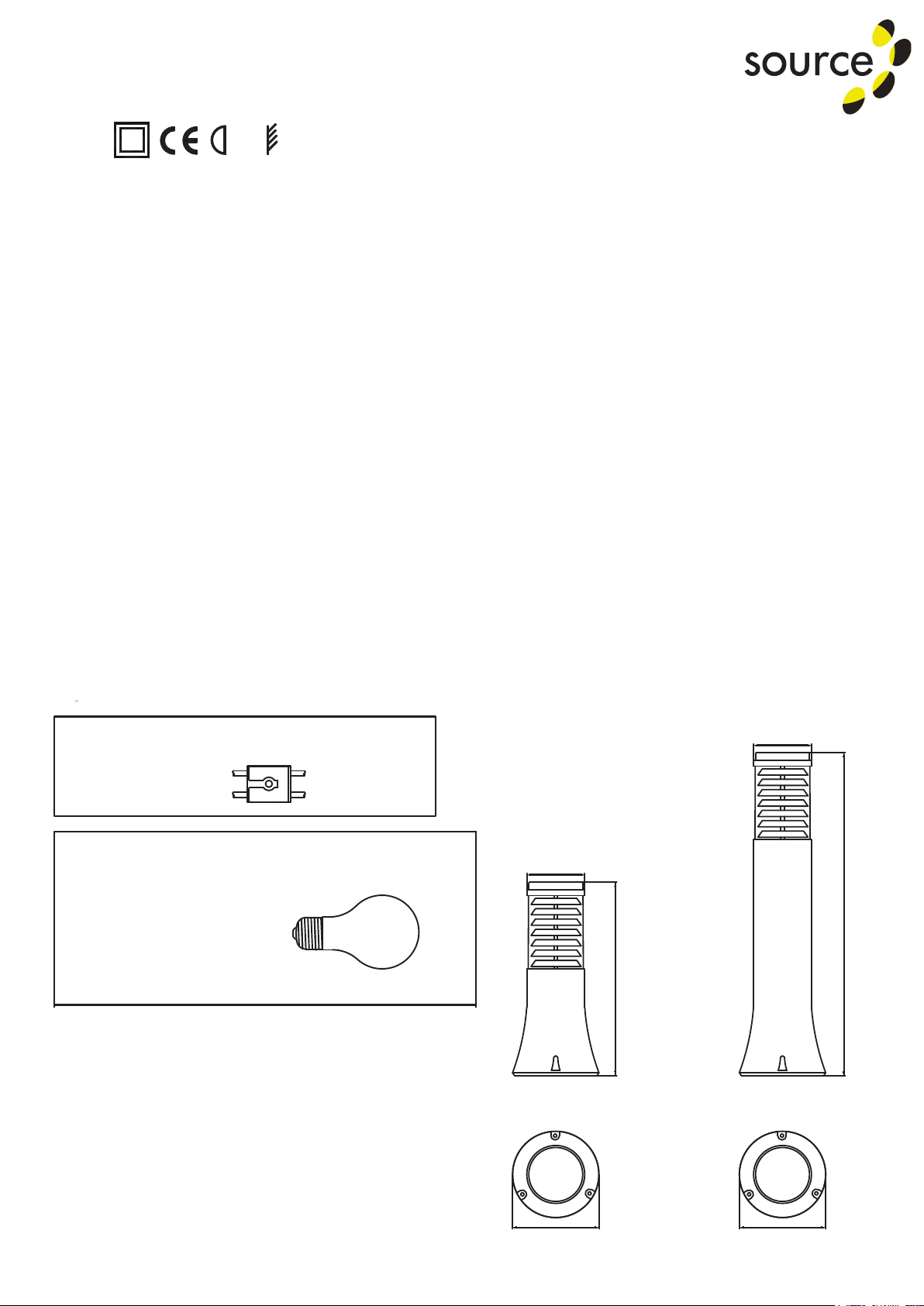

Lamp Details
Lamp Cap: E27 GLS
Wattage: 60W (max)
IP65 0.3m 240V~50Hz 60W max.
E27 Bollards
Manta
Available finish:- Black
450mm
200mm 200mm
135mm
135mm
750mm
These fittings are Class II and do not require an Earth
Important Information
•It is recommended that these luminaires are installed and fitted by a qualified electrician ensuring the installation complies
with current IEE wiring regulations & local building control.
•These products are designed for connection to a 240V~50Hz supply.
•Any faulty, broken or damaged luminaires should be replaced immediately.
Please Note: The limited warranty shall be deemed null and void in the following circumstances: Failure by the installer, end user or
any third party to exercise caution to protect any covered product or part from outside damage, adverse temperature (normal
operating ambient temperature -15 ~ +40°C), humidity conditions, fluctuations in the electrical system or physical abuse as well as
failure related to workmanship in the installation of the products or parts.
Important User Advice
Always switch off mains supply before servicing lamp changes and maintenance.
Please ensure that a suitable maintenance schedule is performed including greasing any exposed metal parts and cleaning with a
non-abrasive cleaner to ensure the product gives you a long lasting trouble free life.

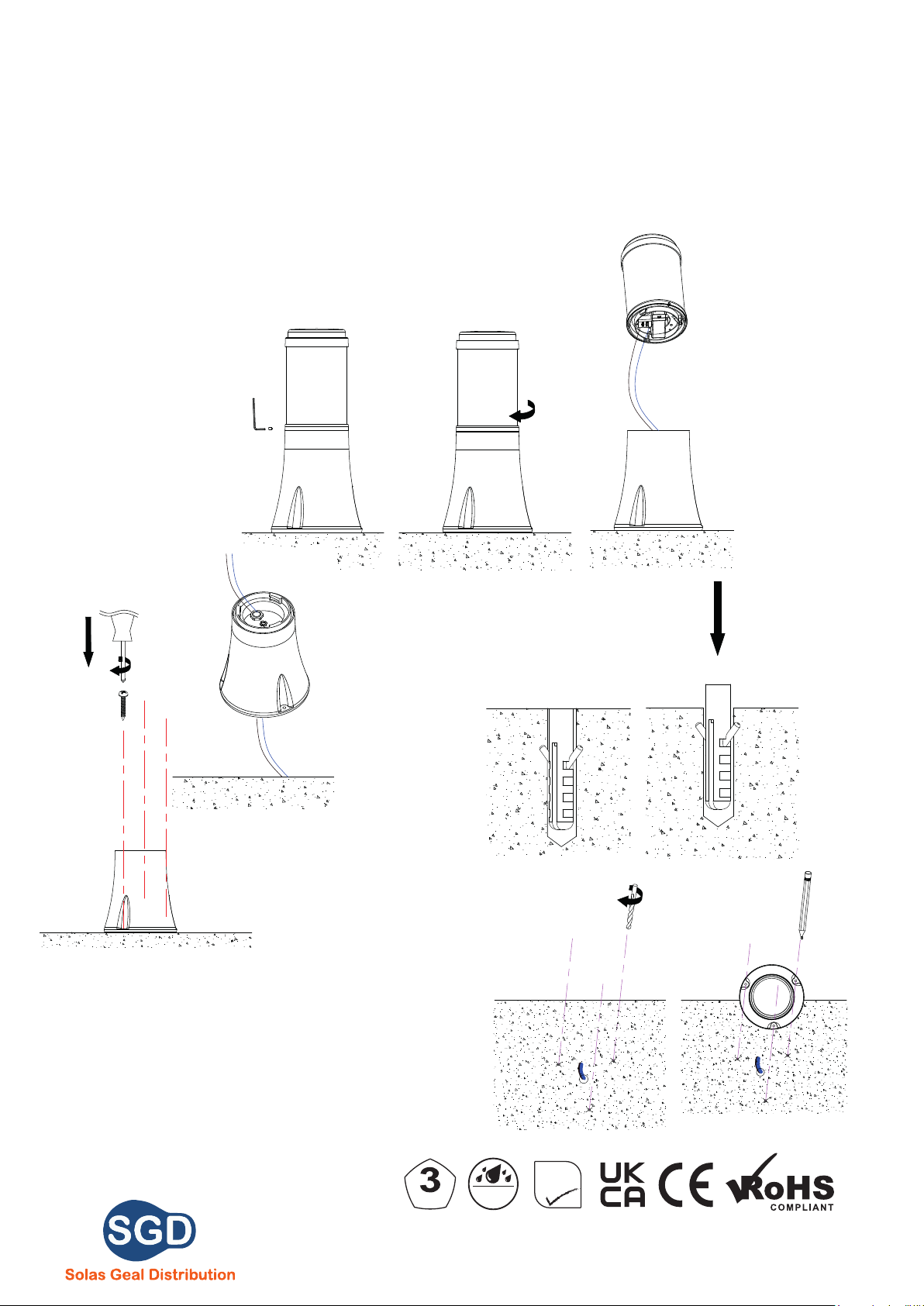

Installation Procedure
Safely isolate the mains supply before installation.
Remove the head by loosening the grub screw and twisting anticlockwise.
Route the cable through the cable gland (8mm-12mm) and terminate wiring as per Figure 1.
Install suitable lamp not exceeding the maximum wattage.
Refit the head in reverse of removal ensuring the seal is clean, in place and undamaged, grease the grub screw and tighten.
Tighten the cable gland ensuring a water tight connection.
Secure the bollard in place using suitable fixings for the application.
Turn mains supply on and test luminaire.
Never touch a hot lamp.
Fig.1
Mains Supply Luminaire
L- Brown
Live
L
N - BlueNeutral
N
Only branded lamps are recommended
Installation Sheet
Read these instructions before commencing installation. Please retain for future reference.
Lamp Details
Lamp Cap: E27 GLS
Wattage: 60W (max)
IP65 0.3m 240V~50Hz 60W max.
E27 Bollards
Manta
Available finish:- Black
450mm
200mm 200mm
135mm
135mm
750mm
These fittings are Class II and do not require an Earth
Important Information
•It is recommended that these luminaires are installed and fitted by a qualified electrician ensuring the installation complies
with current IEE wiring regulations & local building control.
•These products are designed for connection to a 240V~50Hz supply.
•Any faulty, broken or damaged luminaires should be replaced immediately.
Please Note: The limited warranty shall be deemed null and void in the following circumstances: Failure by the installer, end user or
any third party to exercise caution to protect any covered product or part from outside damage, adverse temperature (normal
operating ambient temperature -15 ~ +40°C), humidity conditions, fluctuations in the electrical system or physical abuse as well as
failure related to workmanship in the installation of the products or parts.
Important User Advice
Always switch off mains supply before servicing lamp changes and maintenance.
Please ensure that a suitable maintenance schedule is performed including greasing any exposed metal parts and cleaning with a
non-abrasive cleaner to ensure the product gives you a long lasting trouble free life.
Installation Procedure
Safely isolate the mains supply before installation.
Remove the head by loosening the grub screw and twisting anticlockwise.
Route the cable through the cable gland (8mm-12mm) and terminate wiring as per Figure 1.
Install suitable lamp not exceeding the maximum wattage.
Refit the head in reverse of removal ensuring the seal is clean, in place and undamaged, grease the grub screw and tighten.
Tighten the cable gland ensuring a water tight connection.
Secure the bollard in place using suitable fixings for the application.
Turn mains supply on and test luminaire.
Never touch a hot lamp.
Fig.1
Mains Supply Luminaire
L- Brown
Live
L
N - BlueNeutral
N
E27 Bollards
Available nish - Black
Base Diameter Base Diameter
Only branded lamps are recommended
Installation Sheet
Read these instructions before commencing installation. Please retain for future reference.
Lamp Details
Lamp Cap: E27 GLS
Wattage: 60W (max)
IP65 0.3m 240V~50Hz 60W max.
E27 Bollards
Manta
Available finish:- Black
450mm
200mm 200mm
135mm
135mm
750mm
These fittings are Class II and do not require an Earth
Important Information
•It is recommended that these luminaires are installed and fitted by a qualified electrician ensuring the installation complies
with current IEE wiring regulations & local building control.
•These products are designed for connection to a 240V~50Hz supply.
•Any faulty, broken or damaged luminaires should be replaced immediately.
Please Note: The limited warranty shall be deemed null and void in the following circumstances: Failure by the installer, end user or
any third party to exercise caution to protect any covered product or part from outside damage, adverse temperature (normal
operating ambient temperature -15 ~ +40°C), humidity conditions, fluctuations in the electrical system or physical abuse as well as
failure related to workmanship in the installation of the products or parts.
Important User Advice
Always switch off mains supply before servicing lamp changes and maintenance.
Please ensure that a suitable maintenance schedule is performed including greasing any exposed metal parts and cleaning with a
non-abrasive cleaner to ensure the product gives you a long lasting trouble free life.
Installation Procedure
Safely isolate the mains supply before installation.
Remove the head by loosening the grub screw and twisting anticlockwise.
Route the cable through the cable gland (8mm-12mm) and terminate wiring as per Figure 1.
Install suitable lamp not exceeding the maximum wattage.
Refit the head in reverse of removal ensuring the seal is clean, in place and undamaged, grease the grub screw and tighten.
Tighten the cable gland ensuring a water tight connection.
Secure the bollard in place using suitable fixings for the application.
Turn mains supply on and test luminaire.
Never touch a hot lamp.
Fig.1
Mains Supply Luminaire
L- Brown
Live
L
N - BlueNeutral
N
