SOUNDMASTER VRCPAA-7DR Manual de usuario

2 DIN 7" Monitor

Touch screen

DVD/CD/MP3/MP4/

USB/SD

AM/FM Radio

Support Apple CarPlay

Support Android Auto

Support Bluetooth

VRCPAA-7DR

AV Center

2-DIN DVD Head Unit

1. Appearance

2. Accessories and Installation

3. Wiring Connection

4. Front panel Description

5. Remote Control

6. Main Menu

7. Settings

8. Apple CarPlay & Android auto

9. Radio

10. USB

11. Disc

12. BT Audio

13. BT Phone

14. Specification

15. AV IN

16. Camera

FCC Notes

---------------------------------------------

---------------------------------

Content

---------------------------------

Main Menu

Carplay Menu

Android Auto Menu

Appearance Accessories & Installation

(2) Screw 8

(1) Mounting bracket

Package contains the following accessories for

installation and operation of the unit.

(3) Remote 1

1 2 3

4 5 6

7 8 9

EJECT EQ

DISC BT USB

CP/AA

SXM Radio

(4) Trim Ring 1

(5) User Manual 1

(6) Warranty Card 1

(8) Harness cable 1

(7) ISO Cable 2

1. Appearance 2. Accessories & Installation

2 DIN 7" Mo nitor

Touch s creen

DVD/C D/MP3/ MP4/

USB/S D

AM/FM R adio

Suppo rt Appl e CarPl ay

Suppo rt Andr oid Aut o

Suppo rt Blue tooth

VRCP AA-7D R

AV Cen ter

2-DI N DVD Hea d Unit

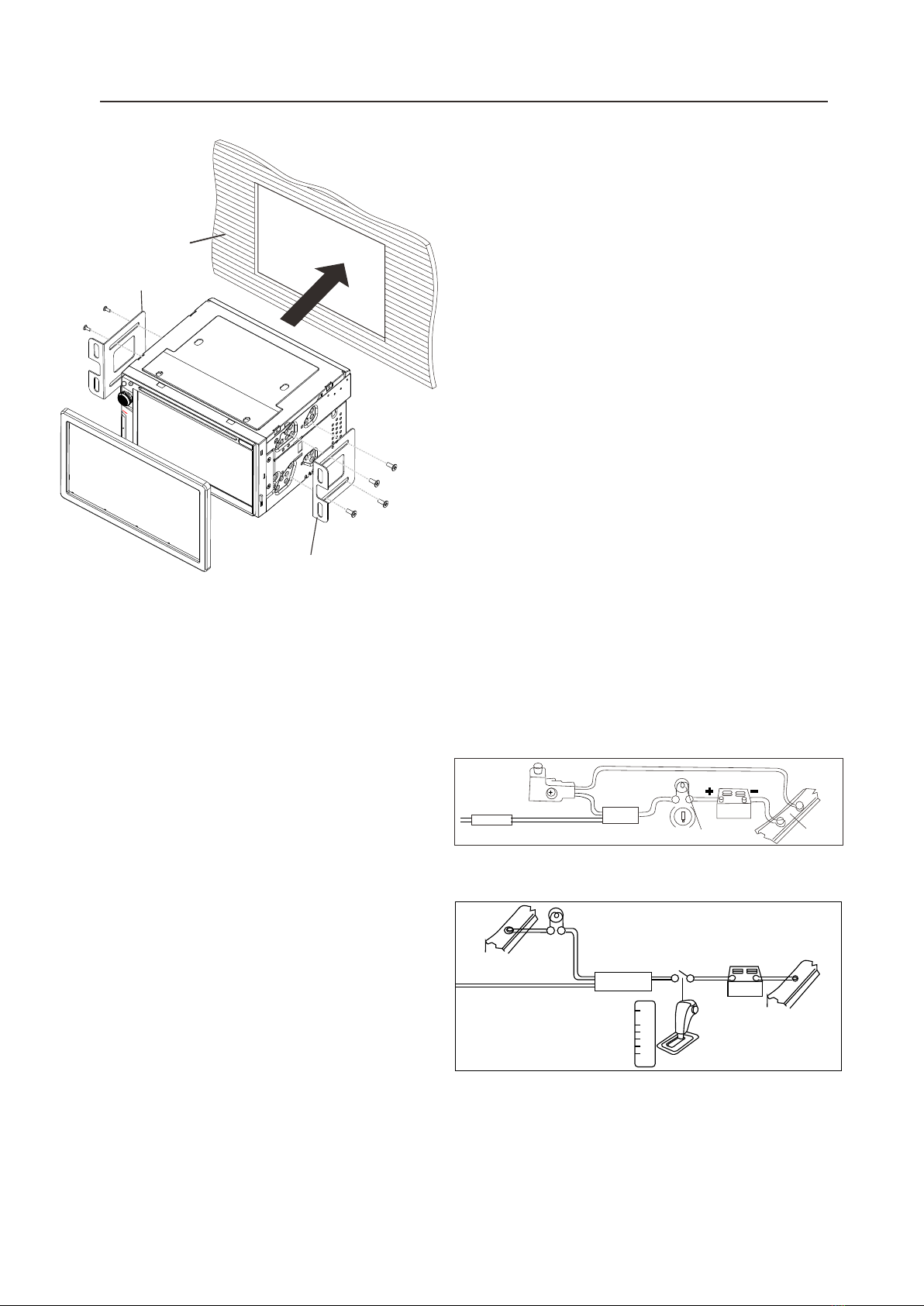

Installation

1.Put the 2 brackets to the left and right

side of the headunit.

2.Use screws to fix the brackets to the

unit.

3.Install the body chassis into the

dashboard via the 2 brackets.

4.Install the trim ring to the body

chassis.

Note:

1. Make sure the ignition is turned off,

and disconnect the cable from the

vehicle batteryʼs negative (-)

terminal.

You never want electricity running

when you install this 2-DIN car

receiver.

2. Before installation, disconnect the

wire harness and the antenna.

3. Attach the brackets on the both

sides of the car receiver with

screws as shown as the installation

drawing. Please buy from your

dealer according to the drilling of

holes size.

4. Consult with your nearest dealer if

installation requires the drilling of

holes or other modification of the

vehicle.

5. Install the car receiver in the dashboard.

6. Connect the wire harness & antenna

to the car receiver being carefully not

to pinch any wires or cables.

7. Install the plastic outer trim ring onto

the car receiver.

8. Reconnect the battery and run through

all of the options on this car recei ar

you intend to install it in. Please

choose the correct installation method

according to the actual situation of

your car. Always contact the car dealer

or manufacturer if you have any

questions.

Installation

2. Accessories & Installation

Dashboard

Bracket

Note: To watch video the parking wire

should be connected to brake signal.

Note: The parking wire is connected with

brake signal; for safety, the programs can

be seen on the monitor after braking the

car..

Parking wire

Connecting the reversing line to taillight on

the car

After connecting, when you start up the

reverse gear, the unit will receive the

picture from car rear view camera.

Parking brake lead

Brown wire

Brake light

12V

battery

Car frame

12V

Car frame

Battery

Reverse driving light

Car frame

Pink wire

Rear view video camera lead

Gearbox

Connect the speakers according the

f o l l o w i n g d i a g r a m , i n c o r r e c t

connections will damage the unit or

your loudspeakers.

Speaker Connection

White

Green

Grey

Purple

3. Wiring

MIC

Video Input

Red

White

Yellow

white

Green Subwoofer Out

Red

White

Brown Front camera input

Line Out (FL)

Line Out (RL)

Line Out (FR)

Line Out (RR)

Audio In (R)

Audio In (L)

Video Output2

Back camera input

Extraposition MIC jack

Video Output1

Red

Yellow

Radio antenna

ISO A ISO B

ISO A

8 Pin

connector

Portion Colour Connection

ISO B

Yellow

Orange

Blue

Black

Red

Purple

Purple / Black

Grey

Grey / Black

White

White / Black

Green

Green / Black

Blue / White

Brown

Pink

Pink / Black

Black

Green

Grey

Battery B+

ILL B+

Antenna

Ground

ACC B+

Rear right speaker(+)

Rear right speaker(-)

Front right speaker(+)

Front right speaker(-)

Front left speaker(+)

Front left speaker(-)

Rear left speaker(+)

Rear left speaker(-)

Amplifier control(B+)

Brake detect (Ground)

Back car control(Back camera B+)

Front camera(B+)

Ground

Steering Wheel 2

Steering Wheel 1

3. Wiring

4.Front panel Description

Front panel

7 inch TFT LCD

Mic

Build in Microphone.

IR Sensor of Remote

IR remote control signal receiving

window.

9HOME button

Press to back to Main menu.

Rotary Control

On/Off button

Short press to switch On the

source unit.

Long press to switch Off the

source unit.

In operation, rotate to adjust the

sound output level.

Siri button

When Apple CarPlay or Android

Auto available, press Siri button

to start the voice control function.

7button

[Disc/USB/SD Music] Press repeatedly to

shift track previous or next for playback.

Press and hold to active various fast rewind

or fast forward speeds for playback.

[Bluetooth Music] Press repeatedly to

shift track previous or next for playback.

Press to eject the disc.

Eject Button

Insert an extrenal device to this port

in order to have sound output of

that external device through the unit.

AUX in jack

Insert micro SD for playback.

Micro SD slot

Press to default factory settings.

Reset button

Connect USB for digital playback.

Connect your iPhone for Apple

CarPlay.

Connect your Android Phone for

Android Auto.

USB port

2 3 4

Press and hold to seek downward

or upward.

[Radio] Press to select previous/

next preset radio station for

broadcasting.

5.REMOTE CONTROL

NO. SYMBOL OPERATION & CONTROL MODES 1.

Press and hold to power it on or off.

Short press this button mute the

volume output when unit turn on.

Long press is Power OFF function

when unit turn on.

Press it to increase or decrease the

volume level.

14 16

1 2 3

4 5 6

7 8 9

EJECT EQ

ENTER

DISC BT USB

CP/AA

SXM Radio

2. [Bluetooth ]: Press it to make a call

after inputted a phone number or

answer an incoming call.

3. [Bluetooth ]: Press it to reject a coming

call or hangup while calling

4. Press it to switch to CarPlay or Android

Auto mode; Head Unit will show string

"invalid operation" when CP/AA is not

pluged in Head Unit.

CP/AA

5. Press it to switch to SXM mode.

SXM

6. Press it to switch to RADIO mode.

Radio

7. Press it to switch to DVD mode.

DISC

8. Press it to switch to Bluetooth mode.

9. Press it to switch to USB mode.

USB

10.

VOL+/-

Note: 1. SXM just for include SiriusXM

function models.

2. * # these functions

for Bluetooth.

Press it to eject the disc.

14.

EJECT

15.

[DVD/USB/SD]: short press it to

switch play or pause.

16.

EQ Press it to Equalizer functions .

17.

0-9 [Radio ]: Select 1-6 desired preset

station.

[DVD/SUB/SD ]:Input 0-9 for

selecting track number.

[BT Phone ]:Input 0-9/*/# for

desired phone number.

Press it to confirm selection.

It is UP /Down/Left/Right Arrow, use

this button to select the menu item,

the title track or to show next frame.

[DVD/USB/SD]: short press it to

skip to the next track or previous

functions.

Long press to activate fast forward

or fast review in a track .

11.

12.

ENTER

13.

[Bluetooth Music]: short press it to

skip to the next track or previous

functions.

[Radio] Press to seek upward/

downward.

[Radio] Press to select next/

previous preset radio station for

broadcasting.

6.MAIN MENU

VRCPAA-7DR is a 2-DIN car audio with

following functions:

Apple CarPlay, Google Android Auto,

Radio, Disc, Bluetooth, USB, SD.

The Mode icon in gray means the corre-

sponding function is not ready or proper

device have not been connected.

Touch the corresponding Mode icon to

enter playing mode.

Turn off TFT display.

TFT enter black mode touch any

zone return to TFT on.

7.Settings

Touch the icon to enter the Setup menu.

The Setup menu is included System Settings,

Display Settings, Audio & EQ Settings, Disc &

DVD Settings, Bluetooth Settings and Rear

Camera Settings

System Settings

The System Settings allow the user to set up

the Language, Date & Time, Key Beep,

SWC, Factory Reset and About

Audio Settings

Below shown is the Audio Setting Menu.

EQ Settings

Balance/Fader:

Touch the “+” or “-” of Balance /Fader to tune

for the driver and passenger preference.

The value of Balance (Left15-Right 15) and

Fader ( Front 15- Rear 15).

Touch Reset to set both Balance and Fader

to 0.

Hidden soft button bar

A hidden pop up soft button bar is located

at the bottom. Touch the icon to shown

the soft button bar. Touch the to hidden.

Pop up the soft button bar.

Hidden the pop up soft button bar.

Setup, to enter the Settings Menu.

AUX IN, to enter the AUX and A/V IN

interface

Dimming, to change Daylight or

Night (If lighting detect is OFF in

Display Setting)

Bluetooth pairing.

Language

Date & Time:

To setting Time display format (12H or 24H),

setting the date and time

Time Format

Settings 2:05 AM

12H

1 1 2022 1 : 06 AM

Beep Tone: On/Off

To set the touch button beep tune On or Off

Front Camera, to enter the front

camera.

EQ, to enter the Equalizer setting

mode.

7.Settings

About

Display Settings :

Factory Reset

To reset the default factory setting.

To display the Unit Hardware and Firmware version.

Below is the Display setting menu, user can

select Lighting Detect, Daylight Dimming

Level, Night Dimming Level, Illumination

and Wallpaper.

Lighting Detect: On/Off

Daylight Dimming Level: 8 – 15

Night Dimming Level: 0 – 8

Illumination

SWC:

To set the Steering Wheel Control

Click SWC Default Switch to be "on"

status.

Click Custom SWC to SWC study

mode.

Touch Save to confirm the setting

Touch Reset to erase and reset

the setting

Reset Factory Data

Cancel OK

MCU:

SOC:

Hardware:

Update

Led Auto OFF

Led Color

Red

Led Auto: On/Off .

ON: The Led color will change automatically.

OFF: You press the button or

to select desired color.

Color: White / Red / Yellow /Blue / Green /

Purple / Light Green

Short time press the key of the car

radio SWC screen first and then long

time press corresponding button of

car steering wheel for learning and

setting .

Note: Press the “Reset” before you

start the setting.

Tabla de contenidos

Otros manuales de Sistema estéreo de SOUNDMASTER

SOUNDMASTER

SOUNDMASTER MCD5500 Manual de usuario

SOUNDMASTER

SOUNDMASTER MCD5500 Manual de usuario

SOUNDMASTER

SOUNDMASTER MCD400 Manual de usuario

SOUNDMASTER

SOUNDMASTER MCD370SI Manual de usuario

SOUNDMASTER

SOUNDMASTER MCD 5145USB Manual de usuario

SOUNDMASTER

SOUNDMASTER MCD380BT Manual de usuario

SOUNDMASTER

SOUNDMASTER MCD-9500 Manual de usuario

SOUNDMASTER

SOUNDMASTER MCD5550 Manual de usuario

SOUNDMASTER

SOUNDMASTER RCD1350 Manual de usuario

SOUNDMASTER

SOUNDMASTER DISC5000 Manual de usuario

SOUNDMASTER

SOUNDMASTER ICD3030 Manual de usuario

SOUNDMASTER

SOUNDMASTER highline DAB100 Manual de usuario

SOUNDMASTER

SOUNDMASTER SCD7900SW Manual de usuario

SOUNDMASTER

SOUNDMASTER DAB60 Manual de usuario

SOUNDMASTER

SOUNDMASTER IR3200 Manual de usuario

SOUNDMASTER

SOUNDMASTER MCD1700 Manual de usuario

SOUNDMASTER

SOUNDMASTER Highline DISC180 Manual de usuario

SOUNDMASTER

SOUNDMASTER MCD-808USB Manual de usuario

SOUNDMASTER

SOUNDMASTER MCD-9700 Manual de usuario

SOUNDMASTER

SOUNDMASTER DISC 4040 Manual de usuario

SOUNDMASTER

SOUNDMASTER NR50 Manual de usuario

SOUNDMASTER

SOUNDMASTER Disc-7990 Encode Manual de usuario

SOUNDMASTER

SOUNDMASTER MCD5500SW Manual de usuario

SOUNDMASTER

SOUNDMASTER HighLine DISC 3220USB Manual de usuario

Manuales populares de Sistema estéreo de otras marcas

LG CM3330B Manual de usuario

Sony

Sony SS-CEP50 Manual de usuario

Cetacea Sound

Cetacea Sound CVS-II Manual de usuario

Aiwa

Aiwa XR-H66MD Manual de usuario

Denon

Denon UCD-250 Manual de usuario

Sanyo

Sanyo DC-MX41i Manual de usuario

Sharp

Sharp CD-ES600V Manual de usuario

Exibel

Exibel BDX600-UK Manual de usuario

Sanyo

Sanyo DC-F320 Manual de usuario

Philips

Philips FWM583X Manual de usuario

Sharp

Sharp CD-C462 Manual de usuario

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manual de usuario

Aiwa

Aiwa XR-EM70 Manual de usuario

Cyrus

Cyrus Lyric Manual de usuario

Philips

Philips MCM159/98 Manual de usuario

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manual de usuario

RCA

RCA RS3965SB Manual de usuario

Sharp

Sharp XL-UH240 Manual de usuario
