SOUNDMASTER DAB500 Manual de usuario

DAB500 / English Instruction Manual

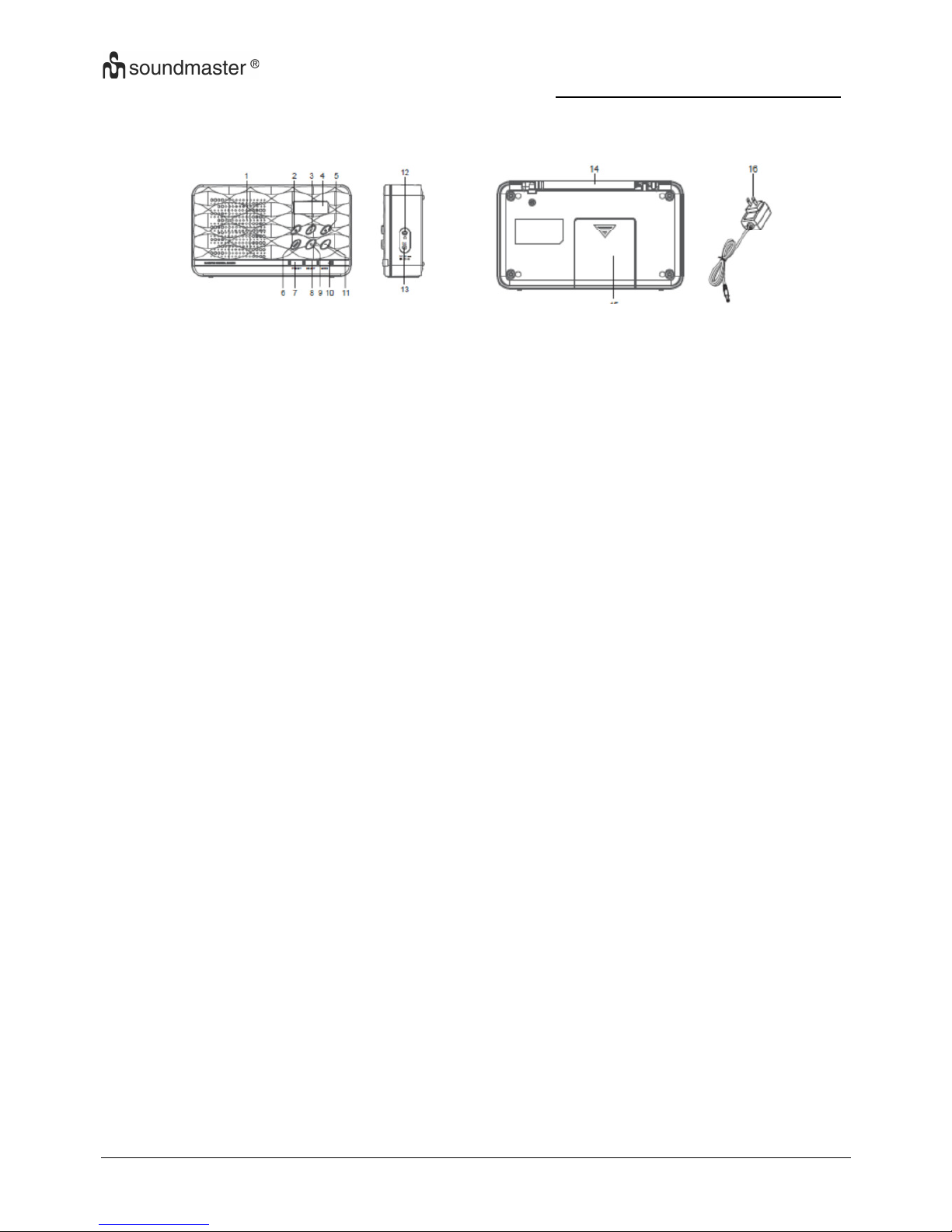

Front view

Side view

Rear view

1. SPEAKER

2. STANDBY BUTTON

3. TUN/CH BUTTON

4. LCD DISPLAY

5. VOL+ BUTTON

6. MENU/INFO BUTTON

7. PRESET BUTTON

8. SELECT BUTTON

9. TUN/CH BUTTON

10.MODE BUTTON

11.VOL- BUTTON

12.HEADPHONE JACK

13.DC INPUT SOCKET

14.ANTENNA

15.BATTERY DOOR

SWITCHING YOUR RADIO ON FOR THE FIRST TIME

AC Operation

1. Insert the DC power jack of AC/DC adaptor to the DC input socket located at the right of the

radio.

2. Plug the AC/DC Adaptor to the AC mains outlet.

3. Press the STANDBY to turn the radio on.

Remarks: If the AC Adaptor voltage is over than 6V, it will possible make the line damage.

DC (battery) operation

1. Ensure the AC/DC adaptor is disconnected from the radio and AC mains.

2. Installed the batteries (4×1.5V UM3/AA battery) into the battery compartment.

3. Press the STANDBY to turn the radio on.

Remarks: To obtain the best performance in DC operation, the use of alkaline batteries is highly

recommended.

Display backlight

When the radio is in AC mode, the display backlight will be full brightness all the time.

When the radio is in DC battery operation, the display backlight will be turned on to full

brightness for around 10 seconds and then go to dim, it will then be turned on to full brightness

again for 10 seconds on every key press. In STANDY mode, the radio and display backlight will

be turn off.

DAB500 / English Instruction Manual

DAB mode

Press the STANDY button to turn the unit on, it will automatically enter into the DAB mode and

perform auto scan function, During the scan the display show “Scanning…” together with a slide

bar that indicates the progress of the scan and the amount of stations that have been found so

far.(F.1) (F.2)

Once the scan has finished, the radio will select the first alphanumerically found station. You

can now press the TUN/CH



or TUN/CH



button to explore the found stations followed by

pressing the SELECT button to select listening to the stations.

Note: If there is no stations found after auto scan, the radio will then enter into the Tune Select

Menu, you can now press the TUN/CH



or TUN/CH



button to select “Manual tune” or “Full

scan” for stations.

F.1 F.2

FACTORY RESET

If moving the radio to another location in the country the pre-tuned and stored DAB stations may

no longer be available and it will be necessary to reset the radio back to the factory settings.

1. Connect the radio to AC mains (via AC/DC adaptor), then press STANDBY to turn the radio

2. Press and hold the MENU/INFO button for longer than 2 seconds,

then press MENU/INFO button, press the TUN/CH



or

TUN/CH



button to until the display show “system”, then press

the SELECT button

3. Continue press the TUN/CH



or TUN/CH



button until the

display shows “<Factory Reset>” and then press the SELECT

button to confirm.

4. The display is now showing “Factory Reset <No> Yes’ and Rotate

press the TUN/CH



or TUN/CH



button to confirm “<Yes>” and press the SELECT button

again.

5. The radio will display “Restarting….” and will then go into standby mode.

Note: All stored programmed stations will be lost during reset.

TECHNICAL SPECIFICATIONS

DAB frequency: Band III 174-240MHz

FM frequency: 87.5 – 108 MHz

DC Battery supply: 6V 4x UM-3/AA 1.5V Batteries

DC Power supply: DC 6V 0.5A

Specifications are subject to change without further notice.
