SYSTEM INSTALLATION GUIDE

i-ceilings Soundﬁeld Systems provide a complete

solution designed for use in teaching and training

environments. They utilise the latest speaker and

infrared technology to create sound reinforcement

systems which combine the highest levels of

performance and ﬂexibility with the minimum of visual

intrusion.

Please remember that Soundﬁeld is a ‘sound

reinforcement’ system, not a public address system;

levels should therefore be set accordingly.

www.soundfield.uk.com

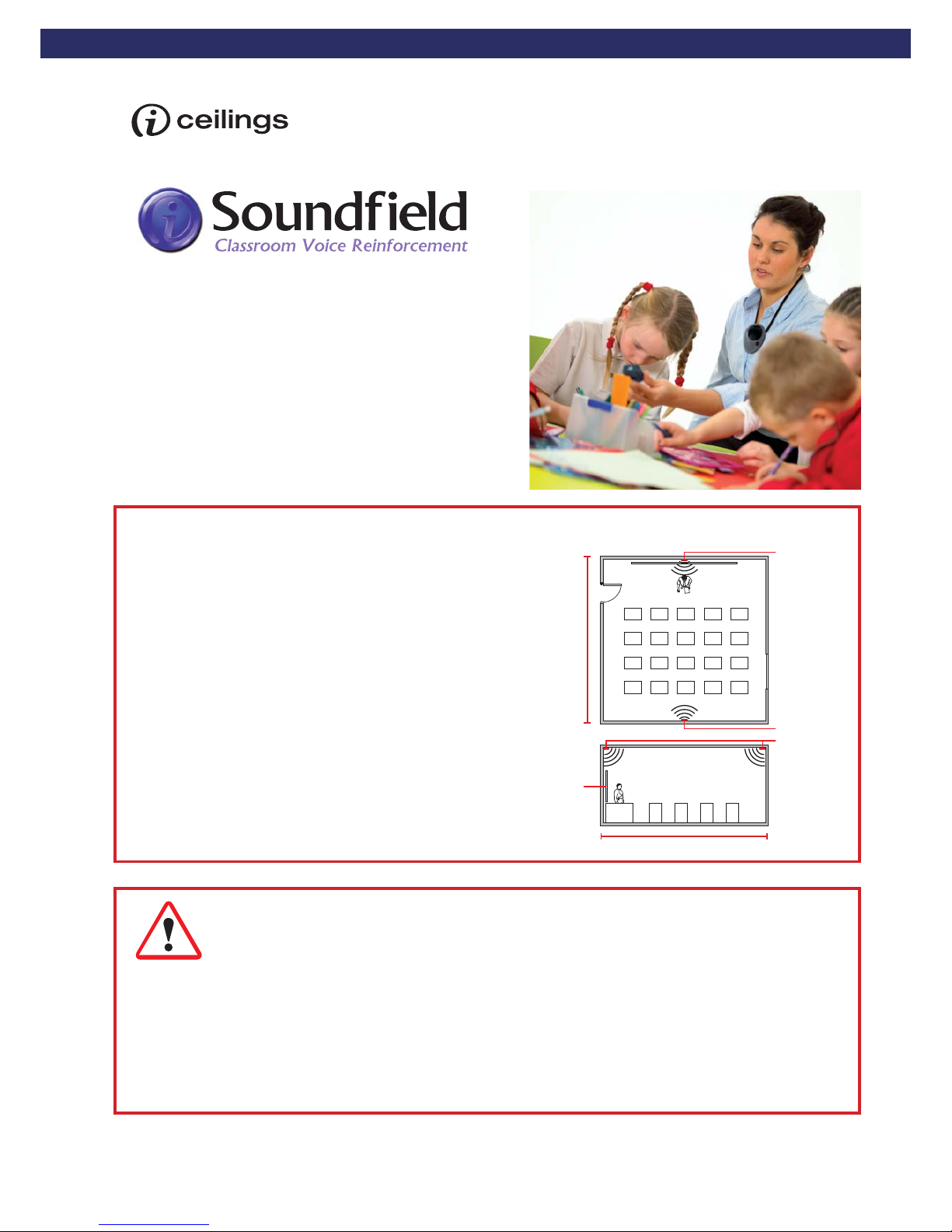

Typical Classroom Coverage:

Please note: These infrared Soundﬁeld Systems are

designed for use in a typical standard sized classroom

(normally up to 60m²) and are not recommended for

use in large room applications such as school halls,

lecture theatres, sports halls, etc...

(For larger applications, we suggest using RF

wireless microphone systems).

The IR wireless microphones use direct/reﬂected light

emissions and, so, large non-reﬂective surfaces (light

absorbent surfaces such as black/dark painted walls

or large fabric coverage, etc...) in the classroom which

may reduce coverage must always be considered in

the system’s performance.

Installation of 2 wall sensors in a classroom:

Infrared

remote

sensor

10m in width

whiteboard

Infrared

remote

sensor

10m in

width

Please read this manual carefully before starting the

installation and ensure you have all the equipment

required.

This product should only be installed by a competent installer. The manufacturer accepts no responsibility for any resulting

damage or consequential loss due to incorrect installation.

• It is essential that all equipment mounting trays and safety bonds (safety cable & security clips) are used

and installed correctly.

• The amplifier will get warm during use, so please allow adequate ventilation around the unit.

Should you need to clarify any details with regards to the product or its installation, please contact our technical

support team on 0115 977 0075; we are always happy to provide help and technical advice.

i-ceilings Soundﬁeld Packs are supplied with

the loudspeakers and infrared equipment in

separate boxes.

Before going to site please check you have all

the items required.

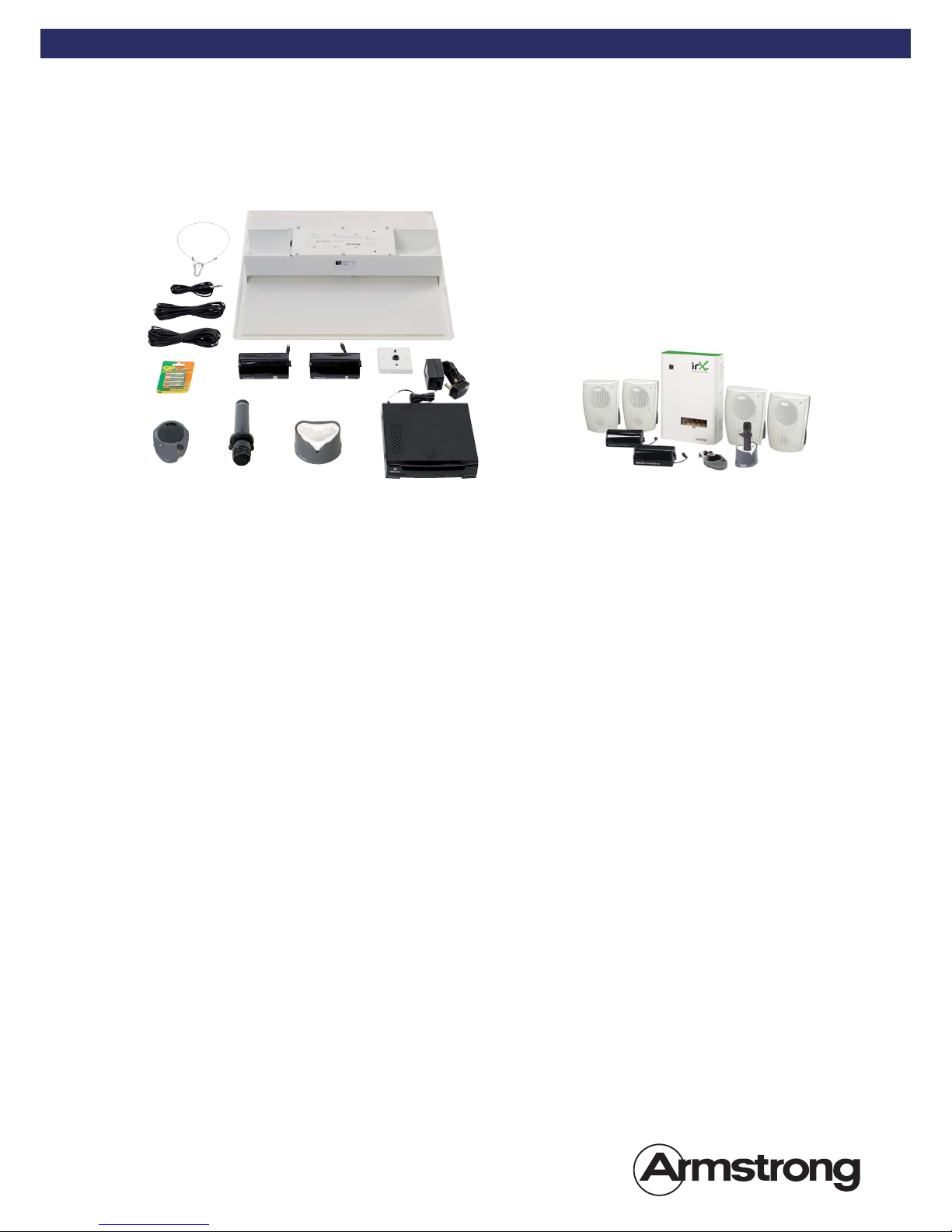

Detailed below are the contents lists for each

of the various packs that are available...

Pack A

1 x CS4000ME/AMP Ampliﬁed Sound Panel Speaker

1 x APA/APL CD/MP3/Laptop Wall Plate

1 x APA/TRAY Equipment Support Tray

2 x 03284 Safety Cable

2 x 03518 Security Clip

1 x IWM-402 Pendant Transmitter/Microphone

1 x IWR-220 Infrared Receiver

2 x IS-20A Infrared Sensor

2 x EXT CABLE 10 10 Mtr Extension Cord for IS-20A

1 x HC-40 Drop-in Charger for IWM-402

2 x AA Batteries for IWM-402

1 x IC-1/IC-2 Connecting Cables

2 x Instructions Installation and Operation Manuals

Pack B

1 x CS4000ME/AMP Ampliﬁed Panel Speaker

1 x CS4000ME Sound Panel Speaker (slave)

1 x APA/APL CD/MP3/Laptop Wall Plate

1 x APA/TRAY Equipment Support Tray

2 x 03284 Safety Cable

2 x 03518 Security Clip

1 x IWM-402 Pendant Transmitter/Microphone

1 x IWR-220 Infrared Receiver

2 x IS-20A Infrared Sensor

2 x EXT CABLE 10 Mtr Extension Cord for IS-20A

1 x HC-40 Drop-in Charger for IWM-402

2 x AA Batteries for IWM-402

2 x Instructions Installation and Operation Manuals

Pack F

4 x FBT Project 315 Wallmount Loudspeakers

1 x IRX Wallmount Ampliﬁer/IR Receiver

4 x 03284 Safety Cable

1 x IWM-402 Pendant Transmitter/Microphone

2 x IS-20A Infrared Sensor

3 x EXT CABLE 10 10 Mtr Extension Cord for IS-20A

1 x HC-40 Charger for IWM-402

2 x AA Batteries for IWM-402

1 x AV15276 Phono Coupler

2 x Instructions Installation and Operation Manuals

Pack C

1 x PRO PANEL/AMP Ampliﬁed Pro Sound Panel Speaker

1 x APA/APL CD/MP3/Laptop Wall Plate

1 x APA/TRAY Equipment Support Tray

2 x 03284 Safety Cable

2 x 03518 Security Clip

1 x IWM-402 Pendant Transmitter/Microphone

1 x IWR-220 Infrared Receiver

2 x IS-20A Infrared Sensor

2 x EXT CABLE 10 10 Mtr Extension Cord for IS-20A

1 x HC-40 Charger for IWM-402

2 x AA Batteries for IWM-402

1 x IC-1/IC-2 Connecting Cables

2 x Instructions Installation and Operation Manuals

Soundfield Equipment Pack Lists

• Soundﬁeld Pack F

Pack G

1 x CS4500 Surface-mount i-ceilings Sound Panel

1 x IRX Wallmount Ampliﬁer/IR Receiver

1 x 03284 Safety Cable

1 x IWM-402 Pendant Transmitter/Microphoner

2 x IS-20A Infrared Sensor

3 x EXT CABLE 10 10 Mtr Extension Cord for IS-20A

1 x HC-40 Charger for IWM-402

2 x AA Batteries for IWM-402

1 x AV15276 Phono Coupler

2 x Instructions Installation and Operation Manuals

• IS-20A Extra Infrared Sensor

• Ext. cable 10 10 Metre IR Sensor Extension Lead

• IWH-401 Handheld Transmitter/Microphone

• 7W1B2V4 Rechargeable Battery for IWH-301A

• APA/APL CD/MP3/Laptop Wall Plate

• APA/LLO Radio Assisted Hearing Aid Output Plate

Optional Soundfield Equipment

This manual is intended for use by installation engineers.

The separate user manual should be left with the user.

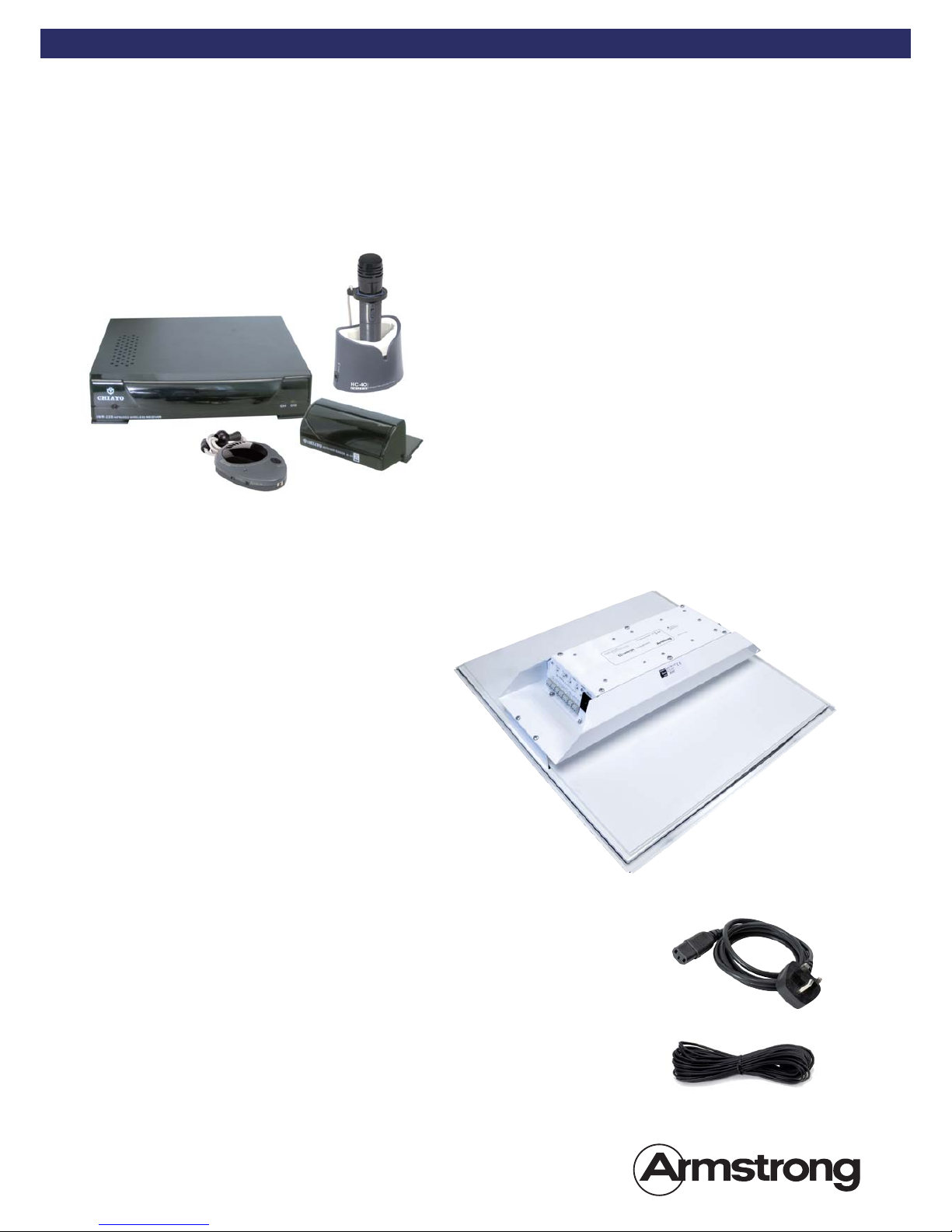

Infrared Wireless Microphone

Technology:

As the Systems use wireless infrared to transmit the user’s

voice, some understanding of how this operates is useful...

Infrared is simply invisible light and acts in a very similar way

to ordinary light, a useful feature in classroom applications.

For example, infrared recognises walls as boundaries so

multiple systems can be used without problems.

Whilst it is true that IR can be directional, all our emitters

use high power LED arrays and detectors are wide angle.

Infrared also readily reﬂects from walls, ceilings and windows

so full coverage is easily achievable. Frequency allocation

problems are eliminated and any transmitter can be used

with any receiver; as a result these systems are both easy

to commision and very ﬂexible in use.

Infrared Wireless Microphone Technology

AC Power Requirements:

Pack A, B, and C Systems:

A single 13 amp power point is all that is required

as all ancillary Soundﬁeld system items are powered

directly from the panel ampliﬁer. If two speakers are

required, a further slave Sound Panel (set to 8 ohms)

can be connected to the extension speaker terminals

of the Panel Amp (see page 10 for connection details).

Pack F & G Surface-mount Systems:

A single 13 amp power point is all that is required

as all ancillary items are powered from the IRX

Receiver/Ampliﬁer.

Cable Requirements:

Mains & Audio:

All mains supply cables (terminated with 13 amp UK plugs) are included with kits,

as are the interconnection cables between the infrared receiver and ampliﬁer.

Infrared Receiver and External Detectors:

Two ready-terminated 10 metre coaxial extension cables are provided for the

connection of the extension IS-20A infrared detectors. If required, these can be

extended to 20 metres by means of a further extension cable and male-to-male

coupler. (The Pack F System is supplied with 3 extension cables and a

male-to-male coupler). For distances of over 20 metres please consult

our technical support team.

A maximum of 5 Outreach Plates can be used with

the i-ceilings ampliﬁed Sound Panel or IRX Wallmount

Ampliﬁer. The APA/APL (supplied with the packs) is

intended to be used for the connection of a laptop,

CD, MP3 player (or similar audio signal) and should be

located in a convenient position near to the teaching

position.

Outreach Plates are active with balanced outputs

and, as such, can be daisy-chained together to

provide multiple inputs as required, each with its own

dedicated volume control. By this means it is possible

to provide a ﬂexible input structure to cater for almost

any conceivable requirement.

Low Level Output Plates (APA/LLO):

These optional units are intended to facilitate the

connection of individual hearing assistance systems

to the Soundﬁeld system. The plate is supplied with

a 3.5mm 2pole jack socket with an output level of

775volts nominal, set by means of a user adjustable

level control.

Cable requirements are as Outreach input plates, but

a separate cable must be provided where this facility

is installed.

All Outreach input and output plates require a single gang

socket box with a minimum depth of 25mm.

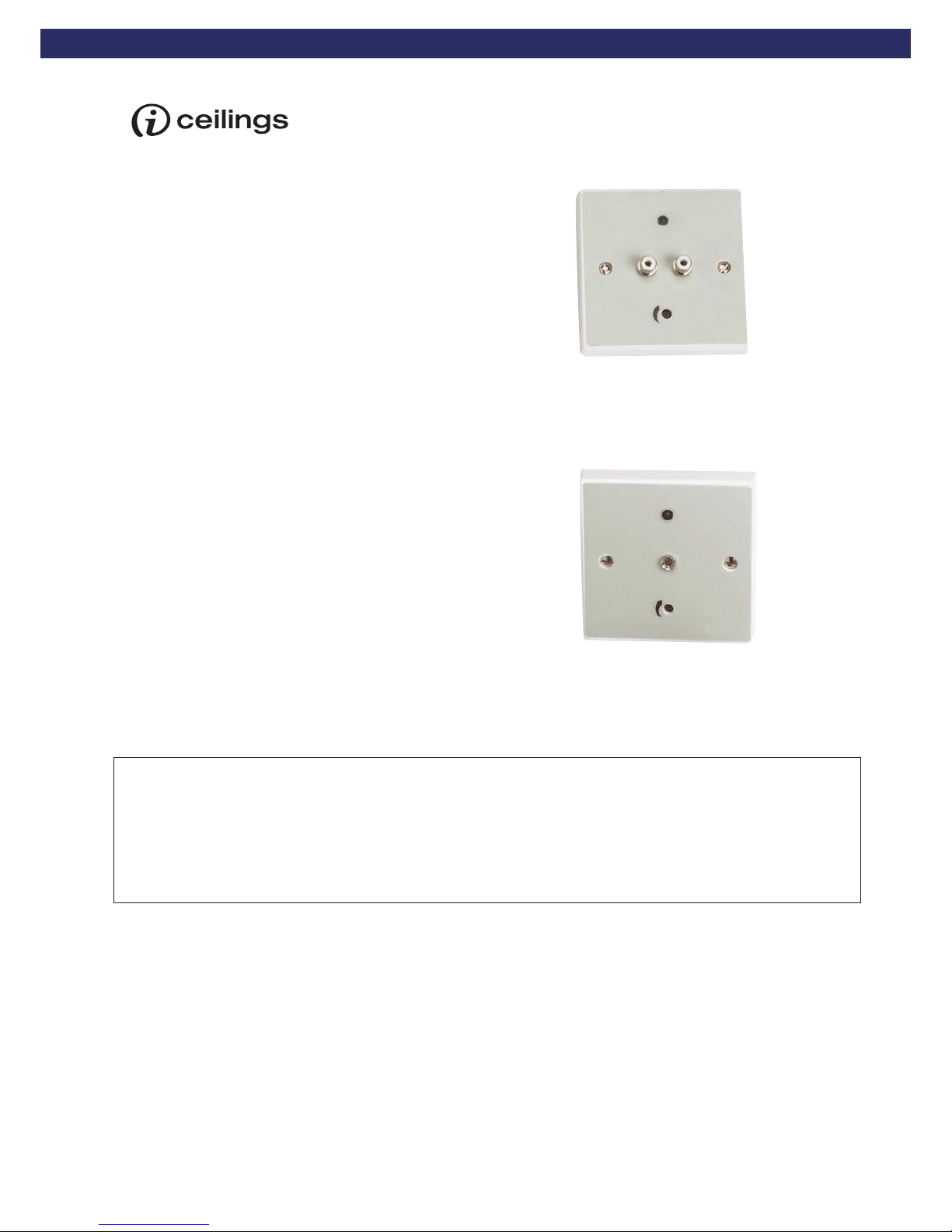

Outreach Input Plates

Outreach Plate connection cable specification:

The cable between the speaker panel, the ﬁrst and any following Outreach Plates must be to the following minimum

specification: 1 pair twisted and screened for audio, plus 1 additional pair for power. ‘West Penn’ 357 supplied by

CIE-Group, or any good quality quad microphone cable should be suitable.

A wide range of Outreach Plates to suit various other interface requirements is available; please call CIE-Group

for details.

• APA/APL Outreach Plate

for AV inputs

• APA/LLO Outreach Plate for

assistive hearing systems

Sound Panel Loudspeaker

positioning and installation

(Packs A, C & G):

In systems using only one i-ceilings Sound Panel,

the speaker unit should ideally be installed in the

ceiling grid slightly to the rear of the classroom

using the teaching position as a datum and as

near as possible to the centre line of the other axis

(see Diagram 1).

(Pack B):

When 2 panels are used, the exact positioning will

be dictated by the shape of the classroom but

the locations should be chosen to give the best

possible coverage.

Remote Infrared Sensor (IS-20A)

installation:

Two remote IR sensors are supplied with all kits.

These should be installed at either end of the

classroom just below ceiling level. Generally the

centre of the wall behind the teaching position and

the same position on the opposite wall will give the

best coverage (see Diagram1 above) (alternatively

position on opposite sides of the room).

The IS-20A is a 170 degree wide angle detector

and should be angled slightly downwards to give

the best possible coverage.

Sound Panel Loudspeaker Installation

Sound Panel Cabling:

Take care to route all cables in such a way that

they cannot rest on the rear of the Sound Panel.

When completing the installation be sure to ﬁt the

safety bonding wire to each speaker.

Finally check that no debris has been dropped

on the panel. Remove everything; you would be

amazed at the effect a 10mm cable off-cut can

produce!

• Diagram 1

Infrared remote sensor

i-ceilings

Sound Panel

loudspeaker

Infrared remote sensor

Please ensure to make all connections before

switching on power to the amplifier supply.

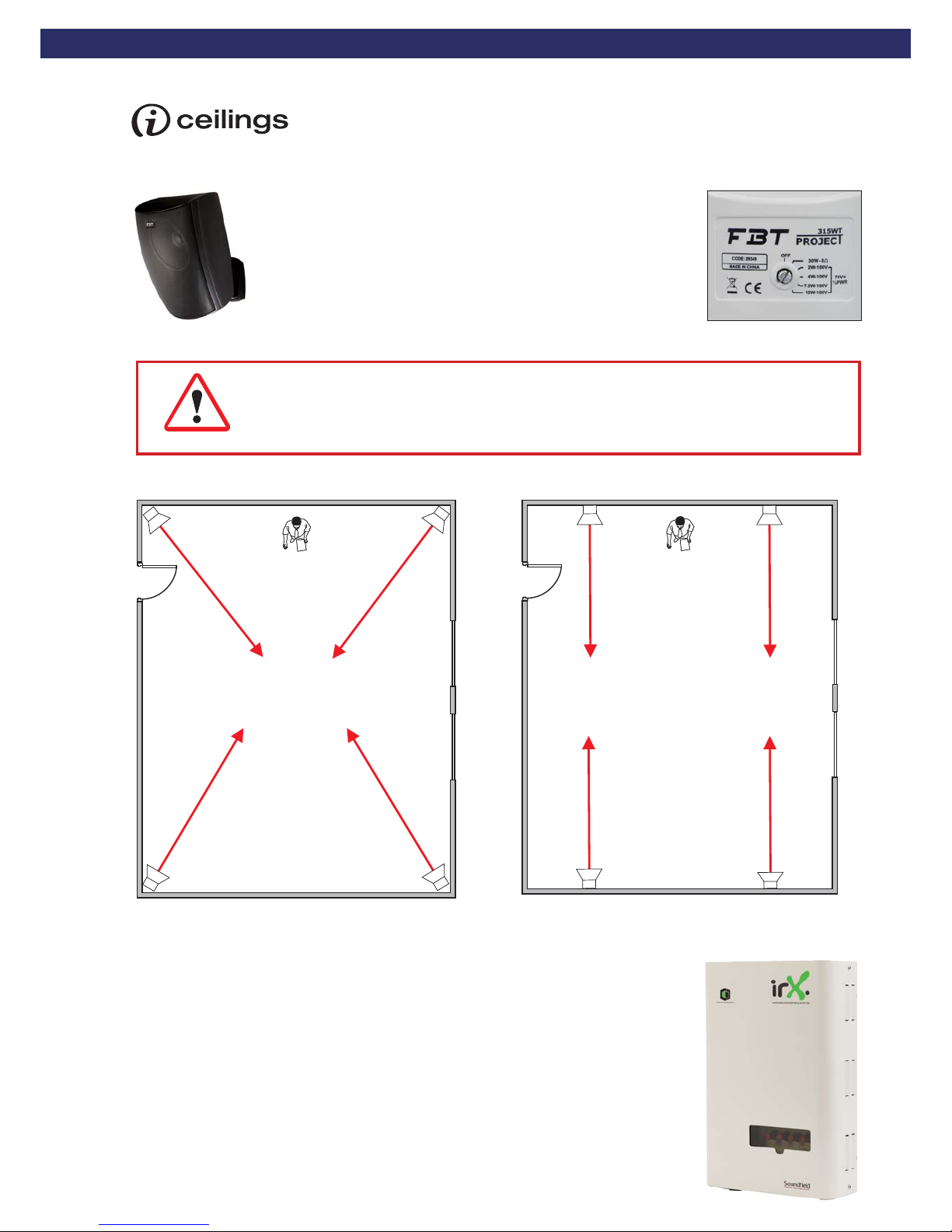

Conventional Wall Speaker Positioning

Where FBT Project 315 Loudspeaker option is used (Pack F):

If possible, the 4 speakers should be installed in Position 1 as shown in

Diagram 2.1; if this is not possible then Position 2 shown in Diagram 2.2

can be used.

• Diagram 2.1 - FBT wall speaker Position 1 • Diagram 2.2 - FBT wall speaker Position 2

Before installation the rotary switch at the rear of the speakers must

be set to 8Ω. Do not attempt to run the speakers at higher power

settings/100v line as this will damage the ampliﬁer.

IRX Wallmount Amplifier/IR Receiver

When an Armstrong Sound Panel is used, the ampliﬁer is an integral part. It supplies

power to the IR receiver and any Outreach points as well as providing audio

inputs and controls; please refer to IAPA section for details on connection

and commissioning.

However, where surface-mount speakers (Pack F & G) are used, the IRX Wallmount

Ampliﬁer/IR Receiver is provided as part of the kit. It should be installed adjacent to the

whiteboard (or front of the classroom) at a height convenient to allow adjustment of the

level controls. The associated Outreach Plate should also be installed close by.

Please refer to page 12 for details of IRX installation and commissioning.

Safety Note

It is most important that the supplied safety cables and security clips are used and ﬁtted

correctly on each loudspeaker as part of the installation.

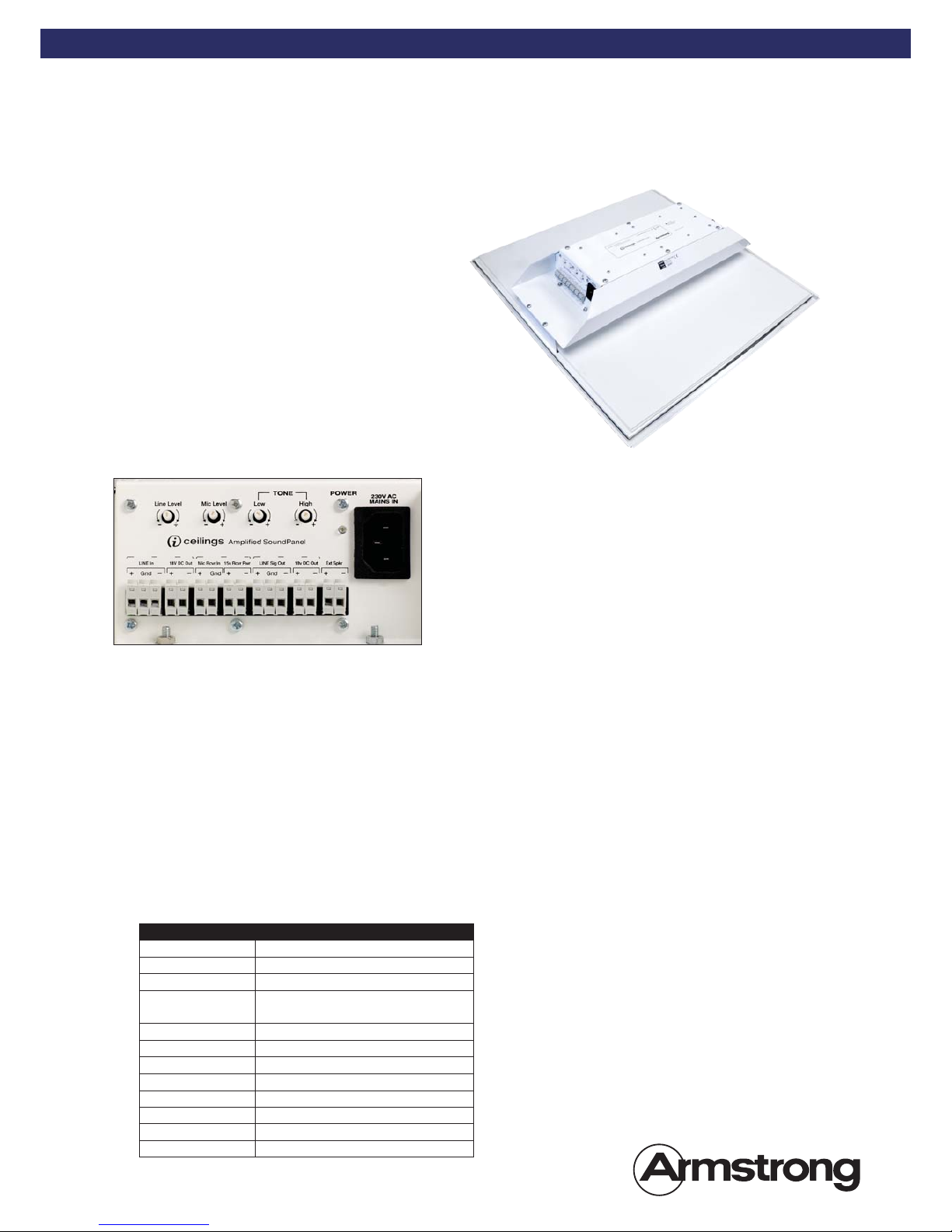

Introduction:

The IAPA (Integrated Armstrong Panel Ampliﬁer)

consists of a 20W power ampliﬁer pre-installed on

an Armstrong i-ceilings Sound Panel. Sound Panels

can be supplied with a wide range of ceiling ﬁnishes

allowing the unit to be installed in any Armstrong

suspended ceiling.

For advice on matching non-Armstrong suspended

ceilings, please contact the CIE-Group sales team.

IAPA Integrated Panel Amplifier

IAPA Features:

The IAPA ampliﬁer has two inputs; one is at line level

allowing the use of remote Outreach input plates such as the

APA/APL, the other input is at a level suitable for connection

to a Chiayo IWR220 (or similar infrared or RF wireless

microphone receiver). An 18v DC supply is available from

the ampliﬁer to drive the Outreach plates and a 15v DC

supply to power the IR receiver. Both inputs have their own

level controls.

An additional line level output, 18v DC supply and external

low impedance speaker output are also features of this

unit.

The unit is ﬁtted with ‘High’ and ‘Low’ tone controls to

allow adjustment of the frequency response of the panel.

The frequencies at which the controls operate have been

chosen to allow speech clarity to be optimised to the

acoustic environment.

All the connections to the unit are externally accessible and

are of the removable screw terminal type, allowing for quick

and easy connection.

IAPA Specifications:

Rated Output: 20W RMS into 8 ohms

Frequency Response: 100Hz ~ 18kHz ±3dB

THD (At 1kHz): Better than 0.1% at rated output

Tone Controls: Low 1kHz ±12db

High 10kHz ±12db

Line Input: 500mv, 600 Ohm balanced

Mic. Input: 200mv, 10k Ohm unbalanced

18v Output: 18v DC, fused at 100mA max.

15v Output: 15v DC, fused at 500mA max.

Line Output: 750mV, 600 Ohm Balanced

Power Consumption: 35W max.

Power Input: 230v AC 50Hz via IEC socket

Case: White painted steel

IAPA Connection Details:

(refer to Diagram 3 on page 11)

• Line In:

Balanced line level input terminals for connection of up to ﬁve remote Outreach Input plates (APA/APL, etc).

• Mic Rcvr In:

Unbalanced microphone level input terminals for connection of a Chiayo IWR-220 infrared wireless

microphone receiver. It is also possible to use this input to connect Chiayo RF radio microphone receivers.

Contact CIE-Group Technical Support (0115 977 0075) for advice.

• 18v DC Out (Line Level / Line Sig Out):

18v DC supply terminals providing power to the Outreach plates. These terminals will provide a combined

maximum output current of 100mA.

• 15v DC Out: (Mic Rcvr)

15v DC supply terminals providing power to the IWR-220 receiver only. These terminals will provide a combined

maximum output current of 500mA.

• Line Output:

Balanced line level output terminals available on the IAPA for connection to the line level input of other equipment

such as the APA/LLO Outreach plate or Induction Loop ampliﬁers. These can be used for connecting multiple

i-ceilings panels in larger rooms where one speaker would not give sufﬁcient sound coverage.

• Ext Spkr:

External 8 ohm speaker terminals for powering a single additional Armstrong CS1000 or Pro series panel. Note:

damage to the ampliﬁer will occur if speakers with a total impedance of less than 8 ohms are connected to these

terminals.

• Mains In:

The mains input should be connected using an IEC type connector. The supply input should be 230V AC

(±10%) 50Hz.

IAPA Connection Details

Warning

No connections should be made to the unit whilst the mains power is connected

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de micrófono de Soundfield

Soundfield

Soundfield DSF-2 MKII Manual de usuario

Soundfield

Soundfield DSF-1 Manual de usuario

Soundfield

Soundfield ST450 MKII Manual de usuario

Soundfield

Soundfield SPS422B Manual de usuario

Soundfield

Soundfield DSF-2 MKII Manual de usuario

Soundfield

Soundfield ST350 Manual de usuario

Manuales populares de Sistema de micrófono de otras marcas

Paso

Paso R824 Manual de usuario

Naxa

Naxa NAM-982 Manual de usuario

Motorola

Motorola PMNN4461 Manual de usuario

Xvive

Xvive U3 Manual de usuario

Tekon

Tekon DUOS Manual de usuario

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manual de usuario

Devine

Devine WMD-IE Manual de usuario

LG LF-D7150 Manual de usuario

GE S768DAV Manual de usuario

LD U305 HBH 2 Manual de usuario

Chainway

Chainway URA8 Manual de usuario

ORATOR

ORATOR D860TD Manual de usuario

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manual de usuario

Alpha Technologies

Alpha Technologies RBMS Manual de usuario

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manual de usuario

Shure

Shure UA844 Manual de usuario

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manual de usuario

Pyle

Pyle PDWM5000 Manual de usuario

Soundfield i-ceilings Pack B Manual de usuario

Manuales populares de Sistema de micrófono de otras marcas
