SoonMark M8 Manual de usuario

User manual of

Direct Thermal

Barcode Printer

Model: M8

Brand: SoonMark

Paper size: 100mm x 150mm

A) Equipment checklist 3

B) Printer parts 5

C) Printer setting 6

D) Download & save the driver file 7

E) Installation 8

F) Size setting 13

G) Printing the eAWB 15

CONTENT

Instructions:

Clicking at each topic below will bring you to the page directly.

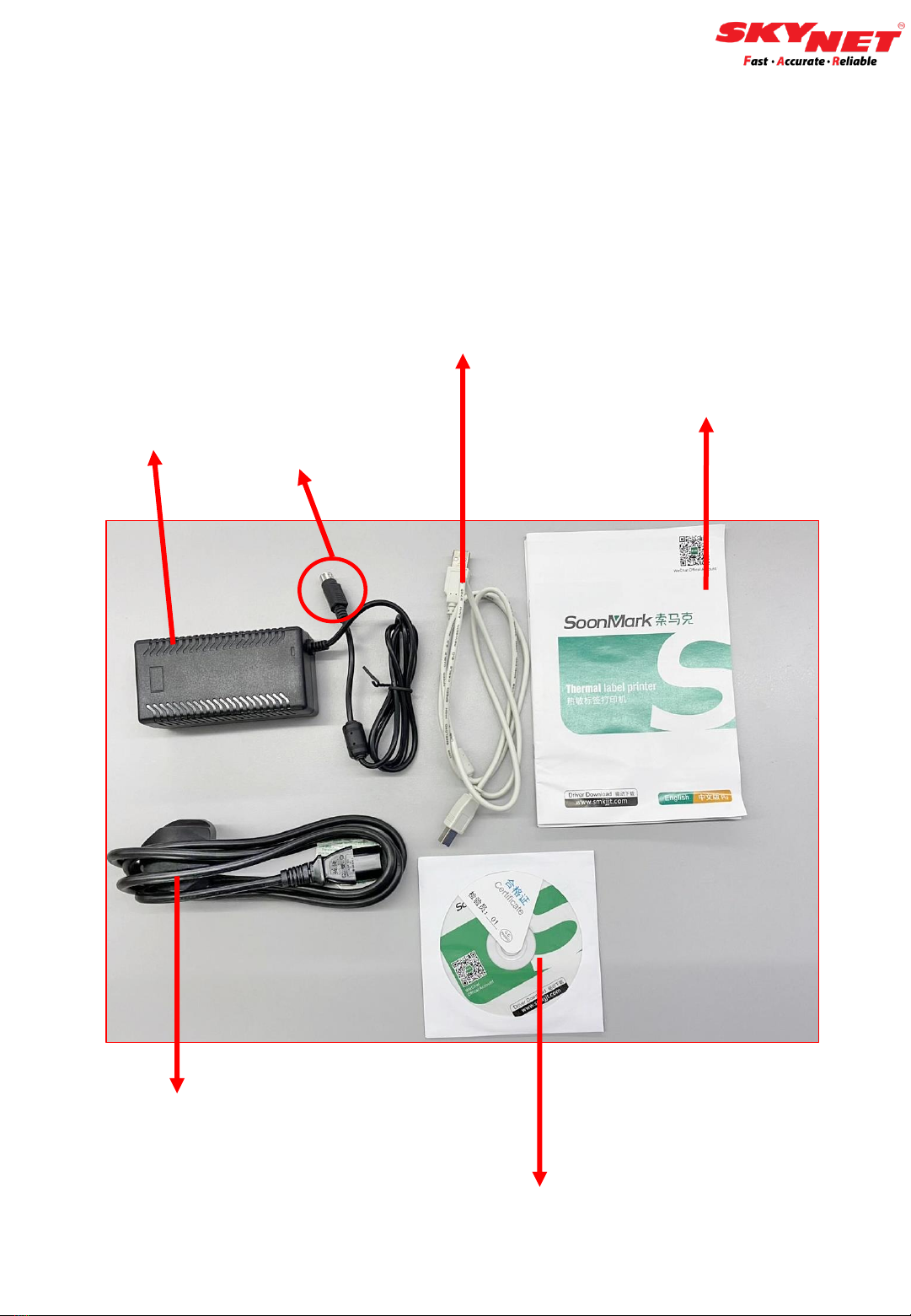

1) Adapter + Power Jack Adapter

2) USB Printer Cable

3) Operation Manual

4) Driver Disk

5) Power Cord

2) USB Printer Cable

4) Driver Disk

3) Operation Manual

1) Adapter + Power Jack

Adapter

A) Equipment checklist

Core Adapter

will be placed

at both sides to

secure the

label roll while

printing.

Insert the label roll using the ‘Roll Mount’.

Core

Adapter

Label

Spindle

Label Roll

Notes: Make sure all pieces of equipment are assembled and in good condition.

Roll Mount

A) Equipment checklist

Front surface

Back surface

The Open

button for the

Top Cover

Feed

Button

Power

Switch

SD Card

Slot Power Jack

Adapter Slot

USB Printer Port

I -On

O - Off

Clear

Window

is to view

the label roll

inside the

printer.

is used for

the

calibration

process.

B) Printer parts

Step 1

Please connect the ‘USB’ to the PC/Laptop and plugin the

‘Power Cord’ into the socket.

Step 2

The ‘USB Printer Cable’ and ‘Power Jack Adapter’ need to

connect with the printer. Then, turn on the switch button, and it

will beep once.

USB Printer Cable Power Jack Adapter

C) Printer setting

Step 2

This driver will download as a zip file. Kindly save this zip file

at any folder inside your PC/Laptop.

Step 3

To unzip the file, right-click at the zip file and choose ‘Extract

Here’.

Step 1

Click here: www.skynet.com.my/labelprinter and select the

‘Driver’ as shown.

D) Download & save the driver file

Download Driver

User Manual (English)

Step 1

After unzipping the file, double click at

‘Driver (for Win7 Win8 Win10)’ to install the printer driver.

Step 2

Kindly tick ‘I accept the terms in the license agreement’ and

click on the ‘Next’ button.

E) Installation

Step 3

Click the ‘Next’ button.

Then, click at the ‘Finish’ button.

E) Installation

Step 4

This ‘Shield icon’ will blink at the PC/Laptop

taskbar. Kindly click at the icon to continue the installation.

Then, click on the ‘Next’ button.

E) Installation
