Table of Contents
Getting Started
Step 1: Installing the Batteries ..................................................................... 6
Replacing the Batteries ......................................................................... 7
Step 2: Setting the Clock .............................................................................. 8

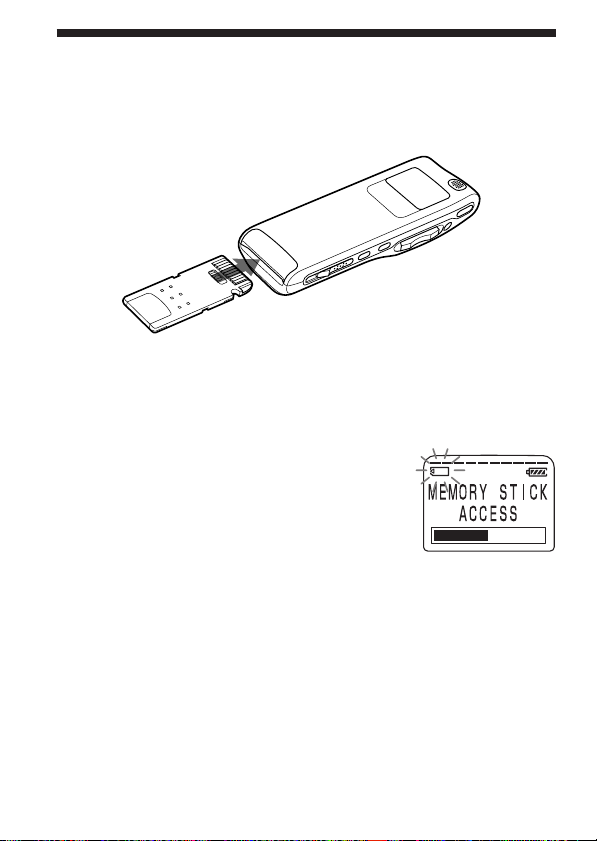

Step 3: Inserting a “Memory Stick“ into the IC Recorder .................... 10
Basic Operations
Recording Messages ................................................................................... 12
Using Convenient Functions while Recording ............................... 16
Playing Back Messages............................................................................... 18
Using the Display Window ....................................................................... 23
Selecting the Display Mode ....................................................................... 25
Turning off the Display ....................................................................... 27
Various Ways of Playback
Adjusting the Playback Speed
— DPC(Digital Pitch Control) .......................................................... 28
Adding a Bookmark ................................................................................... 29
Playing Back the Specified Section Repeatedly — A-B Repeat ............ 30
Editing Messages
Adding a Recording ................................................................................... 31
Adding a Recording to a Previously Recorded Message .............. 31
Adding an Overwrite Recording during Playback ........................ 32
Erasing Messages ........................................................................................ 33
Erasing Messages one by one ............................................................ 33
Erasing All Messages in a Folder ...................................................... 35
Dividing a Message into Two/Combining Messages ........................... 36
Dividing a Message ............................................................................. 36
Combining Messages .......................................................................... 38
Adding / Deleting Folders ........................................................................ 39
Adding Folders .................................................................................... 39
Deleting Folders................................................................................... 40
5GB
Moving Messages to a Different Folder ................................................... 41
Adding Priority Mark(s)— Priority Mark Function .............................. 42
Adding Priority Mark(s) in the Stop Mode ..................................... 42
Adding Priority Mark(s) during Playback ...................................... 43
Labeling Folders or Messages — Folder/Message/User Name ......... 44
Labeling Folders .................................................................................. 44
Labeling Messages .............................................................................. 46
Setting the User Name ........................................................................ 47
Entering Characters............................................................................. 48
Other Functions
Playing Back a Message at a Desired Time with an Alarm ................... 50
Preventing Accidental Operation — HOLD function ........................... 54
Formatting a “Memory Stick“ ................................................................... 55
Changing the Settings — MENU .............................................................. 57
Operating the Menu ............................................................................ 57
Menu Items ........................................................................................... 58
Using the ”Digital Voice Editor“ Software .............................................. 60
Additional Information
Precautions ................................................................................................... 62
Troubleshooting .......................................................................................... 64
Error messages of the IC Recorder .................................................... 68
System Limitations .............................................................................. 70
Specifications ............................................................................................... 72
Index to Parts and Controls ....................................................................... 73
Index ............................................................................................................. 75
6GB
BGetting Started
Step 1: Installing the Batteries

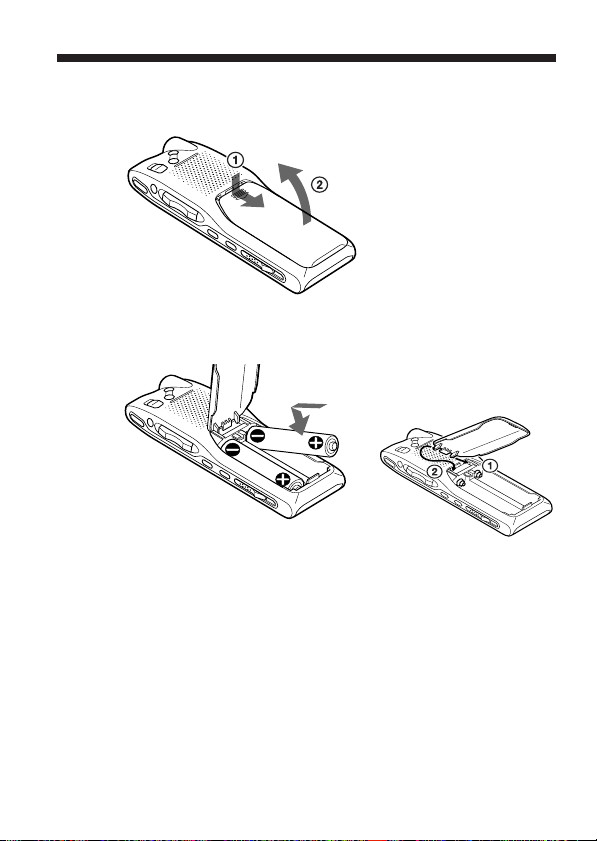

1Slide and lift the battery compartment lid.
2Insert two LR03 (size AAA) alkaline batteries with correct
polarity, and close the lid.
If the battery compartment lid is
accidentally detached, attach it
as illustrated.
Clock setting display appears when you insert batteries for the first time,
or when you insert batteries after the unit has been without batteries for a
certain period of time. Please refer to Steps 2 to 4 in “Step 2: Setting the
Clock” on pages 8 and 9 to set the date and time.
7GB
Getting Started
Replacing the Batteries

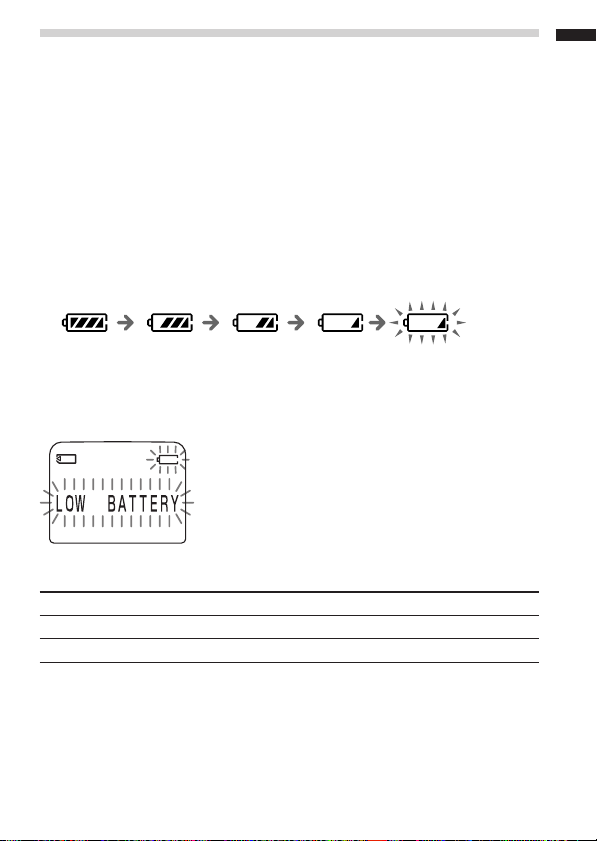

The battery indicator on the display window shows the battery condition.
Notes
•Do not use manganese batteries for this unit.
•When you replace the batteries, insert the new ones within 3 minutes after you
remove the exhausted ones. Otherwise, the display may show the clock setting
display or incorrect date and time when you re-insert the batteries. In this
case, set the date and time again. The recorded messages and alarm setting,
however, will remain.
•Do not charge dry batteries.
•When you are not going to use the unit for a long time, remove the batteries to
prevent damage from battery leakage and corrosion.
Battery remain indication
When “LOW BATTERY” is displayed, replace both of the batteries with
new ones.
Battery life (Using Sony alkaline batteries LR03 (SG))
(Recording mode:) SP LP
In continuous recording: Approx. 10 hours Approx. 12 hours
In continuous playback: Approx. 12 hours Approx. 12 hours
*When playing back through the internal speaker with the medium volume
level
*The battery life may shorten depending on the operation of the unit.
New
batteries
Weak
batteries
Batteries are exhausted.
The unit will stop operation.
8GB
Jog lever
Step 2: Setting the Clock
You need to set the clock to use the alarm function or record the date and
time.
Clock setting display appears when you insert battery for the first time, or
when you insert battery after the unit has been without battery for a
certain period of time. In this case, proceed from step 4.

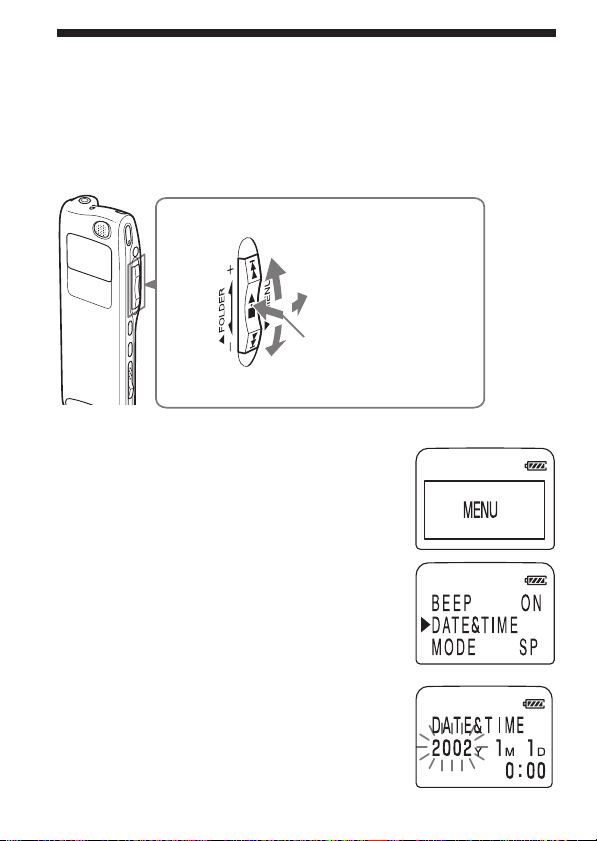

1Turn the jog lever toward MENU.
The menu mode will be displayed in the
display window.
2
Press the jog lever up or down (>/
.) to select “DATE&TIME”.
3Press the jog lever (x•B).
The date and time setting window is
displayed. The year digits will flash.
Press the center
(x•B).
Press up (>).
Press down (.).
Turn toward
MENU.
9GB
Getting Started

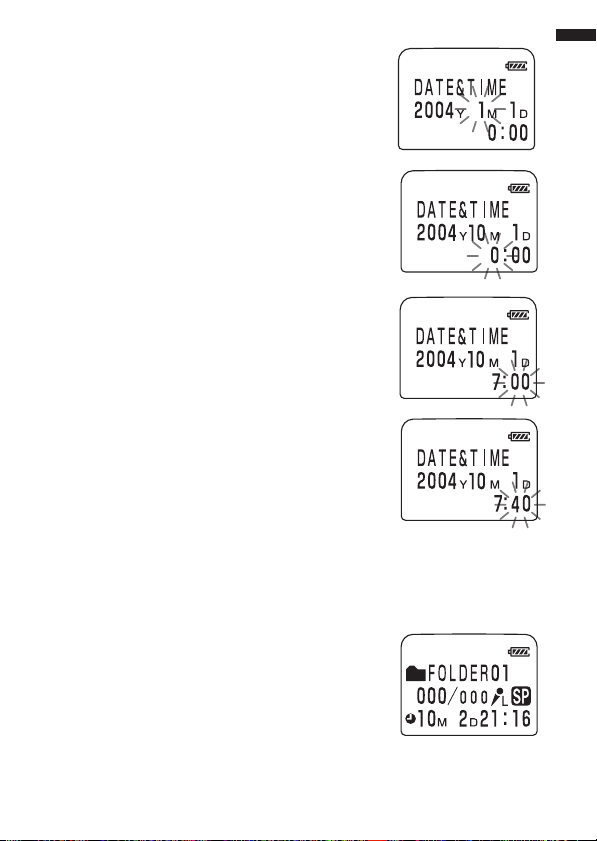

4Set the date.
1Press the jog lever up or down (>/
.) to select the digits of the year.
2Press the jog lever (x•B).
The month digits will flash.
3Set the month and day in sequence, then
press the jog lever (x•B).
The hour digits will flash.
5Set the time.
1Press the jog lever up or down (>/
.) to select the digits of the hour.
2Press the jog lever (x•B).
The minute digits will flash.
3Set the minute.
4Press the jog lever (x•B).
The menu mode will be displayed again.
Note
If you do not press the jog lever
(x•B) for more than one minute,
the clock setting mode is cancelled
and the window will return to
normal display.
6Turn the jog lever toward MENU.
The window will return to normal display.
To display the current time
Press STOP button while the unit is in the stop
mode.
The current time will be displayed for three
seconds.
10GB
Step 3: Inserting a “Memory Stick“ into
the IC Recorder
Insert a “Memory Stick“ into the Memory Stick slot with the terminal side
facing up as shown below.
Notes
•Make sure to insert the “Memory Stick“ firmly.
•Do not insert a “Memory Stick“ in a different direction. It may cause
malfunction of the unit.
Note on the “ACCESS” message
The unit is accessing data while “MEMORY STICK
ACCESS“ appears in the display window or the
OPR indicator flashes in orange. While accessing,
do not remove the “Memory Stick” or batteries.
Doing so may damage the data.
Notes
•If the unit is required to process excessive amount of data, “MEMORY STICK
ACCESS“ may be displayed for an extended period of time. This is not a
malfunction of the unit. Wait until the message disappears.
•If you insert a “Memory Stick“ for the first time after purchasing or one with no
data, three folders (FOLDER01, FOLDER02, FOLDER03) will be made in the
“Memory Stick“ automatically.
Otros manuales para Memory Stick ICD-MS515
3
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Grabadora de voz de Sony
Sony
Sony ICD-SX750 - Digital Flash Voice Recorder Manual de uso y mantenimiento
Sony
Sony ICD-SX734 Manual de usuario
Sony
Sony ICD-47 Primary Manual de usuario
Sony
Sony ICD-SX1000 Manual de usuario
Sony
Sony ICD-ST25 Digital Voice Editor 2 Manual de usuario
Sony
Sony M670V - M Microcassette Dictaphone Manual de usuario
Sony
Sony ICD-UX533BLK Manual de usuario
Sony
Sony PWS-4500 Manual de usuario
Sony
Sony ICD-SX68 Marketing Manual de usuario
Sony
Sony HSR-X206 Manual de usuario
Sony
Sony 4-127-580-13(1) Manual de usuario
Sony
Sony ICD-BM1AVTP - Memory Stick Media Digital Voice... Manual de usuario
Sony
Sony TCM-230DV Manual de usuario
Sony
Sony ICD-PX232 Manual de usuario
Sony
Sony ICD-SX700D - Digital Voice Recorder Manual de usuario
Sony
Sony ICD-R100 Operating Instructions (primary... Manual de usuario
Sony
Sony ICD-SX2000 Manual de usuario
Sony
Sony ICD-P17 - Ic Recorder Manual de usuario
Sony
Sony ICD-B5 Marketing Manual de usuario
Sony
Sony M-2000A Manual de usuario
