Tr initron Color TV

KV-HG21

3-213-968-E1 (1)

Operating Instructions

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

M91

110-240 V AC, 50/60 Hz

Indicated on the rear of the TV

B/G, I, D/K, M

PAL, PAL 60, SECAM, NTSC3.58, NTSC4.43

NICAM Stereo/Bilingual B/G, I, D/K;

A2 Stereo/Bilingual B/G

English, Russian

VHF : E2 to E12 /UHF : E21 to E69 /

CATV : S01 to S03, S1 to S41

UHF : B21 to B68 /CATV : S01 to S03, S1 to S41

VHF : C1 to C12, R1 to R12 /

UHF : C13 to C57, R21 to R60 /

CATV : S01 to S03, S1 to S41, Z1 to Z39

VHF : A2 to A13 /UHF : A14 to A79 /

CATV : A-8 to A-2, A to W+4, W+6 to W+84

75-ohm external terminal

5 W + 5 W

Input: 2 Output: 1 Phono jacks; 1 Vp-p, 75 ohms

Input: 3 Output: 1 Phono jacks; 500 mVrms

Input: 1 Phono jacks;

Y: 1 Vp-p, 75 ohms,

sync negative

CB: 0.7 Vp-p, 75 ohms

CR: 0.7 Vp-p, 75 ohms

Output: 1 Stereo minijack

87.5 - 108.0 MHz

10.7 MHz

21 in.

Measured diagonally

638 ×458 ×482

ASpecifications

KV-HG21M91 Note

Design and specifications are subject to change without notice.

Made in Malaysia.

Manufacturer: Sony Corporation

Address: 1-7-1 Konan, Minota-ku,

Tokyo 108-0075, Japan.

Power requirements

Power consumption (W)

Television system

Color system

Stereo/Bilingual system

Teletext language

Channel coverage

B/G

D/K

8 (Antenna)

Audio output (Speaker)

Number of terminal

(Video)

(Audio)

(Component

Video)

i(Headphone)

FM Radio

Tuning Range

Intermediate

Frequency

Picture tube

Tube size (cm)

Screen size (cm)

Dimensions (w/h/d, mm)

Mass (kg)

Clean the TV with a dry and soft

cloth. Do not use benzine, thinner,

or any other chemicals to clean the

TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape,

glue) on the painted cabinet of the

TV. Do not scratch the picture

tube.

BWARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Install the TV on a stable TV stand

and floor which can support the

TV set weight. Ensure that the TV

stand surface is flat and its area is

larger than the bottom area of the

TV.

Do not plug in too many

appliances to the same power

socket. Do not damage the power

cord.

For children’s safety, do not leave

children alone with the TV. Do not

allow children to climb onto it.

For your own safety, do not touch

any part of the TV, the power cord

and the antenna cable during

lightning storms.

Do not place any objects on the TV.

The apparatus shall not be

exposed to dripping or splashing

and that no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Do not operate the TV if any liquid

or solid object falls into it. Have it

checked immediately by qualified

personnel only.

Do not block the ventilation

openings of the TV. Do not install

the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not open the cabinet and the

rear cover of the TV as high

voltages and other hazards are

present inside the TV. Refer

servicing and disposal of the TV

to qualified personnel.

Pull the power cord out by the

plug. Do not pull the power cord

itself. Even if your TV is turned

off, it is still connected to the AC

power source (mains) as long as

the power cord is plugged in.

Unplug the TV before moving it

or if you are not going to use it for

several days.

To prevent fire or shock hazard, do

not expose the TV to rain or

moisture.

Your TV is recommended for

home use only. Do not use the TV

in any vehicle or where it may be

subject to excessive dust, heat,

moisture or vibrations.

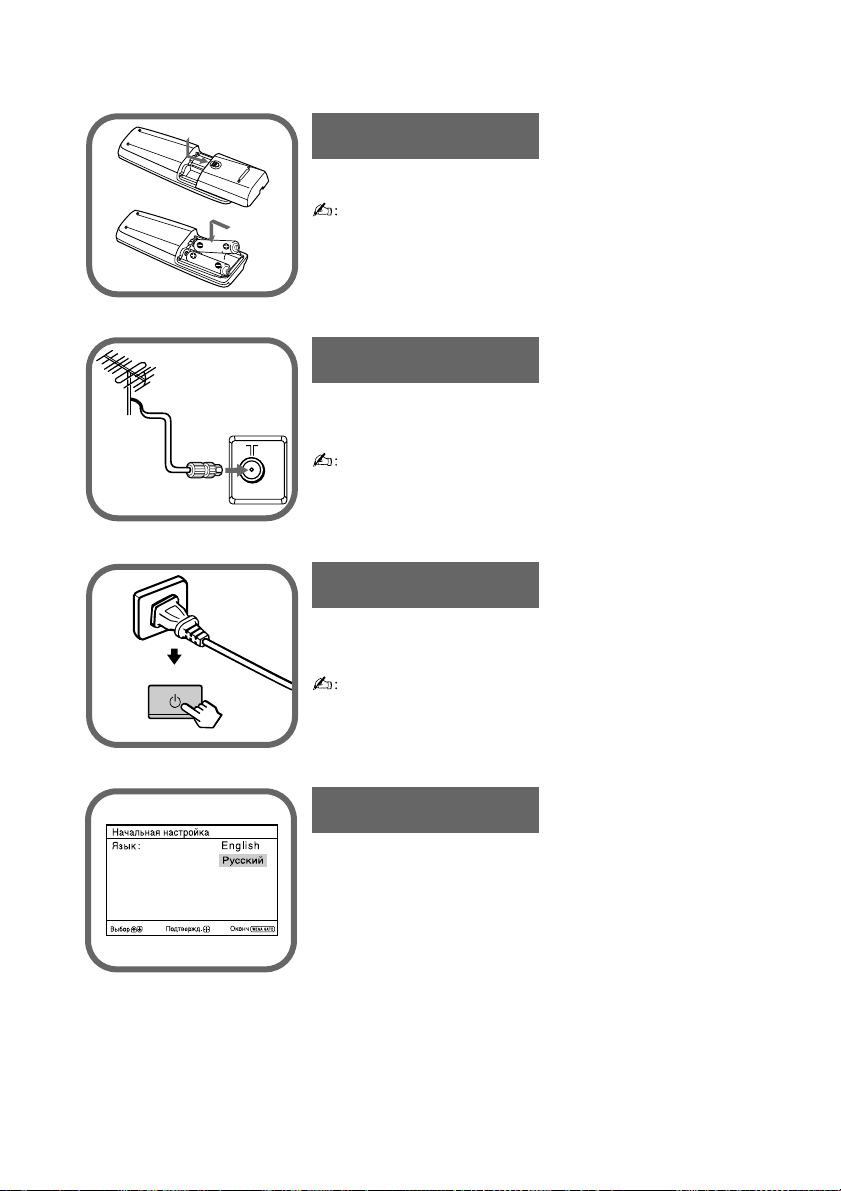

CGetting Started

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

•Your TV can receive both TV and FM radio signals from

the appropriate connections through the 8(antenna

input) terminal (see E).

•You can also connect your TV to other optional

components (see E).

Step 2

Insert the batteries (supplied) into the remote.

•Do not use old or different types of batteries together.

Step 1

Set up the TV by following the instructions of the

“Начальная настройкa” (“Initial Setup”) menu

(see D).

Step 4

Plug in the power cord, then press 1on the TV to

turn it on.

• The 1(standby) indicator flashes green for a few

seconds when turning on the TV. This does not indicate

a malfunction.

Step 3

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will

appear. You can adjust settings below using the buttons on the remote control

or TV front panel. Press V, v , B or b to select or adjust items, then press .

1Select the desired menu language.

2Select “Yes” to preset the channels automatically.

To skip automatic channel presetting, select “No”.

3The “Program Sorting/Edit” menu enables

you to sort and edit the channels (see L).

4Adjust the bars on the top and bottom of the menu

if they are slanted.

5To prevent this “Initial Setup” menu from appearing

again when you turn on the TV by pressing 1,

select “No”.

To allow this menu to appear again, select “Yes”.

•You can immediately go to the end of the “Initial Setup” menu by pressing WEGA

GATE.

Program Sorting/Edit

Off

Sorting: Edit:

PROG

SkipLabel

Exit

Select Confirm

End

Select Confirm

Start Auto Program now?

Yes

First please connect

cable/ antenna

Initial Setup

End

Select Confirm

Initial Setup

Display this menu next time?

Yes

End

Select Confirm

EConnecting optional components

You can connect a wide range of optional components to your TV. Connecting

cables are not supplied.

Connecting to the TV (front)

Connecting to the TV (rear)

Camcorder

Audio/Video

cable

Headphones

LCB

(MONO)

L(MONO)

• If you connect a VCR to 8(antenna input), preset the signal output from the VCR to the

program number 0 on the TV (see L).

•If your DVD player can output interlace and progressive mode signals, select the

interlace output when connecting to (component video input) on your TV. Your TV

can receive either 525i/60Hz or 625i/50Hz interlace signals.

• The component video terminals on your DVD player are sometimes labeled Y/CB/CR,

Y/PB/PR, Y/Cb/Cror Y/B-Y/R-Y.

•If you select “DVD” on your TV screen, the signal from the T(monitor output) jacks

will not be output properly. This does not indicate a malfunction.

Audio

cable

Component

Video cable

Antenna

cable

VCR DVD Player Audio SystemDVD Player

Audio/

Video cable

Audio/

Video cable

VCR

Antenna

cable

If cannot receive

FM signal

Antenna

selector FM

signal

TV signal

TV, CATV, Satellite

FTroubleshooting

If you find any problem while viewing your TV, you can either use the

“Factory Settings” function (see M) or check the Troubleshooting guide below.

If the problem persists, contact your Sony dealer.

Snowy picture, noisy sound

•Check the antenna setup and other connections.

•Preset the channel manually again (see L).

•Set the “Signal Booster” to “Auto” (see L) or try using an external booster.

Distorted picture, noisy sound

•Set the “Signal Booster” to “Off” (see L), or turn off or disconnect any external booster in

use.

Good picture, noisy sound

•Select the appropriate “TV System” (see L).

No picture, no sound

•Check the power cord, antenna setup and other connections.

•Press 4/1 (power) to turn on the TV.

•Press 1 (main power) on the TV to turn off the TV for about five seconds, then turn it on

again.

Good picture, no sound

•Press 2 + to increase the volume level or press to cancel the muting.

Dotted lines or stripes

• Do not use a hair dryer or other equipment near the TV.

•Check the antenna setup.

Double images or “ghosts”

•Use the fine tuning (“Fine”) function (see L).

•Check the antenna setup or use a highly directional antenna.

•Turn off or disconnect any external booster in use.

No color

•Adjust the “Color” level from “Picture Adjustment” (see J).

•Select the appropriate “Color System” (see M).

•Check the antenna setup.

Picture slant

•Keep external speakers or other electrical equipment away from the TV.

•Adjust the “Picture Rotation” (see M).

Abnormal color patches

•Keep external speakers or other equipment away from the TV. Do not move the TV while

the TV is turned on. Press 1 (main power) on the TV to turn off the TV for about 15

minutes, then turn it on again to demagnetize the TV.

Teletext display is incomplete (snowy picture or double images).

•Check the antenna setup and other connections.

•Set the “Signal Booster” to “Auto” (see L) or try using an external booster.

•Use the fine tuning (“Fine”) function (see L).

TV cannot receive stereo broadcast sound or stereo broadcast sound switches on and off or is distorted.

•Check the antenna setup and other connections.

TV cannot receive FM radio station.

• Connect a separate FM antenna and the TV channel source through an antenna selector

(switch) to your TV (see E).

Troubleshooting (continued)

The 1 (standby) indicator on your TV flashes red several times after every three seconds.

•Count the number of times the 1 (standby) indicator flashes. Press 1 on the TV to turn it

off, disconnect the AC power cord and inform your dealer or Sony service center of how

the indicator flashes (duration and interval).

The TV screen sometimes goes blank for slightly longer than usual during channel change.

• The “Signal Booster” is functioning to detect a weak signal. This does not indicate a

malfunction.

TV cabinet creaks.

•Changes in room temperature sometimes make the TV cabinet expand or contract, causing

a noise. This does not indicate a malfunction.

A small “boom” sound is heard when the TV is turned on.

•The TV’s demagnetizing function is working. This does not indicate a malfunction.

GTV buttons and remote control

123

789

PROG

A/B

RETURN

WEGA

GATE

1?/1Turn off temporarily or turn on the

TV.

2aDisplay the TV program.

3Jump to last program number that

has been watched for at least five

seconds.

4PROG +/– Select program number. To select

quickly, press and hold until the

desired program number appears.

52+/– Adjust volume.

8Change the picture size:

“On” (16:9 wide mode), “Off”.

9Select surround mode options (see

K).

0Display on-screen information.

qa Mute the sound.

qs A/B Select stereo/bilingual mode:

Broadcasting Display (selected sound)

NICAM stereo NICAM (stereo), Mono (regular)

NICAM bilingual NICAM Main (main), NICAM

Sub (sub), Mono (regular)

NICAM monaural NICAM Main (main), Mono

(regular)

A2 stereo Stereo (stereo), Mono (regular)

A2 bilingual Main (main), Sub (sub)

• If the stereo sound is noisy when receiving a

stereo program, select “Mono”. The sound

becomes monaural, but the noise is reduced.

3 2678 1

11Turn off or turn on the TV.

2Remote control sensor.

3Wake Up indicator.

31Standby indicator.

4PROG +/– Select program number.

52+/– Adjust volume.

6tSelect TV or video input.

WEGA GATE menu operations (see I)

4,5

, , ,

Select or adjust items.

6Confirm selected items.

7WEGA GATE Display or cancel WEGA

GATE menu.

8FM Listen to FM radio (see

H).

TV buttons and remote control (continued)

qd tSelect TV or video input.

qf 0-9 Input numbers. For program numbers 10 and above, enter the second

digit within two seconds.

ql Select sound mode options with a 5-Band Graphic Equalizer display:

“Dynamic”, “Standard”, “Custom”* (see K).

100 300 1k 3k 8k

Dynamic

100 300 1k 3k 8k

Standard

100 300 1k 3k 8k

Custom

* When the “Custom” mode is selected, you can receive the last adjusted

sound settings from the “Sound Adjustment” option in the menu.

w; Select picture mode options: “Vivid”, “Standard”, “Custom”* (see J).

*When the “Custom” mode is selected, you can receive the last adjusted

picture settings from the “Picture Adjustment” option in the menu.

WEGA GATE menu operations (see I)

6Confirm selected items.

7WEGA GATE Display or cancel WEGA GATE menu.

qj V, v,B,b Select or adjust items.

qk RETURN Return to the previous level.

Timer operations

qg Set TV to turn on automatically according to the desired period of time

(Wake Up Timer) (max. of 12 hours). The indicator on TV lights up amber once you set

the wake up timer. If no buttons or controls are pressed for more than

three hours after the TV is turned on using the wake up timer, the TV

automatically goes into standby mode.

qh Set TV to turn off automatically according to the desired period of time

(Sleep Timer) (max. of one hour and 30 min.).

Teletext operations (green icon)

Display Teletext broadcast: Teletext tTeletext and TV tTV. If there is

no Teletext broadcast, only “100” is displayed at the top left corner of the

screen.

Display Teletext service contents.

0-9

Input three digits Teletext page number.

Display the next or previous page.

Stop Teletext display from scrolling.

Reveal concealed information.

Enlarge the Teletext display.

Show TV screen while waiting for Teletext page. Enter the Teletext page

number that you want to refer to, then press

When the page number

is displayed, press

to show the text

(red, green, Access the corresponding colored FASTEXT menu. The FASTEXT

yellow, blue) feature can be used only when the FASTEXT broadcast is available.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de TELEVISOR de Sony

Sony

Sony BRAVIA KD-55X8 J Series Manual de usuario

Sony

Sony KV-32LS65AUS Manual de usuario

Sony

Sony KV-XA21M60 Manual de usuario

Sony

Sony BRAVIA HX70 Series Manual de usuario

Sony

Sony KV-36FV310 - 36" Trinitron Wega Manual de usuario

Sony

Sony KV-30XBR910 Guía del usuario

Sony

Sony KV-XA21M83 Manual de usuario

Sony

Sony KV-XF34K94 Manual de usuario

Sony

Sony Bravia XR-55A80J Instrucciones de operación

Sony

Sony KV-9PT50 - 9" Trinitron Color Tv Manual de usuario

Sony

Sony BRAVIA XBR-79X900B Manual de usuario

Sony

Sony KDL-22BX300 - Bravia Bx Series Lcd... Manual de usuario

Sony

Sony KV-XG29M80 Manual de usuario

Sony

Sony WEGA KV 32HS20 Manual de usuario

Sony

Sony TRINITRON KV-VF14M40 Manual de usuario

Sony

Sony TRINITRON KV-DR29M31 Manual de usuario

Sony

Sony TRINITRON KV-XA25M60 Manual de usuario

Sony

Sony KF-60XBR800 - 60" Xbr Grand Wega™ Rear Projection... Manual de usuario

Sony

Sony KV-9PT50 - 9" Trinitron Color Tv Manual de usuario

Sony

Sony Trinitron WEGA KV-SR292 Manual de usuario

Sony

Sony KD-55X8 G Series Manual de usuario

Sony

Sony Trinitron KV-29F3A Manual de usuario

Sony

Sony Bravia KDL-40Z5800 Manual de usuario

Sony

Sony Bravia KDL-32EX729 Guía de instalación

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
