Operating Instructions EN

3-858-251-12 (1)

Trinitron Color

Video CD TV



####

C##

KVD-C21MF1

Getting Started

2-EN

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the

cabinet. Refer servicing to qualified

personnel only.

The following caution label is located inside of the unit.

Disc logo

Contents

Disc size

Play time

This unit can play following discs:

CD-G

(CD graphics)

Audio + Video

(still pictures)

12cm/8cm

74 min./20 min.

Note on VIDEO CDs

This TV conforms to Ver. 1.1 and Ver. 2.0 of VIDEO CD standards.

You can enjoy two kinds of playback according to the discs.

Disc type

VIDEO CDs without PBC*

functions (Ver. 1.1 discs)

VIDEO CDs with PBC*

functions (Ver. 2.0 discs)

You can

Enjoy video playback (moving

pictures) as well as music.

Play interactive software using

menu screens displayed on the

TV screen, in addition to the

video playback function of Ver

1.1 discs.

VIDEO CDs

Audio + Video

(moving pictures)

12cm/8cm

74 min./20 min.

Audio CDs

Audio

12cm/8cm

(CD single)

74 min./20

min.

* PBC: Playback control

Getting Started 3-EN

ENTER

VISUAL MODE

PROGRAM PRESET

LANGUAGE /

DISC COLOR SYSTEM

Select and press ENTER

PROGRAM PRESET

AUTO PROGRAM

MANUAL PROGRAM

ENTER

AUTO PROGRAM

SYSTEM

B / G

and press ENTER

PROG CH

D / K

–– –––

123

456

789

ENTER

and pressSelect

Select

POWER

Getting Started

4-EN

ill005 9

Getting Started 5-EN

Table of Contents

Getting Started

6Connections

8Presetting channels

TV Operations

11 Watching the TV

CD Operations

13 Playing CDs

Karaoke Operations

17 Karaoke sing-along

Additional Operations

19 Using the Sleep Timer

19 Using the Wake Up timer

20 Adjusting the picture mode

21 Muting the sound

21 Listening with headphones

Additional Information

22 Troubleshooting

23 Notes on CDs

24 Receivable channels and channel display

24 Specifications

25 Index to parts and controls

Precautions

•Operate the TV only at 110-240 V AC.

•Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

•Do not block the ventilation openings.

•Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

•Do not install the TV in an inclined position.

•Do not install the TV in locations where it is;

-Extremely hot or cold

-Dusty or dirty

-Very humid

-Vibrating

-Subject to direct sunlight

•Do not keep the TV plugged in if you are not going to

use it for several days.

•Do not pull the power cord to disconnect the TV. Pull

it out by the plug.

Getting Started

6-EN

Connections

Connecting a VHF antenna or a combination VHF/UHF antenna

— 75-ohm coaxial cable (round)

Attach an optional IEC antenna connector to the 75-ohm coaxial cable.

Plug the connector into the ˘(antenna) socket at the rear of the TV.

Connecting optional equipment

You can connect optional audio/video equipment to your TV such as a VCR, multi disc player, camcorder, video

game or stereo system.

Connecting video equipment using video input jacks

Rear of TV

When connecting a monaural VCR

Connect the yellow plug to VIDEO and the black plug to

AUDIO-L (MONO).

Rear of TV Rear of TV

Getting Started

On a wall

VIDEO 1 IN

VIDEO OUT

AUDIO VIDEO

R L(MONO)

VIDEO 1 IN

to antenna socket : Signal flow

to antenna

output

to video

and audio

outputs

VCR

Getting Started 7-EN

VIDEO 2 IN

VIDEO L

(MONO)

-AUDIO-R

: Signal flow

CamcorderFront of TV

to video and

audio outputs

Connecting audio/video equipment using VIDEO OUT jacks

Rear of TV

When recording through the VIDEO OUT jacks

If you change the channel or video input while recording with a

VCR, the channel or video input you are recording also will be

changed.

To prevent the TV from falling

Stabilize the TV in either of the following ways.

•

With the supplied screws, attach the band to the TV

stand and to the rear of the TV using the hole provided

on the TV.

•Put the cord or chain through the clamps to stabilize

the TV against a wall or pillar.

VIDEO 1 IN

VIDEO OUT

AUDIO VIDEO

R L(MONO)

: Signal flow

to antenna

socket

to video and

audio inputsVIDEO OUT

to antenna

output VCR

Getting Started

8-EN

4Press ›or ¢to select “PROGRAM PRESET”

and press ENTER.

The PROGRAM PRESET menu appears.

5Press ›or ¢to select “AUTO PROGRAM”

and press ENTER.

The AUTO PROGRAM menu appears.

6Press ›or ¢to select the TV system (B/G, I,

D/K or M) of the channels which you want

to preset, and press ENTER.

Presetting starts from program position 1. The

preset program and channel numbers are displayed

on the screen in sequence.

When presetting is finished, the program position

from which presetting starts appears. All available

channels are now stored on successive number

buttons.

To preset channels automatically using

the TUNER PRESET button on the TV.

1Press POWER to switch it on.

2Press TUNER PRESET with a pointed object.

The following display appears.

3Using VCD MENU +/–, move the cursor (”) to

the TV system (B/G, I, D/K or M) of the

channels which you want to preset.

4Press RETURN.

Presetting starts from program position 1.

When presetting is finished, the program position

from which presetting starts appears.

PROGRAM PRESET

AUTO PROGRAM

MANUAL PROGRAM

and press ENTER

Select

VISUAL MODE

PROGRAM PRESET

LANGUAGE /

DISC COLOR SYSTEM

and press ENTER

Select

Presetting channels automatically

You can preset 80 TV channels in numerical sequence

from program position 1.

Front of TV

1Press POWER.

When the TV is in standby mode after pressing

POWER, press POWER on the remote commander.

2Press TV.

3Press MENU.

The main menu appears.

Presetting channels

RETURN

VCD MENU+/–

TUNER PRESET

123

456

789

4, 5, 6

POWER

TUNER PRESET

SYSTEM

B / G PROG CH

D / K

–– –––

P–

sser UNEMDC n,oitcelesmetsysrof t.ratsotNRUTER

AUTO PROGRAM

SYSTEM

B / G PROG CH

D / K

–– –––

and press ENTER

Select

Getting Started 9-EN

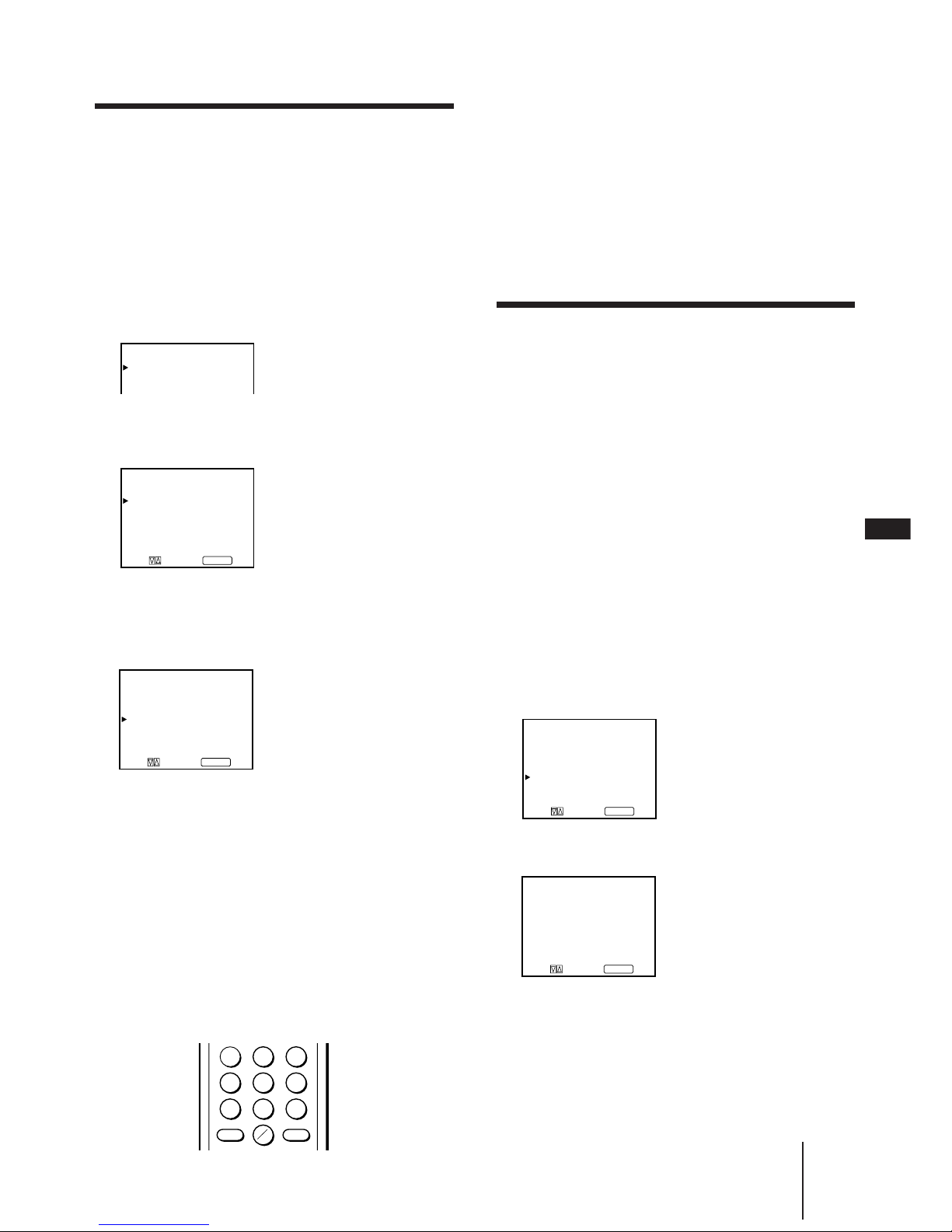

7Repeat steps 4 to 6 to preset other

channels.

8After you finish presetting, press MENU to

go back to the original screen.

If you have made a mistake

Press ?to go back to the previous position.

Skipping program positions

You can skip unused program positions when

selecting program with the PROGR +/– buttons.

However, the skipped programs may still be called up

when you select them with the number buttons.

1Press MENU.

The main menu appears.

2Press ›or ¢to select “PROGRAM PRESET”

and press ENTER.

The PROGRAM PRESET menu appears.

3Press ›or ¢to select “MANUAL PROGRAM”

and press ENTER.

The MANUAL PROGRAM menu appears.

4Press ›or ¢to select the program position

which you want to skip and press ENTER.

The “SYS” position turns red.

5Press ›or ¢until “---” appears in the “SYS”

position and press ENTER.

When you select programs using the PROGR +/–

buttons, the program position is skipped.

6Repeat steps 4 and 5 to skip other program

positions.

7Press MENU to go back to the original

screen.

MANUAL PROGRAM

and press ENTER

PRG SYS CH LABEL AFT

B/G C04 ––––– ON

2 B/G C05 ––––– ON

3 B/G C09 ––––– ON

4 B/G C12 ––––– ON

5 B/G C21 ––––– ON

6 B/G C25 ––––– ON

Select

MANUAL PROGRAM

and press ENTER

PRG SYS CH LABEL AFT

B/G C04 ––––– ON

2 B/G C05 ––––– ON

3 B/G C09 ––––– ON

4 B/G C12 ––––– ON

5 B/G C21 ––––– ON

6 B/G C25 ––––– ON

Select

MANUAL PROGRAM

and press ENTER

PRG SYS CH LABEL AFT

B/G C04 ––––– ON

2 B/G C05 ––––– ON

3 B/G C09 ––––– ON

4 B/G C12 ––––– ON

5 B/G C21 ––––– ON

6 B/G C25 ––––– ON

Select

PROGRAM PRESET

AUTO PROGRAM

MANUAL PROGRAM

Presetting channels manually

To change the channel for a particular program

position or to receive a channel with a weak signal,

preset the channel manually.

1Press MENU.

The main menu appears.

2Press ›or ¢to select “PROGRAM PRESET”

and press ENTER.

The PROGRAM PRESET menu appears.

3Press ›or ¢to select “MANUAL PROGRAM”

and press ENTER.

The MANUAL PROGRAM menu appears.

4Press ›or ¢to select the program position

(number button) to which you want to

preset a channel, and press ENTER.

The “SYS” position turns red.

For program positions

beyond 6

This display scrolls by

pressing ›repeatedly.

5Select the TV broadcast system (B/G, I, D/K

or M) with ›or ¢, and press ENTER.

The CH number turns red.

Search for the channel with ›(down) or ¢(up).

The channel number starts counting up or down.

When a channel is found, it stops.

If you want to preset this channel, press ENTER. If

not, press with ›or ¢to search for another channel.

You can also select the channel number directly

with the number buttons. Press C (once for regular

channels, twice for cable channels), number buttons

(e.g. For 06 press 0 and 6), then ENTER.

1 2 3

4 5 6

7 8 9

– /– – C

MANUAL PROGRAM

and press ENTER

PRG SYS CH LABEL AFT

B/G C04 ––––– ON

2 B/G C05 ––––– ON

3–C09 ––––– ON

4B / G C12 ––––– ON

5 B/G C21 ––––– ON

6 B/G C25 ––––– ON

––

Select

Getting Started

10-EN

MANUAL PROGRAM

and press ENTER

PRG SYS CH LABEL AFT

B/G C04 ––––– ON

2 B/G C05 ––––– ON

3 B / G C0 9 MTV – – ON

4 B/G C12 ––––– ON

5 B/G C21 ––––– ON

6 B/G C25 ––––– ON

Select

MANUAL PROGRAM

and press ENTER

PRG SYS CH LABEL AFT

B/G C04 ––––– ON

2 B/G C05 ––––– ON

3 B/G C09 ––––– ON

4 B/G C12 ––––– ON

5 B/G C21 ––––– ON

6 B/G C25 ––––– ON

Select

MANUAL PROGRAM

and press

Select ENTER

PRG SYS CH LABEL AFT

B/G C04 ––––– ON

2 B/G C05 ––––– ON

3 B/G C09 ––––– ON

4 B/G C12 ––––– –

5 B/G C21 ––––– ON

6 B/G C25 ––––– ON

Manual fine-tuning

Normally, the automatic fine-tuning (AFT) is already

working. However, if the picture of a program is

distorted, you can use the manual fine-tuning function

to obtain better picture reception.

1Press MENU.

The main menu appears.

2Press ›or ¢to select “PROGRAM PRESET”

and press ENTER.

The PROGRAM PRESET menu appears.

3Press ›or ¢to select “MANUAL PROGRAM”

and press ENTER.

The MANUAL PROGRAM menu appears.

4Press ›or ¢to select the program position

corresponding to the channel which you

want to manually fine-tune, and press

ENTER repeatedly until the AFT position

turns red.

5Fine-tune the channel with ›or ¢so that

you get the best TV reception. As you press

these buttons, the frequency changes from

-15 to +15.

6After fine-tuning, press ENTER.

The cursor appears beside the program position.

Now the fine-tuned level is stored.

7Repeat steps 4 to 6 to fine-tune other

channels.

8Press MENU to go back to the original

screen.

Captioning a station name

You can name a channel using up to five characters

(letters or numbers) to be displayed on the TV screen

(e.g. MTV). Using this function, you can easily identify

which channel you are watching.

1Press MENU.

The main menu appears.

2Press ›or ¢to select “PROGRAM PRESET”

and press ENTER.

The PROGRAM PRESET menu appears.

3Press ›or ¢to select “MANUAL PROGRAM”

and press ENTER.

The MANUAL PROGRAM menu appears.

4Press ›or ¢to select the program position

you want to caption and press ENTER

repeatedly until the first element of the

“LABEL” position turns red.

5Select a letter or number with ›or ¢and

press ENTER.

The next element turns red. Select other characters

in the same way. For the element you want to leave

blank, select “-” and press ENTER.

6After selecting all the characters, press

ENTER repeatedly until the cursor appears

again. Now the caption you chose is stored.

7Repeat steps 4 to 6 to caption other

channels.

8Press MENU to go back to the original

screen.

MANUAL PROGRAM

and press ENTER

PRG SYS CH LABEL AFT

B/G C04 ––––– ON

2 B/G C05 ––––– ON

3 B/G C09 ––––– ON

4 B/G C12 ––––– ON

5 B/G C21 ––––– ON

6 B/G C25 ––––– ON

Select

Otros manuales para Trinitron

Tabla de contenidos

Otros manuales de TELEVISOR de Sony

Sony

Sony BRAVIA KDL-40Z5100 Guía del producto

Sony

Sony KDF-46E3000 - Bravia 3lcd Micro Display High Definition... Manual de usuario

Sony

Sony KDL-22BX300 - Bravia Bx Series Lcd... Manual de usuario

Sony

Sony KV-28WF1A Manual de usuario

Sony

Sony BRAVIA KD-85X9000F Manual de usuario

Sony

Sony TRINITRON KV-DX29K9H Manual de usuario

Sony

Sony KDL-32E5500 Manual de usuario

Sony

Sony KV-9PT60 - 9" Trinitron Color Tv Manual de instrucciones

Sony

Sony BRAVIA XR-85X93L Manual de usuario

Sony

Sony KD-49 E70 Series Manual de usuario

Sony

Sony TRINITRON KV-27V40 Manual de usuario

Sony

Sony BRAVIA KD-75X9400D Manual de usuario

Sony

Sony Bravia KDL-50W650A Manual de usuario

Sony

Sony BRAVIA KD-32W830K Manual de usuario

Sony

Sony TRINITRON KV-AR29M61 Manual de usuario

Sony

Sony KV-13M10 Manual de usuario

Sony

Sony KV-HA21M80 Manual de usuario

Sony

Sony BRAVIA XR-85X9xJ Manual de usuario

Sony

Sony KDL-32EX500 - Bravia Ex Series Lcd... Manual de usuario

Sony

Sony BRAVIA XR-75Z9J Instrucciones de operación

Sony

Sony BRAVIA KDL-40R357F Manual de usuario

Sony

Sony BRAVIA KD-85XH80 Series Manual de usuario

Sony

Sony TRINITRON KV-29FX11A Manual de usuario

Sony

Sony BRAVIA KD-55X7002G Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
