Sony Trinitron WEGA KV-AW21 Manual de usuario

Sony KV-AW21M50 Group B45 (GB, CT)_2-889-131-12 (1)

Tr initron Color TV

KV-AW21

2-889-131-12 (1)

M50

P50

Operating Instructions

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

使用說明書

•使用本電視機之前請先詳細閱讀此手冊﹐並妥善保存以備日後用作參考。

Panduan Pengendalian

•Sebelum mengendalikan unit, sila baca buku panduan ini dengan teliti

dan simpan untuk rujukan masa depan.

02CT01COV-SOEMAfr.p65 12/1/06, 2:04 PM1

¶´ƒ

Sony KV-AW21M50 Group B45 (GB, CT)_2-889-131-12 (1)

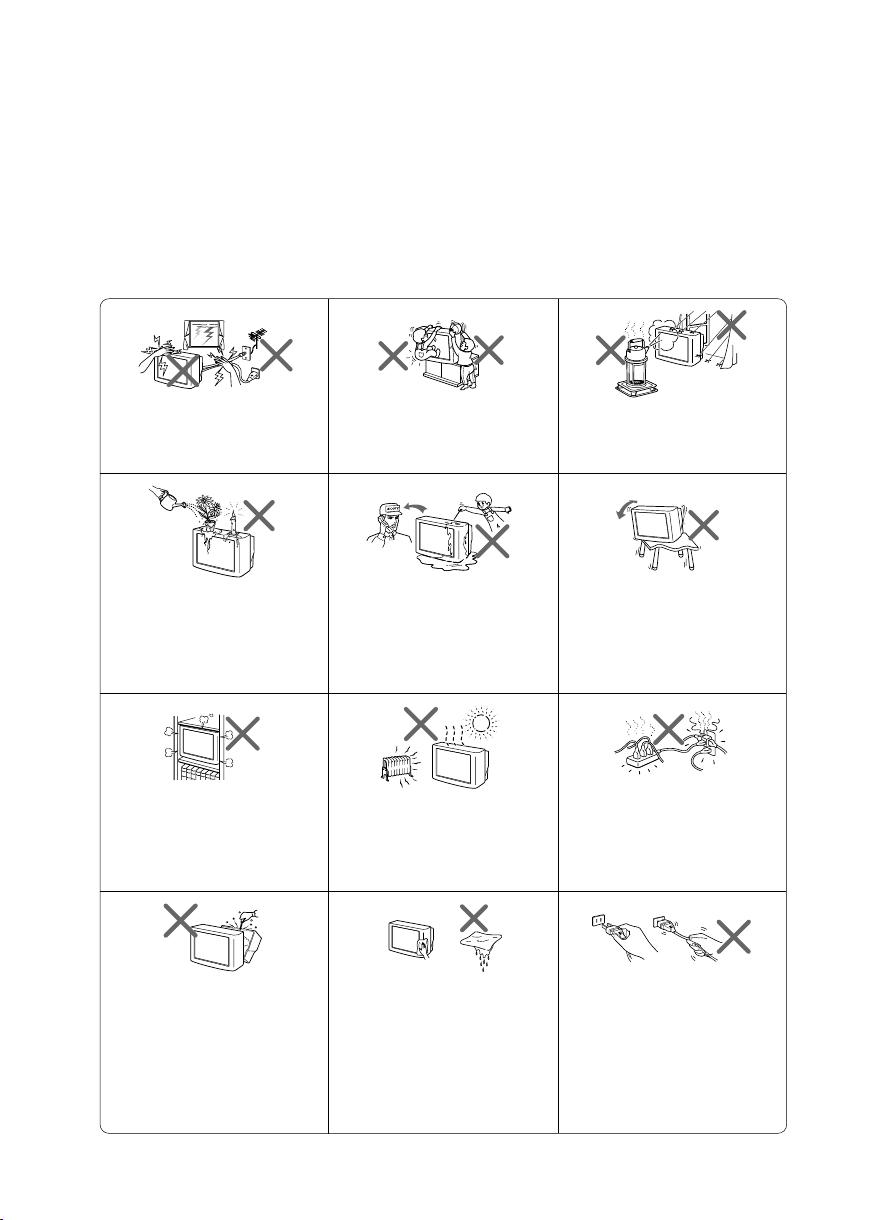

Clean the TV with a dry and soft

cloth. Do not use benzine, thinner,

or any other chemicals to clean the

TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape,

glue) on the painted cabinet of the

TV. Do not scratch the picture

tube.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Install the TV on a stable TV stand

and floor which can support the

TV set weight. Ensure that the TV

stand surface is flat and its area is

larger than the bottom area of the

TV.

Do not plug in too many

appliances to the same power

socket. Do not damage the power

cord.

For children’s safety, do not leave

children alone with the TV. Do not

allow children to climb onto it.

For your own safety, do not touch

any part of the TV, the power cord

and the antenna cable during

lightning storms.

Do not place any objects on the TV.

The apparatus shall not be

exposed to dripping or splashing

and that no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Do not operate the TV if any liquid

or solid object falls into it. Have it

checked immediately by qualified

personnel only.

Do not block the ventilation

openings of the TV. Do not install

the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not open the cabinet and the

rear cover of the TV as high

voltages and other hazards are

present inside the TV. Refer

servicing and disposal of the TV

to qualified personnel.

Pull the power cord out by the

plug. Do not pull the power cord

itself. Even if your TV is turned

off, it is still connected to the AC

power source (mains) as long as

the power cord is plugged in.

Unplug the TV before moving it

or if you are not going to use it for

several days.

To prevent fire or shock hazard, do

not expose the TV to rain or

moisture.

Your TV is recommended for

home use only. Do not use the TV

in any vehicle or where it may be

subject to excessive dust, heat,

moisture or vibrations.

01GB02WAR-SOEMAfr.p65 12/1/06, 12:10 PM2

Black

Sony KV-AW21M50 Group B45 (GB, CT)_2-889-131-12 (1)

Table of Contents

Installation

Getting Started ................................................................................................................ 4

Setting up your TV (“Initial Setup”) ........................................................................... 5

Connecting optional components ................................................................................ 6

Overview of Controls

TV buttons and remote control ..................................................................................... 7

Menu Adjustment

WEGA GATE navigator ................................................................................................. 9

“Picture” setting ............................................................................................................ 10

“Sound” setting ............................................................................................................. 11

“Channel Setup” setting .............................................................................................. 12

“Setup” setting .............................................................................................................. 14

Additional Information

Troubleshooting ............................................................................................................ 15

Specifications .................................................................................................. Back cover

01GB03TOC-SOEMAfr.p65 12/1/06, 12:10 PM3

Black

Sony KV-AW21M50 Group B45 (GB, CT)_2-889-131-12 (1)

4GB

End

Select Confirm

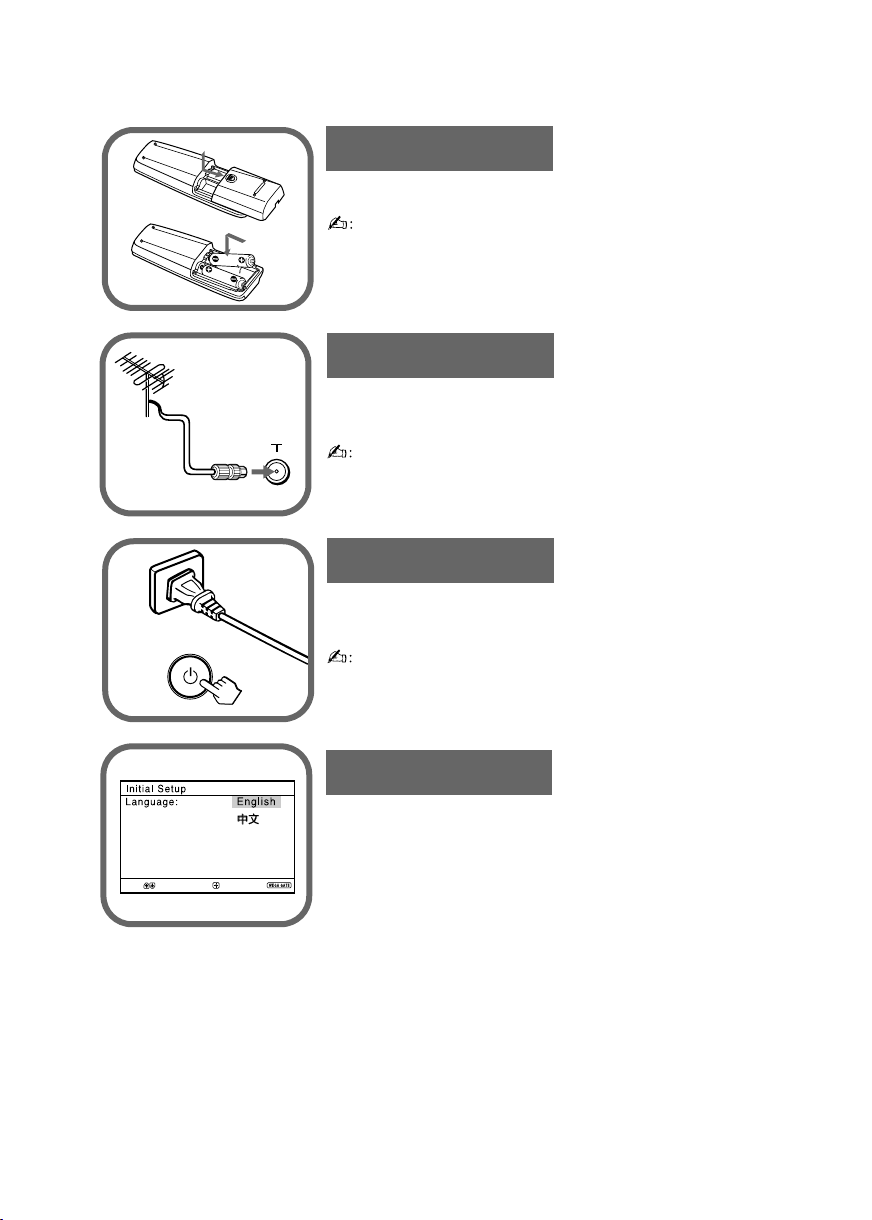

Insert the batteries (supplied) into the remote.

•Do not use old or different types of batteries together.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

•You can also connect your TV to other optional

components (see page 6).

Plug in the power cord, then press 1on the TV to

turn it on.

• The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a

malfunction.

Set up the TV by following the instructions of the

“Initial Setup” menu (see page 5).

xGetting Started

Step 1

Step 2

Step 3

Step 4

01GB04INS-SOEMAfr.p65 12/1/06, 12:12 PM4

Black

Sony KV-AW21M50 Group B45 (GB, CT)_2-889-131-12 (1)

5GB

Program Sorting/Edit

Off

Sorting: Edit:

PROG

SkipLabel

Exit

Select Confirm

End

Select Confirm

Initial Setup

Language: English

Start Auto Program now?

Yes

First please connect

cable/ antenna

Initial Setup

End

Select Confirm

xSetting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will

appear. You can adjust settings below using the buttons on the remote control or

TV front panel. Press V, v , B or b to select or adjust items, then press .

1Select the desired menu language.

2Select “Yes” to preset the channels automatically.

To skip automatic channel presetting, select “No”.

3The “Program Sorting/Edit” menu enables

you to sort and edit the channels (see page 12).

4To prevent this “Initial Setup” menu from appearing

again when you turn on the TV by pressing 1,

select “No”.

To allow this menu to appear again, select “Yes”.

•You can immediately go to the end of the “Initial Setup” menu by pressing WEGA

GATE.

Select Confirm

Initial Setup

Display this menu next time?

Yes

01GB04INS-SOEMAfr.p65 12/1/06, 12:12 PM5

Black

Sony KV-AW21M50 Group B45 (GB, CT)_2-889-131-12 (1)

6GB

xConnecting optional components

You can connect a wide range of optional components to your TV. Connecting

cables are not supplied.

Connecting to the TV (front)

Connecting to the TV (rear)

Camcorder

Audio/Video

cable

• If you connect a VCR to 8(antenna input), preset the signal output from the VCR to the

program number 0 on the TV (see page 13).

•If your DVD player can output interlace and progressive mode signals, select the

interlace output when connecting to (component video input) on your TV. Your TV

can receive either 525i/60Hz or 625i/50Hz interlace signals.

• The component video terminals on your DVD player are sometimes labeled Y/CB/CR,

Y/PB/PR, Y/Cb/Cror Y/B-Y/R-Y.

•If you select “DVD” on your TV screen, the signal from the T(monitor output) jacks

will not be output properly. This does not indicate a malfunction.

VCR DVD Player

Antenna

cable Audio/Video

cable

(MONO)

WEGA

PROG

GATE

(MONO)

DVD Player

VCR

Audio

System

Audio

cable

Component

Video cable

Audio/

Video

cable

01GB04INS-SOEMAfr.p65 12/1/06, 12:12 PM6

Black

Sony KV-AW21M50 Group B45 (GB, CT)_2-889-131-12 (1)

7GB

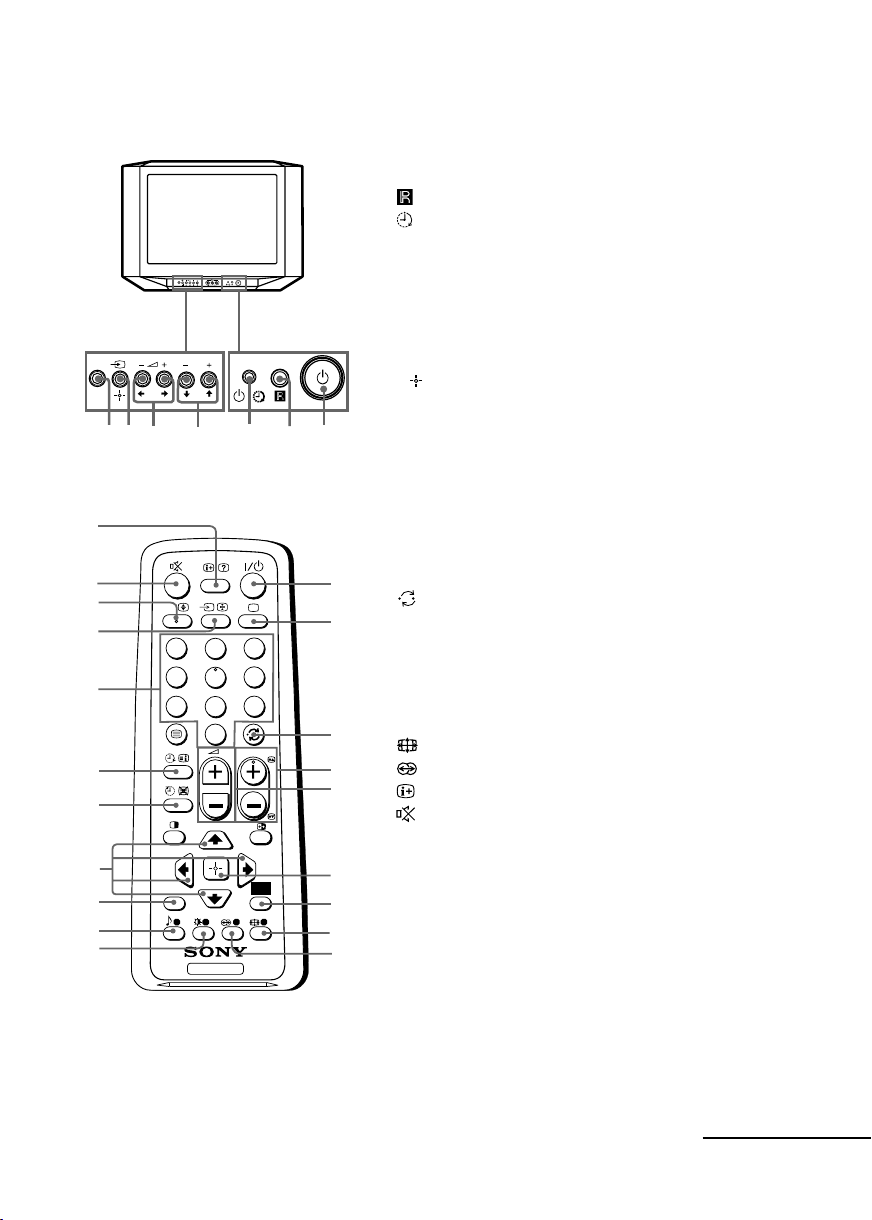

xTV buttons and remote control

11Turn off or turn on the TV.

2Remote control sensor.

3Wake Up indicator.

31Standby indicator.

4PROG +/– Select program number.

52+/– Adjust volume.

6tSelect TV or video input.

WEGA GATE menu operations (see page 9)

4,5V,v,B,bSelect or adjust items.

6Confirm selected items.

7WEGA GATE Display or cancel WEGA GATE menu.

123

789

PROG

A/B

RETURN

WEGA

GATE

1?/1Turn off temporarily or turn on the

TV.

2aDisplay the TV program.

3Jump to last program number that

has been watched for at least five

seconds.

4PROG +/– Select program number. To select

quickly, press and hold until the

desired program number appears.

52+/– Adjust volume.

8Not function for your TV.

9Not function for your TV.

0Display on-screen information.

qa Mute the sound.

qs A/B Not function for your TV.

qd tSelect TV or video input.

qf 0-9 Input numbers. For program numbers

10 and above, enter the second

digit within two seconds.

(MONO)

WEGA

PROG

GATE

PROG

WEGA

GATE

432

567

continue

01GB05INS-SOEMAfr.p65 12/1/06, 1:49 PM7

Black

Sony KV-AW21M50 Group B45 (GB, CT)_2-889-131-12 (1)

8GB

TV buttons and remote control (continued)

ql Not function for your TV.

w; Select picture mode options: “Vivid”, “Standard”, “Custom”*

(see page 10).

*When the “Custom” mode is selected, you can receive the last adjusted

picture settings from the “Picture Adjustment” option in the menu.

WEGA GATE menu operations (see page 9)

6Confirm selected items.

7WEGA GATE Display or cancel WEGA GATE menu.

qj V, v,B,b Select or adjust items.

qk RETURN Return to the previous level.

Timer operations

qg Set TV to turn on automatically according to the desired period of time

(Wake Up Timer) (max. of 12 hours). The indicator on TV lights up amber once you set

the wake up timer. If no buttons or controls are pressed for more than

one hour after the TV is turned on using the wake up timer, the TV

automatically goes into standby mode.

qh Set TV to turn off automatically according to the desired period of time

(Sleep Timer) (max. of one hour and 30 min.).

Teletext operations (green icon)

, , , ,

Not function for your TV.

, , , ,

(red, green,

yellow, blue)

PIP operations

, , V, v,B, bNot function for your TV.

01GB05INS-SOEMAfr.p65 12/1/06, 1:49 PM8

Black

Sony KV-AW21M50 Group B45 (GB, CT)_2-889-131-12 (1)

9GB

Confirm

Select

End

Confirm

Select

End

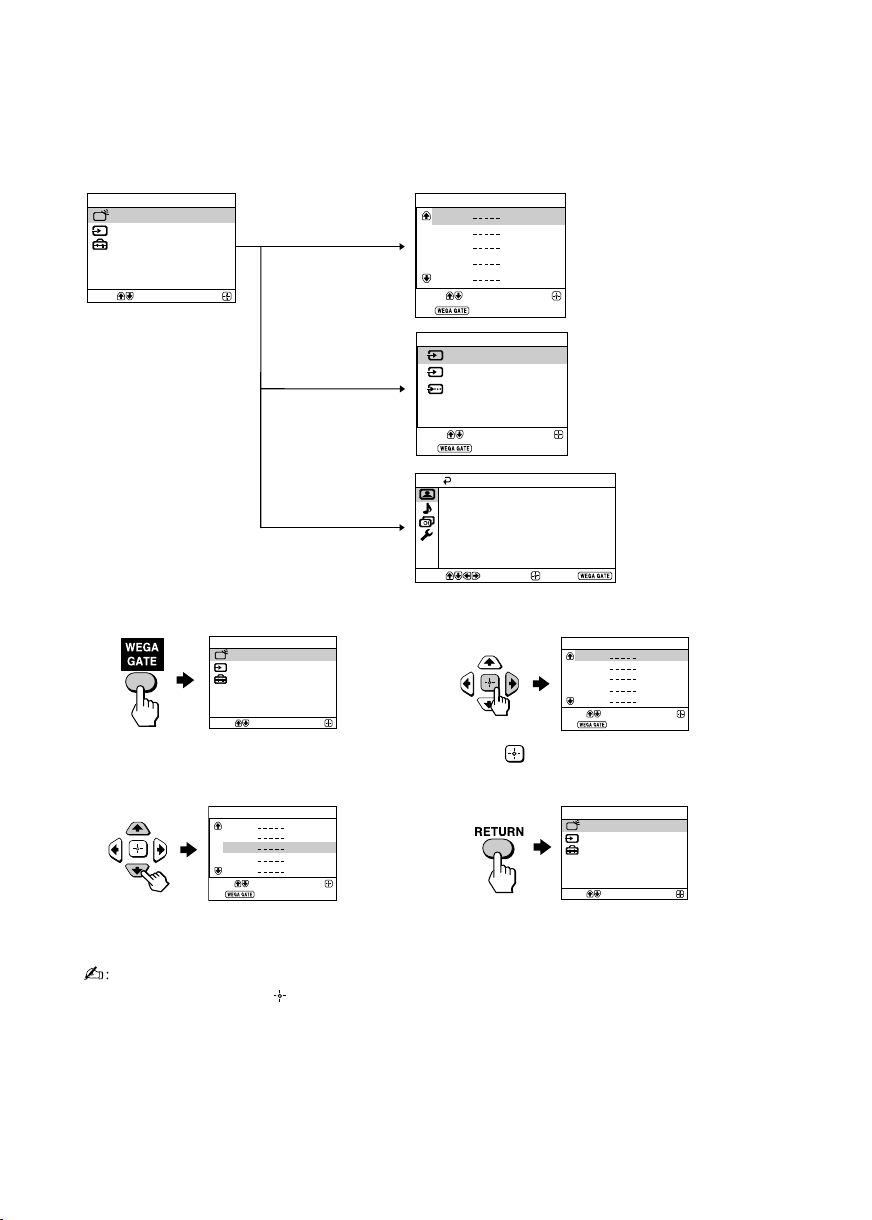

xWEGA GATE navigator

WEGA GATE is a gateway that allows you access to preset TV channels,

connected external inputs and “Settings” menu.

watch the preset TV

channels (see page 5)

select the inputs for the

connected equipment

(see page 6)

change the settings

of your TV (see

page 10–14)

How to use WEGA GATE

(1) Press WEGA GATE to display or cancel

the WEGA GATE menu.

Confirm

Select

WEGA GATE

Settings

External Inputs

(2) Press (or b) to confirm your selection

or go to the next level.

(4) Press RETURN to move to the previous

level.

(3) Press V or vto select the desired item.

“TV”

“External Inputs”

“Settings”

Confirm

Select

WEGA GATE

Settings

External Inputs

•When a feature is dimmed in the menu, it is not selectable.

•The WEGA GATE, and V,v,B,bbuttons on the front panel can also be used for

the operations above.

Confirm

Select

WEGA GATE

Settings

External Inputs

Confirm

Select

End

External Inputs

Confirm

Select

End

Video 1

DVD

Video 2

Confirm End


Color Temperature: Cool

Picture Adjustment

Picture Mode: Vivid

Intelligent Picture: On

Signal Level Indicator: On

Select

01GB06AVD-SOEMAfr.p65 12/1/06, 1:50 PM9

Black

Sony KV-AW21M50 Group B45 (GB, CT)_2-889-131-12 (1)

10 GB

Confirm End


Color Temperature: Cool

Picture Adjustment

Picture Mode: Vivid

Intelligent Picture: On

Signal Level Indicator: On

Select

x“Picture” setting

Press WEGA GATE and select “Settings”.

Make sure the “Picture” icon ( ) is selected,

then press .

“Picture Mode” Choose either “Vivid” (bright, contrast and sharp),

“Standard” (normal) or “Custom”*.

“Color Temperature” Adjust white color tint.

Choose either “Cool” (blue tint), “Neutral” (neutral tint) or

“Warm” (red tint).

“Intelligent Picture” Optimize picture quality.

Press Vor vto select “On”, then press .

To cancel, select “Off”, then press .

“Signal Level Indicator” Display the signal level when the “Intelligent Picture” is

functioning.

“Intelligent Picture Signal Level” indicator will be displayed,

followed by picture improvement when you change the

program number or the input mode.

red amber green

(weak) (average) (good)

Press Vor vto select “On”, then press .

To cancel, select “Off”, then press . “Intelligent Picture” is

still functioning.

*You can adjust the setting to your personal preference in the “Picture Adjustment” and

“Color Temperature” options only when the “Custom” mode is selected.

Adjusting the “Picture Adjustment” items under “Custom”

mode

1Press Vor vto select either “Picture” (contrast), “Brightness”, “Color”,

“Hue” (color tones) or “Sharpness”, then press .

Selecting “Reset” will set your TV to the factory settings.

2Press V,v,B or bto adjust the setting of your selected item, then press .

3Repeat the above steps to adjust other items.

The adjusted settings will be received when you select “Custom”.

•“Hue” can be adjusted for the NTSC color system only.

•Reducing “Sharpness” can also reduce picture noise.

01GB06AVD-SOEMAfr.p65 12/1/06, 1:50 PM10

Black

Otros manuales para Trinitron WEGA KV-AW21

Tabla de contenidos

Otros manuales de TELEVISOR de Sony

Sony

Sony Trinitron KV-29RS26C Manual de usuario

Sony

Sony Bravia KD-55X8 K Series Manual de usuario

Sony

Sony BRAVIA KDL-49W757E Manual de usuario

Sony

Sony KV-32FQ80B Manual de usuario

Sony

Sony BRAVIA XR-75Z9K Manual de usuario

Sony

Sony Trinitron CPD-E400 Manual de usuario

Sony

Sony Trinitron KV-14M1A Manual de usuario

Sony

Sony BRAVIA XBR-75Z8H Manual de usuario

Sony

Sony KDL-32EX301 - 32" Class Bravia Ex301 Hdtv Manual de usuario

Sony

Sony FD Trinitron KV-24LS35U Manual de usuario

Sony

Sony KDL-40HX800 - 40" Bravia Hx800 Led Backlit Lcd... Manual de usuario

Sony

Sony Trinitron Manual de usuario

Sony

Sony BRAVIA KDL-40E55 Series Manual de usuario

Sony

Sony BRAVIA KDL-40W700C Manual de usuario

Sony

Sony XR-65A83K Manual de usuario

Sony

Sony Trinitron KV-37XBR48M Manual de usuario

Sony

Sony KV-G21F2 Manual de usuario

Sony

Sony BRAVIA KD-49X9000G Manual de usuario

Sony

Sony TRINITRON KV-34FV310 Manual de usuario

Sony

Sony TRINITRON KV-PG14P70 Manual de usuario

Sony

Sony KV-25TH Trinitron Manual de usuario

Sony

Sony FD Trinitron WEGA KV-28CS70K Manual de usuario

Sony

Sony KDL-32BX400 Manual de usuario

Sony

Sony KDF-42WE655 - 42" Grand Wega™ Integrated Lcd Rear Projection... Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
