Sony Trinitron KV-XG29 Manual de usuario

Trinitron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and

retain it for future reference.

KV-XG29

KV-XA21

M30

M21

4-080-391-42 (1)

WARNING

• Dangerously high voltages are present inside the TV.

• Operate the TV only between 220 – 240 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are

present inside the TV. Refer servicing and

disposal of the TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture or

vibrations.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto

it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Do not place any objects on the TV.

Using Your New TV

Table of Contents

Using Your New TV

Getting Started ............................................................................................. 4

Step 1: Connect the antenna ................................................................... 4

Step 2: Insert the batteries into the remote ........................................... 5

Step 3: Preset the channels automatically ............................................. 5

Connecting optional components ............................................................. 6

Securing the TV ............................................................................................ 8

Presetting channels ...................................................................................... 9

Watching the TV ........................................................................................ 12

Advanced Operations

Customizing the picture and sound ....................................................... 15

Viewing your favorite channels ............................................................... 18

Blocking the channels (CHILD LOCK) .................................................. 19

Enjoying stereo or bilingual programs

(KV-XA21M30 only) .................................................................................. 20

Viewing Teletext (KV-XG29M21 only) .................................................... 22

Additional Information

Self-diagnosis function .............................................................................. 24

Troubleshooting ......................................................................................... 25

Overview of controls ................................................................................. 28

Specifications .............................................................................. Back cover

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

Install the TV on a stable TV stand and floor

which can support the TV set weight. Ensure that

the TV stand surface is flat and its area is larger

than the bottom area of the TV.

WARNING (continued)

Using Your New TV

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the Connecting a VCR diagram below.

Using Your New TV

IEC connector

(not supplied)

To video

and audio

outputs

(yellow)

-L (MONO)(white)

-R (red)

Audio/Video cable (not supplied)

Rear of TV

Connecting a VCR

To watch the video input, press t(see page 13).

KV-XG29M21

: Signal flow

or Antenna cable

(not supplied)

Antenna cable

(not supplied)

(yellow)

-L (MONO)(white)

-R (red)

To video

and audio

outputs Audio/Video cable (not supplied)

To t1 (video input)

To 8(antenna)

To antenna output

: Signal flow

VCR

KV-XA21M30

Antenna cable (not supplied)

To antenna output

VCR

1 or 2 (video input)

Rear of TV

To 8(antenna)

L(MONO)

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

VIDEO IN

VIDEO OUT

VIDEO

AUDIO

Using Your New TV 5

Using Your New TV

Step 2

Note

• Do not use old batteries nor use different types of batteries together.

Front of TV

Notes

• If you connect a monaural VCR, connect the yellow plug to (the

yellow jack) and the black plug to -L (MONO) (the white jack).

• If you connect a VCR to the 8(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

• When no signal is input from the connected video equipment, the TV

screen becomes blue.

KV-XG29M21 only

• Do not connect video equipment to the t2 (video input) jacks at the

front and the rear of your TV at the same time; otherwise the picture will

not be displayed properly on the screen.

CAUTION

• Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through

the antenna and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries

from the remote if you are not going to use it for several days. If any

liquid that leaks from the batteries touches you, immediately wash it

away with water.

Insert the batteries

into the remote

Step 3

Preset the channels automatically

Tips

• If you want to stop automatic channel presetting, press SELECT twice.

• If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 10).

Note (KV-XG29M21 only)

• During automatic channel presetting, your TV screen will indicate

“B/G” , “I”, “D/K” or “M” for the TV system.

AUTO

PROGR

VHF LOW AUTO

L(MONO) R

PROGR

SELECT AUTO

PROGR

Using Your New TV

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

camcorder, video game or stereo system.

To watch the video input of the connected equipment, press t(see page 13).

Connecting a camcorder/video game equipment

using the t(video input) jacks

Notes

KV-XA21M30 only

• You can also connect video equipment to the t1 (video input) jack at

the rear of your TV.

KV-XG29M21 only

• You can also connect video equipment to the t1 or 2 (video input) jacks

at the rear of your TV.

• Do not connect video equipment to the t2 (video input) jacks at the

front and the rear of your TV at the same time; otherwise the picture will

not be displayed properly on the screen.

Connecting audio/video equipment using the T

(monitor output) jacks

KV-XG29M21

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

: Signal flow

To t2

(video input)

Audio/Video cable (not supplied)

(yellow)

-L (MONO)

(white)

-R (red)

Rear of TV

antenna

output

To video and

audio inputs

Audio system

audio

inputs

VCR

: Signal flow

Antenna cable (not supplied)

Audio/Video cable

(not supplied)

L(MONO)R

L(MONO) R

PROGR

SELECT AUTO

PROGR

To T

(monitor

output)

Using Your New TV 7

Using Your New TV

Note

• If you connect a monaural VCR, connect the yellow plug to (the yellow

jack) and the black plug to -L (MONO) (the white jack).

KV-XA21M30

(yellow)

-L (MONO)

(white)

-R (red)

Rear of TV To

antenna

output

To video and

audio inputs

Audio system

audio

inputs

VCR

: Signal flow

To T

(monitor output)

Antenna cable (not supplied)

Audio/Video cable (not supplied)

L(MONO)

Using Your New TV

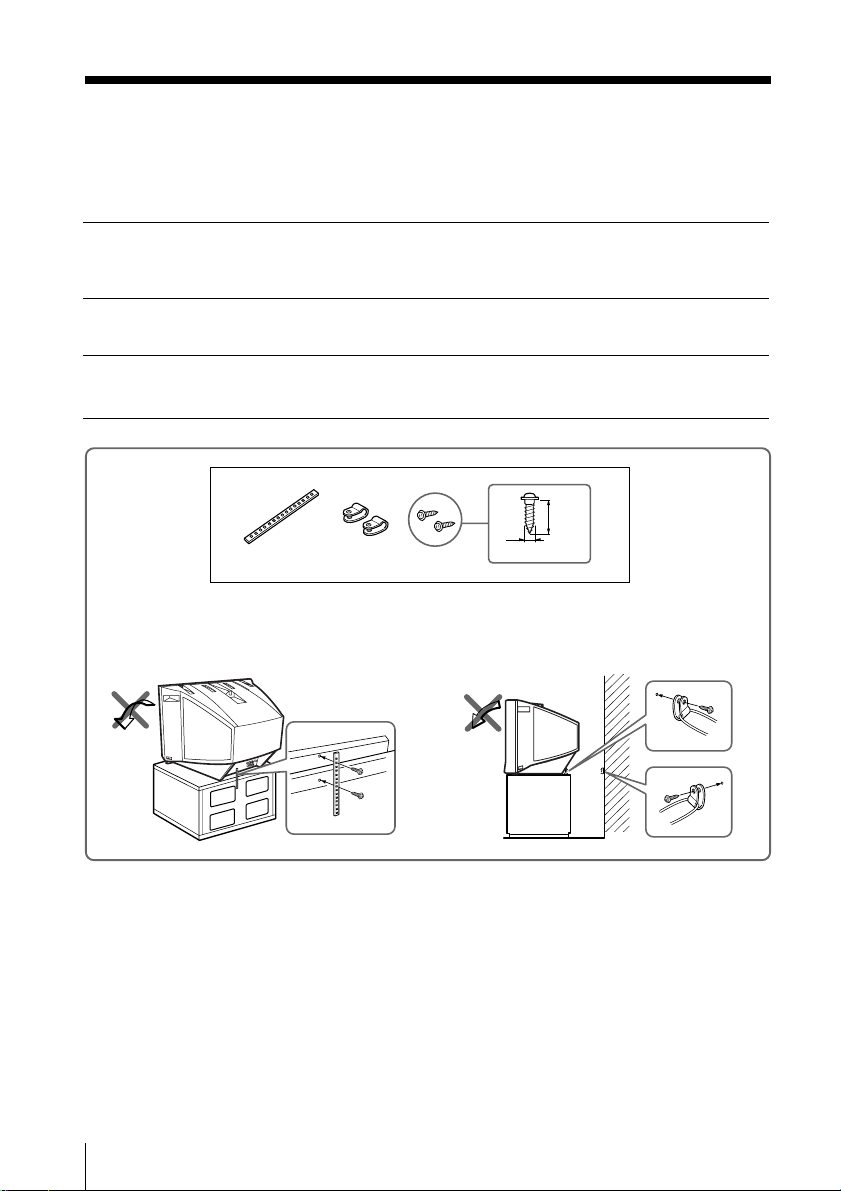

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

AWith the supplied screws, attach the band to the TV stand and to the rear of

the TV using the provided hole.

BPut the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

3.8 mm

Using Your New TV

Presetting

channels

You can preset up to 100 TV channels in

numerical sequence from program

number 1 using the remote and the

buttons on your TV as well.

Presetting channels automatically

1Press !to turn on the TV.

2Press AUTO PROGR.

Note (KV-XG29M21 only)

• During automatic channel presetting, your TV screen will indicate “B/G” ,

“I”, “D/K” or “M” for the TV system.

To preset channels automatically from a specified program number

(1) Press SELECT until “AUTO PROGRAM” appears.

(2) Press + or –.

The on-screen display will start flashing.

(3) Press PROGR +/– or the number buttons until the desired program number

appears.

(4) Press + or –.

L(MONO) R

PROGR

SELECT AUTO

PROGR

AUTO

PROGR

continued

123

789

JUMP

SOUND

MODE

FAVORITE

PROGR

VHF LOW AUTO

Number buttons

~/1

SELECT

2+/–

PROGR +/–

+ or –

PIC MODE

Using Your New TV

Presetting channels manually

1Press SELECT until

“MANUAL PROGRAM”

appears.

2Press + or –.

3Press PROGR +/– or the

number buttons until the

desired program number

appears.

4Press + or – until the

desired channel picture

appears.

5Press SELECT.

Note

• If you preset a locked program number, that particular program number

will be unlock automatically (see page 19).

To change the TV system setting

If the picture or sound is abnormal when receiving programs through the 8(antenna)

terminal

(1) Press SELECT until “TV SYS” appears.

(2) Press + or – to select the appropriate

TV system until the picture or sound

quality is optimal.

Presetting channels (continued)

MANUAL PROGRAM

SELECT

VHF LOW B/G

123

456

-/--

PROGR

SELECT

B/G I D/K M

TV SYS: B/G

Otros manuales para Trinitron KV-XG29

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Sony

Sony

Sony BRAVIA Z9J Manual de usuario

Sony

Sony Trinitron KV-28DS20U Manual de usuario

Sony

Sony HMD-A440 Manual de usuario

Sony

Sony BRAVIA KDL-32L4000 Manual de usuario

Sony

Sony BRAVIA KDL-40W700C Manual de usuario

Sony

Sony Trinitron KV2095R Manual de usuario

Sony

Sony Bravia XR-75X90J Manual de usuario

Sony

Sony Wega KV-HS38 Manual de usuario

Sony

Sony Bravia XR-85Z9J Manual de usuario

Sony

Sony BRAVIA XBR-75X940E Manual de usuario

Sony

Sony KDL-32S20L1 - 32" Bravia Lcd Digital Color... Manual de usuario

Sony

Sony Bravia XBR-65X950B Manual de usuario

Sony

Sony KV-XA21M80 Manual de usuario

Sony

Sony BRAVIA KD-85X8007H Manual de usuario

Sony

Sony KV-36FV300 - 36" Trinitron Wega Manual de usuario

Sony

Sony Trinitron KV-13TR28 Manual de usuario

Sony

Sony FD Trinitron KV-34FQ75 D Manual de usuario

Sony

Sony BRAVIA 65X8 L Series Manual de usuario

Sony

Sony Trinitron GDM-F400T9 Manual de usuario

Sony

Sony Bravia KD-55X7007E Manual de usuario

Sony

Sony TRINITRON KV-T21MN8 Manual de usuario

Sony

Sony KV-13TR14 Manual de usuario

Sony

Sony Trinitron KV-XA29M60 Manual de usuario

Sony

Sony Trinitron KD-28DX51U Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
