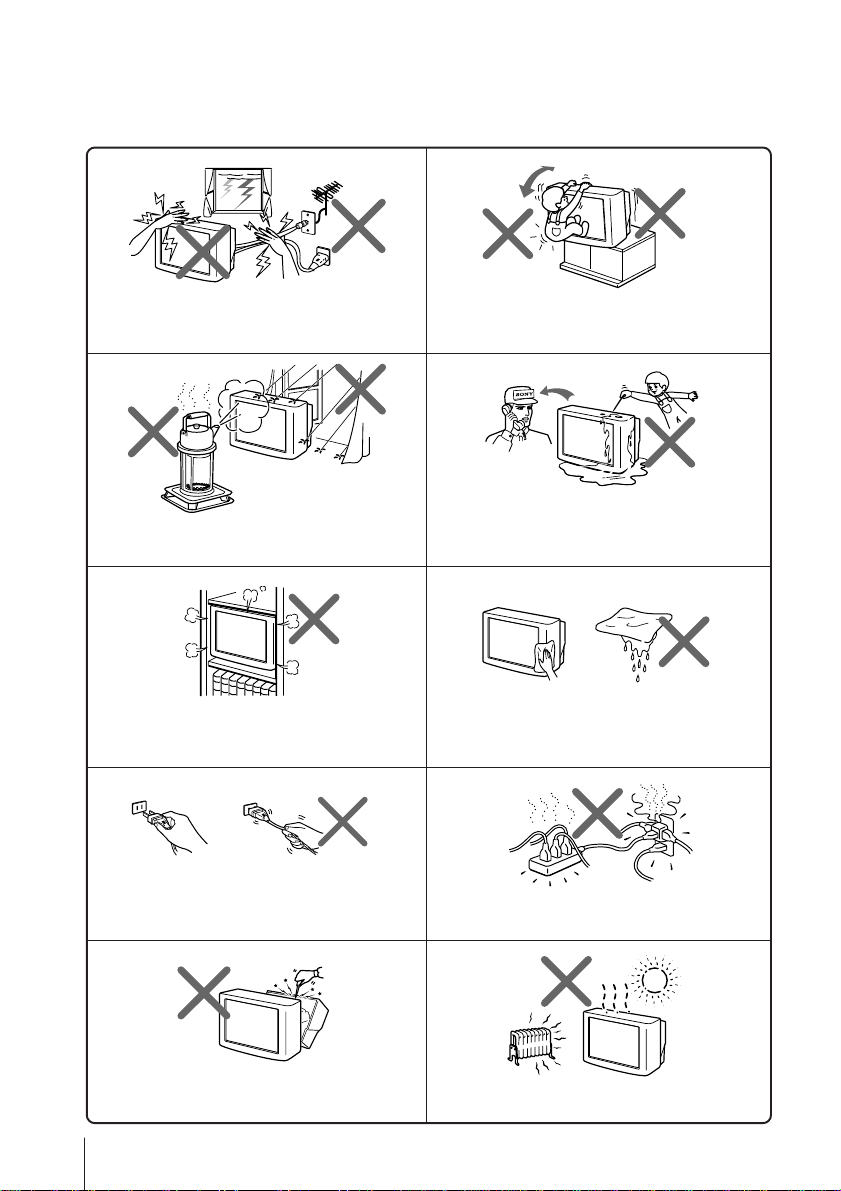

WARNING

• Dangerously high voltages are present inside the TV.

• Operate the TV only between 110 – 240 V AC. (For Hong Kong only: 220 – 240 V AC).

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV. Refer servicing to qualified personnel. Do not install the TV in hot, humid or excessively

dusty places.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not block the ventilation openings of the TV.

Pull the power cord out by the plug. Do not pull

the power cord itself. Disconnect the TV if you

are not going to use it for several days.

Install the TV in a stable position. Do not allow

children to climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Using Your New TV

Advanced Operations

Customizing the picture and sound .......................................................14

Viewing your favorite channels...............................................................16

Blocking the channels (CHILD LOCK) ..................................................17

Enjoying stereo or bilingual programs (KV-XG29M90 only) ..............18

Additional Information

Self-diagnosis function..............................................................................20

Troubleshooting .........................................................................................21

Identifying parts and controls .................................................................24

Specifications.............................................................................. Back cover

The features you will enjoy include:

• “FAVORITE CH” for quick and easy channel selection (page 16)

• “PICTURE MODE”/“SOUND MODE”/“SURROUND” for customizing your TV

(pages 14, 15)

Your TV also offers the following setup features:

• On-screen display language options – English/Chinese (page 12)

• “CHILD LOCK” for preventing children from watching certain channels (page 17)

• “INTELLIGENT VOL” for automatic volume adjustment (page 12)

• “PIC ROTATION” for picture position adjustment (page 12)

Table of Contents

WARNING

Using Your New TV

Getting Started ............................................................................................. 4

Step 1: Connect the antenna .................................................................. 4

Step 2: Insert the batteries into the remote.......................................... 5

Step 3: Preset the channels automatically ........................................... 5

Connecting optional components ............................................................. 6

Securing the TV............................................................................................ 7

Presetting channels...................................................................................... 8

Watching the TV ........................................................................................11

Using Your New TV

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.

Using Your New TV

IEC connector

(not supplied)

To video and

audio outputs

VCR

(yellow)

-L (MONO)

(white)

-R (red)

Antenna cable (not supplied)

Audio/Video cable

(not supplied)

To antenna

output

Rear of TV

Connecting a VCR

To watch the video, press …(see page 12).

: Signal flow

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

To ˘

(antenna)

To …1 or 2

(video input)

: Signal flow

CAUTION

Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

Antenna cable (not supplied)

Using Your New TV

AUTO

PROGR

VHF LOW AUTO

Front of TV

Step 3

Preset the channels automatically

Tips

• If you want to stop automatic channel presetting, press SELECT twice.

• If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 9).

Note (KV-XG29M80/XG29M50 only)

• During automatic channel presetting, your TV screen will indicate “B/G” ,

“I”, “D/K” or “M” for the TV system.

Notes

• If you connect a monaural VCR, connect the yellow plug to (the yellow

jack) and the black plug to -L (MONO) (the white jack).

• If you connect a VCR to the ˘(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

• Do not connect video equipment to the …2 (video input) jacks at the

front and the rear of your TV at the same time; otherwise the picture will

not be displayed properly on the screen.

• When no signal is input to the connected video equipment, the TV screen

becomes blue.

Insert the batteries

into the remote

Step 2

Note

• Do not use old batteries nor use different types of batteries together.

Using Your New TV

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

camcorder, video game or stereo system.

To watch the picture of the connected equipment, press …(see page 12).

Connecting a camcorder/video game equipment

using the …(video input) jacks

Notes

• You can also connect video equipment to the …1 or 2 (video input) jacks

at the rear of your TV.

• Do not connect video equipment to the …2 (video input) jacks at the

front and the rear of your TV at the same time; otherwise the picture will

not be displayed properly on the screen.

Connecting audio/video equipment using the Ú

(monitor output) jacks

Note

• When connecting a monaural VCR, connect the yellow plug to (the

yellow jack) and the black plug to -L (MONO) (the white jack).

(MONO)

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

(yellow)

-L (MONO)

(white)

-R (red)

Rear of TV

antenna

output

To video and

audio inputs

Audio system

audio

inputs

VCR

: Signal flow

To…2

(video input)

To Ú

(monitor

output)

Audio/Video cable (not supplied)

Antenna cable (not supplied)

Audio/Video cable

(not supplied)

Using Your New TV

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

AWith the supplied screws, attach the band to the TV stand and to the rear of

the TV using the provided hole.

BPut the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

3.8mm

Using Your New TV

Presetting

channels

You can preset up to 100 TV channels in

numerical sequence from program

number 1 using the remote and the

buttons on your TV as well.

Presetting channels automatically

1Press Uto turn on the TV.

2Press AUTO PROGR.

Note (KV-XG29M80/XG29M50 only)

• During automatic channel presetting, your TV screen will indicate “B/G” ,

“I”, “D/K” or “M” for the TV system.

To preset channels automatically from a specified program number

(1) Press SELECT until “AUTO PROGRAM” appears.

(2) Press + or –.

The on-screen display will start flashing.

(3) Press PROGR +/– or the number buttons until the desired program number

appears.

(4) Press + or –.

123

789

÷0

JUMP

SOUND

MODE

FAVORITE

PROGRÁ

Number buttons

SELECT

.+/–

PROGR +/–

+ or –

PIC MODE

VHF LOW AUTO

AUTO

PROGR

Using Your New TV

123

456

-/--

PROGR

Presetting channels manually

1Press SELECT until

“MANUAL PROGRAM”

appears.

2Press + or –.

3Press PROGR +/– or the

number buttons until the

desired program number

appears.

4Press + or – until the

desired channel picture

appears.

5Press SELECT.

Note

• If you preset a locked channel, that particular channel will be unlocked

automatically (page 17).

To change the TV system setting

If the picture or sound is abnormal when receiving programs through the

(antenna)

terminal

(1) Press SELECT until “TV SYS” appears.

(2) Press + or – to select the appropriate

TV system until the picture or sound

quality is optimal.

B/G I D/K M

VHF LOW B/G

TV SYS: B/G

continued

MANUAL PROGRAM

SELECT

Using Your New TV

To change the color system setting

If the color is abnormal when receiving programs through the

(antenna) terminal

or the

…

(video input) jack.

(1) Press SELECT until “COLSYS” appears.

(2) Press + or – to select the appropriate

color system until the color is

optimal.

Tip

• Normally set “COL SYS” to “AUTO”.

Skipping program numbers

1Press PROGR +/– or the number buttons until the unused or unwanted

program number appears.

2Press SELECT until “MANUAL PROGRAM” appears.

3Press + or –.

4Press PIC MODE.

5Press SELECT.

To preset the skipped program number again

Preset the channel automatically or manually.

Tip

• You can also use SELECT and ¸+/– on the TV to preset channels and

skip program numbers.

To use the fine tuning (FINE) function

The fine tuning (FINE) function may help to reduce the following problems: double

images and lines moving across the TV screen.

You can use the fine tuning function as below:

(1) Select the program number you want to adjust.

(2) Press SELECT until “MANUAL PROGRAM” appears on the screen.

(3) Press + or – on the remote control once.

(4) Press to display “FINE” on the screen.

(5) Press + or – continuously until the above problems are minimized.

The + or – icon on the screen flashes while tuning.

(6) Press SELECT to return to normal screen.

Presetting channels (continued)

COL SYS: AUTO

AUTO PAL SECAM

NTSC 3.58NTSC 4.43

Otros manuales para Trinitron KV-XG29

Tabla de contenidos

Otros manuales de TELEVISOR de Sony

Sony

Sony BRAVIA KDL-50W900B Manual de usuario

Sony

Sony KV-27XBR25 - 27" Xbr Monitor/receiver Manual de usuario

Sony

Sony KLV-32M1 - 32" Lcd Wega Color Tv Guía de inicio rápido

Sony

Sony Bravia KDL-40R48xB Manual de usuario

Sony

Sony KDL-50W82xB Manual de usuario

Sony

Sony KD-34XBR2 - 34" Hdtv Fd Trinitron Wega Manual de usuario

Sony

Sony KDL-32BX400 Manual de usuario

Sony

Sony KD-75X8500D Manual de usuario

Sony

Sony Bravia KDL-32EX727 Manual de usuario

Sony

Sony KDF-E50A10 Manual de usuario

Sony

Sony BRAVIA A90K Manual de usuario

Sony

Sony KV-1460R Manual de usuario

Sony

Sony BRAVIA KDL-32R420A Manual de usuario

Sony

Sony KE-50XS910 - 50" Flat Panel Color Tv Manual de usuario

Sony

Sony Bravia XR-75X9 J Series Manual de usuario

Sony

Sony Trinitron KV-27EXR95 Manual de usuario

Sony

Sony BRAVIA X89J Manual de usuario

Sony

Sony Trinitron KV-AR29 Manual de usuario

Sony

Sony KD-34XBR960 Instructions: TV stand Manual de usuario

Sony

Sony Trinitron KV-27V22 Manual de usuario

Sony

Sony Trinitron Wega KV-SW212M85 Manual de usuario

Sony

Sony TRINITRON KV-8AD12 Manual de usuario

Sony

Sony Trinitron KV-PF21 Manual de usuario

Sony

Sony BRAVIA KLV-40R352E Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
