• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

Trinitron Color TV

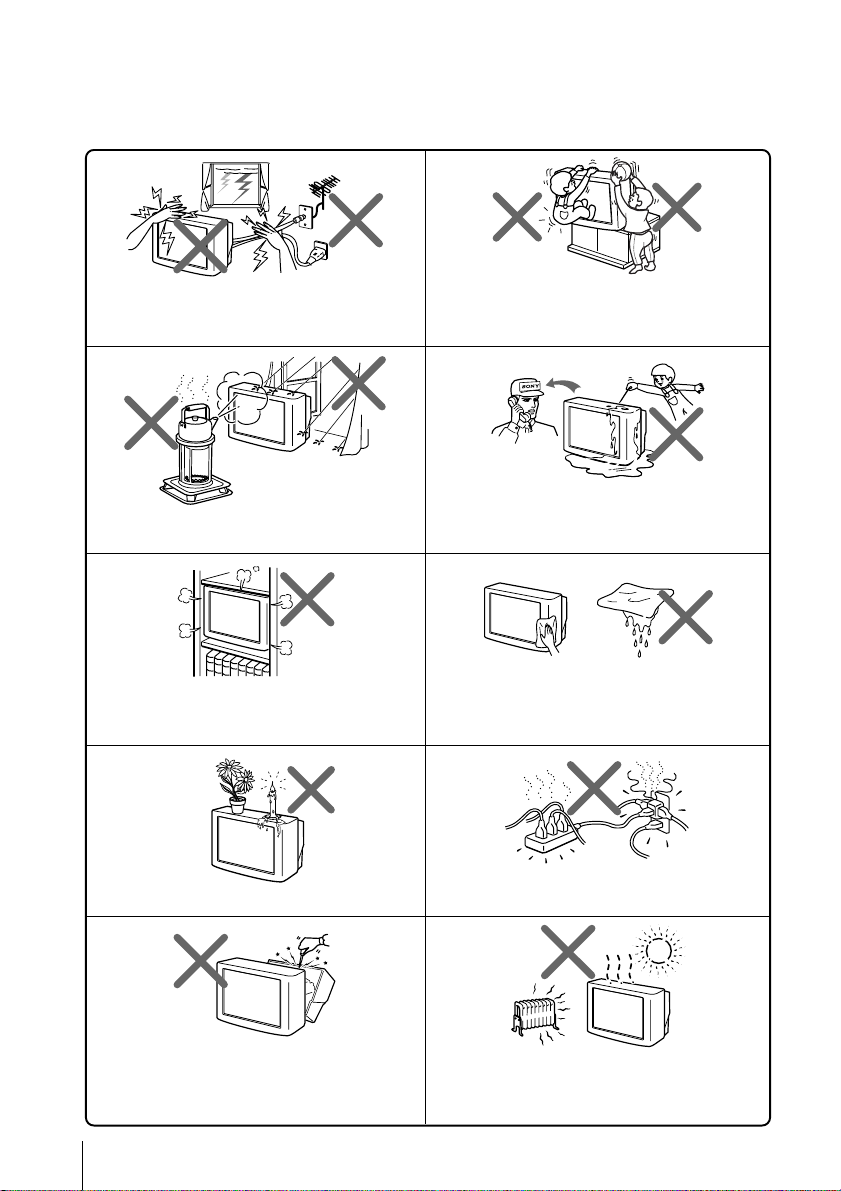

WARNING

•Dangerously high voltages are present inside the TV.

•TV operating voltage: 110-240 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are

present inside the TV. Refer servicing and

disposal of the TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture or

vibrations.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

For children’s safety, do not leave children

alone with the TV. Do not allow children to

climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Do not place any objects on the TV.

Using Your New TV

Table of Contents

Using Your New TV

Getting Started ............................................................................................. 4

Step 1: Connect the antenna ................................................................. 4

Step 2: Insert the batteries into the remote ......................................... 5

Step 3: Preset the channels automatically........................................... 5

Connecting optional components ............................................................. 6

Securing the TV ............................................................................................ 9

Presetting the channels manually ........................................................... 10

Watching the TV ........................................................................................ 11

Advanced Operations

Selecting the picture and sound

modes ..................................................14

Viewing your favorite channels ....... 15

Listening with surround sound .......16

Enjoying stereo or bilingual

programs .............................................17

Adjusting Your Setup (MENU)

Introducing the menu system .......... 18

Changing the “PICTURE”setting

...20

Changing the “SOUND”setting

..... 22

WARNING (continued)

Changing the “SETUP”setting ....

Changing the channel preset

(“CH PRESET”) setting ...............26

Additional Information

Self-diagnosis function......................27

Troubleshooting .................................28

Overview of controls ......................... 31

Specifications ...................... Back cover

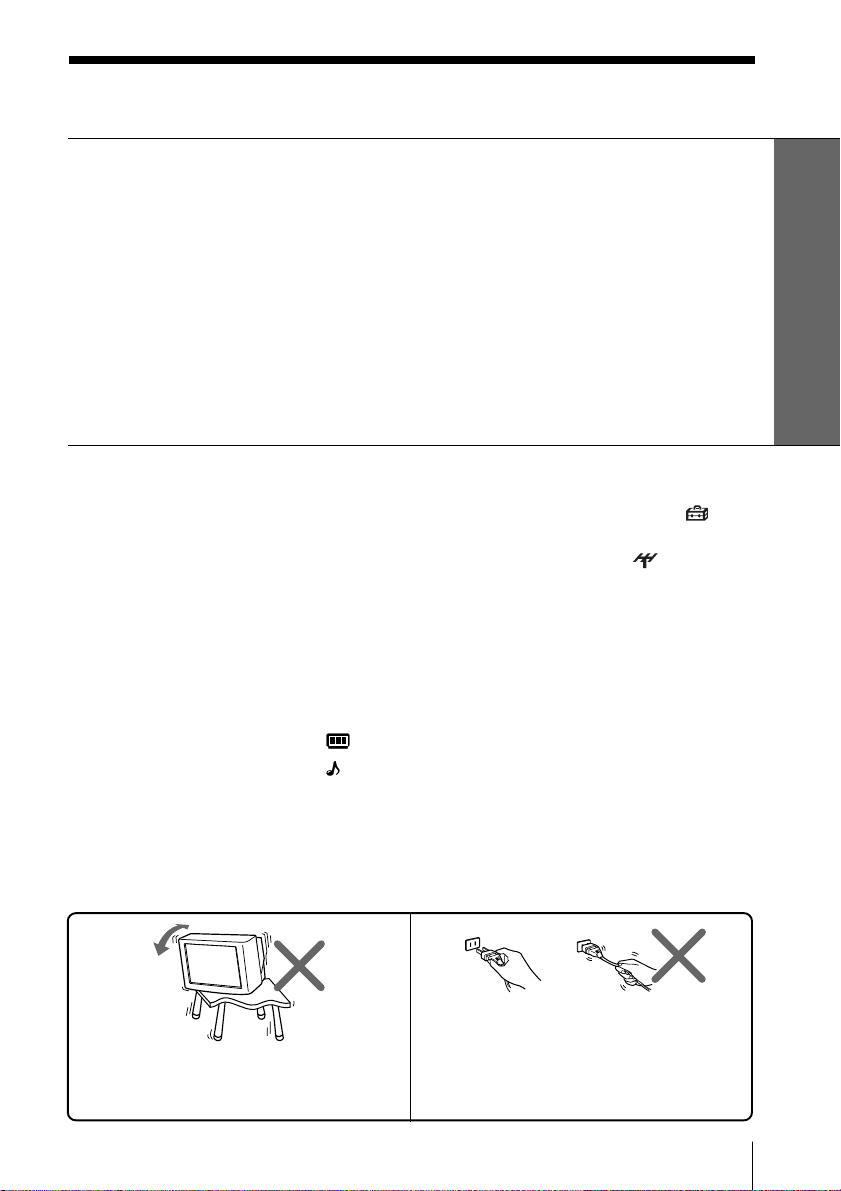

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

Install the TV on a stable TV stand and floor

which can support the TV set weight. Ensure that

the TV stand surface is flat and its area is larger

than the bottom area of the TV.

4Using Your New TV

Using Your New TV

Getting Started

CAUTION

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through

the antenna and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries

from the remote if you are not going to use it for several days. If any

liquid that leaks from the batteries touches you, immediately wash it

away with water.

Step 1

Connect the antenna

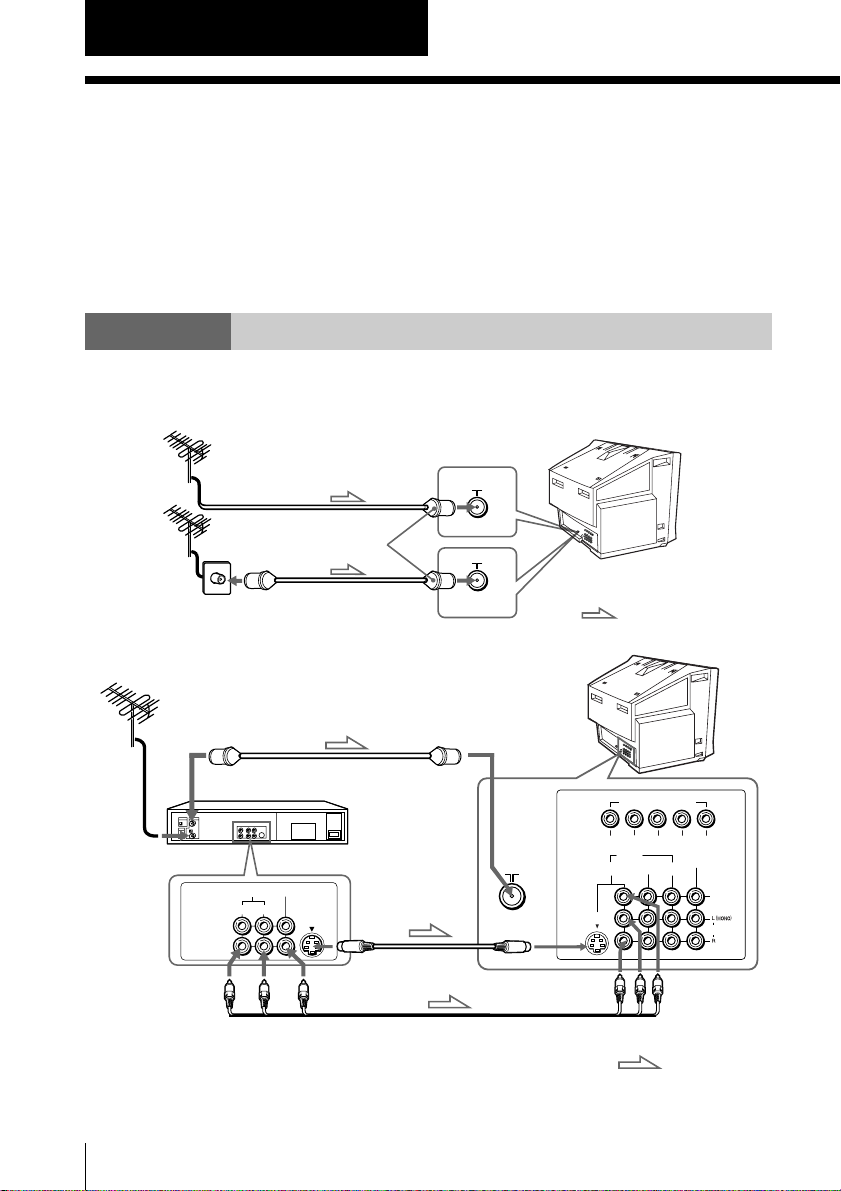

If you wish to connect a VCR, see the Connecting a VCR diagram below.

Connecting a VCR

To watch the video input, press VIDEO (see page 12).

Tip

•With the “VIDEO MULTI SYSTEM”input terminal, you can also receive

PAL, NTSC and SECAM video signals when using the VIDEO IN 1, 2 or 3

jacks, or the VIDEO 3 INPUT jacks at the front of your TV.

: Signal flow

or Antenna cable (not supplied)

Antenna cable (not supplied)

Rear of TV

F connector

(not supplied)

To video and

audio outputs

S video output

Audio/Video cable

(not supplied) : Signal flow

To S VIDEO

input

VCR

Antenna cable (not supplied)

To antenna

output

Rear of TV

VIDEO (yellow)

AUDIO-L (MONO) (white)

AUDIO-R (red)

To VIDEO IN

1, 2, or 3

S video cable

(not supplied)

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

R L

123

RLYC

COMPONENT VIDEO(DVD) IN

AUDIO

VIDEO

IN MONITOR

OUT

S VIDEO

To 8

(antenna)

Using Your New TV

Notes

•If you connect a monaural AUDIO VCR, connect the yellow plug to

VIDEO (the yellow jack) and the black plug to AUDIO-L (MONO)

(the white jack).

•If you connect a VCR to the 8(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

•When both the S VIDEO and VIDEO IN 1 input are connected, the

S VIDEO input is automatically selected. To view the video input to

VIDEO IN 1, disconnect the S video cable.

•Do not connect video equipment to the VIDEO 3 INPUT jacks at the front

and VIDEO IN 3 (video input) jack at the rear of your TV at the same time;

otherwise the picture will not be displayed properly on the screen.

•When no signal is input from the connected video equipment, the TV

screen becomes blue.

Step 2

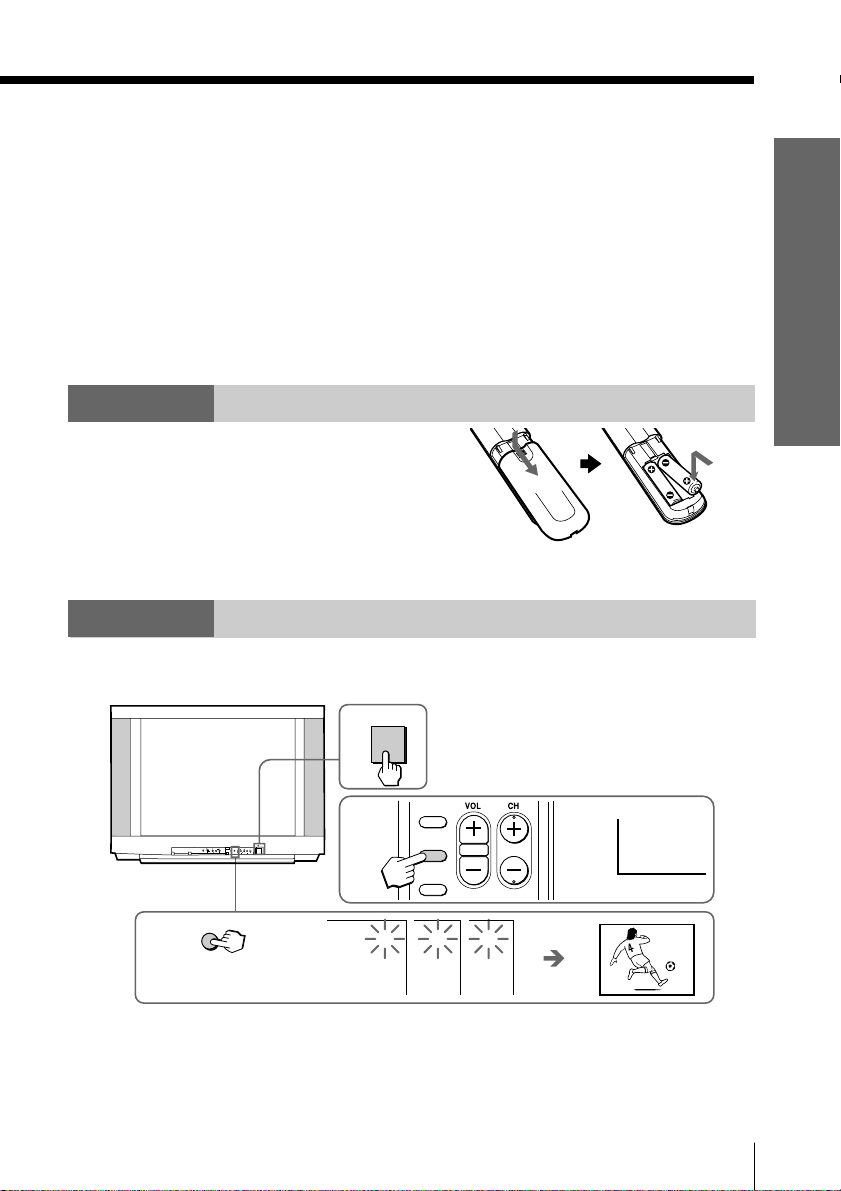

Insert the batteries into

the remote

Note

•Do not use old batteries or different types of batteries together.

Step 3

Preset the channels automatically

Tips

•To stop the automatic channel presetting, press MENU.

•If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 10).

•The AUTO PROGRAM button on the remote works as the AUTO PROGR

button on the TV.

1 2 3

SLEEP

CABLE

AUTO

PROGRAM

AUTO PROGRAM

AUTO

PROGR

CABLE: ON

POWER

Front panel

6Using Your New TV

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

DVD, camcorder, video game, or stereo system.

To watch the video input from the connected equipment, press VIDEO (see page 12).

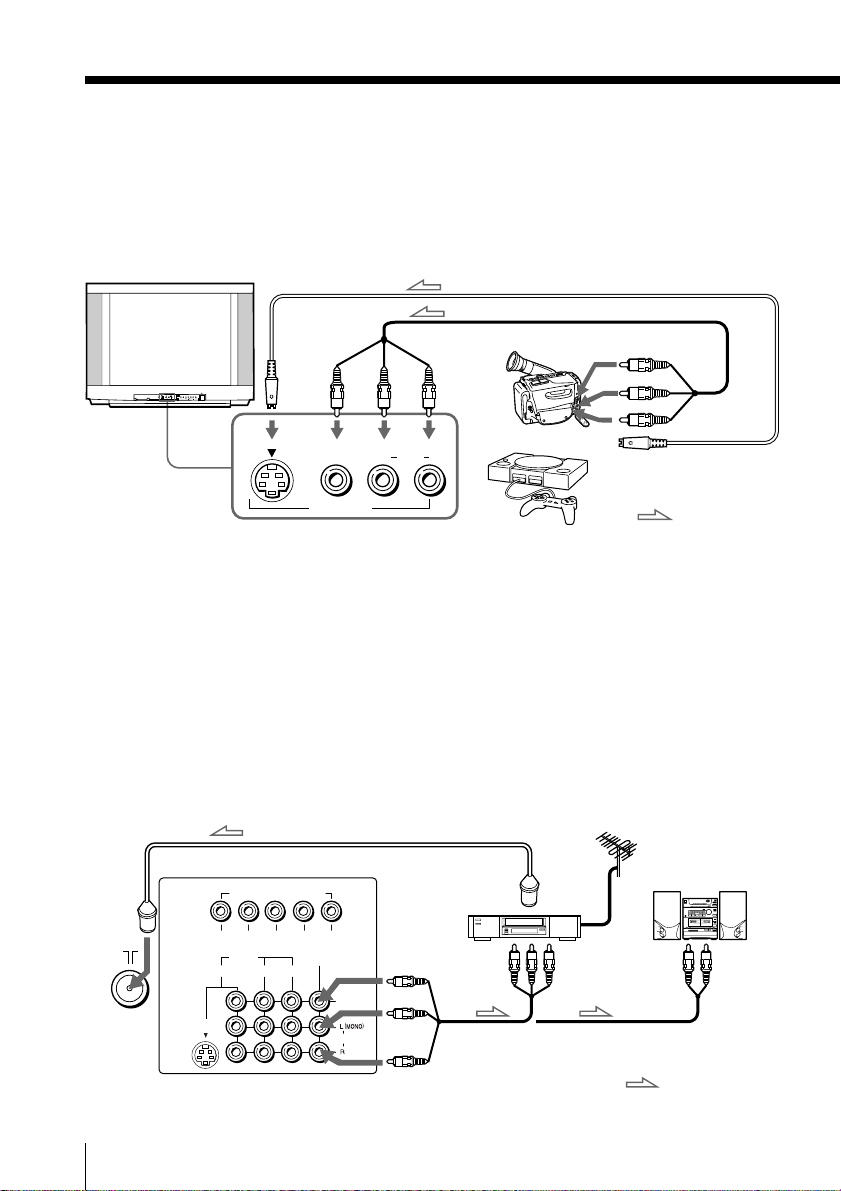

Connecting a camcorder/video game equipment

using the VIDEO 3 INPUT jacks

Notes

•With the “VIDEO MULTI SYSTEM”input terminal, you can also receive

PAL, NTSC and SECAM video signals when using the VIDEO IN 1, 2 or 3

jacks at the rear of your TV, or the VIDEO 3 INPUT jacks.

•When both the S VIDEO input and VIDEO 3 INPUT at the front of your

TV are input at the same time, the S VIDEO input is automatically

selected. To view the video input to VIDEO 3 INPUT, disconnect the S

video cable.

•You can also connect video equipment to the VIDEO IN 1, 2, or 3 jacks at

the rear of your TV.

•Do not connect video equipment to the VIDEO 3 INPUT jacks at the front

and the VIDEO IN 3 jacks at the rear of your TV at the same time;

otherwise the picture will not be displayed properly on the screen.

Connecting audio/video equipment using the

MONITOR OUT jacks

Note

•If you select “DVD”on your TV screen, no signal will be output at the

MONITOR OUT jacks (see page 12).

123

R L Y C

COMPONENT VIDEO(DVD) IN

AUDIO

VIDEO

MONITOR

OUT

S VIDEO

VIDEO (yellow)

AUDIO-L (MONO)

(white)

AUDIO-R (red)

Rear of TV

To 8

(antenna)

To video and

audio inputs

Audio system

audio

inputs

VCR

: Signal flow

MONITOR

OUT

Antenna cable (not supplied)

Audio/Video cable

(not supplied)

To antenna output

: Signal flow

Video game

equipment

Camcorder

To video and

audio outputs

To S VIDEO

input

To VIDEO 3 INPUT

Audio/Video cable (not supplied)

S video cable (not supplied)

Front of TV

To S video output

PROGRMENU AUTO

PROGR

ENTER SELECT

L(MONO)

(MONO)

VIDEO

S VIDEO

VIDEO 3 INPUT

AUDIO

Using Your New TV

continued

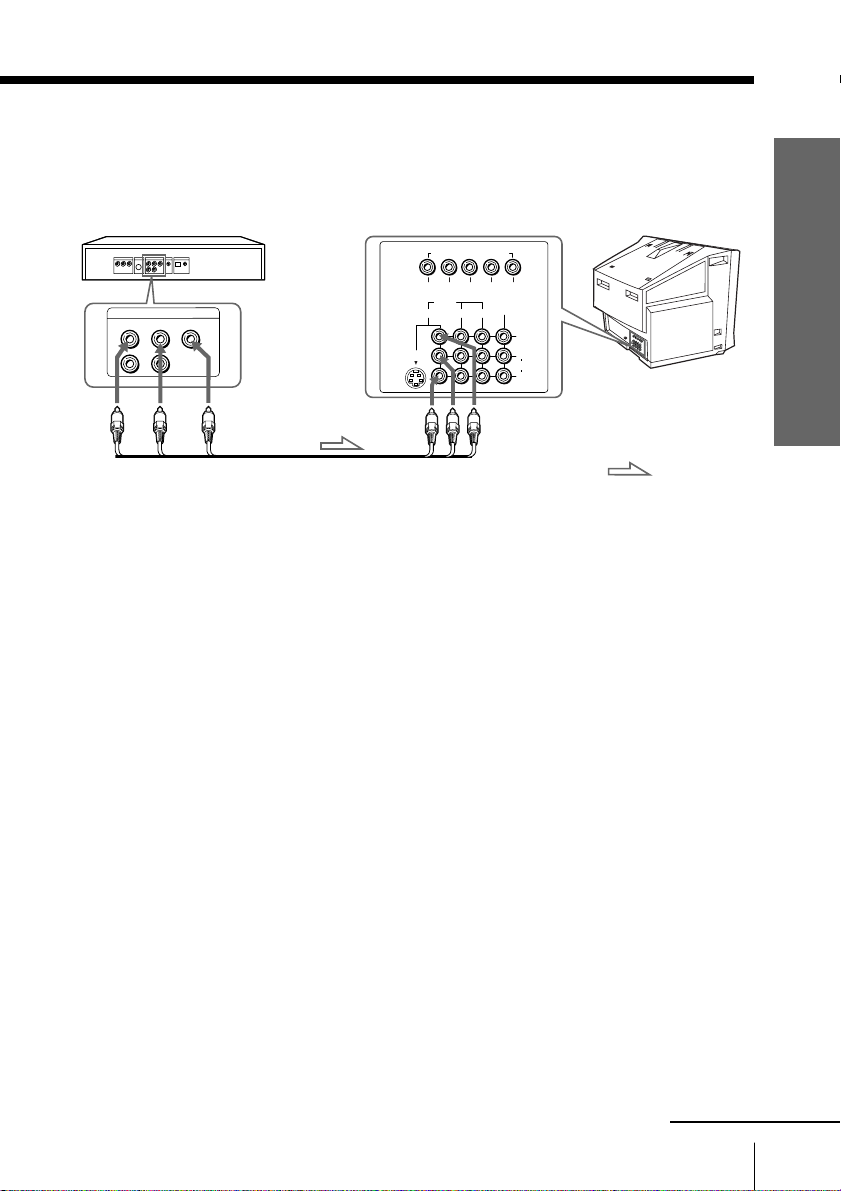

Connecting a DVD player using the VIDEO IN 1, 2

or 3 jacks

Connect VIDEO IN 1, 2 or 3 AUDIO/VIDEO connectors on your TV to LINE OUT on

your DVD player.

Notes

•Since the high quality pictures on a DVD disc contain a lot of information,

picture noise may appear. In this case, adjust the sharpness (“SHARP”)

under “PERSONAL ADJUST”in the “PICTURE MODE”menu (see

page 21).

•Connect your DVD player directly to your TV. Connecting the DVD

player through other video equipment will cause unwanted picture noise.

VIDEO

R-AUDIO-L

LINE OUT

➽x➥➲➪ë➛L

R L Y CBCR

COMPONENT VIDEO(DVD) IN

AUDIO

L (MONO)

VIDEO

IN MONITOR

OUT

S VIDEO

DVD player

To VIDEO IN 1, 2 or 3 : Signal flow

Audio/Video cable

(not supplied)

Rear of TV

VIDEO (yellow)

AUDIO-L (MONO) (white)

AUDIO-R (red)

To video and

audio outputs

8Using Your New TV

Connecting optional components (continued)

Connect To (on the DVD player)

Y (green) Y

CB(blue) Cb, B-Y or PB

CR(red) Cr, R-Y or PR

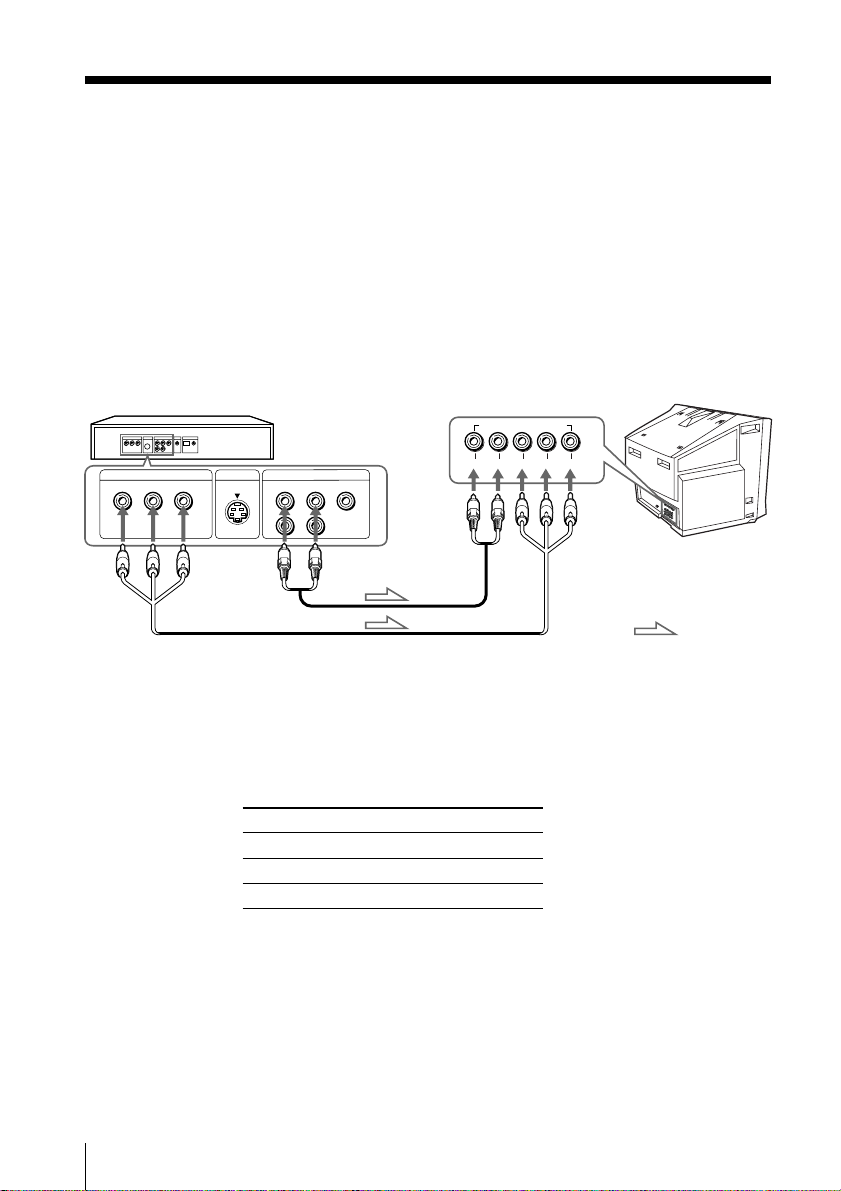

Connecting a DVD player using the COMPONENT VIDEO

(DVD) IN jacks

1 Using an audio cable, connect R and L under the COMPONENT VIDEO (DVD) IN

jacks on your TV to the LINE OUT, AUDIO R and L output connectors on your

DVD player.

2 Using a component video cable, connect Y, CB, and CRunder the COMPONENT

VIDEO (DVD) IN jacks on your TV to the COMPONENT VIDEO OUT Y, CB, and

CRoutput connectors on your DVD player.

3 Press VIDEO on the remote or TV/VIDEO on the TV until “DVD”appears on the

screen.

Notes

•If your DVD player can output interlace and progressive mode signals,

select the interlace output when connecting to COMPONENT VIDEO

(DVD) IN on your TV. Your TV can receive either 525i/60Hz or 625i/50Hz

interlace signals.

•Some DVD player terminals may be labeled differently:

•When connecting to the COMPONENT VIDEO (DVD) IN jacks on your

TV, you must connect Y, CB, and CR to receive the video signals, and

connect L and R to receive analog audio signals.

To component

video output

Component video cable

(not supplied)

DVD player

To audio

output

Audio cable

(not supplied)

: Signal flow

To COMPONENT VIDEO

(DVD) IN

Rear of TV

VIDEO

R-AUDIO-L

LINE OUT

COMPONENT VIDEO OUT

S VIDEO OUT

CBCR

R L Y CBCR

COMPONENT VIDEO(DVD) IN

Using Your New TV

Securing the TV

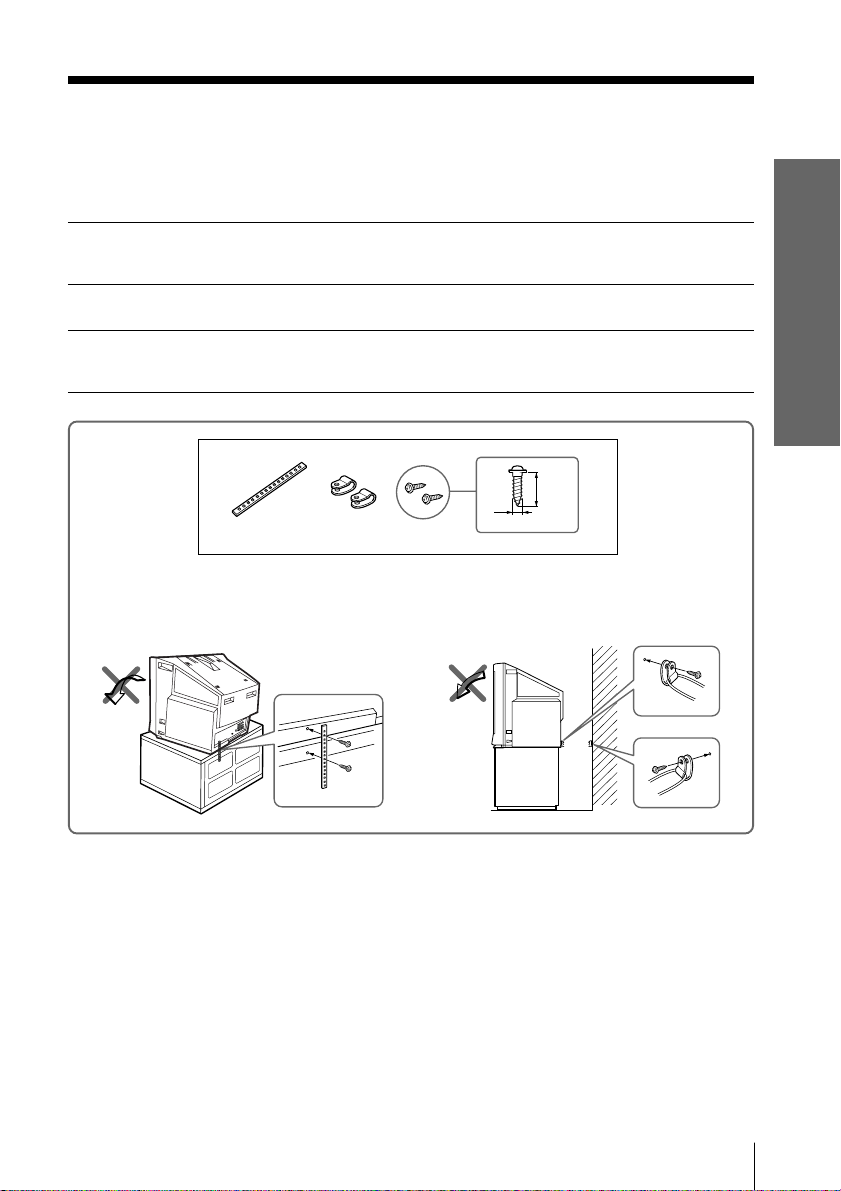

To prevent the TV from falling, secure the TV using one of the following methods:

AWith the supplied screws, attach the stabilizer band to the TV stand and to

the rear of the TV using the provided hole.

BPut the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

•Use only the supplied screws. Use of other screws may damage the TV.

3.8 mm

10 Using Your New TV

Presetting the

channels

manually

To receive a new channel or a channel

with a weak signal, preset the channel

manually.

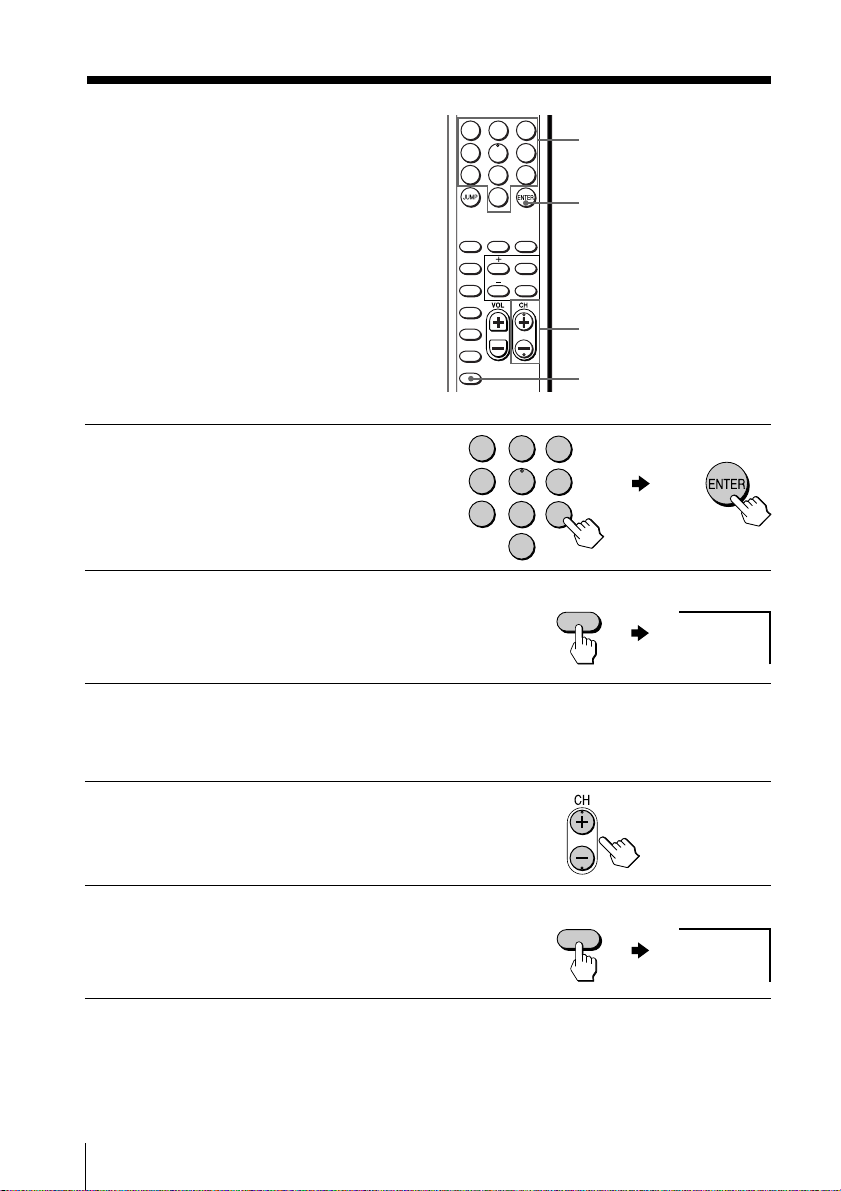

1Press number buttons to

select the desired channel

number, then press ENTER.

2Press ADD/ERASE.

“+”appears beside the

channel number, indicating

that presetting is complete.

Disabling channel numbers

By disabling unused or unwanted channel numbers, you can skip those channel

numbers when you press CH +/–.

1Press CH +/– until the

unused or unwanted

channel number

appears on the screen.

2Press ADD/ERASE.

“–” appears beside the

channel number, indicating

that disabling is complete.

To cancel the skip setting

Preset the channel again.

Tip

•You can also preset the channels manually using the menu (see Adjusting

each channel number settings (CHANNEL SETUP) on page 25).

ADD/ERASE

ENTER

CH +/–

Number

buttons

+25

ADD/

ERASE

–25

ADD/

ERASE

RETURN

PIC MODE

WAKE UP

SOUND

MODE

SLEEP

CABLE

AUTO

PROGRAM

ADD/

ERASE

FAVORITESURROUND

Otros manuales para Trinitron KV-XA29

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Sony

Sony

Sony KD-70X690E Manual de usuario

Sony

Sony FD Trinitron WEGA KV-32HS510 Manual de usuario

Sony

Sony KD-43X7500H Manual de usuario

Sony

Sony KD-79X9005B Manual de usuario

Sony

Sony Trinitron KV-32XBR25 Manual de usuario

Sony

Sony BRAVIA XR-75X90CK Manual de usuario

Sony

Sony BRAVIA XR-65A9xK Manual de usuario

Sony

Sony Trinitron KV-XA21M85 Manual de usuario

Sony

Sony BRAVIA Instrucciones de instalación y mantenimiento

Sony

Sony TRINITRON KV-29FS12K Manual de usuario

Sony

Sony FD Trinitron WEGA KV-AR21 Manual de usuario

Sony

Sony Bravia KD-55X8000C Manual de usuario

Sony

Sony Bravia XBR-65X757D Manual de usuario

Sony

Sony XR-65A83K Manual de usuario

Sony

Sony KV-28HX15U Manual de usuario

Sony

Sony Trinitron KV-DX32K9H Manual de usuario

Sony

Sony Trinitron KV-XF29M97 Manual de usuario

Sony

Sony TRINITRON KV-32FX20A Manual de usuario

Sony

Sony BRAVIA KDL-40R350E Manual de usuario

Sony

Sony Wega KE-P37M1 Manual de usuario

Sony

Sony BRAVIA KDL-40W700C Manual de usuario

Sony

Sony Bravia KDL-50W700B Instrucciones de funcionamiento

Sony

Sony Trinitron KV-13M42 Manual de usuario

Sony

Sony FD Trinitron KV-32FX65 B Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
