• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110-220 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are

present inside the TV. Refer servicing and

disposal of the TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture or

vibrations.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

For children’s safety, do not leave children

alone with the TV. Do not allow children to

climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Do not place any objects on the TV.

Using Your New TV

Do not install the TV in an unstable position.

Use a proper TV stand.

WARNING (continued)

Table of Contents

Using Your New TV

Getting Started ............................................................................................. 4

Step 1: Connect the antenna ................................................................ 4

Step 2: Insert the batteries into the remote........................................ 5

Step 3: Preset the channels automatically ......................................... 5

Connecting optional components ............................................................. 6

Securing the TV ............................................................................................ 9

Watching the TV ........................................................................................ 10

Advanced Operations

Selecting the picture and sound

modes .................................................. 14

Viewing higher quality pictures ...... 15

Viewing your favorite channels ....... 16

Watching two programs at the

same time ............................................ 17

Listening with surround sound ...... 19

Enjoying stereo or bilingual

programs ............................................. 20

Operating optional components ...... 21

Adjusting Your Setup (MENU)

Introducing the menu system .......... 23

Changing the “PICTURE”

setting ........................................... 26

Changing the “SOUND”

setting .............................................. 28

Changing the “PIP” setting ....... 30

Changing the “SETUP”

setting ........................................... 31

Changing the Channel Preset

(“CH PRESET”) setting ............. 33

Additional Information

Self-diagnosis function...................... 34

Troubleshooting ................................. 35

Overview of controls ......................... 38

Specifications ...................... Back cover

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

4Using Your New TV

Using Your New TV

: Signal flow

Antenna cable (not supplied)

Rear of TV

To video and

audio outputs

To S video

output

Audio/Video cable

(not supplied)

: Signal flow

S VIDEO input

VCR

Antenna cable (not supplied)

To antenna

output

To ˘(antenna)

Rear of TV

VIDEO (yellow)

AUDIO-L (MONO) (white)

AUDIO-R (red)

To VIDEO IN 1, 2, or 3

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the Connecting a VCR diagram below.

Connecting a VCR

To watch the video input, press VIDEO (see page 11).

CAUTION

• Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through

the antenna and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries

from the remote if you are not going to use it for several days. If any

liquid that leaks from the batteries touches you, immediately wash it

away with water.

F connector

(not supplied)

S video cable

(not supplied)

R L Y C

COMPONENT VIDEO(DVD) IN

AUDIO

VIDEO

MONITOR

OUT

S VIDEO

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

R L

Antenna

adapter

(supplied)

Antenna

adapter

(supplied)

Using Your New TV

Notes

• If you connect a monaural VCR, connect the yellow plug to VIDEO (the

yellow jack) and the black plug to AUDIO-L (MONO)

(the white jack).

• If you connect a VCR to the 8(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

• When both the S VIDEO and VIDEO IN 1 input are connected, the

S VIDEO input is automatically selected. To view the video input to

VIDEO IN 1, disconnect the S video cable.

• When no signal is input from the connected video equipment, the TV

screen becomes blue.

Step 2

Insert the batteries into

the remote

Note

• Do not use old batteries or different types of batteries together.

Step 3

Preset the channels automatically

Tips

• To stop the automatic channel presetting, press MENU.

• If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 32).

Front panel

AUTO

PROGR

1 2 3

(MONO)

VIDEOSVIDEO

VIDEO4INPUT

AUDIO

CHANNELMENU VOLUMETV/VIDEO

AUTO

PROGR

RETURN SELECT

POWER

AUTO PROGRAM

6Using Your New TV

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

DVD, camcorder, video game, or stereo system. To watch the video input from the

connected equipment, press VIDEO (see page 11).

Connecting a camcorder/video game equipment

using the VIDEO 4 INPUT jacks

Notes

• When both the S VIDEO input and VIDEO 4 INPUT at the front of your

TV are input at the same time, the S VIDEO input is automatically

selected. To view the video input to VIDEO 4 INPUT, disconnect the S

video cable.

• When connecting video game equipment, display the “PICTURE” menu

and select “ON” for “GAME MODE” to adjust the picture setting that is

suitable for video games (see page 26).

• You can also connect video equipment to the VIDEO IN 1, 2, or 3 jacks at

the rear of your TV.

Connecting audio/video equipment using the

MONITOR OUT jacks

: Signal flow

Video game

equipment

VIDEO (yellow)

AUDIO-L (MONO)

(white)

AUDIO-R (red)

Rear of TV

antenna

output

To video and

audio inputs

Audio system

audio

inputs

VCR

: Signal flow

MONITOR

OUT

Antenna cable (not supplied)

Audio/Video cable (not supplied)

(MONO)

VIDEOSVIDEO

VIDEO4INPUT

AUDIO

CHANNELMENU VOLUMETV/VIDEO

AUTO

PROGR

RETURN SELECT

POWER

(MONO)

VIDEOS VIDEO

VIDEO 4 INPUT

AUDIO

R L Y C

COMPONENT VIDEO(DVD) IN

AUDIO

VIDEO

MONITOR

OUT

S VIDEO

Camcorder

To video and

audio outputs

To S VIDEO

input

To VIDEO 4 INPUT

Audio/Video cable (not supplied)

S video cable (not supplied)

Front of TV

To S video output

Antenna adapter supplied

Using Your New TV

Connect To (on the DVD player)

Y (green) Y

CB(blue) Cb, B-Y or PB

CR(red) Cr, R-Y or PR

Note

• If you select “DVD” on your TV screen, no signal will be output at the

MONITOR OUT jacks (see page 11).

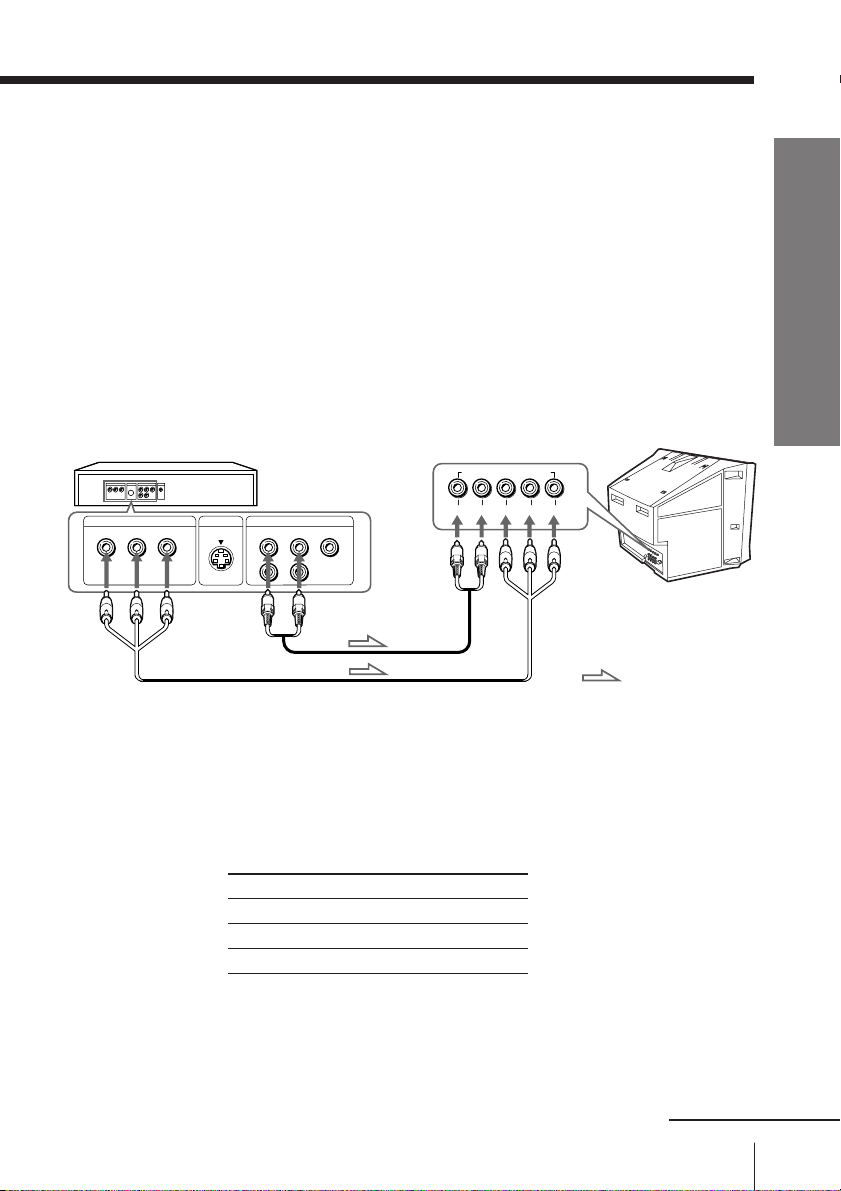

Connecting a DVD player using the COMPONENT VIDEO

(DVD) IN jacks

1 Using an audio cable, connect R and L under the COMPONENT VIDEO (DVD) IN

jacks on your TV to the LINE OUT, AUDIO R and L output connectors on your

DVD player.

2 Using a component video cable, connect Y, CB, and CRunder the COMPONENT

VIDEO (DVD) IN jacks on your TV to the COMPONENT VIDEO OUT Y, CB, and

CRoutput connectors on your DVD player.

3 Press VIDEO on the remote or TV/VIDEO on the TV until “DVD” appears on the

screen.

To component

video output

Component video cable

(not supplied)

DVD player

L (white)

R (red)

To audio

output

Audio cable

(not supplied)

: Signal flow

To COMPONENT VIDEO

(DVD) IN input

VIDEO

R-AUDIO-L

LINE OUT

COMPONENT VIDEO OUT

S VIDEO OUT

R L Y C

COMPONENT VIDEO(DVD) IN

Notes

• If your DVD player can output interlace and progressive mode signals,

select the interlace output when connecting to COMPONENT VIDEO

(DVD) IN input on your TV. Your TV can receive either 525i/60Hz or

625i/50Hz interlace signals.

• Some DVD player terminals may be labeled differently:

• When connecting to the COMPONENT VIDEO (DVD) IN jacks on your

TV, you must connect Y, CB, and CR to receive the video signals, and

connect L and R to receive analog audio signals.

Rear of TV

continued

8Using Your New TV

VIDEO

R-AUDIO-L

LINE OUT

R L Y CBCR

COMPONENT VIDEO(DVD) IN

AUDIO

L (MONO)

VIDEO

MONITOR

OUT

S VIDEO

Connecting a DVD player using the VIDEO IN 1, 2

or 3 jacks

Connect VIDEO IN 1, 2 or 3 AUDIO/VIDEO connectors on your TV to LINE OUT on

your DVD player.

DVD player

To VIDEO IN 1, 2 or 3

: Signal flow

Audio/Video cable (not supplied)

Notes

• Since the high quality pictures on a DVD disc contain a lot of information,

picture noise may appear. In this case, adjust the sharpness (“SHARP”)

under “PERSONAL ADJUST” in the “PICTURE MODE” menu (see

page 27).

• Connect your DVD player directly to your TV. Connecting the DVD

player through other video equipment will cause unwanted picture noise.

Rear of TV

VIDEO (yellow)

AUDIO-L (MONO) (white)

AUDIO-R (red)

To video and

audio outputs

Connecting optional components (continued)

Using Your New TV

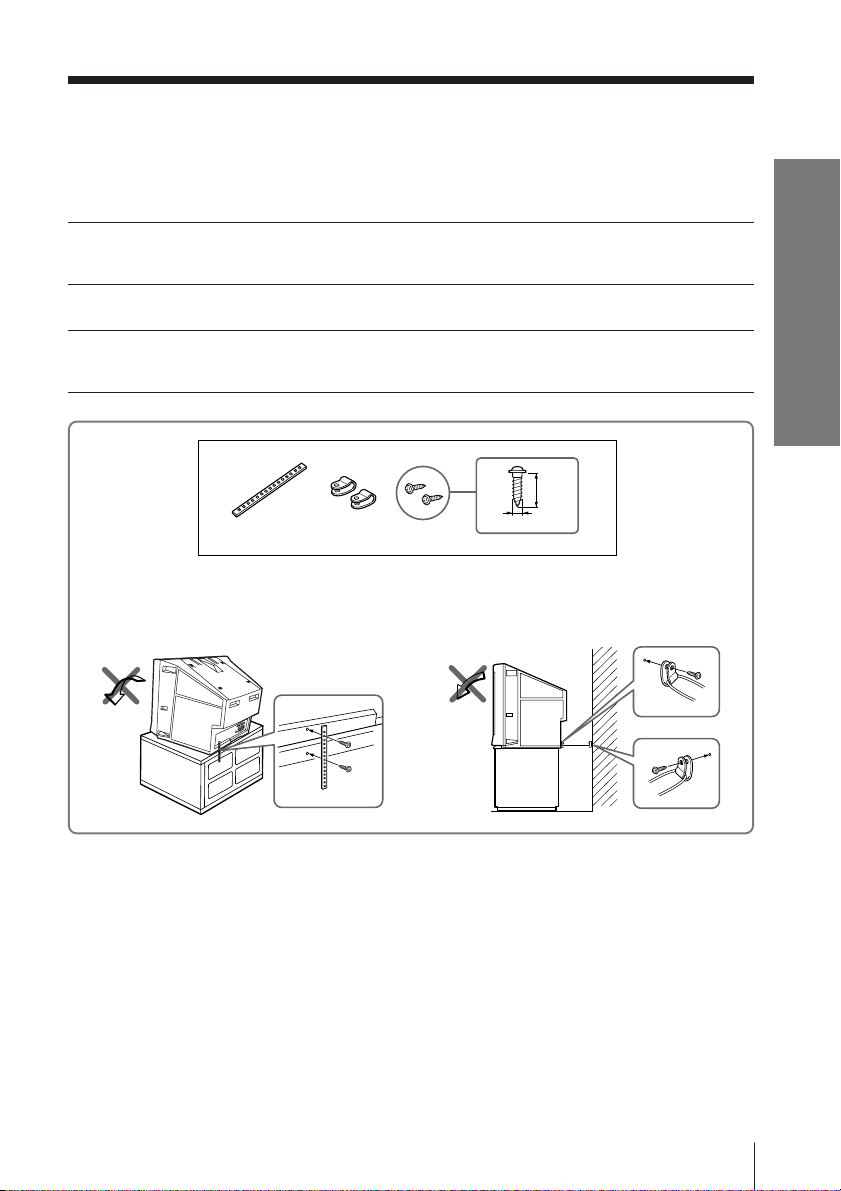

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

AWith the supplied screws, attach the stabilizer band to the TV stand and to

the rear of the TV using the provided hole.

BPut the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

3.8 mm

10 Using Your New TV

Watching the TV

This section explains various functions

and operations available while watching

the TV. Most operations can be done

using the remote.

1Press POWER on the TV to

turn on the TV.

When the TV is in standby

mode (the STANDBY indicator

on the TV is lit red), press

POWER on the remote or

CHANNEL +/– on the TV.

2To select the channel

number, press the number

buttons and then press

ENTER, or press CH +/–.

Note

• When you turn on the TV, either the channel number or video input is

displayed for approximately 40 seconds. The ECO MODE ( ) icon will

also appear if “ECO MODE “ in the “SETUP” menu is set “ON” (see

page 31).

To select a channel number quickly

(1) Press and hold CH +/–.

(2) Release CH +/– when the desired channel number appears.

Note

• When you select a channel number quickly, the picture may be disrupted.

This does not indicate a malfunction.

STANDBY/

WAKE UP

indicator

CHANNELMENU VOLUMETV/VIDEO

AUTO

PROGR

RETURN SELECT

POWER

(MONO)

VIDEOSVIDEO

VIDEO4INPUT

AUDIO

CHANNELMENU VOLUMETV/VIDEO

AUTO

PROGR

RETURN SELECT

POWER

231

564

897

ENTER

JUMP

MUTING

MTS PIC

MODE VIDEO

DRC-MF

TV/VIDEO FREEZE SWAP PIP

DISPLAY POWER

CHVOL

FAVORITE

SURROUND WAKE UP

SOUND

MODE

PIP CH

SLEEP

POWER

Number

buttons

ENTER

CH +/–

Otros manuales para Trinitron KV-EX29

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Sony

Sony

Sony Trinitron KV-28DC20B Manual de usuario

Sony

Sony BRAVIA XR-85X9 K Series Manual de usuario

Sony

Sony BRAVIA KD-49XE70 Series Manual de usuario

Sony

Sony KV-DR29M97 Manual de usuario

Sony

Sony BRAVIA KD-85X9000F Manual de usuario

Sony

Sony TRINITRON KV-LX34M50 Manual de usuario

Sony

Sony Bravia KDL-19M4000 Manual de usuario

Sony

Sony FD Trinitron WEGA KV-20FV300 Manual de usuario

Sony

Sony Bravia XBR-75X850C Manual de usuario

Sony

Sony Trinitron KV-27S22 Manual de usuario

Sony

Sony BRAVIA KD-43W880K Manual de usuario

Sony

Sony KV-36FV300 - 36" Trinitron Wega Manual de usuario

Sony

Sony Bravia A89 Series Manual de usuario

Sony

Sony TRINITRON KV-M2170A Manual de usuario

Sony

Sony Trinitron KV-36FS70 Manual de usuario

Sony

Sony BRAVIA KE-85XH80 Series Manual de usuario

Sony

Sony BRAVIA XBR-55A9F Manual de usuario

Sony

Sony Bravia KD-79X9000B Manual de usuario

Sony

Sony BRAVIA KDL-48W657D Manual de usuario

Sony

Sony FD Trinitron WEGA KV-27FS100 Manual de usuario

Sony

Sony BRAVIA KDL-50W950D Manual de usuario

Sony

Sony KD-34XBR960 - 34" Fd Trinitron Wega Manual de usuario

Sony

Sony TRINITRON KV-J14P2S Manual de usuario

Sony

Sony BRAVIA KD-65A1 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
