Safety Information

All TVs operate on extremely high voltages. To prevent fire or electric shock, please follow the safety procedures indicated

below.

For your safety

For General Safety

• Do not expose the TV set to rain or moisture.

• Do not remove the rear cover.

• For your protection, refer all servicing to qualified personnel only.

For Safe Installation

• Do not install the TV in hot, humid or excessively dusty places.

• Do not block or cover the ventilation openings. For ventilation, leave a space of at least 10

cm all around the set.

• Do not install the TV where it may be exposed to mechanical vibrations.

• Place the TV set only on a stable stand designed for the weight and dimensions of the TV.

For Safe Operation

• Do not operate the TV set on anything other than a 220-240V AC, 50Hz supply.

• Do not operate the TV if any liquid or solid objects fall in through the ventilation slots.

Have it checked immediately.

• For environmental and safety reasons, it is recommended that the TV set is not left in

standby mode when not in use. Switch off at the mains.

• Do not disconnect the TV by pulling on the power cable. Disconnect by removing the

mains plug.

• In case of a thunderstorm, disconnect the TV set from the main supply and the aerial.

Otherwise the set may be damaged by a stroke of lightning.

For Maintenance

• Clean the TV screen with a soft dampened cloth. Do not use any abrasive cleaners.

• Dust and nicotine deposits may cause heat accumulation inside the TV set. In the long term

this could be a safety risk and may shorten the lifetime of your TV set. Therefore have your

set serviced about every five years.

Safety Information

All televisions operate on extremely high voltages. To prevent fire or electric shock, please follow the safety guidelines indicated

in the blue sheet supplied.

Always use TV stands that are strong and stable enough to support the weight and size of this TV. Due to the unique floating

design of this TV, Sony highly recommend you use their designated stand, SU-29FQ1. If this recommended option is not taken,

it is vitally important to ensure that any cabinet or table has a large enough surface area to accommodate all three legs of the TV

without any overlap.

Safety Information

Table of Contents

Installation

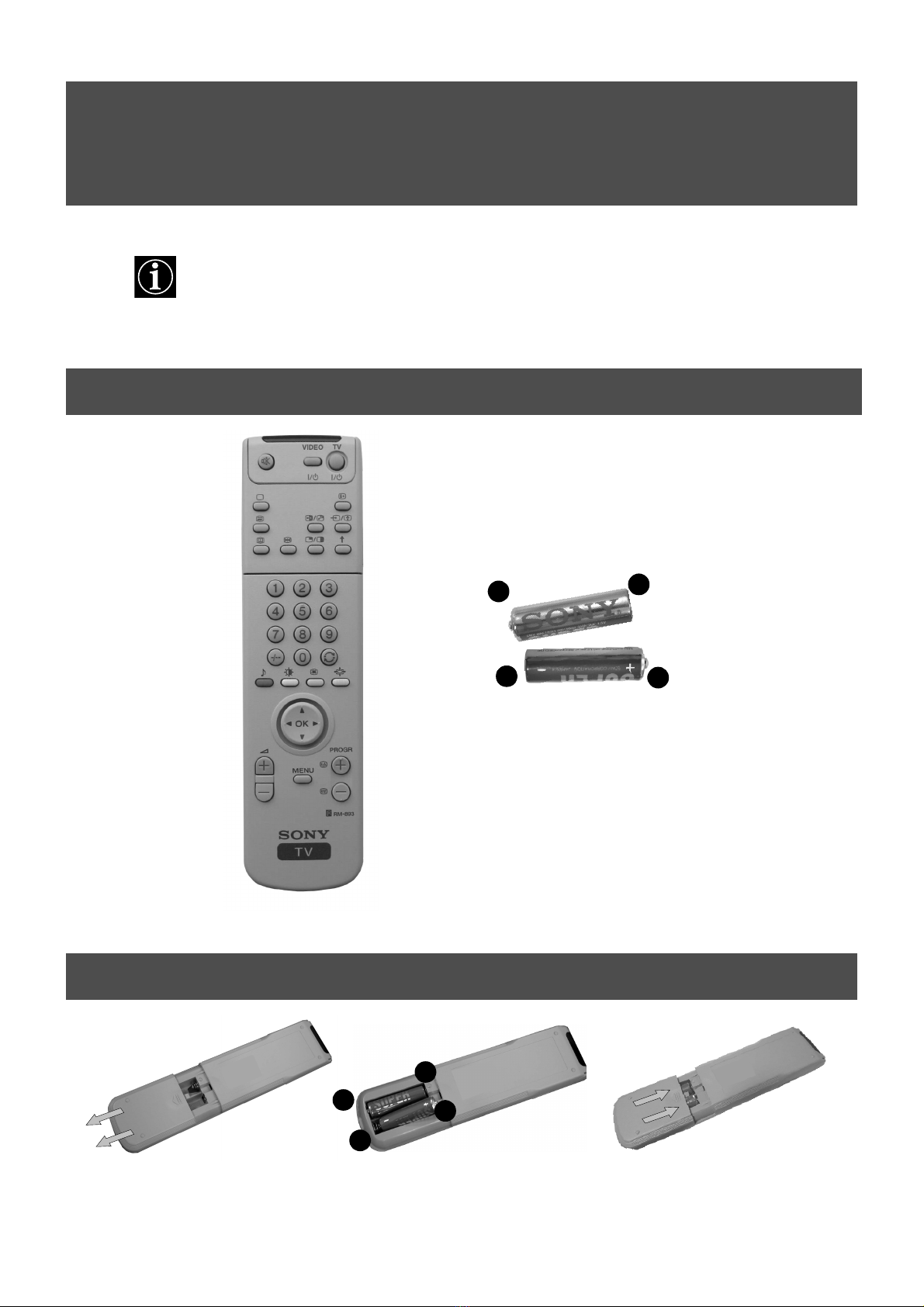

1. Checking the accessories supplied

2. Inserting batteries into the remote control

3. Connecting the TV

4. Switching on the TV

5. Using the joystick

6. Tuning your TV

7. Finding your video channel

Operation

Overview of the TV set buttons

Overview of the remote control buttons

NexTView

Teletext

Using the TV menu system

Adjusting the picture and sound

Using the Features menu

Re-arranging the TV channels

Manually tuning the TV

Naming a channel

Skipping programme positions

Using the ‘Further Programme Preset’ feature

Adjusting the picture rotation

Adjusting the picture geometry for an RGB source

Inputting your personal ID

Presetting and naming input signals

Additional Equipment

Connecting additional equipment to the TV

Additional information when connecting equipment

Smartlink

Remote control of other Sony equipment

Additional Information

Specifications

Channel Display Table

Troubleshooting

Follow steps 1-7 to install the TV and

view TV programmes.

Installation

1. Checking the accessories supplied

2. Inserting batteries into the remote control

Batteries

Always observe the correct polarity when inserting batteries.

Always remember to dispose of used batteries in an environmentally friendly way.

Remote control

Installation

3. Connecting the TV

The scart lead is

optional. If it can be

used however, this

additional

connection can

improve picture and

sound quality when

in play mode.

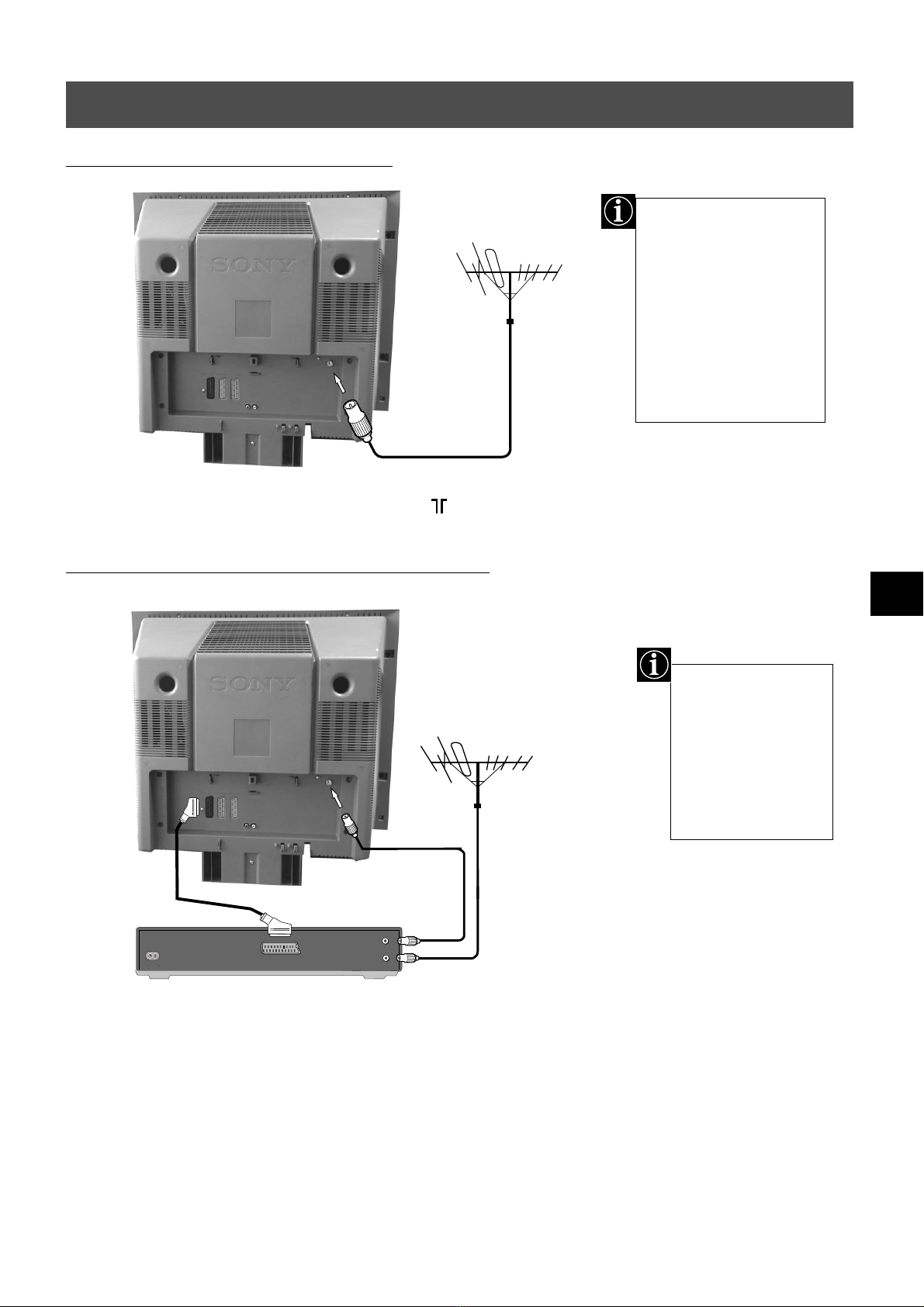

1. Connect your existing aerial lead to the socket marked on the rear of the TV set.

Connecting an aerial to your TV

Connecting an aerial and VCR to your TV

1. Connect your existing aerial lead to your VCR as shown.

2. Connect the VCR aerial lead from the RF OUT socket on the back of the VCR to the aerial

socket on the back of the TV as shown.

3. Connect the scart lead (if used) to the AV2 socket on the rear of the TV set.

4. Connect the VCR set to the mains and switch on.

5. Insert a pre-recorded tape into the VCR and press the ‘PLAY’ button. This enables the TV

set to locate and store the video channel during the ‘Tuning your TV’ procedure on page 5.

If you are not connecting

your TV to a VCR,

please connect the aerial

lead (as shown left) and

proceed to section

‘4.Switching on the TV’.

If you are connecting

your TV to a VCR please

refer to the section

below.

OUT

AERIAL

ANTENNA

AC IN

existing aerial lead

scart lead

(not supplied)

Installation

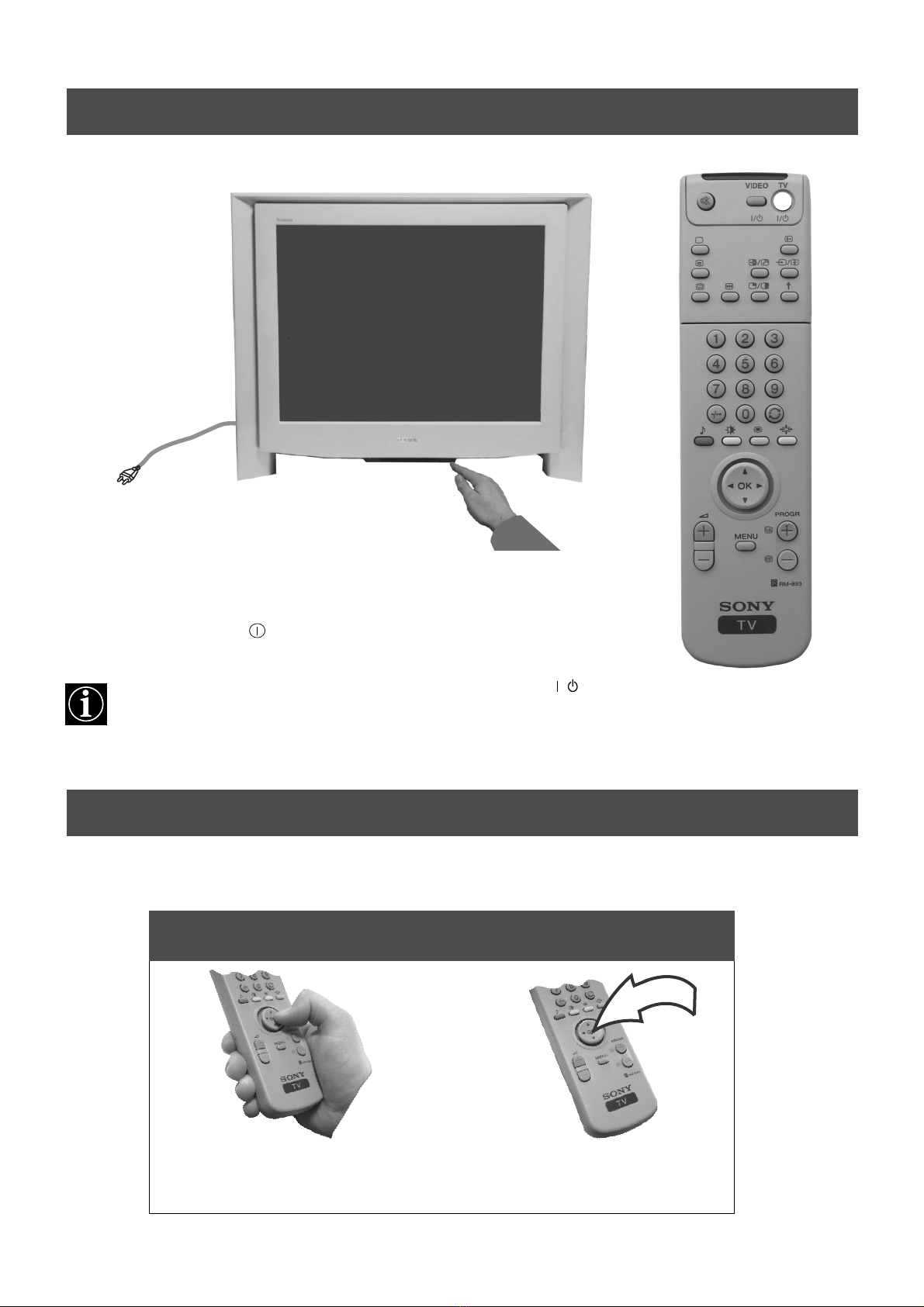

1. Connect the TV plug to the mains socket (220-240V AC, 50Hz).

2. Push in the on/off button on the front of the TV.

If the standby mode indicator on the front of the TV is lit, press the TV button on

the remote control to switch on the TV set. Please be patient as the picture may take a

few moments to appear on the TV screen.

4. Switching on the TV

5. Using the joystick

To select an item in a menu press

the OK button down in the middle.

To move around the menus press

the relevant arrow button.

Moving the joystick Pressing the joystick

Installation

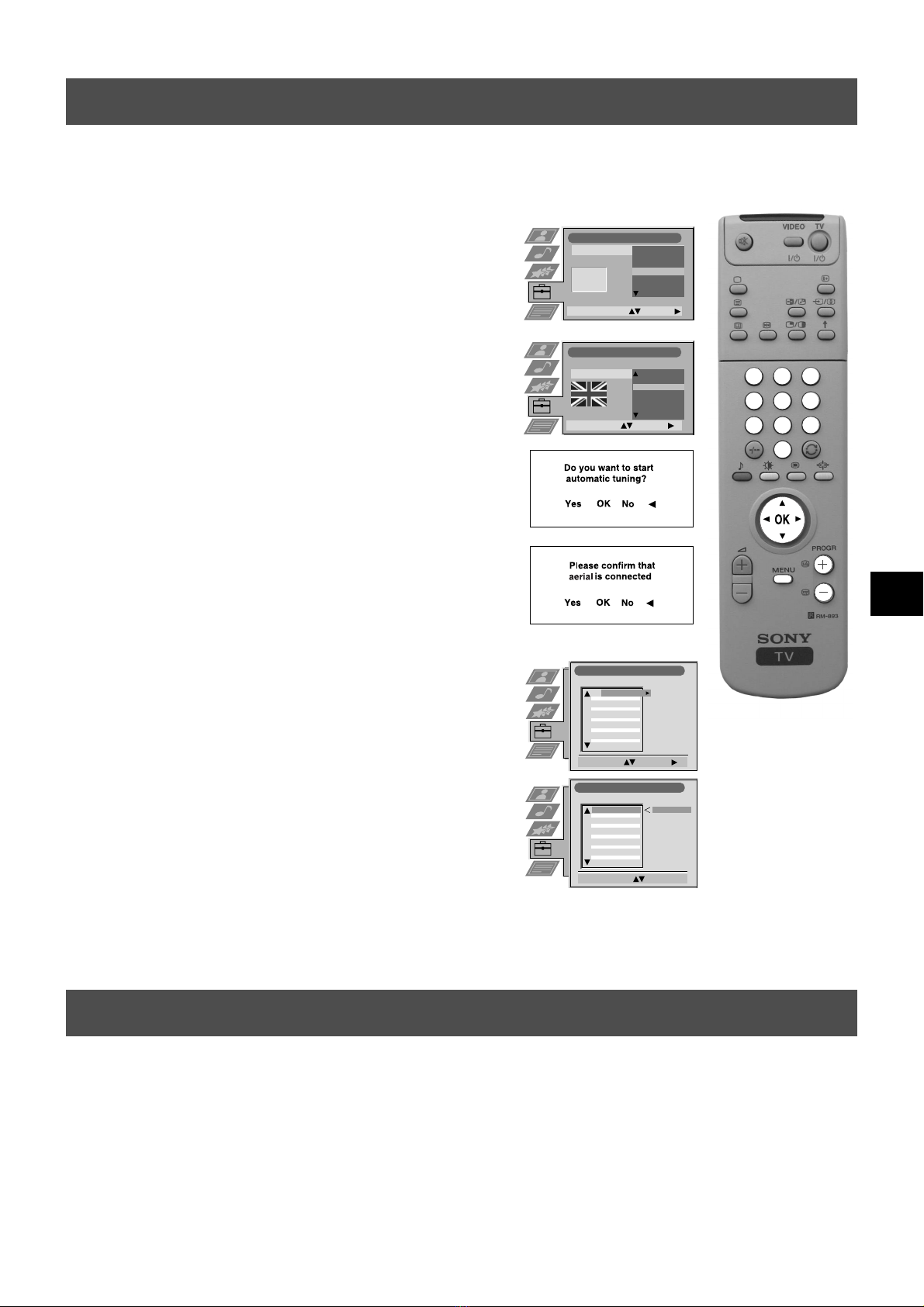

Before you tune your TV, you will be asked to set your language and country.

6. Tuning your TV

Language/Country

Select Language: Confirm:

Language

Country

Čeština

Dansk

Deutsch

English

Español

Français

Italiano

Language/Country

Select Country: Confirm:

Language

Country France

Germany

Great Britain

Greece

Hungary

Ireland

Italy

English

1. The Language/Country menu appears on the TV screen with the

word ‘English’highlighted.

2. Press the v or V buttons on the remote control to select your

chosen language then press the OK button to confirm. The

country menu appears on screen with the word ‘OFF’highlighted.

Select ‘OFF’if you do not want your channels stored in a given

channel sequence starting from programme position 1.

3. Press v or V to select the country in which you wish to operate

the TV then press the OK button to confirm your choice.

4. The ‘autotune’menu appears on the TV screen in your selected

language. Press the OK button to confirm.

5. Ensure the aerial is connected as instructed, then press the OK

button to confirm. The TV starts to automatically search and store

all available channels for you. This may take a few minutes -

please be patient and do not press any buttons.

6. Once the TV has tuned all available channels the ‘Programme

Sorting’menu appears on the TV screen enabling you to change

the order of the channels on your TV. If you wish to change the

channel order, press the v or V buttons to select the channel you

want to move, then press B. Press the v or V buttons to select the

new programme number position for your selected channel then

press the OK button to confirm. The selected channel now moves

to its new programme position and the other channels move

accordingly. Repeat this procedure if you wish to sort the order of

other channels on your TV.

7. Press the MENU button to remove the menu from the TV screen.

8. Press the PROGR+/- or the numbered buttons to view the TV

channels.

Note: If you would like to stop the autotune process at any stage,

press the OK button.

If you have connected a VCR to your TV, you now need to find your video channel.

1. Press the PROGR+/- buttons on the TV remote control until your video picture appears on the TV screen.

Note: If you wish to move your video channel to a different programme position, refer to the ‘Re-arranging the TV channels’

section of this instruction manual.

7. Finding your video channel

Programme Sorting

Select Prog: Confirm:

PROG CH LABEL

Programme Sorting

Select Position: Move: OK

C03 TV 5

PROG CH LABEL

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

123

7 8 9

Operation

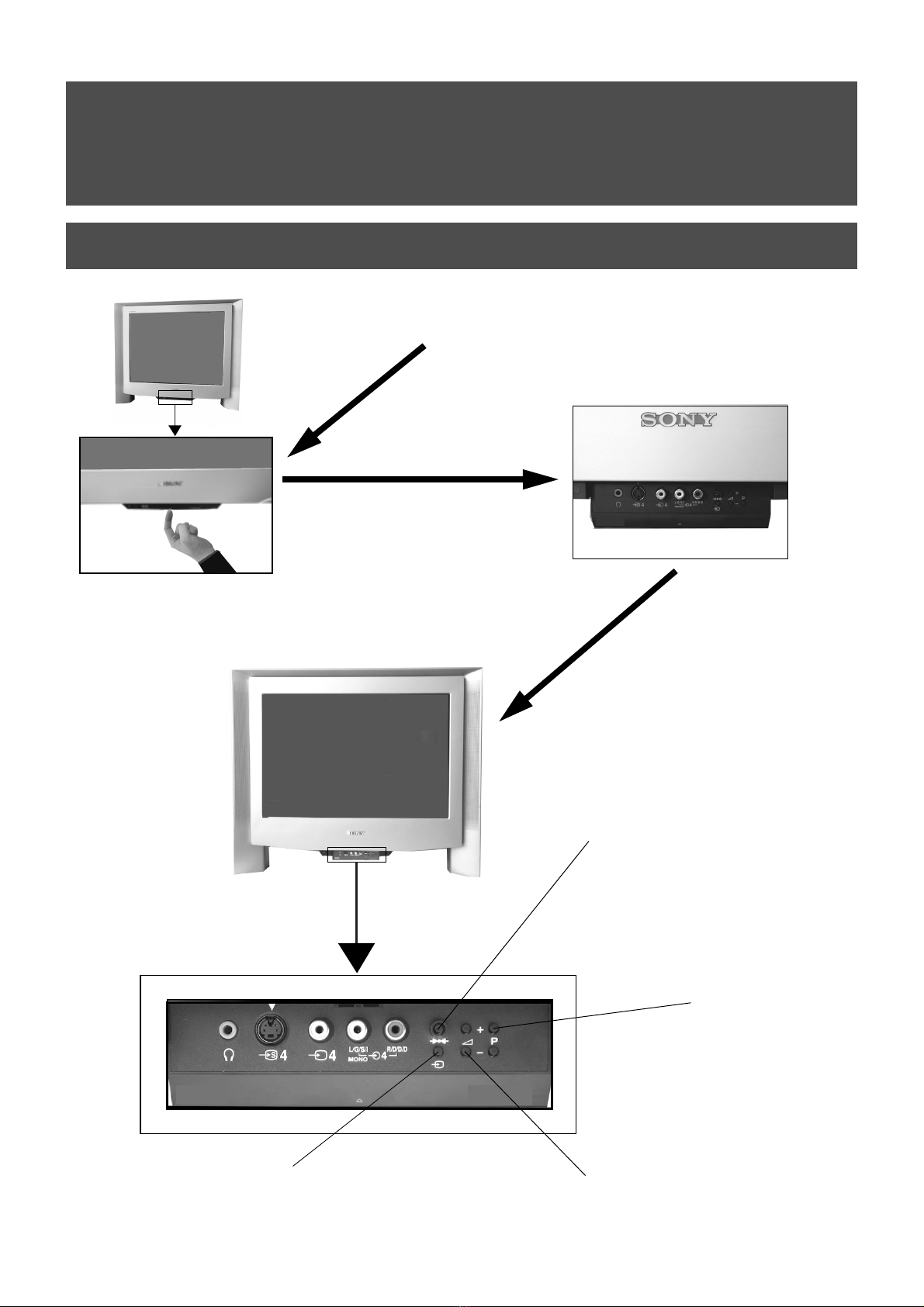

Overview of the TV set buttons

Volume control buttons.

Press to increase (+) /decrease

(-) volume.

Video input button.

Press to select the input

signals from VCR etc.

Programme Up (+) or

Down (-) buttons.

Press to select TV

channels.

Master Reset button.

Press to return the picture and sound

levels to factory settings. The Sony logo

will appear on the screen followed by the

‘Autotune’screen. If you do not wish to

retune your TV, press the b button on

your remote control.

Push up on the control panel (as shown)

to access the front input sockets and TV

buttons.

The control panel drops down.

100Hz
