Trinitron® Color TV

KV-27HSR10

KV-32HSR10

Operating Instructions

Before operating the unff, please read this manual thoroughly

and retain it for future reference.

Owner's Record

The model and sei'ial numbers are located at the rear and

the unit. Record these numbers in the spaces provided

below. Refer to them whenever you call upon your Sony

dealer regarding this product.

Model No.}"_ .... _. - ° _ Serial No.

@1990 by Sony Corporation

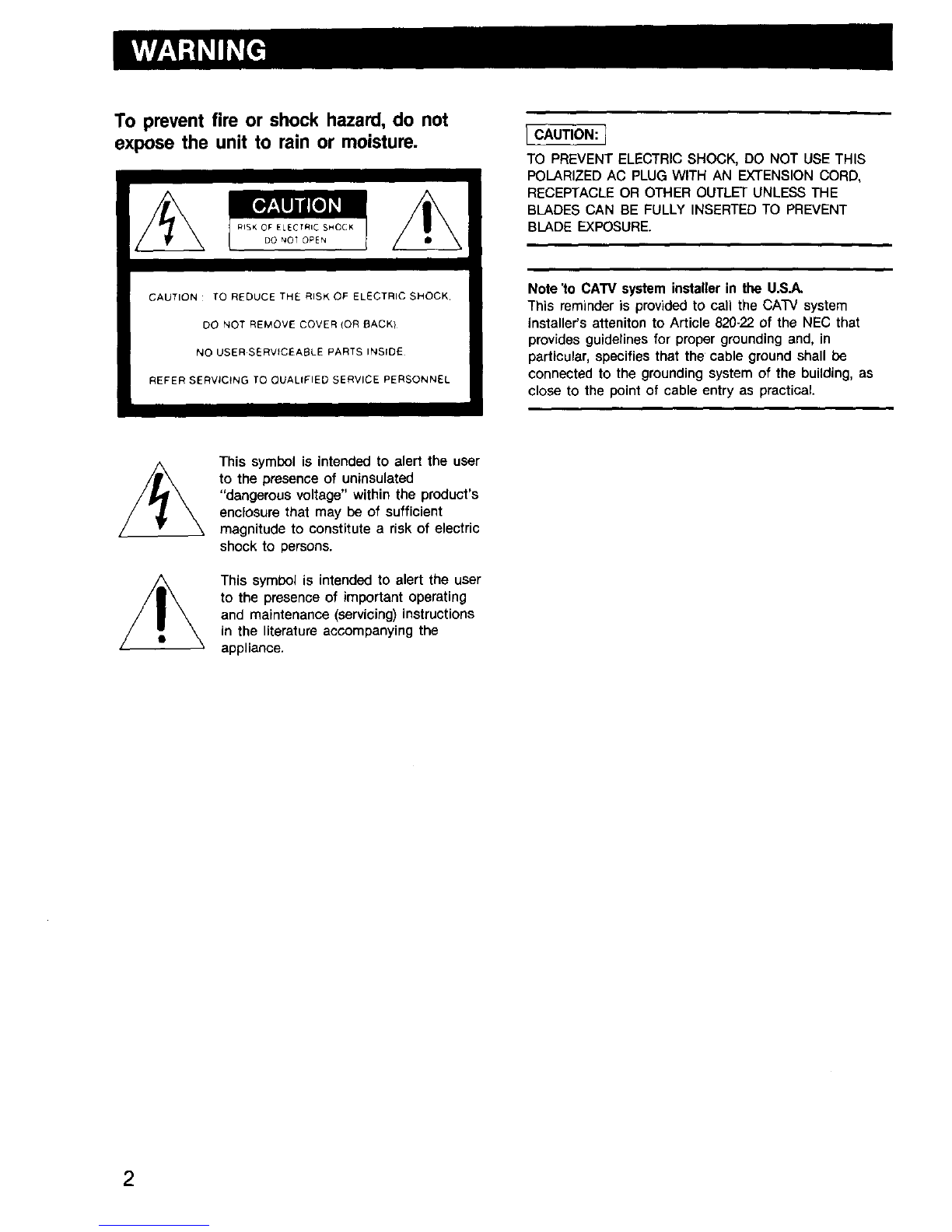

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

_ISK OF ELECTQiC SHOCK

DO NOT OPEN

CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK.

OO NOT REMOVE COVER (OR _ACK)

NO USER.SERVICEABLE PARTS INSIDE

REFER SERVICING TO OUALtFIED SERVICE PERSONNEL

ECAUTION: ]

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS

POLARIZED AC PLUG WITH AN EXTENSION CORD,

RECEPTACLE OR OTHER OUTLET UNLESS THE

BLADES CAN BE FULLY INSERTED TO PREVENT

BLADE EXPOSURE.

Note 'to CATV system installer in the U.S.A.

This reminder is provided to call the CATV system

installer's atteniton to Article 820-22 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of cable entry as practical.

This symbol is intended to alert the user

to the presence of uninsulated

"dangerous voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

This symbol is intended to alert the user

to the presence of important operating

and maintenance (servicing) instructions

in the literature accompanying the

appliance,

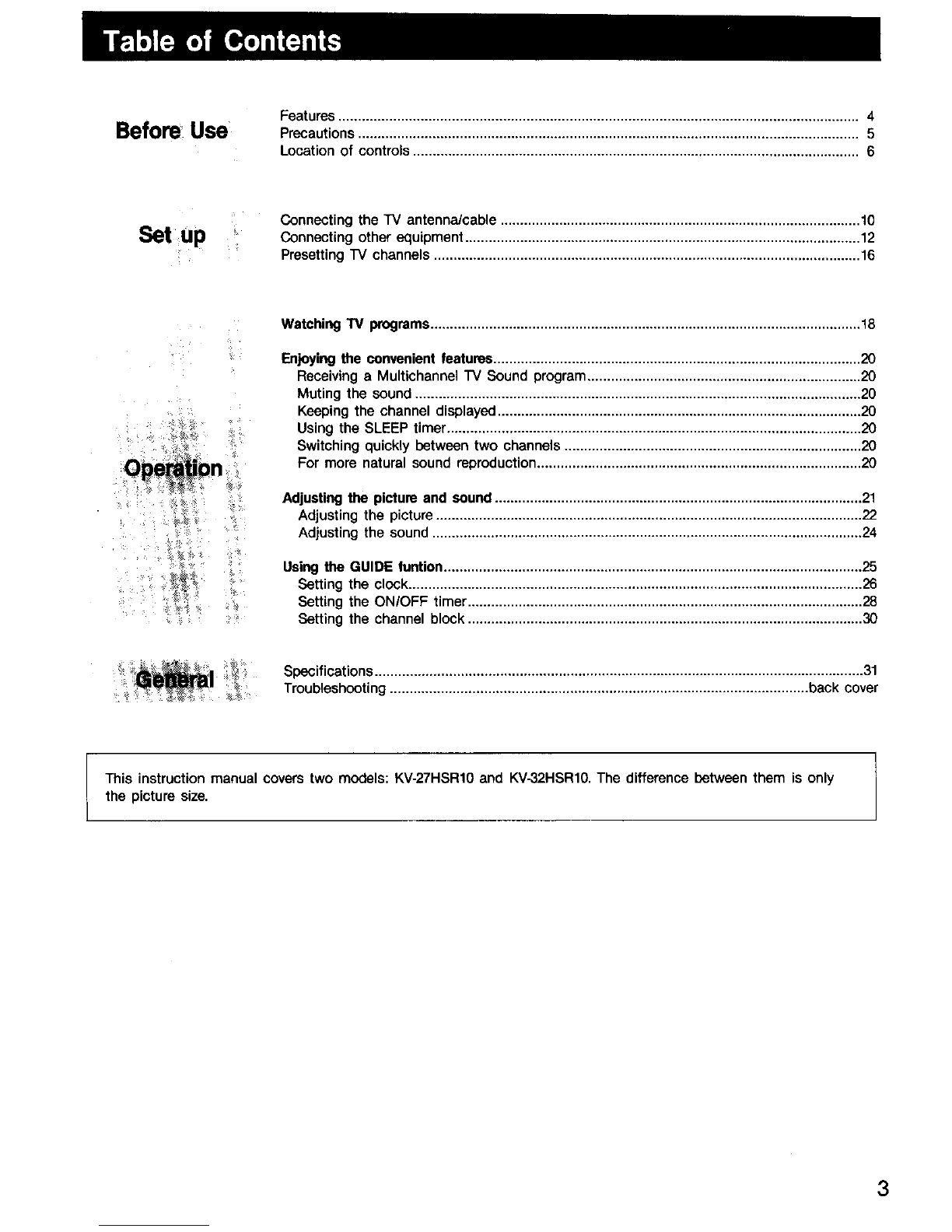

Before Use Features ..................................................................................................................................... 4

Precautions ................................................................................................................................ 5

Location of controls .................................................................................................................. 6

Setup

Connecting the TV antenna/cable ............................................................................................ 10

Connecting other equipment ..................................................................................................... 12

Presetting TV channels ............................................................................................................. 16

Watching TV programs.............................................................................................................. 18

Enjoying the convenient features .............................................................................................. 20

Receiving a Multichannel "IV Sound program ...................................................................... 20

Muting the sound .................................................................................................................. 20

Keeping the channel displayed ............................................................................................. 20

Using the SLEEP timer .......................................................................................................... 20

Switching quickly between two channels ............................................................................ 20

For more natural sound reproduction ................................................................................... 20

Adjusting the picture and sound .............................................................................................. 21

Adjusting the picture ............................................................................................................. 22

Adjusting the sound .............................................................................................................. 24

Using the GUIDE fention ........................................................................................................... 25

Setting the clock .................................................................................................................... 26

Setting the ONIOFF timer ..................................................................................................... 28

Setting the channel block ..................................................................................................... 30

Specifications ............................................................................................................................. 31

Troubleshooting ........................................................................................................... back cover

This instruction manual covers two models: KV-27HSR10 and KV-32HSR10. The difference between them is only

the picture size.

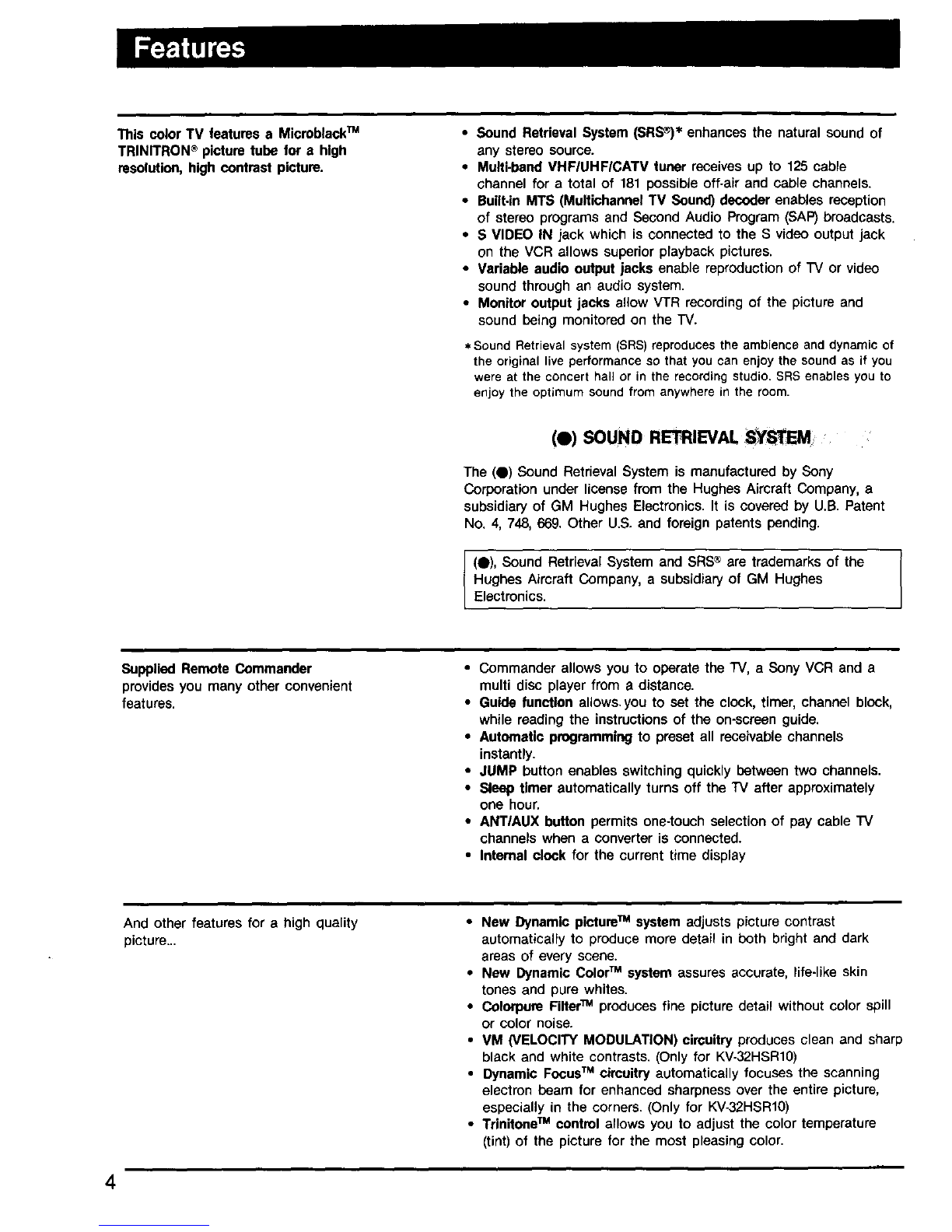

This color TV features a Microblack TM

TRINITRON ®picture tube for a high

resolution, high contrast picture.

•Sound Retrieval System (SRS_)* enhances the natural sound of

any stereo source.

•Multi.band VHF/UHFICATV tuner receives up to 125 cable

channel for a total of 181 possible off-air and cable channels.

•Built-in MTS (Multichannel TV Sound) decoder enables reception

of stereo programs and Second Audio Program (SAP) broadcasts.

• S VIDEO IN jack which is connected to the S video output jack

on the VCR allows superior playback pictures,

•Variable audio output jacks enable reproduction of "IV or video

sound through an audio system.

•Monitor output jacks allow VTR recording of the picture and

sound being monitored on the IV.

* Sound Retrieval system (SRS) reproduces the ambience and dynamic of

the original live performance so that you can enjoy the sound as if you

were at the concert hall or in the recording studio. SRS enables you to

enjoy the optimum sound from anywhere in the room.

(e) SOUND R_IEVAL SYSTEM

The (0) Sound Retrieval System is manufactured by Sony

Corporation under license from the Hughes Aircraft Company, a

subsidiary of GM Hughes Electronics. It is covered by U.B. Patent

No. 4, 748, 669. Other U.S. and foreign patents pending.

(0), Sound Retrieval System and SRS® are trademarks of the

Hughes Aircraft Company, a subsidiary of GM Hughes

Electronics.

SuppliedRemote Commander

provides you many other convenient

features.

•Commanderallowsyou to operatethe IV, a Sony VCR and a

multi disc playerfrom a distance.

•Guide function allows,you to set the clock,timer,channel block,

while readingthe instructionsof the on-scrsenguide.

•Automaticprogrammingto presetall receivablechannels

instantly.

•JUMP buttonenables switchingquickly betweentwo channels.

•Sleep timer automaticallyturnsoff the TV afterapproximately

one hour.

•ANTIAUX button permitsone-touchselectionof pay cable IV

channels when a converteris connected.

•Internalclock for the currenttime display

And other features for a high quality

picture... •New Dynamic pictureTM system adjusts picture contrast

automatically to produce more detail in both bright and dark

areas of every scene.

•New Dynamic ColorTM system assures accurate, life-like skin

tones and pure whites.

• coiorpure FilterTM produces fine picture detail without color spill

or color noise.

•VM (VELOCITY MODULATION) circuitry produces clean and sharp

black and white contrasts. (Only for KV-32HSR10)

•Dynamic FocusTM circuitry automatically focuses the scanning

electron beam for enhanced sharpness over the entire picture,

especially in the corners. (Only for KV-32HSR10)

•TrinitoneTM control arlows you to adjust the color temperature

(tint) of the picture for the most pleasing color.

Safety • Operate the unit only on 120 AC.

• One blade of the plug is wider than the other for purpose of

safety and will fit into the power outlet only one way. If you are

unable to insert the plug fully into the outlet, contact your

dealer.

• Should any liquid or solid object fall into the cabinet, unplug the

unit and have it checked by qualified personnel before operating

it any further.

• Unplug the unit from the wall outlet if it is not going to be used

for several days or more. To disconnect the cord, pull it out by

the plug. Never pull the cord itself.

Installation • To prevent internal heat build-up, do not block the ventilation

openings.

• Do not install the unit in a hot or humid place or in a place

subject to excessive dust or mechanical vibration.

Cleaning Clean the unit with aslightly damp soft cloth. Use amild

household detergent. Never use strong solvents such as thinner or

benzine as they might damage the finish of the cabinet.

Repacking Retain the original carton and packing materials for safe transport

of this unit in the future.

Use of this television receiver for other than private

viewing of programs broadcast on UHF or VHF or

transmitted by cable companies for the use of the

general public may require authorization from the

broadcaster/cable company and/or program owner.

If you have any questions or problems concerning your

unit, please contact your nearest Sony dealer.

For details safety precautions, see the leaflet

"IMPORTANT SAFEGUARDS".

Refer to the pages indicated in • for details.

[] I

I[]

[]TT

[]

[] Left speaker (tweeter and woofer)

[] (•) SRS (Sound Retrieval System) button •

[] TVNIDEO button

[] VOLUME buttons •

[] CHANNEL buttons

[] Right speaker (tweeter and woofer)

[] POWER switch

[] Remote sensor

[] SLEEP indicator •

[] STEREO indicator •

[_ TIMER indicator

[]

VtlF/UtlF

IDE0 T_

_o3 T

SVI_EO

QVII_ 0 _ll@ll

[]

[] AUX (auxiliary)terminal•

[] TO CONVERTER'terminal•

[] VHFlUHF antennaterminal •

[] VIDEO 1, 2, 3 IN jacks (p/normjacks)

[] MONITOR OUT jacks (phone jacks) •

[] SPEAKER SW (switch)

[] AUDIO OUT (VARIABLE) jacks (phono jacks)

Refer to the pages indicated in •for details.

The buttons with ,_ mark have the same function as the

buttons with the same or similar mark on the TV.

%--

[]

[]S

[]

_Z3

bL J

[]

r_V'rR I/2/3/MDP (multi disc player) selector •

[]Sony VCRImulti disc player operation buttons @

r_channel presetting buttons _

[_ANTIAUX (antennalauxiliary) button

[] MUTING button

[] CABLE button

[_lnput select buttons (TV, VIDEO 1, VIDEO 2, VIDEO

3)* •

[]Channel number buttons

[]DISPLAY button

_]ENTER button _

[_]TIME button

[] MTS (multichannel TV sound) button

[_SRS (sound retrieval system) button*

[] SLEEP button

[_] POWER button'_

[_A/V WINDOW (audio and video adjusting) buttons

_]JUMP button •

[_]CH (channel) scan buttons*

r_VOL (volume) control buttons*

[]PICTURE buttons

(R6) batteries x 2

Battery life

In normal operation, batteries will last up to half a year. If the

unti does not operate properly, the batteries might be

exhausted. Replace both batteries with new ones.

To avoid damage from possible battery leakage

Remove the batteries when the commander will not be used

for a long time.

Either an indoor antenna or outdoor antenna can be

connected. For better quality picture, connecting an

outdoor antenna is recommended.

Cable TV reception is only possible by connecting a

cable supplied by your local cable operator.

iin

ImCheck the cable type and prepare the cable

•end using the appropriate connector.

75-ohmcoaxial cable (round)I

Attach an optional F-typeconnector.

7mm (1/4inch) 10 mm (3/8 inch) F-type connector

3 mm (1/8inch)

I 300-ohmtwin.leadcable (flat) r

Attach the suppliedantennaconnector.

_Loosen with a

screwdriver.

3Attach the

cable and

fasten with a

screwdriver.

p,_ lug the connector into VHFIUHF on the

rear of the TV.

]75-ohm coaxial cable (round) I

VHF/UHF

300-ohm twin-lead cable (flat) ]

VHF/UHF

*Most combination antennas are equipped with asignal

splitter, Remove the splitter and attach the appropriate

connector,

Otros manuales para Trinitron KV-27HSR10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Sony

Sony

Sony BRAVIA KDL-32L40xx Manual de usuario

Sony

Sony KDL-40V2500 - Bravia V-series Lcd Hdtv Manual de usuario

Sony

Sony Trinitron KV-XF34M97 Manual de usuario

Sony

Sony KD-75XE85 SERIES Manual de usuario

Sony

Sony XBR-46HX909 Manual de usuario

Sony

Sony FD Trinitron KV-28FX65 B Manual de usuario

Sony

Sony Bravia XBR-65X950B Manual de usuario

Sony

Sony Bravia XBR-75X900F Manual de usuario

Sony

Sony KV-29C1A Manual de usuario

Sony

Sony FD Trinitron WEGA KV-27FS100 Manual de usuario

Sony

Sony BRAVIA KD-98Z9G Manual de usuario

Sony

Sony BRAVIA KDL-40Z5100 Guía del producto

Sony

Sony KDS-50A3000 - Bravia Sxrd Microdisplay Hdtv Manual de usuario

Sony

Sony KV-C2161D Manual de usuario

Sony

Sony KDL-19S5700 Manual de usuario

Sony

Sony TRINITRON KV-ES29M90 Manual de usuario

Sony

Sony TRINITRON KV-M2170A Manual de usuario

Sony

Sony Bravia KD-75XD9405 Manual de usuario

Sony

Sony KDL-24R400A Bravia Instrucciones de funcionamiento

Sony

Sony FD Trinitron Wega KV-27HS420 Manual de usuario

Sony

Sony TRINITRON KV-J14P2S Manual de usuario

Sony

Sony TRINITRON KV-XA25M60 Manual de usuario

Sony

Sony KV-27S25 - 27" Trinitron Color Tv Manual de usuario

Sony

Sony KV-EH36M31 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
