Sony Trinitron KV-2193MF1 Manual de usuario

Trinitron Color TV

1998 by Sony Corporation

3-862-886-11 (1)

Operating Instructions



KV-2193MF1

KV-2193MF1A

pKV-2193MF1 only

pKV-2193MF1A only

B/G I D/K M

TV SYSTEM AUTO PROGR

TV SYSTEM

AUTO PROGR

Getting Started

Connections

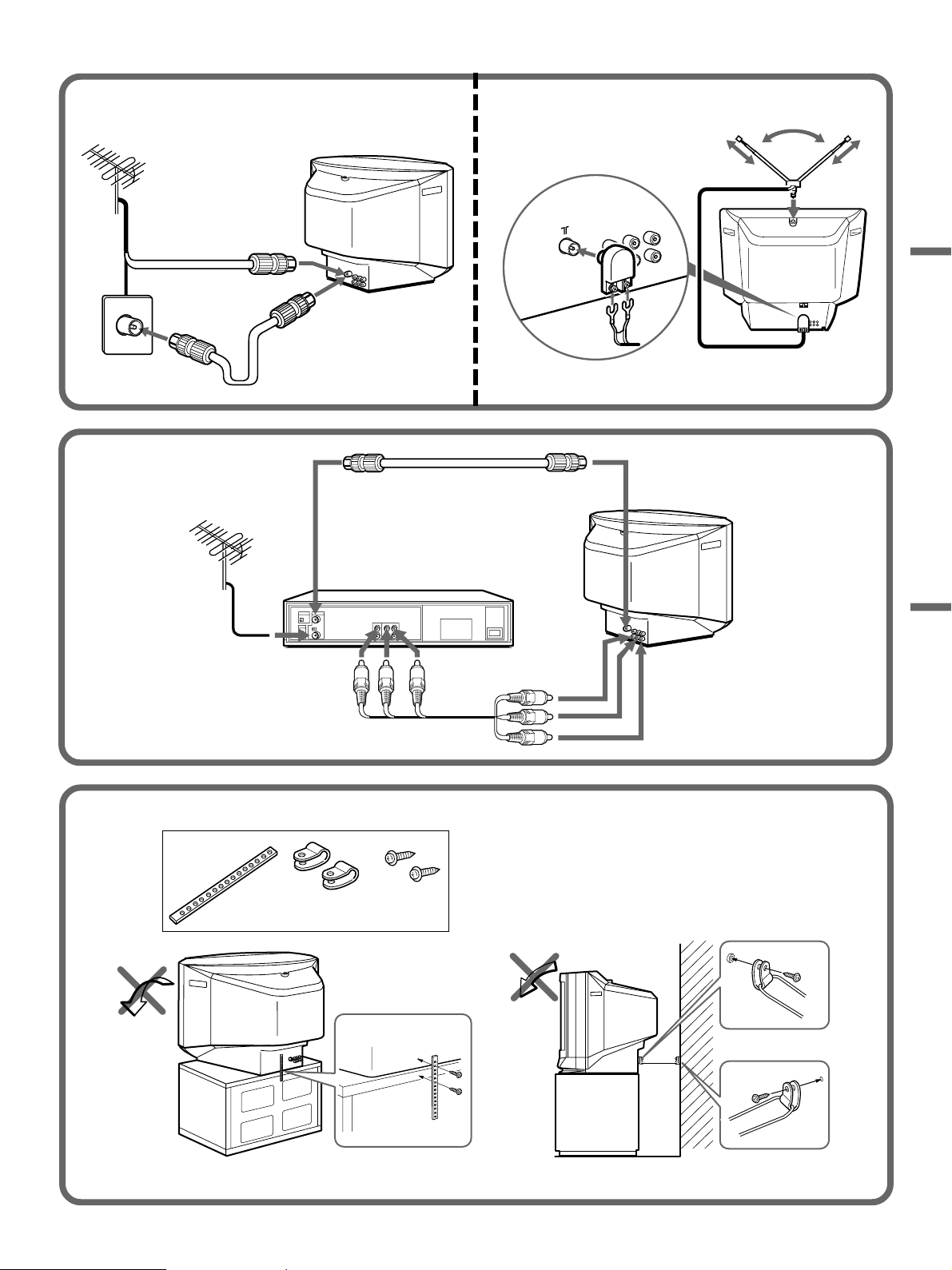

Connecting a VHF antenna or a combination VHF/UHF antenna

— 75-ohm coaxial cable (round)

Attach an optional IEC antenna connector to the 75-ohm coaxial cable. Plug the connector into the (antenna) socket at the rear

of the TV.

Getting Started

Connecting the 3D WOOFER

pKV-2193MF1A only

1Attach the 3D WOOFER into the foothold on the top of the TV.

2Connect the wires to the 3D WOOFER (8Ω) terminals at the rear of the TV.

The red wire should be connected to the ‘red terminal and the black wire to the ’black terminal.

13D WOOFER

On a wall

Rear of TV Rear of TV

Notes

• Connect only the supplied 3D WOOFER; otherwise the TV may malfunction.

• Unplug the TV from the wall outlet when connecting the 3D WOOFER.

• To prevent a malfunction caused by a short circuit of the terminals, make sure that none of the 3D WOOFER wire strands stick out,

making contact with the neighbouring speaker terminal.

Red wire

Black wire

Connecting an indoor antenna

pKV-2193MF1 only

Note

• You are advised to use an outdoor antenna for better reception.

Getting Started 5

When using the video input jacks

Do not connect video equipment to the video input jacks at the front and the rear of your TV simultaneously; otherwise the picture will

not be displayed properly on the screen.

Connecting audio/video equipment using MONITOR OUT jacks

to antenna

output

MONITOR OUT

Rear of TV

When recording through the MONITOR OUT jacks

If you change the channel or video input while recording with a VCR, the channel or video input you are recording also will be changed.

to antenna socket

Audio system

Connecting optional equipment

You can connect optional audio/video equipment to your TV such as a VCR, multi disc player, camcorder, video

game or stereo system.

Connecting video equipment using video input jacks

VIDEO IN

Rear of TV

Front of TV

VIDEO L(MONO)

VIDEO INPUT

AUDIO

VIDEO

MONITOR

OUT

VIDEO

(MONO)

AUDIO

to video

and audio

outputs : Signal flow

: Signal flow

to video and

audio outputs

Camcorder

to antenna

output VCR

to antenna socket

VIDEO

MONITOR

OUT

VIDEO

(MONO)

AUDIO

: Signal flow

to video

and audio

inputs

VCR

Getting Started

Presetting channels Presetting channels manually using the

buttons on the TV

1Press MANUAL PROGR.

2Press PROGR +/– on the remote commander

until the required program position

appears on the screen.

3Press TV SYSTEM until your local TV system

appears.

4Press VOLUME +/– until the required channel

picture appears on the screen.

5Press MANUAL PROGR.

If the TV system is not properly selected

The color of the picture may be poor and/or the sound

may be noisy. In this case, select the appropriate TV

system.

1Press PROGR +/– on the remote commander to

select the program position.

2Press TV SYSTEM until the picture and sound

become normal.

Notes

• If you do not know your local TV system, consult your nearest

authorized service center or dealer.

• The setting of the TV SYSTEM is memorized for each program

position.

Disabling program positions using the

buttons on the TV

By disabling unused or unwanted program positions,

you can skip those positions when you press

PROGR +/– on the remote commander.

1Press PROGR +/– on the remote commander

until the unused or unwanted program

position appears on the screen.

2Press MANUAL PROGR.

3Press PIC MODE on the remote commander.

4Press MANUAL PROGR.

To cancel the skip setting

Preset the channel manually or automatically again.

You can preset up to 100 TV channels in numerical

sequence from program position 1 automatically.

To change the channel for a particular program

position or to receive a channel with a weak signal,

you can preset the channel manually. You can also

disable program position.

You can preset TV channels using the buttons on the

TV or the remote commander.

Presetting channels automatically

using the buttons on the TV

1Press POWER to turn on the TV.

When the TV is turned on in standby mode, press

POWER on the remote commander.

2Press TV SYSTEM until your local TV system

appears.

3Press AUTO PROGR.

To start presetting channels automatically

from the specified program position

1Press MANUAL PROGR.

2Press TV SYSTEM to select your local TV system.

3Press PROGR +/– to select the program position.

4Press AUTO PROGR.

231

TV SYSTEM

B/G I D/K M

MANUAL PROGR

COLOR SYSTEM

SELECT

TV SYSTEM

AUTO PROGR

POWER

AUTO PROGR

1 2 3 1

POWER

Front of TV

Getting Started 7

POWER

B/G I D/K M

Presetting channels automatically

using the remote commander

1Press POWER to turn on the TV.

When the TV is turned on in standby mode, press

POWER on the remote commander.

2Press SELECT until “TV SYSTEM” appears.

3Press + or – to select your local TV system.

4Press SELECT until “AUTO PROGRAM”

appears.

5Press + or –.

6Press + or –.

Presetting channels manually using the

remote commander

1Press SELECT until “TV SYSTEM” appears.

2Press + or – to select your local TV system.

3Press PROGR +/– or a number button until

the required program appears on the

screen.

4Press SELECT until “MANUAL PROGRAM”

appears.

5Press + or – .

6Press + or – .

The selected channel appears on the screen.

7Press SELECT to return to normal screen.

SELECT

TV SYSTEM : B/G

SELECT

TV SYSTEM : B/G

B/G I D/K M

123

789

÷0

PROGR

JUMP

SELECT

MANUAL PROGRAM

1 2 3 1

VHF LOW B/G

SELECT

AUTO PROGRAM

VHF LOW B/G

SELECT

+ or –

SELECT

Getting Started

If you are not satisfied with the picture

and sound quality

You may be able to further improve the picture and

sound quality by using fine tuning as below:

1Select the program position you want to

adjust.

2Press SELECT until “MANUAL PROGRAM”

appears on the screen.

3Press + or – on the remote commander

once.

4Press DISP until “FINE” appears on the

screen.

5Press + or – continuously until you are

satisfied with the picture and sound

quality.

6Press SELECT to return to normal screen.

Operations 9

VIDEO

HOLD

123

789

÷0

JUMP

Watching the TV

1Press POWER to turn on the TV.

When the TV is turned on in standby mode, press

POWER on the remote commander.

2Select the TV program you want to watch.

To select a program position directly

Press the number button.

To select a two-digit program position, press “-/--”

before pressing the number buttons.

For example: to select program position 25, press

“-/--,” and then “2” and “5.”

To scan through program positions

Press PROGR +/– until the program position you

want appears.

3Press VOL +/– to adjust the volume.

÷2 5

PROGR

Operations

VIDEO 1

POWER

JUMP

POWER

VOL

POWER

MUTING

Turning off the TV

To turn off the TV temporarily

Press POWER on the remote commander. The

STANDBY indicator on the TV lights up.

To turn off the TV completely

Press POWER on the TV.

If the power on the TV is turned off in standby mode,

the STANDBY indicator on the TV may remain alight

for a while.

Watching the video input

Press VIDEO/HOLD.

To watch TV

Press TV.

Switching back quickly to the previous

channel

Press JUMP.

Muting the sound

Press MUTING.

Operations

DISP

REVEAL

AUTO B/G

DYNAMIC MUSIC

Displaying on-screen information

Press DISP/REVEAL.

The program position, local system, and TV settings are

displayed on the screen.

No sleep timer After 90 minutes

After 60 minutes

After 30 minutes

SLEEP TIMER:30M SLEEP TIMER:60M

SLEEP TIMER:OFF SLEEP TIMER:90M

Setting the Wake Up Timer

You can set the TV to automatically turn on as you

have programmed.

1Press WAKE UP/INDEX repeatedly to set the

timer.

The on-screen display appears and the WAKE UP

indicator on the TV lights up.

2If you want a particular TV program or

video input to be displayed using the Wake

Up Timer, select the TV program or video

input.

3Press POWER on the remote commander or

set the Sleep Timer to turn off the TV in

standby mode.

To cancel the Wake Up Timer, press WAKE UP/

INDEX repeatedly until “WAKE UP TIMER: OFF”

appears, or turn off the main power of the TV.

Notes

• The Wake Up Timer starts immediately after the on-screen

display disappears.

SLEEP

TEXT CLR

WAKE UP

INDEX

After 10 minutes

WAKE UP TIMER:10M

WAKE UP TIMER:OFF WAKE UP TIMER:12H00M

No wake up timer After 12 hours

• The last TV program position or video input just before the TV

turns into standby mode will appear when the TV is turned on

using the Wake Up Timer.

• If no buttons or controls are pressed for more than two hours

after the TV is turned on using the Wake Up Timer, the TV

automatically turns into standby mode. If you want to

continue watching the TV, press any button or control on the

remote commander or the TV.

Setting the Sleep Timer

You can set the TV to automatically turn off as you

have programmed.

Press SLEEP/TEXT CLR.

To cancel the Sleep Timer, press SLEEP/TEXT CLR

repeatedly until “SLEEP TIMER: OFF” appears, or turn

off the TV.

Changing the on-screen display

language

You can use buttons on the remote commander or the

TV to change the on-screen display language.

1Press SELECT until the screen appears as

follows:

2Press + or – to select “ ”.

Note

• You can also use SELECT and VOLUME +/– on the TV to

select the on-screen display language.

SELECT

+ or –

SELECT

LANGUAGE/ :ENGLISH

:LANGUAGE/

÷0

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Sony

Sony

Sony KL-37W2U Manual de usuario

Sony

Sony KDL-32U2520 Manual de usuario

Sony

Sony TRINITRON KV-XS29N90 Manual de usuario

Sony

Sony Bravia XR-77A80K Manual de usuario

Sony

Sony TRINITRON KV-SZ25M61 Manual de usuario

Sony

Sony Trinitron KV-AR34 Manual de usuario

Sony

Sony TV & Home A/V Manual de instrucciones

Sony

Sony Bravia KDL-65W950B Manual de usuario

Sony

Sony BRAVIA KDL-40E55 Series Manual de usuario

Sony

Sony Trinitron KV-20EXR20 Manual de usuario

Sony

Sony BRAVIA KD-65XE70 Series Manual de usuario

Sony

Sony XTL-W70 Manual de usuario

Sony

Sony BRAVIA XBR-85Z8H Manual de usuario

Sony

Sony KD-65XD750x Manual de usuario

Sony

Sony Trinitron KV-27V42 Instrucciones de uso

Sony

Sony BRAVIA KDL-26S2000 Manual de usuario

Sony

Sony KV-27S25 - 27" Trinitron Color Tv Manual de usuario

Sony

Sony BRAVIA KD-55X75K Manual de usuario

Sony

Sony BRAVIA KD-32W830K Manual de usuario

Sony

Sony KV-XG25M8J Manual de usuario

Sony

Sony Trinitron KV-27S22 Manual de usuario

Sony

Sony KE-42XBR900 - 42" Xbr Plasma Wega™ Integrated... Manual

Sony

Sony Trinitron GDM-F400T9 Manual de usuario

Sony

Sony BRAVIA KD-65X70 Series Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
