Sony KV-V28 Manual de usuario

3-858-641-21 (1)

Trinitron Color TV

1996 by Sony Corporation



KV-V28

Operating Instructions

Mode d´emploi

####

#### A

20 mm

3.8 mm

ENTER

VIDEO 3 INPUT

S1 VIDEO

(MONO)

VIDEO L–AUDIO–R

MENU AUTO PROGR

AUTO PROGR

TV SYS: B/G

AUTO PROGRAM

VHF LOW

PR: 01

12 3

45 6

78 9

Getting Started -EN

WARNING Table of contents

• Dangerously high voltages are present inside the TV.

• Operate the TV only at 110-240 V AC.

• Do not open the cabinet and the rear cover of the TV.

Refer servicing to qualified personnel.

• To prevent fire or shock hazard, do not expose the TV

to rain or moisture.

• Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by qualified

personnel only.

• Do not block the ventilation openings.

• Do not install the appliance in a confined space, such

as a bookcase or built-in cabinet.

• Do not install the TV in hot, humid or excessively

dusty places.

• Do not install the TV where it may be exposed to

mechanical vibrations.

• Do not keep the TV plugged in if you are not going to

use it for several days.

• Do not pull the power cord to disconnect the TV. Pull

it out by the plug.

• Use only the supplied screws (as shown on page 2) to

fasten the TV to the TV stand or to stabilize the TV

against a wall or a pillar. Use of other screws may

damage the TV.

Notes

• When you turn on the TV, you may hear the “boon” sound

that is caused by the demagnetization of the TV. This does not

indicate a malfunction.

• The picture color may become abnormal if you change the

direction of your TV. To obtain the normal picture color, press

POWER on the TV to turn off the TV for five minutes and then

turn it on again.

Getting Started

6Connections

8Getting to know the remote commander

9Introducing the menus

10 Changing the menu language

11 Presetting channels

Operations

13 Watching the TV

16 Watching the picture in wide mode (WIDE MODE)

17 Scrolling a picture up or down (SCROLL)

18 Adjusting the picture and sound

20 Listening to the POWER BASSO sound

21 Listening to the surround sound (HYPER

SURROUND)

22 Selecting a stereo or bilingual program

23 Viewing multiple programs at the same time

(PROGRAM INDEX)

24 Displaying frame-by-frame pictures (STROBE)

24 Using the Picture-in-Picture (PIP) features

26 Viewing Teletext

28 Displaying Teletext on the PIP screen (PIP TEXT)

29 Viewing a video game screen

30 Customizing the TV

Additional Information

31 Troubleshooting

Back Specifications

cover

All contents are subject to change without notice.

Design and specifications are subject to change without

notice.

Getting Started

6-EN

VIDEO IN MON/TV

OUT

123

VIDEO

AUDIO

(MONO)

S1 VIDEO

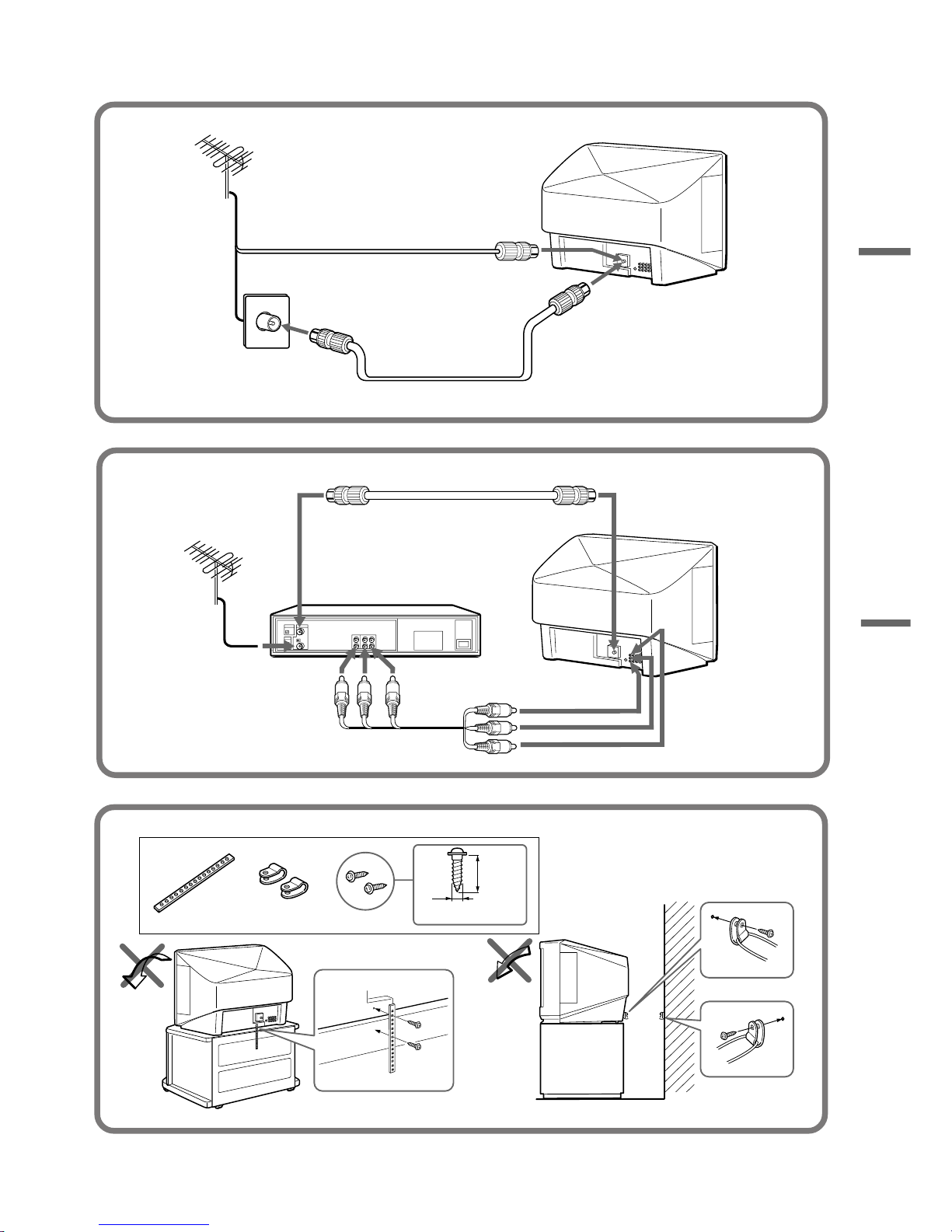

Connecting a VHF antenna or a combination VHF/UHF antenna

— 75-ohm coaxial cable (round)

Attach an optional IEC antenna connector to the 75-ohm coaxial cable.

Plug the connector into the (antenna) socket at the rear of the TV.

Connecting optional equipment

You can connect optional audio/video equipment to your TV such as a VCR, multi disc player, camcorder, video

game or stereo system.

Connecting video equipment using video input jacks

Connections

VCR

to video and

audio outputs

Rear of TV

On a wall

: Signal flow

S1 Video

input

antenna

socket

VIDEO (yellow)

AUDIO-L (white)

AUDIO-R (red)

Rear of TV

Getting Started

S or S1

video

output

antenna

output

Getting Started -EN

When connecting a monaural VCR

Connect the yellow plug to VIDEO and the black plug to AUDIO-L (MONO).

When connecting video game equipment

Connect video game equipment to the VIDEO 3 INPUT jacks at the front of your TV or the VIDEO IN 3 jacks at the rear of your TV.

When connecting a VCR to the (antenna) terminal

Preset the signal output from the VCR to the program position 0.

When connecting video equipment to the VIDEO 3 INPUT jacks or the VIDEO IN 3 jacks

Do not connect video equipment to the VIDEO 3 INPUT jacks at the front and the VIDEO IN 3 jacks at the rear of your TV simultaneously;

otherwise the picture will not be displayed properly on the screen.

If both S1 Video and video signals are input simultaneously

The S1 Video input signal is selected. To view a video input signal, disconnect the S1 Video connection.

Note on the video input

When no signal is input, the screen becomes blue.

Connecting audio/video equipment using MON/TV OUT jacks

VIDEO

VIDEO 3 INPUT

S1 VIDEO

(MONO)

L–AUDIO–R

: Signal flow

to S or S1 video output

to video and

audio outputs

Camcorder

Front of TV

Rear of TV

VIDEO IN MON/TV

OUT

123

VIDEO

AUDIO

(MONO)

S1 VIDEO

VCR

antenna

output

to video and

audio inputs

VIDEO (yellow)

AUDIO-L (white)

AUDIO-R (red)

Audio system

antenna

socket or

: Signal flow

to audio

inputs

Getting Started

8-EN

Names of buttons on the remote commander are indicated in different colors to represent the available functions.

Label color Button function

White For general TV operations.

Green For Teletext operations.

Yellow For PIP and PROGRAM INDEX operations.

Blue For the wide picture mode operations.

Getting to know the

remote commander

PIP operation buttons

TV/VIDEO (page 24)

FREEZE (page 25)

SWAP (page 25)

PIP (page 24)

V/v/ENTER

– for PIP PROGR (page 24)

PROGRAM INDEX

operation buttons

PROGR INDEX (page 23)

V/b/v/B/ENTER (page 23)

PROGR +/– (page 23)

PROGRVOL

PIP PROGR

TEXT A/B

ENLARGE

DISPLAY

REVEAL

GAME POWER

VIDEO

HOLD

MUTING

PROGR

INDEX

PIP

TEXT

123

456

-/--

TV/VIDEO FREEZE SWAP PIP

POWER

BASSO WAKE UP

INDEX

SLEEP

TEXT CLR

ENTER

WIDE

MODE

SCROLL

GAME (page 29)

Teletext operation buttons

TEXT (page 26, 27)

ENLARGE (page 27)

REVEAL (page 27)

HOLD (page 26)

[] – Red (page 26)

[] – Green (page 26)

[] – Yellow (page 26)

[] – Blue (page 26)

INDEX (page 26)

TEXT CLR (page 27)

PIP TEXT (page 28)

V/b/v/B/ ENTER (page 28)

POWER BASSO (page 20)

PROGRVOL

PIP PROGR

TEXT A/B

ENLARGE

DISPLAY

REVEAL GAME POWER

VIDEO

HOLD TV

MUTING

PROGR

INDEX

PIP

TEXT

123

456

-/--

TV/VIDEO FREEZE SWAP PIP

POWER

BASSO WAKE UP

INDEX

SLEEP

TEXT CLR

ENTER

WIDE

MODE

SCROLL

PROGRVOL

PIP PROGR

PROGR

INDEX

PIP

TEXT

POWER

BASSO WAKE UP

INDEX

SLEEP

TEXT CLR

ENTER

WIDE

MODE

SCROLL

Wide picture mode operation

buttons

WIDE MODE (page 16)

SCROLL (page 17)

V/vENTER

-for SCROLL (page 17)

Getting Started -EN

Getting back to the previous menu

(except for AUTO PROGRAM)

Press Vor vto move the cursor (z) to the first

line (N) of each menu, and press ENTER.

Cancelling the menu screen

Press MENU.

Notes (except for AUTO PROGRAM)

• When a menu is selected after pressing ENTER, the color of

both the menu and the menu symbol change and the cursor

(z) appears beside the first item of the menu.

• When an item on the menu is selected after pressing ENTER,

the color of the item changes.

• You can refer to the guide ( ) at the bottom of the

menus (except for the A/V CONTROL, FEATURES, and

PRESET menus) for the basic operations of the menu.

• If more than approximately 60 seconds elapse after you press a

button, the menu screen disappears automatically.

Introducing the

menus

You can preset TV channels, adjust the picture and sound qualities, and select some settings using the on-screen

menus. You can use the buttons on the remote commander or the TV to operate the menus.

PIP

PIP: OFF

PIP TEXT

STROBE

POS I T ION:

PROGR INDEX

PRESETFEATURESPIPA/V CONTROL

A / V CONTROL

DYNAMIC

SOFT

STANDARD

PERSONAL

V I DEO ADJUST

AUD IO ADJUST

T I LT CORRECT: 0

P I CTURE

100

V I DEO ADJUST

COLOR

BR I GHT

HUE

SHARP

VM: HIGH

BASS 80

TREBLE

BALANCE

AUD IO ADJUST

TV SYS: B/G

AUTO PROGRAM

VHF LO

PR: 01

TV SYS: B/G

VHF

PR: 01

ATT : OFF

MANUAL PROGRAM

WIDE MODE :

HYPER SURROUND:

OFF

MONITOR

AV OUT :

FEATURES

WIDEZOOM

SCROLL : 0

PRESET

SKIP:

PR02 OFF

TV SYS: B/G

COL

SYS : AUTO

ENGL I SH

AUTO PROGRAM

MANUAL PROGRAM

LANGUAGE/####:

Getting Started

10-EN

Changing the menu

language

4Make sure the cursor (z) appears beside

LANGUAGE/ #### and press ENTER.

5Press V/b/v/Bto select ####, and press

ENTER.

All of the menus change to Arabic.

6Press MENU to return to the normal screen.

If you prefer Arabic to English, you can change the

menu language. You can use buttons on the remote

commander or the TV.

1Press POWER to turn on the TV.

2Press MENU.

3Press Vor vto move the cursor (z) to the

PRESET menu ( ), and press ENTER.

ENTER

POWER

ENTER MENU

POWER

A / V CONTROL

DYNAMIC

SOFT

STANDARD

PERSONAL

V I DEO ADJUST

AUDIO ADJUST

T I LT CORRECT: 0

PRESET

SKIP: PR02 OFF

TV SYS: B/G

COL SYS : AUTO

ENGL I SH

AUTO PROGRAM

MANUAL PROGRAM

LANGUAGE/####:

ENTER ENTER

PRESET

SKIP: PR02 OFF

TV SYS: B/G

COL SYS : AUTO

ARABIC

AUTO PROGRAM

MANUAL PROGRAM

:LANGUAGE/####

ENTER ENTER

Tabla de contenidos

Idiomas:

Otros manuales de TELEVISOR de Sony

Sony

Sony Bravia KDL-40S4100 Manual de usuario

Sony

Sony TRINITRON KV-DA29M81 Manual de usuario

Sony

Sony Bravia KD-65X7007E Manual de usuario

Sony

Sony BRAVIA KDL-32W605D Manual de usuario

Sony

Sony Trinitron KV-27V10 Manual de usuario

Sony

Sony BRAVIA KDL-40R375C Manual de usuario

Sony

Sony KDL-40V3000 Manual de usuario

Sony

Sony KLV-46EX430 Manual de usuario

Sony

Sony KE-42TS2U - 42" Flat Panel Color Tv Manual de usuario

Sony

Sony Trinitron KV-XF21M80 Manual de usuario

Sony

Sony KDL-32W5500 Manual de usuario

Sony

Sony KV-32FV1 - 32" Fd Trinitron Wega Manual de usuario

Sony

Sony TRINITRON KV-XF21M61 Manual de usuario

Sony

Sony BRAVIA XR-85X9xL Manual de usuario

Sony

Sony KDL-70R550A Guide Manual de usuario

Sony

Sony BRAVIA KLV-40R352E Manual de usuario

Sony

Sony Trinitron KV-20M20 Manual de usuario

Sony

Sony KV-EF34 Manual de usuario

Sony

Sony BRAVIA KDL-32W617F Manual de usuario

Sony

Sony TRINITRON KV-HF51P50 Manual de usuario

Sony

Sony XR-55X90L Manual de usuario

Sony

Sony KD-34XBR960 Instructions: TV stand Manual de usuario

Sony

Sony BRAVIA KDL-32R300C Manual de usuario

Sony

Sony XBR-49X850B Instrucciones de funcionamiento

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
