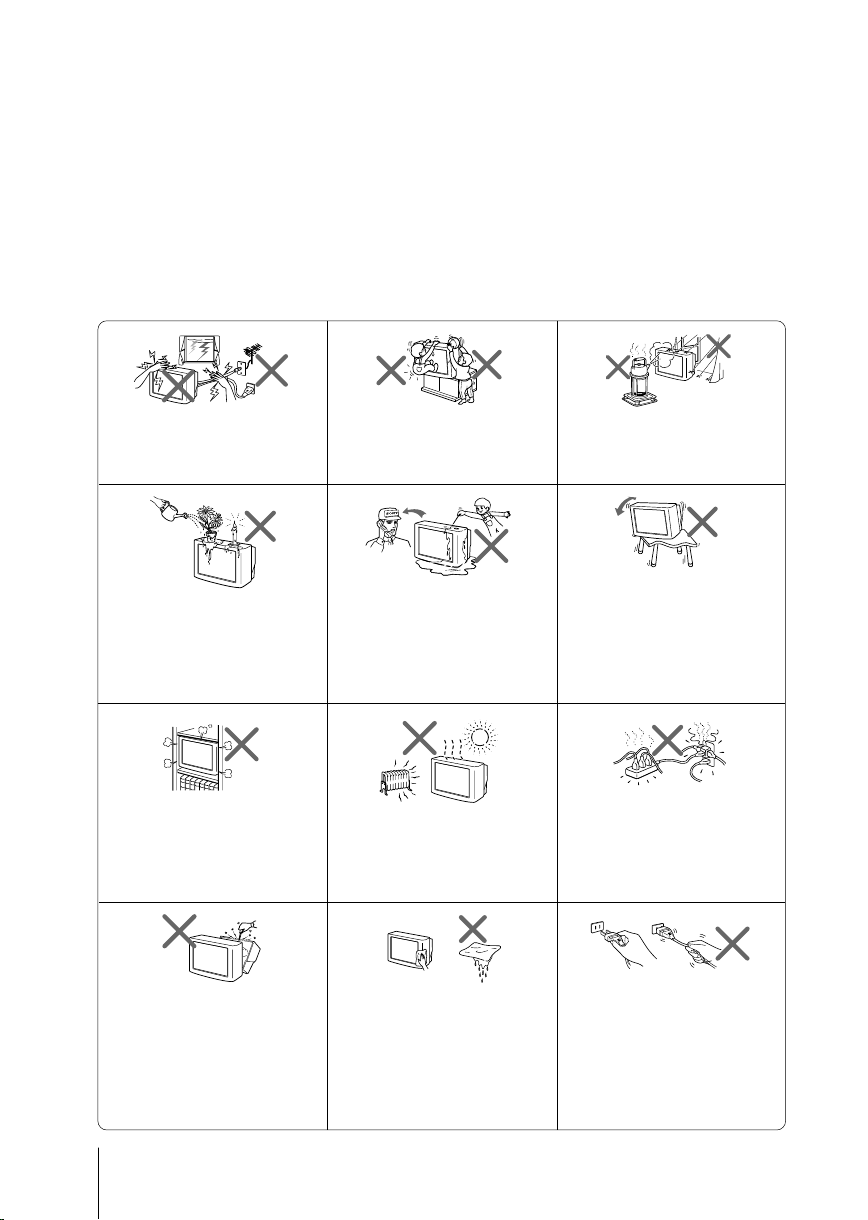

Clean the TV with a dry and soft

cloth. Do not use benzine, thinner,

or any other chemicals to clean the

TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape,

glue) on the painted cabinet of the

TV. Do not scratch the picture tube.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Install the TV on a stable TV stand

and floor which can support the

TV set weight. Ensure that the TV

stand surface is flat and its area is

larger than the bottom area of the

TV.

Do not plug in too many

appliances to the same power

socket. Do not damage the power

cord.

For children’s safety, do not leave

children alone with the TV. Do not

allow children to climb onto it.

For your own safety, do not touch

any part of the TV, the power cord

and the antenna cable during

lightning storms.

Do not place any objects on the TV.

The apparatus shall not be

exposed to dripping or splashing

and that no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Do not operate the TV if any liquid

or solid object falls into it. Have it

checked immediately by qualified

personnel only.

Do not block the ventilation

openings of the TV. Do not install

the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not open the cabinet and the

rear cover of the TV as high

voltages and other hazards are

present inside the TV. Refer

servicing and disposal of the TV

to qualified personnel.

Pull the power cord out by the

plug. Do not pull the power cord

itself. Even if your TV is turned off,

it is still connected to the AC power

source (mains) as long as the power

cord is plugged in. Unplug the TV

before moving it or if you are not

going to use it for several days.

To prevent fire or shock hazard, do

not expose the TV to rain or

moisture.

Your TV is recommended for

home use only. Do not use the TV

in any vehicle or where it may be

subject to excessive dust, heat,

moisture or vibrations.

01GB02TOC-SOEMAFR.p65 11/30/06, 4:08 PM2

Black

Sony KV-BZ212M50 Group B12 (GB, CT) _2-682-387-12 (1)

Getting Started ............................................................................................................... 4

Setting up your TV (“Initial Setup”) ........................................................................... 5

TV top control, front and rear panels ......................................................................... 7

Connecting optional components ............................................................................... 8

Using the remote control and basic functions ......................................................... 10

Introducing the WEGA GATE navigator ................................................................. 12

“Settings” Adjustment ................................................................................................ 13

Changing the “Picture” setting .................................................................................. 14

Changing the “Sound” setting ................................................................................... 15

Changing the “Channel Setup” setting .................................................................... 16

Changing the “Setup” setting .................................................................................... 18

Troubleshooting ........................................................................................................... 19

Specifications ................................................................................................ Back cover

Table of Contents

01GB02TOC-SOEMAFR.p65 11/30/06, 4:08 PM3

Black

Sony KV-BZ212M50 Group B12 (GB, CT) _2-682-387-12 (1)

End

Select Confirm

Insert the batteries (supplied) into the remote.

Note

•Do not use old or different types of batteries together.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components

(see page 8).

Plug in the power cord, then press !on the TV to turn

it on.

Note

• The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a malfunction.

Set up the TV by following the instructions of the

“Initial Setup” menu (see page 5).

xGetting Started

Step 1

Step 2

Step 3

Step 4

01GB02TOC-SOEMAFR.p65 11/30/06, 4:08 PM4

Black

Sony KV-BZ212M50 Group B12 (GB, CT) _2-682-387-12 (1)

continue

xSetting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will

appear. You may change the menu language, preset the TV channels

automatically and sort or edit the channels using the buttons on the remote

control or TV top control panel.

1Press V or vto select the desired menu

language, then press .

The selected menu language appears.

2Press V or vto select “Yes”, then press to

preset the channels automatically.

The screen will indicate automatic

presetting is in progress (“TV system” is

available for KV-BZ212M50 only).

After all available channels have been tuned

and stored, the “Program Sorting/Edit”

menu appears automatically on the screen.

To skip automatic channel presetting, select

“No”, then press .

If the message “No channel found. Please

connect cable/antenna” appears, check your

TV connections, then press .

3The “Program Sorting/Edit” menu enables

you to sort and edit the channels.

a) If you wish to keep the channels in the current

condition, press WEGA GATE to exit.

b) Press Vor vto select the program

number with the channel you wish to

change. The selected channel will appear

on the screen.

c) If you wish to store the channels in a

different order:

1) Press bto enter sorting mode.

2) Press Vor vto select the new program

number position for your selected

channel, then press B.

Start auto program now?

End

Select Confirm

End

Select Confirm

Start auto program now?

Program:

Auto Program

TV System: Auto

VHF Low

End

Program Sorting/Edit

Off

Sorting mode

PROG

SkipLabel

Off01

Exit

Select Confirm

Program Sorting/Edit

Off

Sorting: Edit:

PROG

SkipLabel

Exit

Select Confirm

01GB02TOC-SOEMAFR.p65 11/30/06, 4:08 PM5

Black

Sony KV-BZ212M50 Group B12 (GB, CT) _2-682-387-12 (1)

d) If you wish to edit the channels, press

to change to edit mode.

Press buntil the mode that you wish to edit

is highlighted: Label, Skip, (block symbol).

Then press .

1) To label, press Vor vto select the

alphanumeric characters for the label.

Then press .

2) To skip the program number, press Vor vto

select “On”. Then press .

You can skip this program number when

using PROG +/-.

3) To block unwanted program number,

press Vor vto select . Then press .

e) Repeat step b) to d) if you wish to change other

channels.

Press WEGA GATE to go to the next menu.

4To prevent this “Initial Setup” menu from

appearing again when you turn on the TV

by pressing !, press V or vto select “No”,

then press .

To allow this menu to appear again, select

“Yes”, then press .

Tip

•You can immediately go to the end of the “Initial Setup” menu by pressing WEGA GATE.

Setting up your TV (“Initial Setup”) (continued)

Exit

Select Confirm

Exit

Select Confirm

Exit

Select Confirm

01GB02TOC-SOEMAFR.p65 11/30/06, 4:08 PM6

Black

Sony KV-BZ212M50 Group B12 (GB, CT) _2-682-387-12 (1)

(MONO)

WEGA GATE

PROG

8765

123

(MONO) (MONO)

(MONO)

TV rear panel

xTV top control, front and rear panels

TV top control panel

Button/Terminal Function Page

1!Turn off or turn on the TV. 4

2Remote control sensor. –

3Wake Up indicator. 11

31Standby indicator. 4

4t2Video input terminal 2. 8

5PROG +/– Select program number. –

62+/– Adjust volume. –

7tSelect TV or video input. 8

WEGA GATE menu operations

5,6V,v,B,bSelect and adjust items. 12

7Confirm selected items. 12

8WEGA GATE Display or cancel WEGA GATE menu. 12

98Antenna input terminal. 8

0TMonitor output terminal. 8

qa Component video input terminal. 9

qs t1Video input terminal 1. 8

TV front panel

01GB03INS-SOEMAFR.p65 11/30/06, 4:09 PM7

Black

Sony KV-BZ212M50 Group B12 (GB, CT) _2-682-387-12 (1)

xConnecting optional components

Connecting to the video input terminal ( t)

Note

• If you connect a VCR to 8(antenna input), preset the signal output from the VCR to the

program number 0 on the TV (see page 17).

TV rear panel

Audio system

(MONO) (MONO)

VCR

Audio/Video

cable

(not supplied)

Connecting to the monitor output terminal ( T )

TV front panel

(MONO)

(MONO) (MONO)

Antenna cable

(not supplied)

VCR

TV rear panel

Audio/Video

cable

(not supplied)

Audio/Video

cable

(not supplied)

Camcorder

DVD Player

01GB03INS-SOEMAFR.p65 11/30/06, 4:09 PM8

Black

Sony KV-BZ212M50 Group B12 (GB, CT) _2-682-387-12 (1)

DVD player

TV rear panel

Component video

cable

(not supplied)

Audio cable

(not supplied)

(MONO)

Connecting to the component video input terminal ( )

Notes

•If your DVD player can output interlace and progressive mode signals, select the interlace

output when connecting to (component video input) on your TV. Your TV can receive

either 525i/60Hz or 625i/50Hz interlace signals.

•The component video terminals on your DVD player are sometimes labeled Y/CB/CR, Y/PB/

PR, Y/Cb/Cror Y/B-Y/R-Y.

• If you select “DVD” on your TV screen, the signal from the T(monitor output) jacks will not

be output properly. This does not indicate a malfunction.

01GB03INS-SOEMAFR.p65 11/30/06, 4:09 PM9

Black

Sony KV-BZ212M50 Group B12 (GB, CT) _2-682-387-12 (1)

xUsing the remote control and basic

functions

123

789

PROG

A/B

RETURN WEGA

GATE

Button Description Page

1?/1Turn off temporarily or turn on –

the TV.

2aDisplay the TV program. –

3Jump to last program number –

that has been watched for at

least five seconds.

4PROG +/–

Select program number. To select –

quickly, press and hold until the

desired program number appears.

52+/– Adjust volume. –

8Not function for your TV. –

9Not function for your TV. –

0Display on-screen information. –

qa Mute the sound. –

qd tSelect TV or video input. 8

qf 0 – 9 Input numbers. For program –

numbers 10 and above, enter the

second digit within two seconds.

ql Not function for your TV. –

w; Select picture mode options: 14

“Vivid”, “Standard”, “Custom”*.

* When the “Custom” mode is

selected, you can receive the last

adjusted picture settings from

the “Picture Adjustment” option

in the menu.

WEGA GATE menu operations

6Confirm selected items. 12

7WEGA Display or cancel WEGA GATE

GATE menu.

qj V, v,B,b Select and adjust items.

qk RETURN Return to the previous level.

01GB04AVD-SOEMAFR.p65 11/30/06, 4:11 PM10

Black

Otros manuales para KV-BZ212

Tabla de contenidos

Otros manuales de TELEVISOR de Sony

Sony

Sony Trinitron KD-32DX100U Manual de usuario

Sony

Sony KV-DR29N93 Manual de usuario

Sony

Sony BRAVIA KDL-32BX330 Instrucciones de montaje

Sony

Sony Trinitron RM-W101 Manual de usuario

Sony

Sony TV-112 Manual de usuario

Sony

Sony WEGA KV-SW212 Manual de usuario

Sony

Sony TRINITRON KV-X21TD Manual de usuario

Sony

Sony KV-32HS500 Instructions: TV stand (primary... Manual de usuario

Sony

Sony Trinitron KV-2199M5J Manual de usuario

Sony

Sony Trinitron KV-XG29 Manual de usuario

Sony

Sony Trinitron KV-XG29 Manual de usuario

Sony

Sony Bravia KD-65X9000C Guía del usuario

Sony

Sony TRINITRON KV-29FS60A Manual de usuario

Sony

Sony WEGA KV 32HS20 Manual de usuario

Sony

Sony Trinitron KV-29F3A Manual de usuario

Sony

Sony KDL-26NL140 - Bravia Nl Series Lcd... Manual de usuario

Sony

Sony WEGA KD 32FS130 Manual de usuario

Sony

Sony Trinitron KV-27EXR90 Manual de usuario

Sony

Sony KDL-32EX305 Manual de usuario

Sony

Sony BRAVIA XR-50X9xJ Manual de usuario

Sony

Sony Bravia KDL-48R470B Manual de usuario

Sony

Sony XBR-70X850B Manual de usuario

Sony

Sony KV-36FS320 - 36" Fd Trinitron Wega Manual de usuario

Sony

Sony Trinitron KV-S2941A Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
