Sony MHC-WX7AV Manual de usuario
©1999 by Sony Corporation
Mini Hi-Fi
Component
System
Operating Instructions
3-867-706-11(1)
MHC-WX7AV
MHC-WX5
f
2
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
Do not install the appliance in a confined space,
such as a bookcase or built-in cabinet.
CAUTION
Do not, under any circumstances, place the CD
player/stereo cassette deck on top of the A/V
control amplifier.
Laser component in this product is capable of
emitting radiation exceeding the limit for Class 1.
This stereo sytem is equipped with the Dolby* B-
type noise reduction system.
* Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
“DOLBY”, the double-D symbol aand “PRO
LOGIC” are trademarks of the Dolby Laboratories
Licensing Corporation.
The MHC-WX7AV consist of the following
components:
– A/V control amplifier STR-WX7
– CD player/Stereo cassette deck HTC-WX5
– Speaker system
• Front speaker SS-WX7
• Center speaker SS-CN50G
• Rear speaker SS-SR50G
The MHC-WX5 consist of the following
components:
– A/V control amplifier STR-WX5
– CD player/Stereo cassette deck HTC-WX5
– Speaker system
• Front speaker SS-WX7
This appliance is classified
as a CLASS 1 LASER
product. The CLASS 1
LASER PRODUCT
MARKING is located on
the rear exterior.
About this manual
The instructions in this manual are for
MHC-WX7AV/WX5. MHC-WX7AV is the
model used for illustration purposes. The
location of some buttons on MHC-WX5 is
different from that of MHC-WX7AV, but the
name of the buttons are the same.
3
Table of Contents
Getting Started
Step 1: Hooking up the main unit....... 4
Step 2: Setting up your speakers .......... 6
Step 3: Setting the time ....................... 10
Step 4: Presetting radio stations ........ 11
Connecting optional AV components
.......................................................... 12
Basic Operations
Playing a CD ......................................... 14
Recording a CD .................................... 15
Listening to the radio........................... 16
Recording from the radio .................... 18
Playing a tape........................................ 19
Recording from a tape ......................... 21
The CD Player
Using the CD display........................... 22
Playing the CD tracks repeatedly ...... 22
Playing the CD tracks in random order
.......................................................... 23
Programming the CD tracks ............... 24
Playing CDs without interruption ..... 25
The Tape Deck
Recording on a tape manually ........... 26
Recording a CD by specifying track
order ................................................ 27
DJ Effects
Looping part of a CD ........................... 29
Flashing part of a CD ........................... 29
Sound Adjustment
Adjusting the sound ............................ 30
Selecting the audio emphasis ............. 31
Selecting the surround effects ............ 32
Enjoying the Dolby Pro Logic Surround
sound ............................................... 33
Making a personal audio emphasis file
.......................................................... 34
Other Features
Singing along: Karaoke ...................... 36
Falling asleep to music ........................ 37
Waking up to music ............................. 38
Timer-recording radio programs ....... 39
Additional Information
Precautions ............................................ 40
Troubleshooting ................................... 41
Specifications ........................................ 44
Remote identification........................... 46
Index....................................... Back Cover
4
FM 75Ω
AM

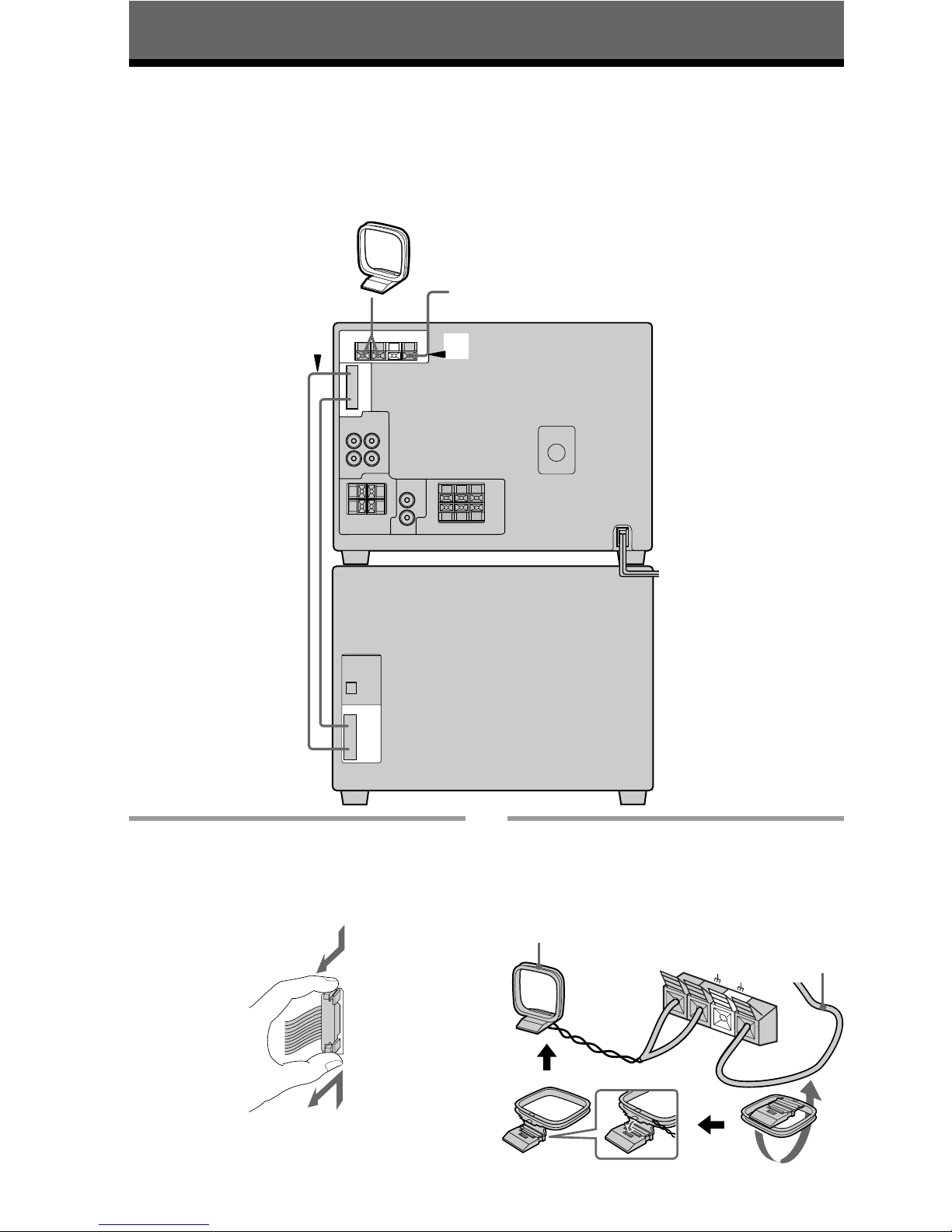

Step 1: Hooking up the main unit
Getting Started
Do the following procedure 1to 2to hook up your system using the supplied cords and
accessories.
If you set up the stereo system vertically
Be sure to place the A/V control amplifier on top of the CD player/stereo cassette deck.
2Connect the FM/AM antennas.
Set up the AM loop antenna, then
connect it.
Extend the FM lead
antenna horizontally.
1Connect the flat cord to the SYSTEM
CONTROL connectors until it clicks.
To disconnect AM loop antenna
FM antenna
AM loop antenna
12
5

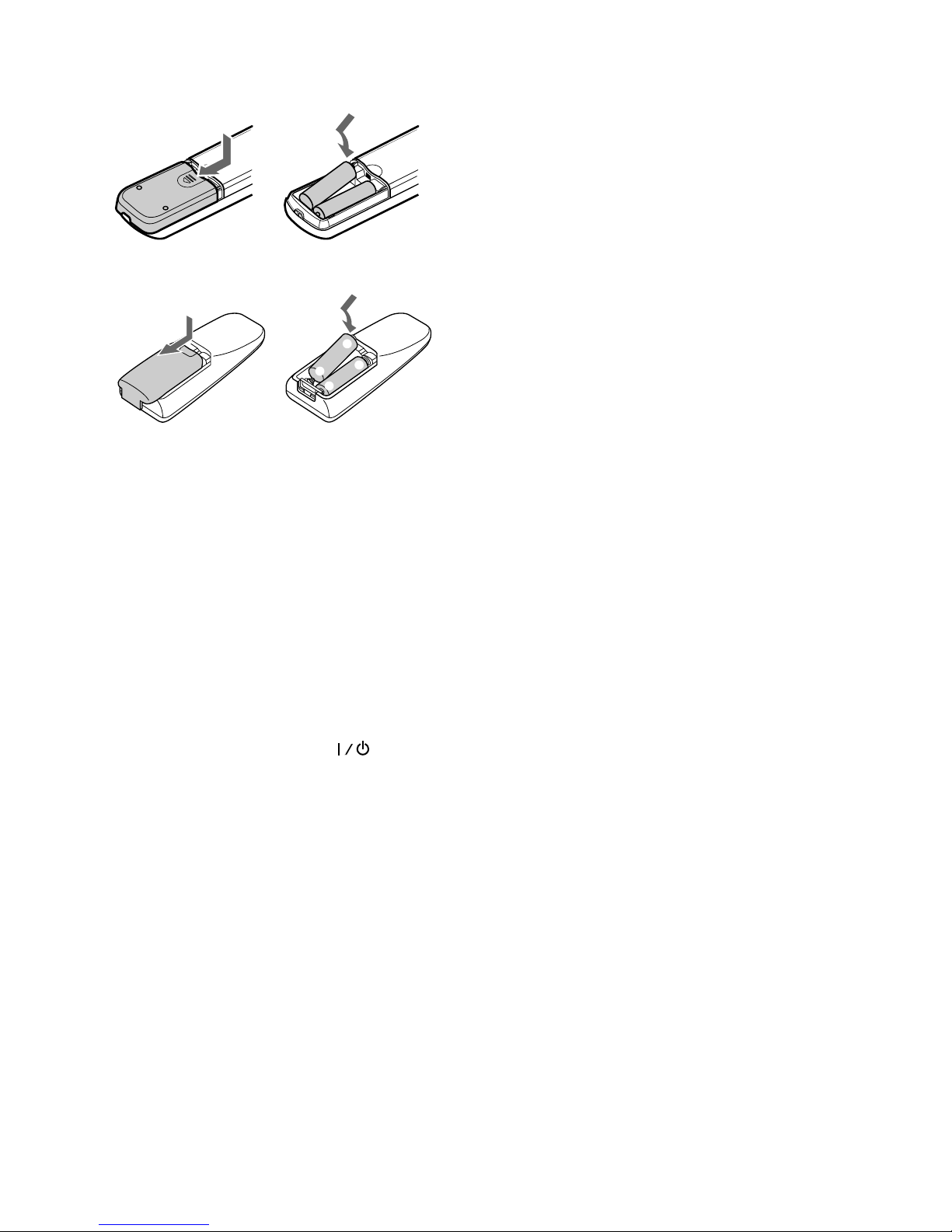

Inserting two size AA (R6)
batteries into the remote
For MHC-WX7AV
For MHC-WX5
Tip
With normal use, the batteries should last for about
six months. When the remote no longer operates the
system, replace both batteries with new ones.
Note
If you do not use the remote for a long period of
time, remove the batteries to avoid possible damage
from battery leakage.
When carrying this system
Do the following to protect the CD
mechanism.
1Press FUNCTION repeatedly until “CD”
appears in the display.
2Hold down LOOP and press (power)
so that “LOCK” appears in the display.
3Unplug the power cord.
]
}
]
}
}}
]
]
6
2Place the center speaker so it is
placed at about the same height as
the front speakers (A). Align the
center speaker with the front
speakers or place it slightly back
from the position of the front
speakers (B).
3Place the rear speakers facing each
other at about 60 to 90 cm above
your listening position.
BCenter speaker
A
Rear speaker
60 to 90cm

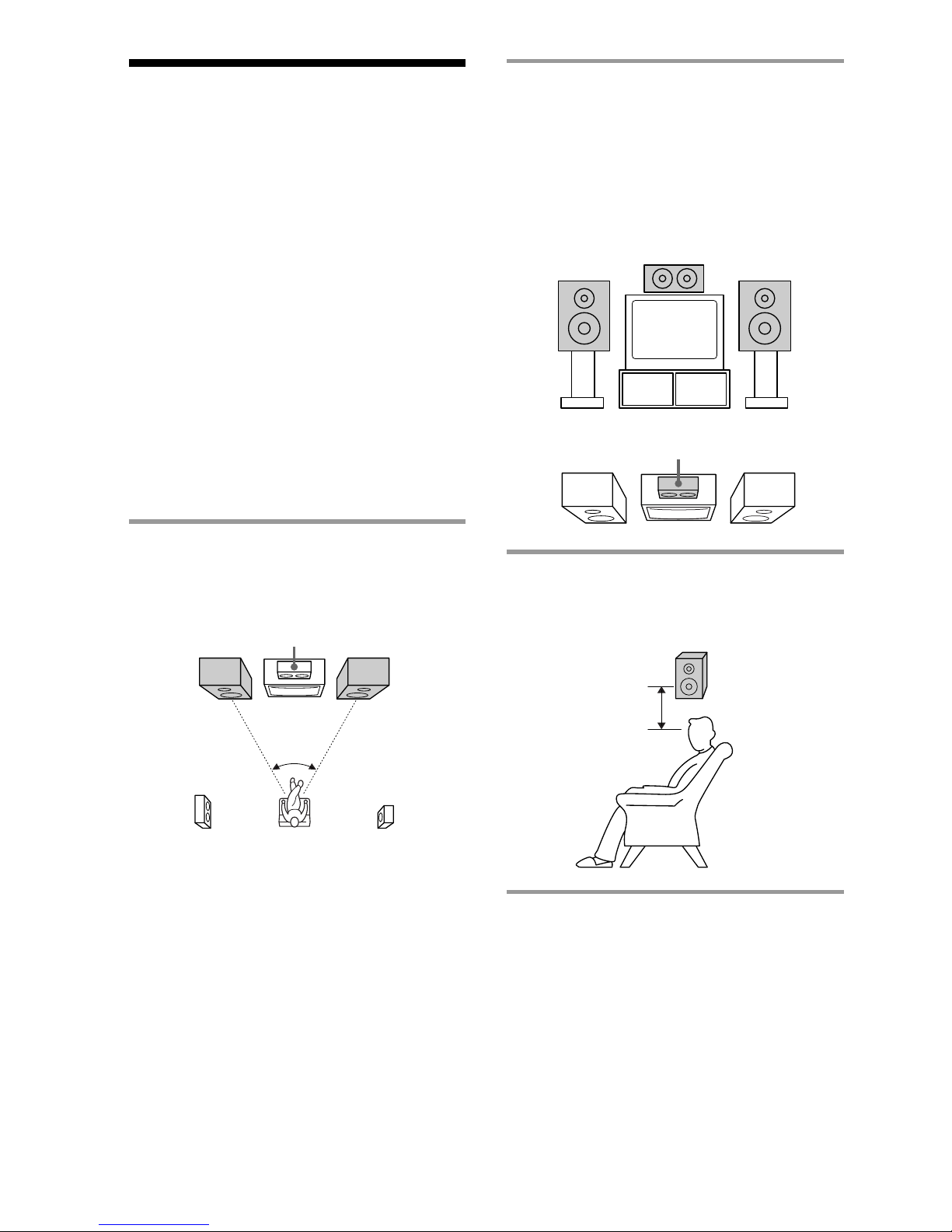

Step 2: Setting up
your speakers
(MHC-WX7AV only)
Connecting the supplied rear and center
speakers enables you to fully enjoy Dolby Pro
Logic Surround sound. Dolby Pro Logic
Surround is a decoding system standardized
in TV programs and movies. Dolby Pro Logic
Surround improves sound image by using
four separate channels. These channels
manipulate the sound to be heard and
enhance the action as it happens on the
screen.
Positioning the speakers
Before you connect them, determine the best
location for your speakers.
1Place the front speakers at an angle
of 45 degrees from your listening
position.
Center speaker
45°
Front
speaker
(L)
Rear
speaker
(L)
Front
speaker
(R)
Rear
speaker
(R)
7
11
5
4
23
6
1

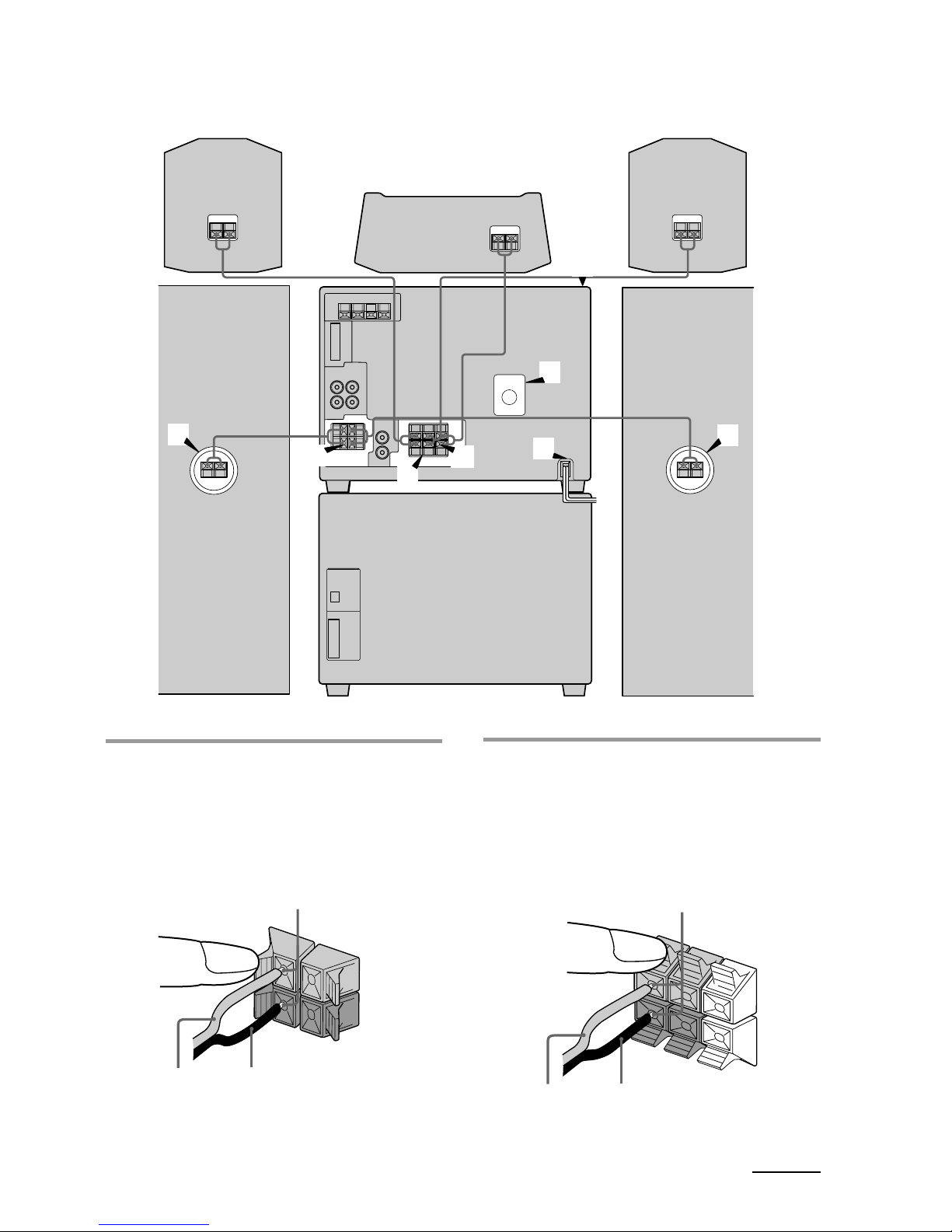

Connecting the speakers
1Connect the front speakers.
Connect the speaker cords to the FRONT
SPEAKER jacks of the same color.
Keep the speaker cords away from the
aerials to prevent noise.
* The color of your speaker cords might be different.
See the speakers’ manual for details if supplied.
continued
Left front speaker
Insert only the stripped portion. Insert only the stripped portion.
Black (’)Red (‘)
2Connect the rear speakers (supplied
for MHC-WX7AV only).
Connect the speaker cords to the REAR
SPEAKER jacks of the same color.
Keep the speaker cords away from the
aerials to prevent noise.
* The color of your speaker cords might be different.
See the speakers’ manual for details if supplied.
Right front speaker
Black* (’)
Grey* (‘)
Right rear speaker Left rear speaker
Center speaker
R
L
+
‘
’
RL
‘
’
8
Step 2: Setting up your speakers
(continued)
3Connect the center speaker
(MHC-WX7AV only).
Connect the speaker cords to the
CENTER SPEAKER jacks of the same
color.
Keep the speaker cords away from the
aerials to prevent noise.
* The color of your speaker cords might be different.
See the speakers’ manual for details if supplied.
4Set VOLTAGE SELECTOR to
position of your local power line
voltage (except for China, Thailand,
Korea, and Australian models).
5Connect the power cord to a wall
outlet.
Demo mode appears in the display.
If the plug on this unit does not fit
your wall outlet, detach the supplied
adapter from the plug (except for
Australia and Malaysia).
6Deactivate the demo mode by
pressing DISPLAY/DEMO when
the system is turned off.
The demo mode is also deactivated
when you set the time.
To activate the automatic sliding
panel
Press OPEN/CLOSE to slide the panel. Press
OPEN SENSOR ON/OFF button, so that
AUTO indicator lights up. When you stand
within 30 cm from the panel, the panel slides
down automatically.
The panel closes automatically if you do not
operate on or in the panel for about 30
seconds.
To attach the front speaker pads
Attach the supplied front speaker pads to the
bottom of the speakers to stabilize the
speakers and prevent them from slipping.
EQ
SLIDING SENSOR OPEN/CLOSE
OPEN SENSOR ON/OFF
AUTO indicator
R
L
‘
’
+
–
Grey* (‘)
Black* (’)
Insert only the stripped portion.
9

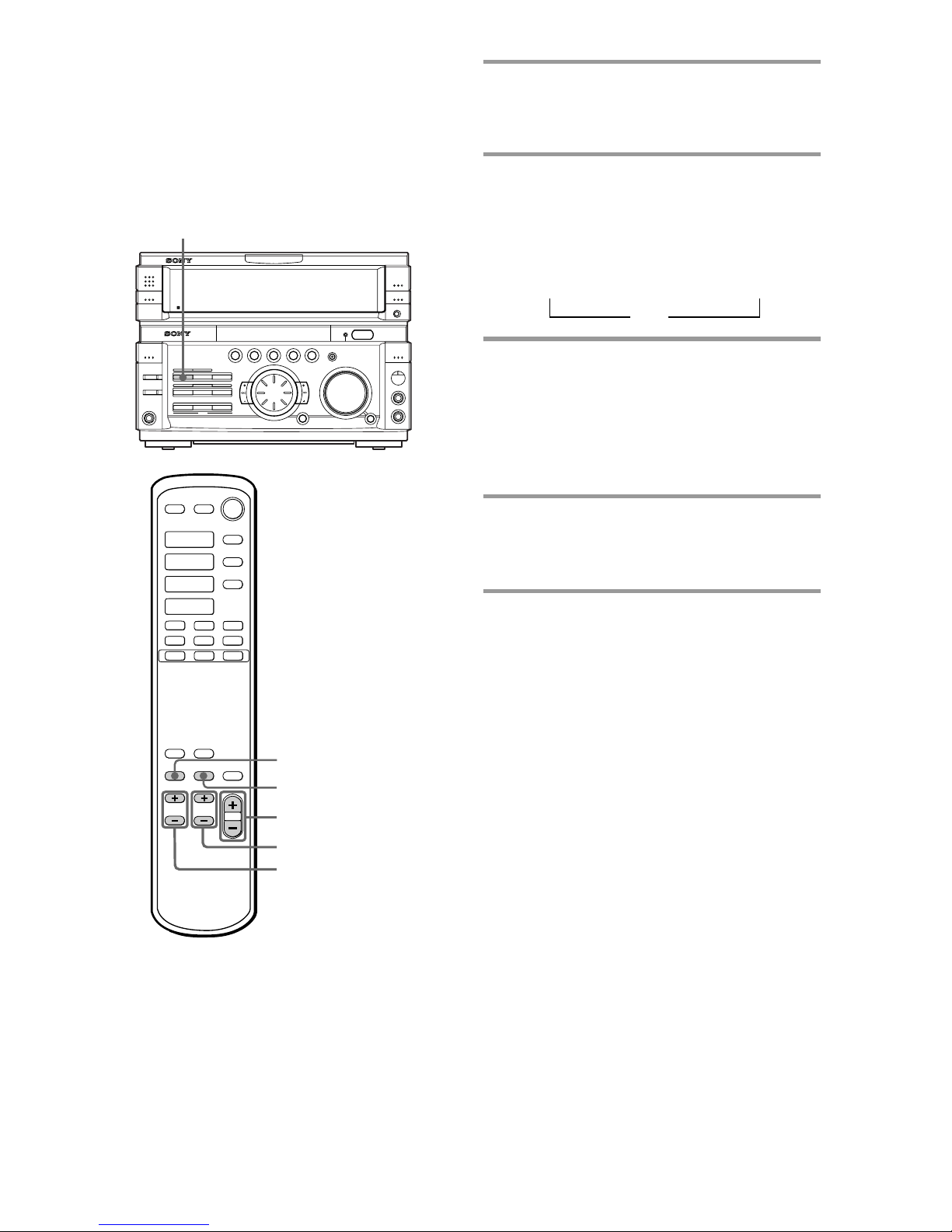

Adjusting the speaker
volume (MHC-WX7AV
only)
To enjoy Dolby Pro Logic Surround sound,
adjust the volume of each speaker.
n
1Press PROLOGIC (or PROLOGIC
ON/OFF on the remote)
“PROLOGIC ON” appears.
2Press T. TONE ON/OFF on the
remote.
The test tone is heard from the speakers
in the following order. Adjust the
volume of the test tone.
Front (left) nCenter nFront (right)
Rear
3From your listening position, press
CENTER LEVEL (+/–) and REAR
LEVEL (+/–) on the remote to
adjust the volume.
The volume levels from each speaker
must become the same.
4Press T. TONE ON/OFF when you
are done adjusting.
The test tone is turned off.
Tips
• If you turn VOLUME (or press VOLUME +/– on
the remote) all the speaker volumes change.
• If Test Tone turns-off automatically, press TEST
TONE ON/OFF to continue.
Note
The test tone feature works only for Dolby Pro Logic
Surround sound.
PROLOGIC
CD
VOLUME +/–
T. TONE ON/OFF
PROLOGIC ON/OFF
REAR LEVEL +/–
CENTER LEVEL +/–
4
$
4
$
)0P
P
+=p
p
·
·ª
·
·
ª
10
You must set the time before using the timer
functions.
1Press CLOCK/TIMER SET.
The hour indication flashes.
2Turn the jog dial to set the hour.
The clock is on a 12-hour system.
3Press ENTER/NEXT.
The minute indication flashes.
4Turn the jog dial to set the minute.
5Press ENTER/NEXT.
The clock starts working.
Tips
• If you’ve made a mistake, start over from step 1.
• Setting the time deactivates the demo mode.
If you want to display the demo mode, press
DISPLAY/DEMO when the power is off.
Step 3: Setting the
time
ß
RELAY
DAILY 1 2 REC SLEEP
DOLBY NR
PROGRAM
REPEAT1
SHUFFLE
ALL DISCS1
TUNED
MONO
STEREO
SYNC
STEP
MHz
kHz
t
VOLUME
a
SUR
ß
RELAY
DAILY 1 2 REC SLEEPDAILY 1 2 REC SLEEP
DOLBY NRDOLBY NR
PROGRAM
REPEAT1
SHUFFLE
TUNED
MONO
STEREO
SYNC
STEP
MHz
kHz
REC
t
VOLUME
a
DBFB
SUR
Note
The previous explanation shows you how to set the
time while the power is off. To change the time
while the power is on, do the following:
1 Press CLOCK/TIMER SET.
2 Turn the jog dial to select the SET CLOCK.
3 Press ENTER/NEXT.
4 Perform steps 2 through 5 above.
CD
3,52,41
(Power)
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Sistema estéreo de Sony
Sony
Sony CMT-V50IP Manual de usuario
Sony
Sony CHC-CV40 Manual de usuario
Sony
Sony PMC-DR45 - Personal Component System Manual de usuario
Sony
Sony MHC-GX555 - Mini Hi Fi Component System Manual de usuario
Sony
Sony SRS-XB32 Manual de usuario
Sony
Sony MHC-GX750 Manual de usuario
Sony
Sony RDP-M7iPN Manual de usuario
Sony
Sony MHC-V6D Manual de usuario
Sony
Sony HCD-GSX100W - Mini Hi-fi Component System Manual de usuario
Sony
Sony LBT-G1 Manual de usuario
Sony
Sony ZS-X1 - Cd Boombox Manual de usuario
Sony
Sony CMTBX50BTi - Music Streaming Micro Hi-Fi Shelf... Manual de usuario
Sony
Sony LBT-XGV11AV Manual de usuario
Sony
Sony LBT-V8900S Manual de usuario
Sony
Sony CX-JN1 Manual de usuario
Sony
Sony CMT-CQ1 - Micro Hi Fi Component System Manual de usuario
Sony
Sony MHC-GRX990 Manual de usuario
Sony
Sony CHC-CL1 - Compact Hi Fi Component System Manual de usuario
Sony
Sony DHC-FLX7D Manual de usuario
Sony
Sony SRS-X55 Guía del usuario
