Sony MHC-GT55 Manual de usuario

MHC-GT55/GT44/GT22.GB.3-098-275-14(1)

Mini Hi-Fi

Component System

MHC-GT55

MHC-GT44

MHC-GT22

3-098-275-14 (1)

Operating Instructions

MHC-GT55/GT44/GT22.GB.3-098-275-14(1)

2GB

WARNING

To reduce the risk of re or

electric shock, do not expose

this apparatus to rain or

moisture.

To prevent re, do not cover the

ventilation of the apparatus with news

papers, table-cloths, curtains, etc.

And don’t place lighted candles on the

apparatus.

To prevent re or shock hazard, do not

place objects lled with liquids, such as

vases, on the apparatus.

Install this system so that the power cord

can be unplugged from the wall socket

immediately in the event of trouble.

Do not install the appliance in a

conned space, such as a bookcase or

built-in cabinet.

is appliance is classied as a CLASS 1

LASER product. is marking is located

on the rear exterior.

Don’t throw away the

battery with general

house waste, dispose of

it correctly as chemical

waste.

Note on DualDiscs

A DualDisc is a two sided disc product

which mates DVD recorded material on

one side with digital audio material on

the other side. However, since the audio

material side does not conform to the

Compact Disc (CD) standard, playback on

this product is not guaranteed.

Music discs encoded with copyright

protection technologies

is product is designed to playback

discs that conform to the Compact Disc

(CD) standard. Recently, various music

discs encoded with copyright protection

technologies are marketed by some record

companies. Please be aware that among

those discs, there are some that do not

conform to the CD standard and may not

be playable by this product.

e recorded music is limited to private

use only. Use of the music beyond

this limit requires permission of the

“WALKMAN” and “WALKMAN”

logo are registered trademarks of Sony

Corporation.

MICROVAULT is a trademark of Sony

Corporation.

MPEG Layer-3 audio coding

technology and patents licensed from

Fraunhofer IIS and omson.

MHC-GT55/GT44/GT22.GB.3-098-275-14(1)

3GB

Table of Contents

Guide to parts and controls .............4

Getting Started

Hooking up the system

securely.................................................... 9

Setting the clock ................................12

Basic Operations

Playing a CD/MP3 disc .....................13

Listening to the radio .......................15

Recording from a disc onto an USB

device.....................................................16

Listening to music of an USB

device.....................................................19

Playing a tape......................................21

Using optional audio

components.........................................22

Adjusting the sound .........................23

Changing the display .......................23

Other Operations

Creating your own program

(Program Play).....................................25

Presetting radio stations .................26

Recording onto a tape

(CD Synchro recording/Manual

recording/Sound Mixing)................27

Creating your own sound

eect ......................................................29

Enjoying karaoke................................30

Using the Timers.................................31

Others

Troubleshooting.................................33

Messages...............................................38

Precautions...........................................39

Specications ......................................41

Playable/Recordable USB

devices...................................................43

MHC-GT55/GT44/GT22.GB.3-098-275-14(1)

4GB

Guide to parts and controls

is manual mainly explains operations using the remote, but the same operations can

also be performed using the buttons on the unit having the same or similar names.

Unit

MHC-GT55

MHC-GT44/GT22

* MHC-GT44 only

MHC-GT55/GT44/GT22.GB.3-098-275-14(1)

5GB

Guide to parts and controls

Remote



/(on/standby) (page 10, 12,

18, 20, 32, 37)

Press to turn on the system.

Unit: STANDBY indicator (page

23, 33)

Lights up when the system is o.



Remote sensor (page 33)



DISPLAY (page 12, 23, 33)

Press to change the information on the

display.

Unit: ILLUMINATION (page 23)

Press to change the illumination pattern

around MASTER VOLUME .



CD (page 10, 13, 25, 28, 37)

Press to select the CD function.

TUNER/BAND (page 15)

Press to select the TUNER function.

Press to select FM or AM reception

mode.

Unit: TAPE A/B (page 21)

Press to select the TAPE function. Press

to select TAPE A or TAPE B.

Unit: AUDIO (page 22)

Press to select the AUDIO function.

USB (page 18, 19, 25)

Press to select the USB function.

Remote: FUNCTION

Press to select the function.

(MHC-GT55/GT44 only)

SUBWOOFER (page 23)

Press to turn on and o the subwoofer.

SUBWOOFER indicator (page 23)

Lights up when the subwoofer is on.

Continued



MHC-GT55/GT44/GT22.GB.3-098-275-14(1)

6GB



PUSH (page 21)

Press to insert or eject a tape.



ERASE (page 18)

Press to erase MP3 les and folders

from the connected optional USB device

(Digital music player or USB storage

media).



Unit: PRESET EQ (page 29),

GROOVE (page 23, 29, 37),

SURROUND (page 23, 29)

Remote: EQ (page 23)

Press to select the sound eect.



PLAY MODE/TUNING MODE

(MHC-GT55 only) (page 14, 15,

17, 20, 28)

Press to select the play mode of a CD,

MP3 disc or an optional USB device

(Digital music player or USB storage

media).

Press to select the tuning mode.

EQ BAND (MHC-GT44/GT22 only)

(page 29)

Press to select the frequency band.



PHONES jack

Connect the headphones.



AUDIO INPUT L/R jacks (page 22)

Connect to an audio component

(Portable audio player, etc.).



(USB) port (page 16, 17, 18, 19)

Connect an optional USB device (Digital

music player or USB storage media).



REC/ERASE indicator (page 18,

20)

Lights up when recording to the

connected optional USB device (Digital

music player or USB storage media), or

when erasing MP3 les or folders.



MIC jack (page 30)

Connect an optional microphone.

MIC LEVEL (page 30)

Turn to adjust the microphone volume.



Unit: MASTER VOLUME (page 13,

15, 19, 21, 22)

Turn to adjust the volume.

Remote: VOLUME +/(page 13,

15, 19, 21, 22, 31)

Press to adjust the volume.

MHC-GT55/GT44/GT22.GB.3-098-275-14(1)

7GB

Guide to parts and controls



OPERATION DIAL (page 13, 20,

29)

Turn to select a track, le or folder.



Unit:  (play/pause) (page 10,

13, 19, 21, 37)

Remote: (play) (page 13, 19,

21, 26)

(pause) (page 13, 20, 22)

Press to start or pause playback.

(stop) (page 13, 15, 17, 20, 22,

28, 37)

Press to stop playback.

/(go back/go forward)

(page 13, 18, 20, 25)

Press to select a track or le.

Unit: TUNING +/(page 15, 37)

Remote: +/(tuning) (page 15)

Press to tune in the desired station.

+/(select folder) (page 13,

18, 20, 25)

Press to select a folder.

/(rewind/fast forward)

(page 13, 20, 22)

Press to nd a point in a track or le.

Continued





CD-USB SYNC/REC1 (page 17)

Press to record from a disc onto the

connected optional USB device (Digital

music player or USB storage media).

CD-TAPE SYNC (page 28)

TAPE REC PAUSE/START (page 28)

Press to record onto a tape.



OPEN/CLOSE (page 13)

Press to insert and eject a disc.



Unit: DISC 1 3 (page 13, 14)

Press to select a disc. Press to switch to

the CD function from other function.

Unit: DISC SKIP/EX-CHANGE

(page 13, 14, 28)

Press to select a disc. Press to exchange a

disc while playing.

Remote: DISC SKIP (page 13, 25,

28)

Press to select a disc.



RETURN (page 13, 20)

Press to return to the parent folder.

Press to exit search mode.



ENTER (page 12, 13, 17, 18, 20, 25,

26, 28, 31)

Press to enter the settings.

MHC-GT55/GT44/GT22.GB.3-098-275-14(1)

8GB

(MHC-GT55 only)

ENTER (page 12, 13, 17, 18, 20,

28)

Press to enter the settings.

+/(equalizer level) (page 29)

Press to adjust the equalizer level.

(MHC-GT55 only)

BASS (page 29)

Press to select low frequency. e

indicator lights up when the button is

pressed.

VOCAL (page 29)

Press to select mid frequency. e

indicator lights up when the button is

pressed.

GUITAR (page 29)

Press to select high frequency. e

indicator lights up when the button is

pressed.

FOCUS (page 29)

Press to emphasize equalizer level of the

selected band.



CLOCK/TIMER SELECT (page 32)

CLOCK/TIMER SET (page 12, 31)

Press to set the clock and the timers.



REPEAT/FM MODE (page 13, 15,

20)

Press to listen to a disc, an USB device, a

single track or le repeatedly.

Press to select the FM reception mode

(monaural or stereo).



Battery compartment lid (page

11)



CLEAR (page 26)

Press to delete a pre-programmed track

or le.



TUNER MEMORY (page 26)

Press to preset the radio station.



PLAY MODE/TUNING MODE

(page 14, 15, 17, 20, 25, 27, 28)

Press to select the play mode of a CD,

MP3 disc or an optional USB device

(Digital music player or USB storage

media).

Press to select the tuning mode.



SLEEP (page 31)

Press to set the Sleep Timer.

MHC-GT55/GT44/GT22.GB.3-098-275-14(1)

9GB

Getting Started

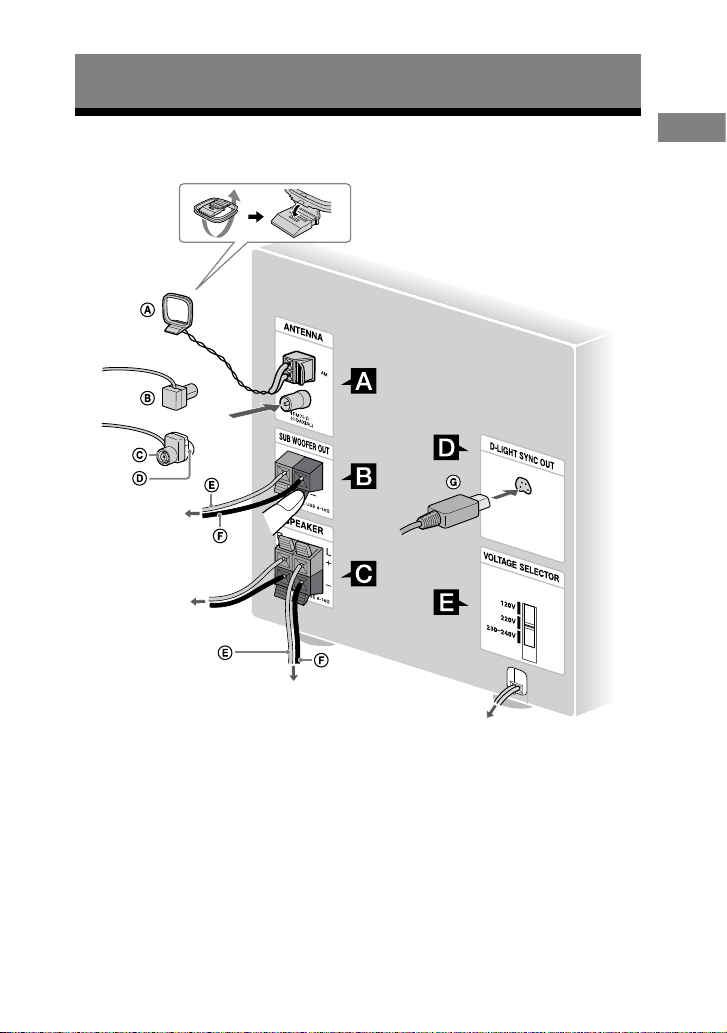

Hooking up the system securely

AM loop antenna

FM lead antenna (Extend it horizontally.)

Brown side for other regions

White side for North American model

Red (Solid/)

Black (Striped/)

D-LIGHT SYNC controller cord (not supplied)

Subwoofer

Front speaker (right)

Front speaker (left)

Wall socket

Continued



MHC-GT55/GT44/GT22.GB.3-098-275-14(1)

10GB

Antennas

Find a location and an orientation that

provide good reception, and then set up

the antennas.

Keep the antennas away from the speaker

cords, the power cord and the USB cable

to avoid picking up noise.

Subwoofer (MHC-GT55/GT44 only)

Insert only the stripped portion of the

cords into the SUB WOOFER OUT jacks.

Speakers

Insert only the stripped portion of the

cords into the SPEAKER jacks.

D-LIGHT SYNC OUT jack (Except for

Oceanian model)

Use the D-LIGHT SYNC controller to

connect to this jack. You need to connect

the D-LIGHT SYNC controller to the

lighting device* (not supplied). e

lighting device will react according to

control signals transmitted by the D-

LIGHT SYNC controller upon receiving

music source from the system. For details

on the use of D-LIGHT SYNC controller

and lighting device, refer to the respective

operating instructions supplied with the

respective device.

* Refer to the D-LIGHT SYNC controller

operating instruction for the recommended

lighting device.

Note

e lighting eect may be dierent depending

on the connected lighting device or the type of

music being played back.

Power

For models with a voltage selector, set

VOLTAGE SELECTOR to the local

power line voltage.

Connect the power cord to a wall socket.

e demonstration appears in the display.

If the plug does not t the wall socket,

detach the supplied plug adaptor (only

for models equipped with an adaptor).

When carrying this system

Remove all discs to protect the CD

mechanism.

Press CD to select the CD

function.

Hold down  on the unit,

and press /on the unit until

“STANDBY” appears.

After “LOCK”appears, unplug the

power cord.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema estéreo de Sony

Sony

Sony HCD-RG121 Manual de usuario

Sony

Sony HCD-EC55 - Receiver System Manual de usuario

Sony

Sony CMTBX5BT - CMT Micro System Manual de usuario

Sony

Sony GX20 Manual de usuario

Sony

Sony S2 Sports ZS-X10 Manual de usuario

Sony

Sony CMT-DH30 Manual de usuario

Sony

Sony HCD-LX7 Manual de usuario

Sony

Sony HCD-CP101 Manual de usuario

Sony

Sony CMT-DV2D - Micro Hi Fi Component System Manual de usuario

Sony

Sony Giga Juke NAS-SC500PK Manual de instalación y funcionamiento

Sony

Sony CMT-E301 Manual de usuario

Sony

Sony HCD-SHAKE7 Manual de usuario

Sony

Sony MHC-V800 Manual de usuario

Sony

Sony CMT-HPR99XM Manual de usuario

Sony

Sony S-AIR PLAY AIR-SA20PK Manual de usuario

Sony

Sony LBT-XGR6 - Compact Hi-fi Stereo System Manual de instrucciones

Sony

Sony HCD-DX80 Manual de usuario

Sony

Sony CMT-NEZ30 Manual de usuario

Sony

Sony HTC-NX1 Manual de usuario

Sony

Sony ZS-D10 Marketing Specifications & Features Manual de usuario

Sony

Sony SRS-X11 Guía del usuario

Sony

Sony MHC-EC68USB Manual de usuario

Sony

Sony Psyc ZS-YN7 Manual de usuario

Sony

Sony CMT-HPX10W - Micro Hi Fi Component System Manual de usuario

Manuales populares de Sistema estéreo de otras marcas

LG CM3330B Manual de usuario

Cetacea Sound

Cetacea Sound CVS-II Manual de usuario

Aiwa

Aiwa XR-H66MD Manual de usuario

Denon

Denon UCD-250 Manual de usuario

Sanyo

Sanyo DC-MX41i Manual de usuario

Sharp

Sharp CD-ES600V Manual de usuario

Exibel

Exibel BDX600-UK Manual de usuario

Sanyo

Sanyo DC-F320 Manual de usuario

Philips

Philips FWM583X Manual de usuario

Sharp

Sharp CD-C462 Manual de usuario

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manual de usuario

Aiwa

Aiwa XR-EM70 Manual de usuario

Cyrus

Cyrus Lyric Manual de usuario

Philips

Philips MCM159/98 Manual de usuario

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manual de usuario

RCA

RCA RS3965SB Manual de usuario

Sharp

Sharp XL-UH240 Manual de usuario

Philips

Philips FW 690 Manual de usuario
