Sony STR-SL5 Manual de usuario

FM Stereo

FM-AM Receiver

4-243-517-11(2)

STR-SL5

Operating Instructions

Bedienungsanleitung DE

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To prevent fire, do not cover the ventilation of the

apparatus with news papers, table-cloths, curtains,

etc. And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Don’t throw away the battery with

general house waste, dispose of it

correctly as chemical waste.

Do not install the appliance in a confined space, such

as a bookcase or built-in cabinet.

This receiver incorporates Dolby* Digital and Pro

Logic Surround and the DTS** Digital Surround

System.

* Manufactured under license from Dolby

Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are

trademarks of Dolby Laboratories.

**“DTS” and “DTS Digital Surround” are registered

trademarks of Digital Theater Systems, Inc.

Tip

The instructions in this manual describe the controls

on the remote. You can also use the controls on the

receiver if they have the same or similar names as

those on the remote. For details on the use of your

remote, see pages 33–36.

Table of Contents

Parts Identification

Main unit ............................................... 4

Hooking Up the Components

Required cords....................................... 5

Antenna hookups ................................... 6

Video component hookups .................... 7

Digital component hookups................... 8

Other hookups ....................................... 9

Hooking Up and Setting Up

the Speaker System

Speaker system hookups ..................... 10

Performing initial setup operations ..... 12

Multi channel surround setup .............. 12

Checking the connections.................... 17

Basic Operations

Selecting the component ..................... 17

Enjoying Surround Sound

Selecting a sound field ........................ 18

Understanding the multi channel

surround displays .......................... 20

Customizing sound fields .................... 21

Receiving Broadcasts

Direct tuning ........................................ 23

Automatic tuning ................................. 23

Preset tuning ........................................ 24

Other Operations

Using the Sleep Timer ......................... 25

Adjustments using the SET UP menu ....

Additional Information

Precautions .......................................... 27

Troubleshooting................................... 27

Specifications ...................................... 29

Tables of settings using MAIN MENU

button ............................................ 31

Adjustable parameters for each sound

field ............................................... 32

Before you use your remote ................ 33

Remote button description................... 33

Changing the factory setting of

a function button ........................... 36

Display 7(20)

DVD 4(17)

IR receptor 2

MASTER VOLUME 9(17)

MUTING qs (17)

PLII q; (19)

PRESET TUNING +/– 8(24)

SOUND FIELD qa (18, 21)

TUNER 6(17, 23, 24)

TV/SAT 5(17)

VIDEO 3(17)

?/1 (power) 1(12, 16, 17, 22)

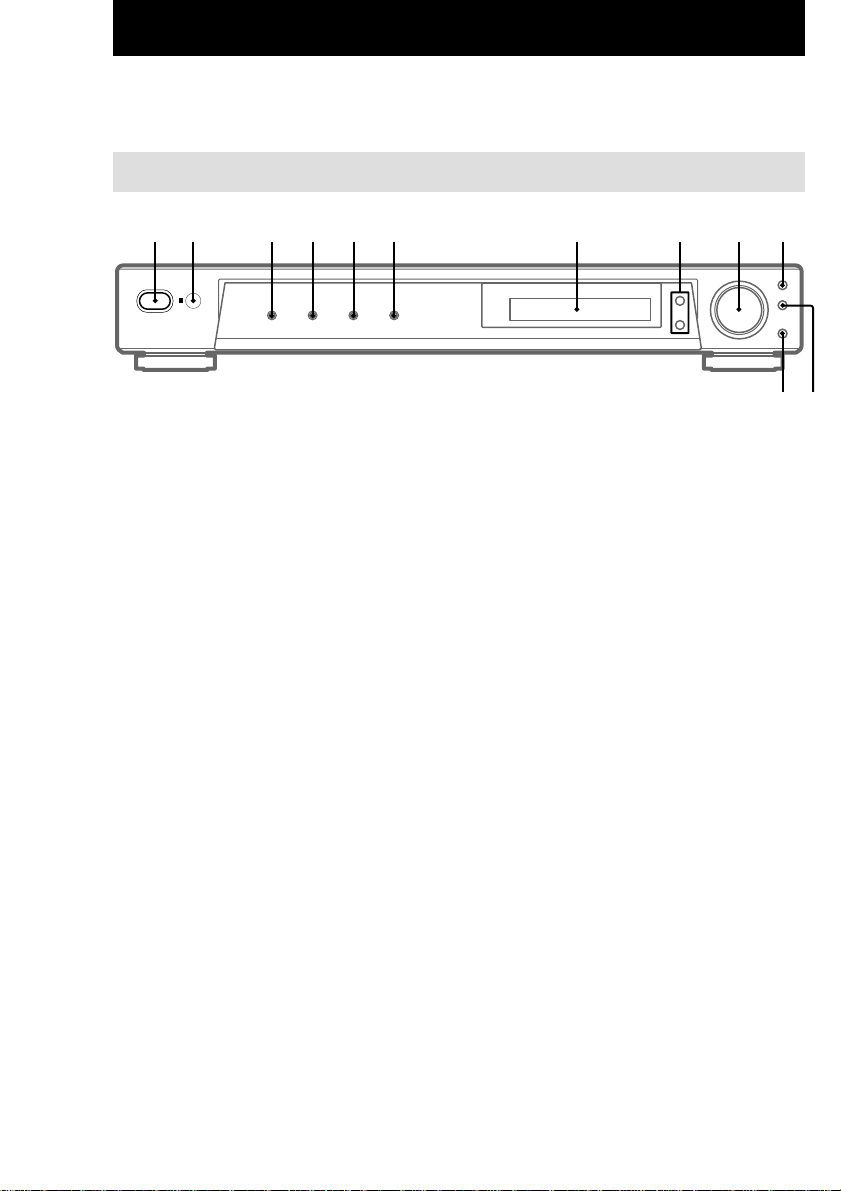

Parts Identification

Main unit

The items are arranged in alphabetical order.

Refer to the pages indicated in parentheses ( ) for details.

1 2 3 4 5 6 7 9 q;

qs qa

Hooking Up the Components

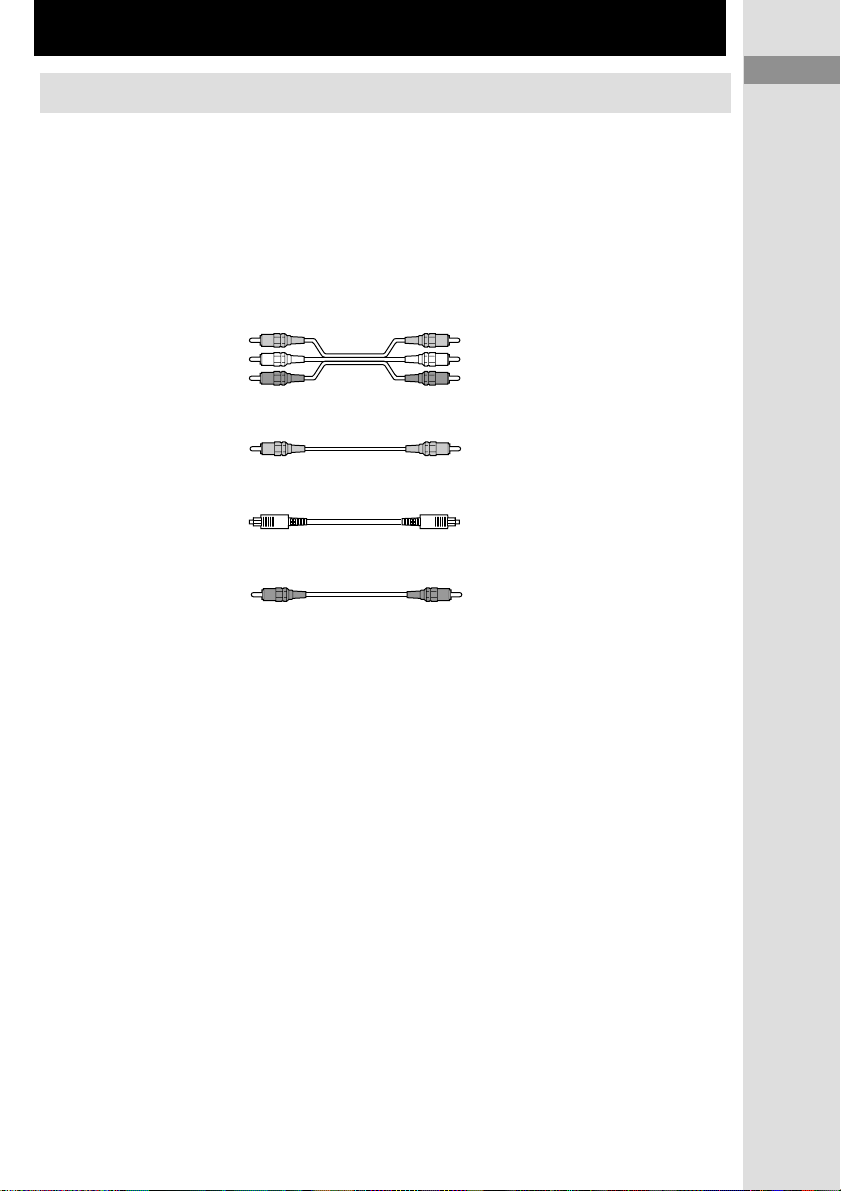

Required cords

Before you get started

•Turn off the power to all components before making any connections.

•Do not connect the AC power cord until all of the connections are completed.

•Be sure to make connections firmly to avoid hum and noise.

•When connecting optical digital cords, insert the cord plugs straight in until they click into place.

•Do not bend or tie the optical digital cord.

AAudio/video cord (not supplied)

Yellow (video) Yellow (video)

White (L/audio) White (L/audio)

Red (R/audio) Red (R/audio)

BVideo cord (not supplied)

Yellow (video) Yellow (video)

COptical digital cord (not supplied)

DCoaxial digital cord (not supplied)

Hooking Up the Components

Parts Identification/Hooking Up the Components

Antenna hookups

Notes on antenna hookups

•To prevent noise pickup, keep the AM loop

antenna away from the receiver and other

components.

•Be sure to fully extend the FM wire antenna.

•After connecting the FM wire antenna, keep it

as horizontal as possible.

•Do not use the USIGNAL GND terminal for

grounding the receiver.

ANTENNA

VIDEO IN

IN IN INOUT

OUT

IMPEDANCE USE 8–16

Ω

R–FRONT–L

VIDEO IN VIDEO OUT VIDEO IN MONITOR OUT

Ω

COAXIAL

FM AM

VIDEO

DVD

TV/SAT COAX IN

DVDTV/

SAT

DIGITAL

SUB

WOOFER

SPEAKERS

–

OPTICAL IN OPTICAL IN

FM wire antenna

(supplied)

AM loop antenna

(supplied)

Hooking Up the Components

AUDIO OUT

VIDEO OUT

OUTPUT

AUDIO OUT

VIDEO OUT

OUTPUT

AUDIO IN

VIDEO IN

MONITOR IN

AUDIO OUT

VIDEO OUT

INPUT

OUTPUT

INOUT

AAA

ANTENNA

VIDEO IN

IN IN INOUT

OUT

IMPEDANCE USE 8–16

Ω

R–FRONT–L

VIDEO IN VIDEO OUT VIDEO IN MONITOR OUT

Ω

COAXIAL

VIDEO

DVD

TV/SAT

DVDTV/

SAT

DIGITAL

SUB

WOOFER

SPEAKERS

–

COAX IN

OPTICAL IN OPTICAL IN

Video component hookups

VCR

TV monitor

For details on the required cords (A–D), see page 5.

DVD player

Digital satellite tuner

OUTPUT

OPTICAL COAXIAL

OUTPUT

OPTICAL

ANTENNA

VIDEO IN

IN IN INOUT

OUT

IMPEDANCE USE 8–16

Ω

R–FRONT–L

VIDEO IN VIDEO OUT VIDEO IN MONITOR OUT

Ω

COAXIAL

VIDEO

DVD

TV/SAT

DVDTV/

SAT

DIGITAL

SUB

WOOFER

SPEAKERS

–

COAX IN

OPTICAL IN OPTICAL IN

Digital component hookups

DVD player (etc.)

Connect the digital output jacks of your DVD player (etc.) to the receiver’s digital input jacks to

bring the multi channel surround sound of a movie theater into your home. To fully enjoy multi

channel surround sound, five speakers (two front speakers, two surround speakers, and a center

speaker) and a sub woofer are required.

Digital satellite

tuner (etc.)

* Connect to either the COAX or OPTICAL jack. We recommend making connections to the COAX jack.

Notes

•The OPTICAL and COAX input jacks are compatible with 96 kHz, 48 kHz, 44.1 kHz and 32 kHz sampling

frequencies.

•To playback the multi channel surround sound through this receiver, you may have to change the digital output

setting on the connected component. For details, refer to the operating instructions supplied with the component.

Hooking Up the Components

Other hookups

AC power cord

To a wall outlet

Connecting the AC power

cord

Before connecting the AC power cord of this

receiver to a wall outlet, connect the speaker

system to the receiver (see page 10).

Connect the AC power cord(s) of your audio/

video components to a wall outlet.

IMPEDANCE USE 8–16

Ω

R–FRONT–L

IMPEDANCE USE 8–16

Ω

R–SURR–L CENTER

SPEAKERS

–

SPEAKERS

–

INPUT

AUDIO

BA A A

eEeEe

OUT

IMPEDANCE USE 8–16

Ω

R–FRONT–L

IMPEDANCE USE 8–16

Ω

R–SURR–L CENTER

MONITOR OUT

SUB

WOOFER

SPEAKERS

–

SPEAKERS

–

Speaker system hookups

Before connecting speakers, be sure to turn off this unit.

Required cords

ASpeaker cords (not supplied)

(+) (+)

(–)(–)

BMonaural audio cord (not supplied)

Black Black

Hooking Up and Setting Up the Speaker System

Front speaker (L)Front speaker (R)

Center speakerSurround speaker

(L)

Surround speaker

(R)

Active sub woofer

To a wall outlet

(Switch the power to

off before connecting

the power cord.)
