SERVICE MANUAL

Canadian Model

AEP Model

UK Model

STR-DE585

FM STEREO/FM-AM RECEIVER

AUDIO POWER SPECIFICATIONS

Amplifier section

POWER OUTPUT

Models of area code Canadian

Rated Power Output at Stereo Mode

(8 ohms 40 Hz – 20 kHz, THD 0.09 %)

100 W + 100 W

Reference Power Output

(8 ohms 1 kHz, THD 0.7 %)

FRONT 1) : 100 W/ch

CENTER1) : 100 W

SURR1) : 100 W/ch

Models of area code AEP, UK

Rated Power Output at Stereo Mode

(8 ohms 1 kHz, THD 0.7 %)

100 W + 100 W2)

Reference Power Output

(8 ohms 1 kHz, THD 0.7 %)

FRONT 1) : 100 W/ch

CENTER1) : 100 W

SURR1) : 100 W/ch

1) Depending on the sound field settings and the

source, there may be no sound output.

2) Measured under the following conditions:

Area code Power requirements

AEP, UK 230 V AC, 50 Hz

SPECIFICATIONS

Frequency response

MULTI CH IN, CD, 10 Hz – 50 kHz

MD/TAPE, DVD/LD, +0.5/–2 dB (with sound

VIDEO 1, 2 field, and tone bypassed)

Inputs (Analog)

MULTI CH IN, CD, Sensitivity: 250 mV

MD/TAPE, DVD/LD, Impedance: 50 kilohms

VIDEO 1, 2 S/N 3) : 96 dB

(A, 250 mV4) )

3) INPUT SHORT (with sound field and tone

bypassed).

4) Weighted network, input level.

Inputs (Digital)

DVD/LD (Coaxial) Sensitivity: –

Impedance: 75 ohms

S/N: 100 dB

(A, 20 kHz LPF)

VIDEO 2 (Optical) Sensitivity: –

Impedance: –

S/N: 100 dB

(A, 20 kHz LPF)

Outputs

MD/TAPE (REC Voltage: 250 mV

OUT), VIDEO1 Impedance: 10 kilohms

(AUDIO OUT)

SUB WOOFER Voltage: 2 V

Impedance: 1 kilohms

Tone

Gain levels: ±6 dB, 1 dB step

Ver 1.0 2002. 04

9-873-966-01

2002D0400-1

Sony Corporation

Home Audio Company

Published by Sony Engineering Corporation

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are

trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Surround” are registered

trademarks of Digital Theater Systems, Inc.

– Continued on next page –

STR-DE585

FM tuner section

Tuning range 87.5 - 108.0 MHz

Antenna terminals 75 ohms, unbalanced

Intermediate Frequency 10.7 MHz

Sensitivity

Mono: 18.3 dBf, 2.2 µV/75 ohms

Stereo: 38.3 dBf, 22.5 µV/75 ohms

Usable sensitivity 11.2 dBf, 1 µV/75 ohms

S/N

Mono: 76 dB

Stereo: 70 dB

Harmonic distortion at 1 kHz

Mono: 0.3%

Stereo: 0.5%

Separation 45 dB at 1 kHz

Frequency response 30 Hz – 15 kHz,

+0.5/–2 dB

Selectivity 60 dB at 400 kHz

AM tuner section

Tuning range

Models of area code Canadian

With 10-kHz tuning scale: 530 – 1710 kHz5)

With 9-kHz tuning scale: 531 – 1710 kHz5)

Models of area code AEP, UK

With 9-kHz tuning scale: 531 – 1602 kHz

Antenna Loop antenna

Intermediate Frequency 450 kHz

Usable sensitivity 50 dB/m (at 1,000 kHz or

999 kHz)

S/N 54 dB (at 50 mV/m)

Harmonic distortion 0.5 % (50 mV/m, 400 Hz)

Selectivity

At 9 kHz: 35 dB

At 10 kHz: 40 dB

5) You can change theAM tuning scale to 9 kHz or

10 kHz. After tuning in anyAM station, turn off

the receiver. Hold down PRESET TUNING + and

press ?/1 . All preset stations will be erased when

you change the tuning scale. To reset the scale to

10 kHz (or 9 kHz), repeat the procedure.

Video section

Inputs

Video: 1 Vp-p, 75 ohms

Outputs

Video: 1 Vp-p, 75 ohms

General

Power requirements

Area code Power requirements

Canadian 120 V AC, 60 Hz

AEP, UK 230 V AC, 50/60 Hz

Power consumption

Area code Power consumption

Canadian 300 VA

AEP, UK 180 W

Power consumption (during standby mode)

0.5 W

Dimensions 430 ×145 ×298 mm

(16 7/8 ×5 6/8 ×11 6/8 in.)

including projecting parts

and controls

Mass (Approx.) 7.0 kg (15 lb 7 oz)

Supplied accessories

FM wire antenna (1)

AM loop antenna (1)

•Models of area code Canadian

Remote commander RM-PP506 (1)

R6 (size-AA) batteries (2)

•Models of area code AEP, UK

Remote commander RM-U306 (1)

R6 (size-AA) batteries (2)

Design and specifications are subject to change

without notice.

STR-DE585

MODEL IDENTIFICATION

— BACK PANEL —

Part No.

Area code Part No.

Canadian 4-238-189-1s

AEP 4-240-192-0s

UK 4-240-192-1s

1.5 k

Ω

0.15 µFAC

voltmeter

(0.75 V)

To Exposed Metal

Parts on Set

Earth Ground

SAFETY CHECK-OUT

After correcting the original service problem, perform the follow-

ing safety check before releasing the set to the customer:

Checkthe antenna terminals,metal trim, “metallized” knobs,screws,

and all other exposed metal parts forAC leakage.

Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and

from all exposed metal parts to any exposed metal part having a

return to chassis, must not exceed 0.5 mA (500 microampers.).

Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA

WT-540A. Follow the manufacturers’instructions to use these

instruments.

2. A battery-operated AC milliammeter. The Data Precision 245

digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a

VOM or battery-operated AC voltmeter. The “limit” indica-

tion is 0.75 V, so analog meters must have an accurate low-

voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex-

amples of a passive VOM that is suitable. Nearly all battery

operated digital multimeters that have a 2 V AC range are suit-

able. (See Fig. A)

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE

WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN

THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE

PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR

IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!!

LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR LES

DIAGRAMMESSCHÉMATIQUES ET LALISTE DES PIÈCESSONT

CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE

REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY

DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU

DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

TABLE OF CONTENTS

1. GENERAL

Main unit ................................................................................. 5

Remote button description....................................................... 6

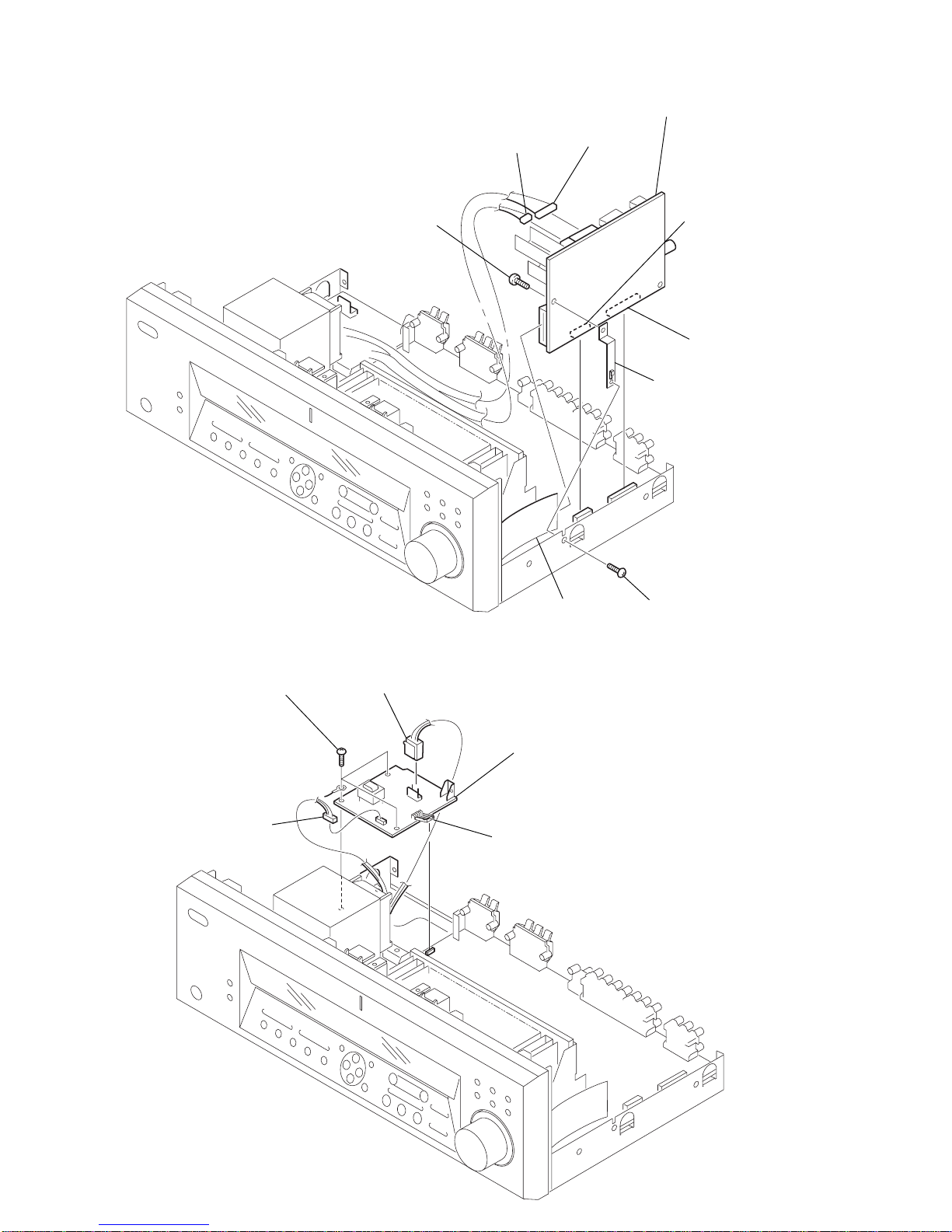

2. DISASSEMBLY

2-1. Case ..................................................................................... 8

2-2. Front Panel Section ............................................................. 9

2-3. Back Panel........................................................................... 9

2-4. Digital Board ..................................................................... 10

2-5. Standby Board ................................................................... 10

2-6. Main Board ....................................................................... 11

3.TEST MODE...................................................................... 12

4. DIAGRAMS

4-1. IC Pin Descriptions ........................................................... 13

4-2. Block Diagram – Tuner/Audio Section – .......................... 16

4-3. Block Diagram – Digital Section – ................................... 17

4-4. Block Diagram – Video/Display Section – ....................... 18

4-5. Block Diagram – Power Section – ....................................19

4-6. Circuit Boards Location .................................................... 20

4-7. Printed Wiring Boards – Main Section – .......................... 21

4-8. Schematic Diagram – Main Section (1/2) – ...................... 22

4-9. Schematic Diagram – Main Section (2/2) – ...................... 23

4-10. Printed Wiring Board – Digital Section (1/2) – ................ 24

4-11. Printed Wiring Board – Digital Section (2/2) – ................ 25

4-12. Schematic Diagram – Digital Section (1/2) – ................... 26

4-13. Schematic Diagram – Digital Section (2/2) – ................... 27

4-14. Printed Wiring Board – Video Section – ........................... 28

4-15. Schematic Diagram – Video Section –.............................. 29

4-16. Printed Wiring Boards – Display Section – ...................... 30

4-17. Schematic Diagram – Display Section –........................... 31

4-18. Printed Wiring Board – Power Section – .......................... 32

4-19. Schematic Diagram – Power Section – ............................. 33

4-20. IC Block Diagrams............................................................ 34

5. EXPLODEDVIEWS

5-1. Case Section ...................................................................... 35

5-2. Front Panel Section ........................................................... 36

5-3. Chassis Section-1 .............................................................. 37

5-4. Chassis Section-2 .............................................................. 38

6. ELECTRICAL PARTS LIST......................................... 39

STR-DE585

SECTION 1

GENERAL This section is extracted

from instruction manual.

List of Button Locations and Reference Pages

wdwfwhwjwkwlesedefegehek ej e;ea wg

1 7 84 qs0qa523 6qf qg qjqh qkqlw;qd waws9

List of Button Locations and Reference Pages

Main unit

How to use this page

Use this page to find the location of buttons

that are mentioned in the text.

FM MODE (Models of area code

CEL, CEK only) ed, (Except for

models of area code CEL, CEK)

ef (31)

INPUT MODE qg (21)

IR (receptor) 4(38, 45, 51)

LEVEL 0(20, 27, 55)

MASTER VOLUME wd (20, 49)

MD/TAPE qj (21)

MEMORY eh (30, 32)

MENU +/– e; (16, 27, 35, 36)

MENU </> ea (16, 27, 35, 36)

MODE wj (24, 50)

MULTI CHANNEL DECODING

(indicator) (Except for

STR-DE485E) 7(21)

MULTI CH IN (Except for

STR-DE485E) qf (21)

MUTING wf (21, 49)

N —S

NAME 8(35)

PHONES (jack) ek (21)

PRESET/PTY SELECT +/–

(Models of area code CEL, CEK

only) 3(32, 33)

PRESET TUNING +/– (Except

for models of area code CEL,

CEK) 3(32, 53)

PTY (Models of area code CEL,

CEK only) ef (33)

SET UP 6(4, 16, 36, 54)

SHIFT eg (32)

SLEEP (STR-DE485E only)qf

(36)

SURR qd (27, 54)

T —Z

TREBLE +/– qh (29, 54)

TUNER ws (21, 30-32, 35)

TUNING +/– 5(31)

VIDEO 1 qk (21)

VIDEO 2 w; (21)

BUTTON DESCRIPTIONS

`/1 (power) 1(4, 15, 20, 29,

30, 53)

ALPHABETICAL ORDER

0 —9

2 CH wh (25)

A —D

A.DEC wk (23–25)

AM (Except for models of area

code CEL, CEK) es (30, 31)

BASS +/– wg (29, 54)

CD ql (21)

CINEMA STUDIO EX A, B, C

9(23, 24)

Digital Cinema Sound (indicator)

qs (23)

DIMMER ej (22)

DISPLAY 2(22, 33, 51)

Display qa (22)

DVD/LD wa (21)

E —L

ENTER wl (35)

FM (Except for models of area

code CEL, CEK) ed (30, 31)

FM/AM (Models of area code

CEL, CEK only) es (30, 31)

Illustration number

NAME 8(35)

R R

Name of button/part Reference page

STR-DE585

You can use the remote RM-PP506 to operate

the components in your system.

Operations Using the Remote RM-PP506

The tables below show the settings of each

button.

Remote Operations Function

Button

SLEEP Receiver Activates the sleep

function and the duration

which the receiver turns

off automatically.

?/1 Receiver

Turns the receiver on or off.

>10

MONITOR 2ND ROOM

VIDEO 1 VIDEO 2 VIDEO 3 DVD/LD TV/SAT

AUX

TV/VIDEO

INPUT MODE

CLEAR

– SUB CH +

– VOL +

POSITION SWAP

MODE AUDIO

SPLIT

ENTER ANT

TV/VTR

D. SKIP/

CH/PRESET

MD/TAPE CD/SACD TUNER PHONO

SHIFT DISC

JUMP

AUTO DEC

DISPLAY TEST

TONE NIGHT

MODE

SCREEN

MAIN

EXIT/

RETURN

TITLE/

GUIDE

ENTER/

EXEC

MULTI/2CH

A. DIRECT

EQ/

TONE

MUTING

MODE 2CH PRESET

P IN P

– /– –

SOUND FIELD

D.TUNING

AV1 AV2 3RD

(SOURCE)

WIDE

/11 /10 /12

SLEEP

? / 1

SYSTEM

STANDBY

MASTER

VOL

.Mm

nNX

? / 1

Remote Operations Function

Button

VIDEO 1 Receiver To watch VCR.

(VTR mode 3)

VIDEO 2 Receiver To watch VCR.

(VTR mode 1)

VIDEO 3 Receiver To watch VCR.

(VTR mode 2)

DVD/LD Receiver To watch DVD or laser

disc.

TV/SAT Receiver To watch TV programs

or satellite receiver.

AUXReceiver To listen to an audio

equipment.

MD/TAPE Receiver To listen to Minidisc

or audio tape.

CD/SACD Receiver To listen to compact disc.

TUNER Receiver To listen to radio

programs.

PHONO Receiver To listen to turntable.

INPUT Receiver Selects input mode for

MODE your digital components.

AUDIO Receiver To assign the audio input

SPLIT for each function.

SHIFT Receiver Press repeatedly to select

a memory page for

presetting radio stations

or tuning to preset

stations.

D.TUNING Receiver Tuner station direct key-

in-mode.

AUTO DEC

Receiver Selects AUTO

DECODING mode.

MODE +/– Receiver Selects sound field mode.

2CH Receiver Selects 2CH mode.

PRESET Receiver Selects preset sound field

(e.g. Cinema Studio

EX A, B, C)

TEST Receiver Press to output test tone.

TONE

STR-DE585

Operations Using the Remote RM-U306

Except for STR-DE585 area code CA

You can use the remote RM-U306 to operate

the components in your system.

Remote button

description

12 3

45 6

MD/TAPE CD TUNER

TV/VIDEO

VIDEO 2

VIDEO 1 DVD/LD

SYSTEM

STANDBY

>10

SHIFT

CH/PRESET

ANT

TV/VTR

SOUND FIELD

–+

MASTER

VOL

TEST TONE MAIN MENU MULTI CH

ENTER

D.SKIP

A.DEC 2CH

MODE

D.TUNING

TOP MENU DVD MENU

ENTER

RETURN

SLEEP AV

?/1 ?/1

TV VOL TV CH

MUTING

Operations Using the Remote RM-U306

continued

The tables below show the settings of each

button.

Remote Operations Function

Button

SLEEP Receiver Activates the sleep

function and the duration

which the receiver turns

off automatically.

?/1 Receiver Turns the receiver on or

off.

Remote button description

(continued)

Remote Operations Function

Button

VIDEO 1 Receiver To watch VCR.

(VTR mode 3)

VIDEO 2 Receiver To watch VCR.

(VTR mode 1)

DVD/LD Receiver To watch DVD or laser

disc.

MD/TAPE Receiver To listen to Minidisc or

audio tape.

CD Receiver To listen to compact disc.

TUNER Receiver To listen to radio

programs.

SHIFT Receiver Press repeatedly to select

a memory page for

presetting radio stations

or tuning to preset

stations.

D.TUNING

Receiver Tuner station direct key-

in-mode.

A.DEC Receiver Select AUTO DECODE

mode.

MODE Receiver Selects sound field mode.

2CH Receiver Selects 2CH mode.

TEST Receiver Press to output test tone.

TONE

MAIN Receiver Press this button

MENU repeatedly to select one

of the four cursor modes:

SURR, LEVEL, SET UP

and NAME.

MULTI CH

Receiver Selects MULTI CH IN

source.

MENU </> Receiver Selects a menu item.

MENU +/– Receiver Makes adjustment or

change the setting.

MUTING Receiver Mutes the sound from the

receiver.

STR-DE585

Note : This set can be disassemble according to the following sequence.

SECTION 2

DISASSEMBLY

2-1. CASE

(Page 8)

2-2. FRONT PANEL SECTION

(Page 9) 2-3. BACK PANEL

(Page 9)

SET

2-4. DIGITAL BOARD

(Page 10)

2-5. STANDBY BOARD

(Page 10)

2-6. MAIN BOARD

(Page 11)

Note : Follow the disassembly procedure in the numerical order given.

two screws

(case 3 TP2)

two screws

(case 3 TP2)

two screws

(case 3 TP2)

cas

STR-DE585

2-2. FRONT PANEL SECTION

2-3. BACK PANEL

front panel section

two screws

(BVTP3 x 8)

CNS4

CNP791

four screws

(BVTP3 x 8)

CNS7

CNS8

CNP901

CNP154

two screws

(BVTP3 x 8)

two screws

(BVTP3 x 8)

two screws

(BVTP3 x 8)

five screws

(BVTP3 x 8

)

screw (BVTP3 x 8)

screw

(BVTP3 x 8)

back panel (DE4)(Canadian)

back panel (DE5)(AEP, UK)

STR-DE585

2-4. DIGITAL BOARD

CNS4

CNS1

CNS2

CNP6

CNP5

screw (BVTP3 x 8)

bracket (digital)

DIGITAL board

screw (BVTP3 x 8

)

STANDBY board

CNP915

CNP902

CNP903

three screws

(BVTP3 x 8)

2-5. STANDBY BOARD

Otros manuales para STR-DE585

Tabla de contenidos

Otros manuales de Receptor estéreo de Sony

Sony

Sony STR-V333ES - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony STR-K700 - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony AVD-S50 Manual de usuario

Sony

Sony STR-DA3ES - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony STR-DE475 - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony STR-DB780 Manual de usuario

Sony

Sony STR-DE475 - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony STR-DA1500ES Manual de usuario

Sony

Sony STR-D560Z Manual de usuario

Sony

Sony STR-DA5600ES - Multi Channel Av Receiver Manual de usuario

Sony

Sony STR-AV850 Manual de usuario

Sony

Sony STR-D515 - Fm-am Receiver Manual de usuario

Sony

Sony STR-GX909ES Manual de usuario

Sony

Sony XAV-AX1005KIT Manual de usuario

Sony

Sony STR-LV700R Manual de usuario

Sony

Sony STR-DA90ESG Manual de usuario

Sony

Sony STR-ZA2100ES Guía del usuario

Sony

Sony STR-D311 Manual de usuario

Sony

Sony ICF-SW55 Manual de usuario

Sony

Sony STR-DE575 - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony STR-DE685 Manual de usuario

Sony

Sony SS-RC301 Manual de usuario

Sony

Sony XAV-AX210 Manual de usuario

Sony

Sony STR-DE595 Guía de inicio rápido

Manuales populares de Receptor estéreo de otras marcas

Marantz

Marantz CINEMA 70S Manual de usuario

Kenwood

Kenwood KMDX92 Manual de usuario

Yamaha

Yamaha RX-830 Manual de usuario

Pioneer

Pioneer AVH-Z7250BT Manual de usuario

Yamaha

Yamaha RX-750 Manual de usuario

Denon

Denon AVR-1311 Manual de usuario

Denon

Denon AVR-S760H Manual de usuario

Denon

Denon AVR-X7200W Manual de usuario

Pioneer

Pioneer SC-LX904 Manual

Radio Shack

Radio Shack DX-399 Manual de usuario

Pioneer

Pioneer SX-1000TA Manual de usuario

Yamaha

Yamaha MusicCast TSR-5B3D Manual de usuario

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Manual de usuario

Pioneer

Pioneer SX-838 Manual de usuario

Sherwood

Sherwood S-2660CP Manual técnico

Pioneer

Pioneer XR-VS77 Manual de usuario

Pioneer

Pioneer AVH-2300NEX Manual de usuario

Denon

Denon DRA-697CI Manual de usuario
