Sony SS-CTB121 Manual de usuario
Sony Corporation
Published by Sony EMCS (Malaysia) PG Tec
SERVICE MANUAL
SS-CTB121/CTB122/TSB121/
TSB122/TSB123
SPEAKER SYSTEM
9-890-612-01
2012L80-1
© 2012.12
US Model
Singapore Model
South African Model
SS-CTB121/CTB122/TSB121/TSB122
Canadian Model
AEP Model
UK Model
SS-CTB121/CTB122/TSB121/TSB122/TSB123
E Model
SS-CTB122/TSB122
Australian Model
PX Model
SS-CTB121/TSB121
Ver. 1.0 2012.12
SPECIFICATIONS
• SS-CTB121 is the center speaker in BDV-E2100.
• SS-CTB122 is the center speaker in BDV-E3100/E4100/E6100.
• SS-TSB121 is the front and surround speaker in BDV-E2100 and the front speaker in BDV-EF1100.
• SS-TSB122 is the front and surround speaker in BDV-E3100 and the surround speaker in BDV-E4100.
• SS-TSB123 is the front speaker in BDV-E4100 and the front and surround speaker in BDV-E6100.
• JIG
When disassembling the set, use the
following jig (for front panel removal).
Part No.: J-2501-238-A
JIG FOR SPEAKER REMOVAL
– Refer to next page for part list –
Photo:
SS-CTB121
Photo:
SS-CTB122
Photo:
SS-TSB121
Photo:
SS-TSB122
Photo:
SS-TSB123
V
er. 1.0 2012.12
Front/Surround (SS-TSB123) for BDV-E6100
Front (SS-TSB123) for BDV-E4100
Dimensions (w/h/d) (approx.)
100 mm × 650 mm × 100 mm
(4 in × 25
5
⁄
8
in × 4 in) (wall-mounted
part)
260 mm × 1,200 mm × 260 mm
(10
1
⁄
4
in × 47
1
⁄
4
in × 10
1
⁄
4
in) (whole
speaker)
Mass (approx.) Front:1.3 kg (2 lb 14 oz) (wall-mounted
part with speaker cord)
2.9 kg (6 lb 7 oz) (whole speaker)
Surround:1.4 kg (3 lb 2 oz)
(wall-mounted part with speaker cord)
3.0 kg (6 lb 10 oz) (whole speaker)
Front/Surround (SS-TSB122) for BDV-E3100
Surround (SS-TSB122) for BDV-E4100
Dimensions (w/h/d) (approx.)
90 mm × 205 mm × 91 mm
(3
5
⁄
8
in × 8
1
⁄
8
in × 3
5
⁄
8
in)
Mass (approx.) Front: 0.53 kg (1 lb 3 oz) (with speaker
cord)
Surround: 0.62 kg (1 lb 6 oz) (with
speaker cord)
Front/Surround (SS-TSB121) for BDV-E2100
Front (SS-TSB123) for BDV-E4100
Dimensions (w/h/d) (approx.)
95 mm × 189 mm × 80 mm
(3
3
⁄
4
in × 7
1
⁄
2
in × 3
1
⁄
4
in)
Mass (approx.) Front: 0.49 kg (1 lb 2 oz) (with speaker
cord)
Surround: 0.54 kg (1 lb 4 oz) (with
speaker cord)
Center (SS-CTB122) for BDV-E6100/BDV-E4100/
BDV-E3100
Dimensions (w/h/d) (approx.)
240 mm × 90 mm × 85 mm
(9
1
⁄
2
in × 3
5
⁄
8
in × 3
3
⁄
8
in)
Mass (approx.) 0.58 kg (1 lb 5 oz) (with speaker cord)
Center (SS-CTB121) for BDV-E2100
Dimensions (w/h/d) (approx.)
225 mm × 84 mm × 75 mm
(8
7
⁄
8
in × 3
3
⁄
8
in × 3 in)
Mass (approx.) 0.5 kg (1 lb 2 oz) (with speaker cord)

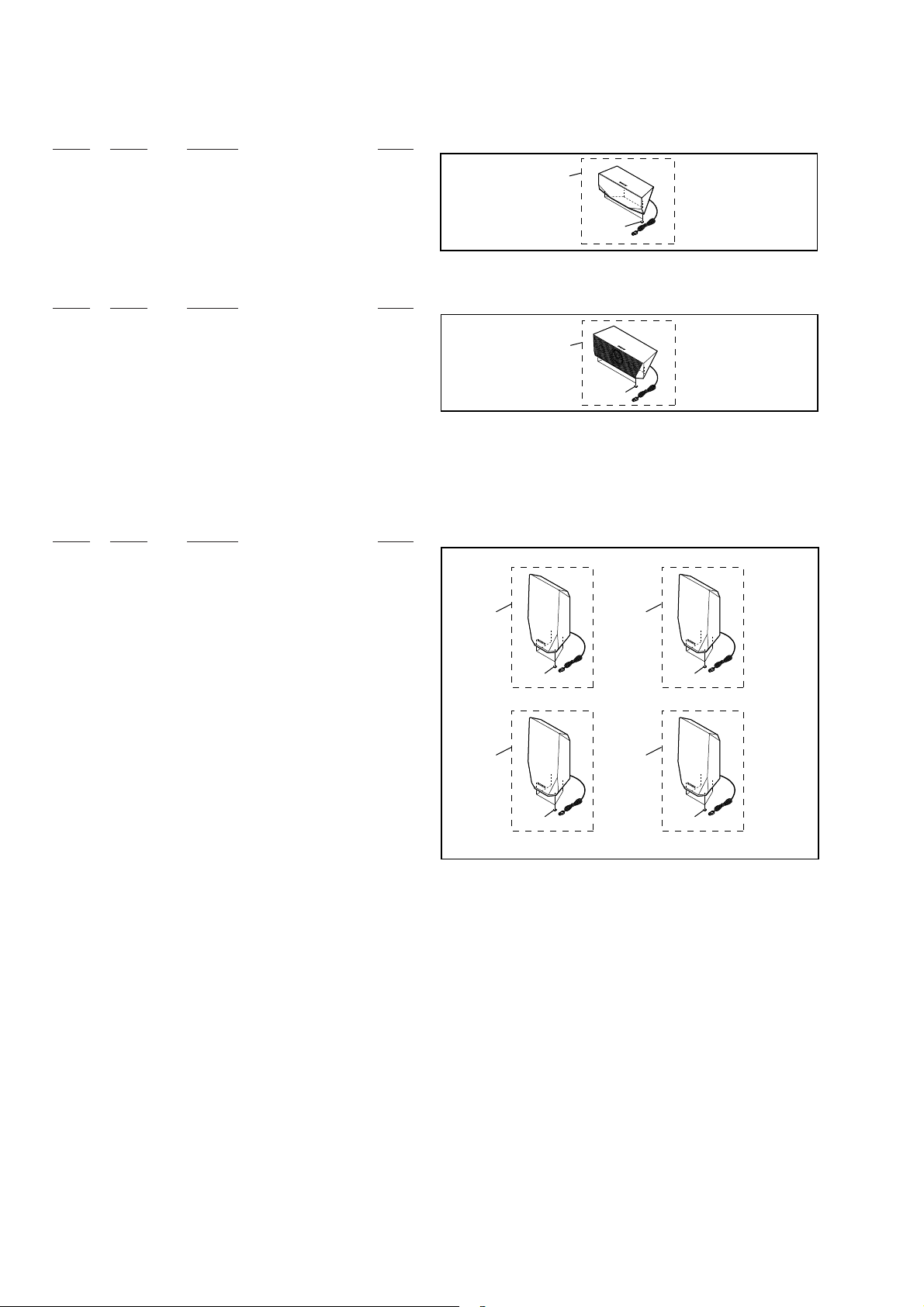

PART LIST (SS-CTB121)
1 A-1900-127-A SS-CTB121 (Center) (E2100: CND)
1 A-1900-149-A SS-CTB121 (Center) (E2100: AEP, UK)
1 A-1900-319-A SS-CTB121 (Center)
(E2100: US, SAF, SP, AUS, PX)
2 2-893-646-01 FOOT (4 pieces)
Ref. No. Part No. Description Remark
21 A-1900-123-A SS-TSB121 (Front Lch) (E2100: CND)
21 A-1900-145-A SS-TSB121 (Front Lch)
(E2100/EF1100: AEP/E2100: UK)
21 A-1900-115-A SS-TSB121 (Front Lch)
(E2100: US, SAF, SP, AUS, PX)
22 A-1900-124-A SS-TSB121 (Front Rch) (E2100: CND)
22 A-1900-146-A SS-TSB121 (Front Rch)
(E2100/EF1100: AEP/E2100: UK)
22 A-1900-316-A SS-TSB121 (Front Rch)
(E2100: US, SAF, SP, AUS, PX)
23 A-1900-125-A SS-TSB121 (Surround Lch) (E2100: CND)
23 A-1900-147-A SS-TSB121 (Surround Lch) (E2100: AEP, UK)
23 A-1900-317-A SS-TSB121 (Surround Lch)
(E2100: US, SAF, SP, AUS, PX)
24 A-1900-126-A SS-TSB121 (Surround Rch) (E2100: CND)
24 A-1900-148-A SS-TSB121 (Surround Rch) (E2100: AEP, UK)
24 A-1900-318-A SS-TSB121 (Surround Rch)
(E2100: US, SAF, SP, AUS, PX)
25 2-893-646-01 FOOT (4 pieces)
11 A-1900-341-A SS-CTB122 (Center) (E3100: CND)
11 A-1900-397-A SS-CTB122 (Center) (E3100: UK)
11 A-1900-302-A SS-CTB122 (Center)
(E3100: US, E12, E3, SAF, EA, SP)
11 A-1901-065-A SS-CTB122 (Center) (E4100: CND)
11 A-1901-066-A SS-CTB122 (Center) (E4100: AEP, UK)
11 A-1901-392-A SS-CTB122 (Center) (E6100: CND)
11 A-1901-393-A SS-CTB122 (Center) (E6100: AEP)
12 2-893-646-01 FOOT (4 pieces)
PART LIST (SS-CTB122)
PART LIST (SS-TSB121)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
• Abbreviation
AUS : Australian model
CND : Canadian model
EA3 : Saudi Arabia model
E3 : 240 V AC area in E model
E12 : 220-240 V AC area in E model
PX : PX model
SAF : South African model
SP : Singapore model
1
2
11
12
21
25
22
25
23
25
24
25
2
SS-CTB121/CTB122/TSB121/TSB122/TSB123
PART LIST (SS-TSB122)
PART LIST (SS-TSB123)
31 A-1900-337-A SS-TSB122 (Front Lch) (E3100: CND)
31 A-1900-393-A SS-TSB122 (Front Lch) (E3100: UK)
31 A-1900-298-A SS-TSB122 (Front Lch)
(E3100: US, E12, E3, SAF, EA, SP)
32 A-1900-338-A SS-TSB122 (Front Rch) (E3100: CND)
32 A-1900-394-A SS-TSB122 (Front Rch) (E3100: UK)
32 A-1900-299-A SS-TSB122 (Front Rch)
(E3100: US, E12, E3, SAF, EA, SP)
33 A-1900-339-A SS-TSB122 (Surround Lch) (E3100/E4100: CND)
33 A-1901-105-A SS-TSB122 (Surround Lch)
(E3100/E4100: UK/E4100: AEP)
33 A-1900-300-A SS-TSB122 (Surround Lch)
(E3100: US, E12, E3, SAF, EA, SP)
34 A-1900-340-A SS-TSB122 (Surround Rch) (E3100/E4100: CND)
34 A-1901-108-A SS-TSB122 (Surround Rch)
(E3100/E4100: UK/E4100: AEP)
34 A-1900-301-A SS-TSB122 (Surround Rch)
(E3100: US, E12, E3, SAF, EA, SP)
35 2-893-646-01 FOOT (4 pieces)
41 A-1900-975-A SS-TSB123 (Front Lch) (E4100/E6100: CND)
41 A-1900-976-A SS-TSB123 (Front Lch)
(E4100/E6100: AEP/E4100: UK)
42 A-1900-989-A SS-TSB123 (Front Rch) (E4100/E6100: CND)
42 A-1900-990-A SS-TSB123 (Front Rch)
(E4100/E6100: AEP/E4100: UK)
43 A-1901-361-A SS-TSB123 (Surround Lch) (E6100: CND)
43 A-1901-362-A SS-TSB123 (Surround Lch) (E6100: AEP)
44 A-1901-367-A SS-TSB123 (Surround Rch) (E6100: CND)
44 A-1901-368-A SS-TSB123 (Surround Rch) (E6100: AEP)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
• Abbreviation
AUS : Australian model
CND : Canadian model
EA3 : Saudi Arabia model
E3 : 240 V AC area in E model
E12 : 220-240 V AC area in E model
PX : PX model
SAF : South African model
SP : Singapore model
31
35 35
35 35
32
33 34
41 42 43 44
3
SS-CTB121/CTB122/TSB121/TSB122/TSB123
SS-CTB121/CTB122/TSB121/TSB122/TSB123
REVISION HISTORY
Checking the version allows you to jump to the revised page.
Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2012.12 New
