Sony TC-TX1 Manual de usuario

Operating Instructions

Mode d'emploi

Manual de instrucciones

Manual de Instruções

3-800-711-18(1)

1995 by Sony Corporation

Compact

Component System

HCD-T1

TC-TX1

SA-N1

SA-N11

English

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to

qualified personnel only.

Do not install the appliance in a confined space, such as a bookcase

or built-in cabinet.

Laser component in this product is capable of emitting radiation

exceeding the limit for Class 1.

This appliance is classified as a

CLASS 1 LASER product.

The CLASS 1 LASER PRODUCT

MARKING is located on the rear

exterior.

This caution

label is located

inside the unit.

NOTICE FOR THE CUSTOMERS IN THE

UNITED KINGDOM

— For the tuner CD player —

A moulded plug complying with BS 1363 is fitted to this equipment

for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a 5 AMP

fuse approved by ASTA or BSI to BS 1362, (i.e. marked with 2or @

mark) must be used.

If the plug supplied with this equipment has a detachable fuse

cover, be sure to attach the fuse cover after you change the fuse.

Never use the plug without the fuse cover. If you should lose the

fuse cover, please contact your nearest Sony service station.

IMPORTANT

If the plug supplied is not suitable for the socket outlets in your home, it

should be cut off and an appropriate plug fitted in accordance with the

following instructions.

The wires in this mains lead are coloured in accordance with the

following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this apparatus may

not correspond with the coloured markings identifying the terminals

in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal

which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal

which is marked with the letter L or coloured red.

Do not connect either wire to the earth terminal in the plug which is

marked by the letter E or by the safety earth symbol Yor coloured

green or green-and-yellow.

WARNING

To prevent shock hazard, do not insert the plug cut off from the mains

lead into a socket outlet. This plug cannot be used and should be

destroyed.

— For the active speaker system —

The mains lead plug of SA-N1/N11 is a 2-pin type designed to be

connected only to HCD-T1.

Do not connect this plug to any other system or mains supply.

IMPORTANT

Never connect two mains leads into a single mains plug.

Table of Contents

Chapter 1: Setting Up

Connecting the Stereo 4

Inserting the Batteries 6

Setting the Clock 6

Chapter 2: the CD Player

Playing a CD (normal play) 7

Playing Tracks in Random Order (shuffle play) 8

Playing Tracks in the Desired Order (programme play) 8

Playing Tracks Repeatedly (repeat play) 9

Chapter 3: the Radio

Listening to the Radio 10

Presetting Radio Stations 11

Listening to the Preset Radio Stations 11

Chapter 4: the Tape Player

Playing a Tape 12

Recording a CD Automatically 12

Recording a CD, etc., Manually 13

Recording a CD in the Specified Track Order (programme edit) 14

Chapter 5: Sound Adjustment

Adjusting the Balance of the Speakers 15

Reinforcing Bass (DBFB) 15

Listening with the Surround Feature 16

Chapter 6: Additional Features

Falling Asleep to Music 17

Waking Up to Music 17

Timer-Recording Radio Programmes 18

Connecting Optional Equipment 19

For Your Information

Precautions 20

Troubleshooting Guide 20

Maintenance 21

Specifications 21

Index to Parts and Controls 22

Index 23

Welcome!

Thank you for purchasing the Sony

Compact Component System.

This stereo system is packed with fun

features. Here are just a few:

• The CD jacket-size front panel of each

component that lets you stack or place the

components as you like

• DBFB (Dynamic Bass Feedback) system

that boosts low frequency range audio to

provide deep, powerful bass through the

full range bass reflex speakers

• A preset feature that lets you store and

recall up to 20 FM stations, 10 MW

stations and 10 LW stations (For German,

Italian and gold colour models, you can

store and recall up to 20 FM stations and

10 AM stations.)

• A timer that lets you set the CD player,

tape player or radio to turn on and off

whenever you want

• A remote that lets you control the music

from your seat

• An optical output jack for digital

recording

About this manual

This manual explains how to operate :

– Tuner CD player : HCD-T1

– Stereo cassette deck : TC-TX1

– Active speaker system : SA-N1

– Active speaker system : SA-N11

Make sure which components you are

using.

Chapter 1: Setting up

Chapter 1:

Setting

Connecting the

Stereo

Use the illustrations below to connect your

stereo.

STEP 2 Connecting the

Right Speaker

Connect the right speaker to the tuner CD

player with the audio cord (supplied) and

the mains lead.

Connecting the audio cord

Connect firmly the white plug to the white

(L) jack and the red plug to the red (R) jack.

Connecting the mains lead of the

right speaker

Connect the mains lead of the right speaker

to AC OUTLET on the rear panel of the

tuner CD player.

Notes

The illustrations on page 5 shows the SA-N1

use active speaker system.

The rear view of the SA-N11 differs from the

illustration.

STEP 3 Connecting the

Left Speaker

Connect the left speaker to the right

speaker with the speaker cable (supplied).

Be sure to keep the speaker cable away

from the aerials.

STEP 1 Connecting the

Flat Cord

(For only the customers using the TC-TX1

stereo cassette deck)

Connect the tuner CD player and the stereo

cassette deck with the flat cord (supplied)

pushing in the connector until it clicks.

To disconnect the flat cord

Pull out the connector of the flat cord while

pressing its sides. Do not pull the flat cord

itself.

Connecting the Stereo

Inserting the batteries

Setting the Clock

White

Red

Grey cord to ](red)

Twist each tip

Black-lined cord to }(black)

]

}

Chapter 1: Setting up

STEP 1 STEP 3

STEP 4

Left speaker

STEP 5

Right speaker

AM loop aerial (supplied)

Tuner CD player

Stereo cassette deck

Mains lead

to the wall outlet

FM lead aerial (supplied)

! Do this connection last !

Flat cord* (supplied)Audio cord (supplied)Mains leadSpeaker cable (supplied)

STEP 4 Connecting the

Aerials

To improve the reception

Connect an external aerial (p.19).

To set up the AM loop aerial

STEP 5 Connecting the

Power

Connect the mains lead of the tuner CD

player to the wall outlet after you have

made all the above connections.

Notes

• You can remove the front net from the

speaker.

• The AU BUS (audio bus) connector on the

rear panel of the tuner CD player is used to

connect the optional Sony MDS-MX1

MiniDisc deck. See the instruction manual

for MDS-MX1 in detail.

AM loop aerial**

(supplied)

FM lead aerial* (supplied)

* Fix it to the place for optimum reception.

** Orient it toward the direction for optimum

reception.

SA-N1**

* For only the customers using the TC-TX1 stereo cassette deck

**The rear view of the SA-N11 differs from the illustration.

STEP 2

Chapter 1: Setting up

Inserting the

batteries

Insert two R6 (size AA) batteries into the

supplied remote.

Battery life

You can expect the remote to operate for about

six months using Sony SUM-3 (NS) batteries

before the batteries run down. When the

batteries no longer operate the remote, replace

both batteries with new ones.

To avoid battery leakage

If you are not going to use the remote for a

long time, remove the batteries to avoid

damage caused by corrosion from battery

leakage.

Setting the Clock

You need to set the clock before using the

timer function. The clock shows the time in

the 24-hour cycle.

1Press TIMER SET.

2Press TIMER+ or – to display “CLOCK”

and press ENTER.

The hour indication begins flashing.

3Set the current hour by pressing

TIMER+ or – and press ENTER.

The minute indication begins flashing.

4Set the current minute by pressing

TIMER+ or – and press ENTER.

The clock starts operating.

To correct the clock setting

Repeat steps 1 to 4.

About the time indication

• The built-in clock shows the time in the

display when you press POWER to turn off

the power.

• The upper dot of the “:” in the time display

flashes for the 0 to 29 seconds of the minute

and the lower dot flashes for the 30 to 59

seconds.

2,3,4

ENTER

180

000



Chapter 2:

the CD

Player

Chapter 2: the CD Player

Playing a CD (normal

play)

You can play CDs in four modes: normal,

shuffle, programme and repeat. The mode

determines which tracks (songs) to play, in

which order and whether or not they will

repeat.

Also, you can play 12 cm and 8 cm CDs.

When you play an 8-cm CD, place it

without an adaptor on the inner circle of

the disc tray.

Before you play the CD, decrease the sound

level by pressing VOL –. This will prevent

damage to the speakers.

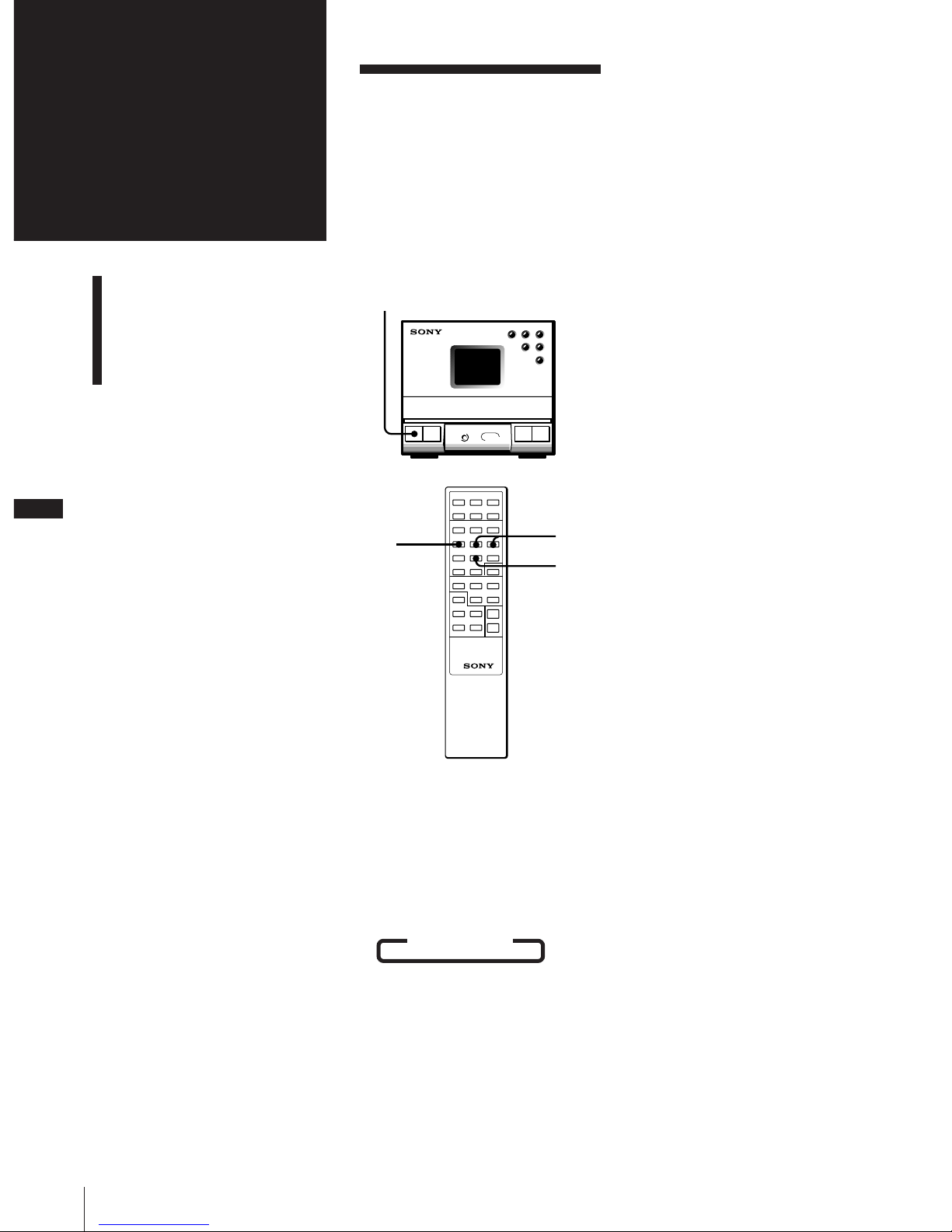

1Press POWER.

2Press 6(open/close) and place a CD on

the CD tray.

3Press ^(play) (or (on the remote).

The disc tray closes and the first track

starts playing.

4Press VOL + or – to adjust the sound

level.

Stop play

Pause

Remove the CD

* Remote

One Touch Play feature

Press ^(or (on the remote) when the

power is off or you are listening to another

source.

As long as a CD is in the player, you will be

able to listen to the CD without pressing any

other buttons.

To find the beginning of a track –

Automatic Music Sensor (AMS)

You can locate the beginning of a track

while the track is playing or while it is in

pause mode.

To locate the beginning of the current or

preceding track, press =0 (or =on

the remote) until you find the desired track.

To locate the beginning of the succeeding

track, press )+ (or +on the remote)

until you find the desired track.

To find a point in a track

You can find a particular point in a track

while playing or pausing a CD. Use the

buttons on the player to operate this

feature. This operation is not possible with

the remote.

To Search

Forward while

listening

Backwards

while listening

Quickly

without

listening while

checking the

playing time in

the display

Note

If the CD reaches the end while you are

searching quickly without listening,

"OVER"appears in the display. Press =0

(=on the remote) to go back.

To check the total number of tracks

and total playing time

Press DISPLAY on the remote while the

player is in stop mode.

The indications appear for a few seconds.

To check the remaining time

Press DISPLAY on the remote repeatedly

while playing a CD.

Each time you press DISPLAY, the display

changes as follows.

Current track number and

playing time

Current track number and

remaining time on the track

Remaining time on the CD

Playing a CD (normal play)

Playing Tracks in Random

Order (shuffle play)

Playing Tracks in the

Desired Order

(programme play)

Playing Tracks Repeatedly

(repeat play)

Operation

Hold down )+

and release it at the

desired point.

Hold down =0

and release it at the

desired point.

Hold down )+ or

=0 during pause

and release it at the

disired point.

4505

Total playing

time

Total number

of tracks

Tuner CD player

with the label side up

003

Press

^(or P*)

To resume play, press

here again.

Chapter 2: the CD Player

6Press (.

All the tracks you chose play in the

order you designated.

To cancel the programme play

Press TUNING/PLAY MODE until “PGM”

disappears.

To change the programme

Add a track at

the end of the

programme

Erase the entire

programme

After all the programmed tracks have

been played

The programme order remains in the CD

player’s memory. You can listen to the same

programme by just pressing (.

Notes

• Once you open the CD tray, the programme

is erased.

• If the total programme time has exceeded

100 minutes, the order of the programme is

displayed instead of the total playing time.

• If you try to programme more than 24

tracks, “FULL” is displayed.

Operation

During stop, do steps 3 –

During stop, press pon

the player.

Playing Tracks in

Random Order

(shuffle play)

You can play all the tracks on the CD in

random order. Use the buttons on the

remote to do this operation.

1Press 6(open/close) and place a CD on

the CD tray.

2Press TUNING/PLAY MODE

repeatedly until “SHUFFLE” appears in

the display.

3Press (.

“J” appears and then all the tracks play

in random order.

To cancel shuffle play

Press TUNING/PLAY MODE.

“SHUFFLE” disappears, and tracks

continue playing in their original order.

If you press TUNING/PLAY MODE during

normal play

You can play all the tracks on the CD in

random order.

To skip an undesired track

Press +.

You cannot go back to the preceding track by

pressing =.

Playing Tracks in the

Desired Order

(programme play)

You can programme up to 24 tracks to play

in any order you choose. You can do this

by designating the tracks in the order you

want them to play.

1Press 6(open/close) and place a CD on

the CD tray.

2Press TUNING/PLAY MODE

repeatedly until “PGM” appears in the

display.

3Press =or +until the desired track

number is displayed.

The total playing time including the

chosen track flashes in the display. (The

programme is not entered at this time.)

4Press ENTER.

The programme number appears for

about a second, and the total playing

time lights up.

5Repeat steps 3 and 4 to programme the

remaining tracks you want to play in the

order you want them to play.

304

TUNED

STEREO

SHUFFLE

PGM

REPEAT 1

MONO AUTO MANUAL

PRESET

MEMORY

SURR

DBFB

DAILY REC SLEEP kHz MHz

Track number

Total playing time

POWER →ON

Tuner CD Player

POWER →ON

Tuner CD Player

Playing Tracks

Repeatedly (repeat

play)

You can choose between two different

repeat play modes. One repeats all the

tracks in the current play mode; the other

repeats a single track.

Use the buttons on the remote to do this

operation.

Repeating all the tracks (in any play

mode)

Press REPEAT.

“REPEAT” appears in the display, and the

tracks play repeatedly in the current play

mode.

Repeating a single track (in normal

play mode only)

While the desired track is being played,

press REPEAT repeatedly until “REPEAT

1” appears in the display.

To cancel repeat play

Press REPEAT repeatedly until “REPEAT”

or “REPEAT 1” disappears from the

display.

Chapter 2: the CD Player

REPEAT

POWER →ON

Tuner CD Player

Chapter 3:

the

Radio

Listening to the

Radio

You can have the tuner automatically scan

and tune in the stations with clear signals.

This feature saves you time in searching for

stations with clear signals. However, you

will have to manually tune in stations with

weak signals that are skipped by automatic

tuning.

1Press POWER.

2Press BAND repeatedly until the band

you want appears in the display.

As you press BAND, the band changes

as follows:

German, Italian and gold colour models:

FM Bb AM

Other models:

bFM bMW bLW

3Press TUNING/PLAY MODE until

“AUTO” appears in the display.

4Press TUNING +/– to tune in the

desired station.

To tune in a higher frequency station,

press TUNING +, and to tune in a lower

frequency station press TUNING –.

The tuner starts scanning stations

automatically, and stops when it finds a

clear station.

“TUNED” appears in the display.

“STEREO” also appears if the FM

station tuned in is broadcasting in

stereo.

5If you do not want to listen to the

station selected, press TUNING +/–

again to restart the scan.

When the desired station is not

tuned in

Automatic tuning may skip a station with a

weak signal. Tune in the station manually.

1Press TUNING/PLAY MODE repeatedly

until “MANUAL” appears in the display.

2Keep pressing TUNING +/– until the

desired station is tuned in.

To improve AM (MW and LW) broadcast

reception

Reorient the supplied AM loop aerial for AM

(MW and LW).

When an FM programme is not received

clearly

Press STEREO/MONO until “MONO”

appears in the display. There will be no stereo

effect, but the reception will improve. Press

STEREO/MONO again to restore the stereo

effect.

One Touch Play feature

Press BAND when the power is off or you are

listening to another source.

You will be able to listen to the last received

station without pressing any other buttons.

Listening to the Radio

Presetting Radio Stations

Listening to the Preset

Radio Stations

4,5

Chapter 3: the Radio

Tuner CD Player

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Sistema de altavoces de Sony

Sony

Sony SSM-F500H Manual de usuario

Sony

Sony SS-WL30 Guía del usuario

Sony

Sony HT-A3000 Manual de usuario

Sony

Sony SRS-T1PC Manual de usuario

Sony

Sony Bravia Theatre Sync RHT-G800 Manual de usuario

Sony

Sony SA-FT7ED Manual de usuario

Sony

Sony SS-CR290 Manual de usuario

Sony

Sony SA-VE100 Manual de usuario

Sony

Sony SS-DP1000DW Manual de usuario

Sony

Sony SS-CN250 Manual de usuario

Sony

Sony WAHTSA1 - Wireless Audio Delivery System Manual de usuario

Sony

Sony SS-G5D Guía de configuración

Sony

Sony SA-VE345 Manual de instrucciones de instalación

Sony

Sony HT-S200F Manual de usuario

Sony

Sony SS-S3 Manual de usuario

Sony

Sony SRS-Z500 Manual de usuario

Sony

Sony SS-MFS500H Manual de usuario

Sony

Sony AIRSA20PK - S-AIR iPod Dock Manual de usuario

Sony

Sony SA-VE835ED Manual de instrucciones de instalación

Sony

Sony SS-CN195 Manual de usuario

Sony

Sony HT-XF9000 Manual de usuario

Sony

Sony SS-V130 Manual de usuario

Sony

Sony SRS-T55 Manual de usuario

Sony

Sony SS-LX5 Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
