SERVICE MANUAL

Sony Corporation

Published by Sony Techno Create Corporation

SS-CT550W

SPECIFICATIONS

SPEAKER SYSTEM

9-893-124-01

2011C05-1

US Model

Canadian Model

AEP Model

UK Model

Ver. 1.0 2011.03

• SS-CT550W is the speaker system in HT-CT550W.

Speaker system Bass Reflex

Speaker unit 50 mm (2 in), cone type × 2

Rated impedance 4 ohms

Dimensions (approx.) 948.2 mm × 75 mm ×

40 mm (37 3/8 in × 3 in ×

1 5/8 in) (w/h/d)

Mass (approx.) 2.3 kg (5 lb 2 oz)

Speaker cords 3 m

Design and specifications are subject to change without

notice.

SS-CT550W

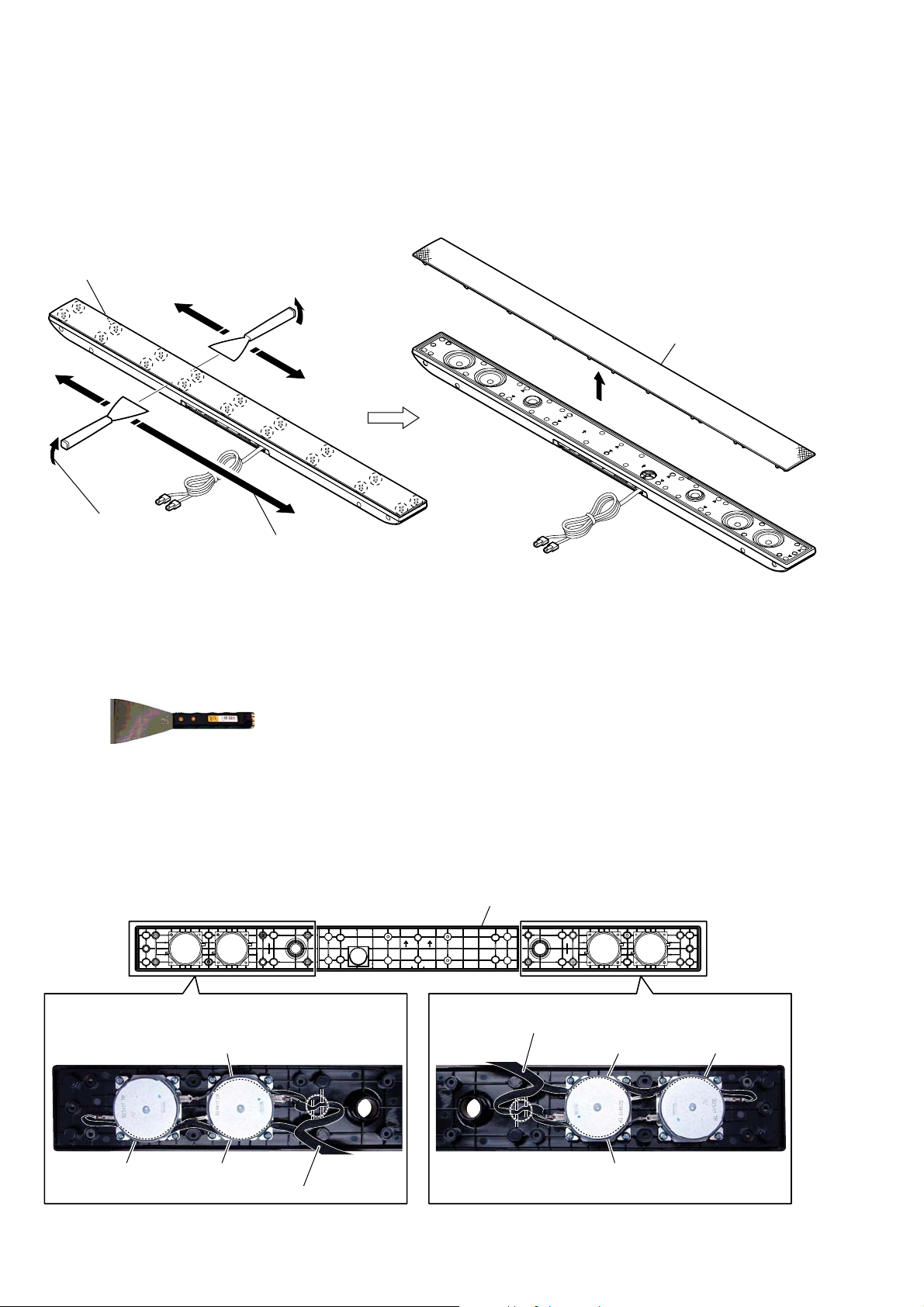

total eighteen bosses

2 All bosses are removed while

moving jig in the direction of

the arrow, and grille frame assy

is removed.

4 grille frame assy

1 Insert the jig into a space and raise

the grille frame assy gradually.

Note 2: When using a jig, please work

so as not to injure grille frame

assy and speaker cabinet assy.

SECTION 1

DISASSEMBLY

Note: Follow the disassembly procedure in the numerical order given.

GRILLE FRAME ASSY

Note 1: Please set as shown in ﬁgure and work.

• JIG

When disassembling the set, use the following jig (for speaker

removal).

Part No. J-2501-238-A JIG FOR SPEAKER REMOVAL

CORD WITH CONNECTOR ARRANGEMENT

groove groove

groove

cord with connector from speaker cabinet block

baffle block

cord with connector from speaker cabinet block

groove

– Inner side view –

5iJKW side /eIW side

SS-CT550W

SECTION 2

EXPLODED VIEW

Note:

• -XX and -X mean standardized parts, so

they may have some difference from the

original one.

• Items marked “*” are not stocked since

they are seldom required for routine ser-

vice. Some delay should be anticipated

when ordering these items.

• The mechanical parts with no reference

number in the exploded views are not sup-

plied.

• Color Indication of Appearance Parts Ex-

ample:

KNOB, BALANCE (WHITE) . . . (RED)

↑↑

Parts Color Cabinet’s Color

not supplied

SP1

SP2

SP3

SP4

1 A-1800-302-A OVERALL ASSY

2 A-1800-307-A GRILLE FRAME ASSY

3 4-986-971-12 SCREW (3.5)

4 4-263-584-01 BAFFLE

5 4-263-587-01 COVER REAR

6 2-580-607-01 SCREW, +PSW M5X12

7 4-266-107-01 CUSHION COVER REAR

SP1 1-858-538-11 LOUDSPEAKER (5 cm) (Front R-ch)

SP2 1-858-538-11 LOUDSPEAKER (5 cm) (Front R-ch)

SP3 1-858-538-11 LOUDSPEAKER (5 cm) (Front L-ch)

SP4 1-858-538-11 LOUDSPEAKER (5 cm) (Front L-ch)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

SS-CT550W

REVISION HISTORY

Ver. Date Description of Revision

1.0 2011.03 New

Checking the version allows you to jump to the revised page.

Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
