4-140-464-11(1)

Active

Speaker

System

SRS-DB500

Operating Instructions______

Manual de instrucciones____

Mode d’emploi ____________

2US

Owner’s Record

The model and serial numbers are located on

the rear of the unit. Record these numbers in

the space provided below. Refer to them

whenever you call upon your Sony dealer

regarding this product.

M o d e l N o . S e r i a l N o .

To reduce the risk of fire or electric

shock, do not expose this apparatus

to rain or moisture.

To reduce the risk of electrical shock,

do not open the cabinet. Refer

servicing to qualified personnel only.

Do not install the appliance in a confined

space, such as a bookcase or built-in cabinet.

To reduce the risk of fire, do not cover the

ventilation opening of the apparatus with

newspapers, tablecloths, curtains, etc.

Do not place the naked flame sources such as

lighted candles on the apparatus.

To reduce the risk of fire or electric shock, do

not expose this apparatus to dripping or

splashing, and do not place objects filled

with liquids, such as vases, on the apparatus.

As the main plug is used to disconnect the

system from the mains, connect the system

to an easily accessible AC outlet. Should you

notice an abnormality in the system,

disconnect the main plug from the AC outlet

immediately.

The system is not disconnected from the

mains as long as it is connected to the AC

outlet, even if the system itself has been

turned off.

Excessive sound pressure from earphones

and headphones can cause hearing loss.

Do not expose batteries or apparatus with

battery-installed to excessive heat such as

sunshine, fire or the like.

For customer in the United

States

This symbol is intended to

alert the user to the

presence of uninsulated

“dangerous voltage”

within the product’s

enclosure that may be of

sufficient magnitude to

constitute a risk of electric

shock to persons.

This symbol is intended to

alert the user to the

presence of important

operating and

maintenance (servicing)

instructions in the

literature accompanying

the appliance.

Important Safety

Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings.

Install in accordance with the

manufacturer’s instructions.

8) Do not install near any heat sources such

as radiators, heat registers, stoves, or

other apparatus (including amplifiers)

that produce heat.

9) Do not defeat the safety purpose of the

polarized or grounding-type plug. A

polarized plug has two blades with one

wider than the other. A grounding type

plug has two blades and a third

grounding prong. The wide blade or the

third prong are provided for your safety.

If the provided plug does not fit into your

outlet, consult an electrician for

replacement of the obsolete outlet.

WARNING

3US

10) Protect the power cord from being

walked on or pinched particularly at

plugs, convenience receptacles, and the

point where they exit from the apparatus.

11) Only use attachments/accessories

specified by the manufacturer.

12) Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination

to avoid injury from tip-over.

13) Unplug this apparatus during lightning

storms or when unused for long periods

of time.

14) Refer all servicing to qualified service

personnel. Servicing is required when

the apparatus has been damaged in any

way, such as power-supply cord or plug

is damaged, liquid has been spilled or

objects have fallen into the apparatus, the

apparatus has been exposed to rain or

moisture, does not operate normally, or

has been dropped.

The following FCC statement applies only to

the version of this model manufactured for

sale in the U.S.A. Other versions may not

comply with FCC technical regulations.

NOTE:

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses, and can radiate

radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in

a particular installation. If this equipment

does cause harmful interference to radio or

television reception, which can be

determined by turning the equipment off and

on, the user is encouraged to try to correct the

interference by one or more of the following

measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/

TV technician for help.

CAUTION

You are cautioned that any changes or

modifications not expressly approved in this

manual could void your authority to operate

this equipment.

Continued

4US

For customers in Australia

Disposal of Old

Electrical &

Electronic

Equipment

(Applicable in the

European Union

and other

European

countries with

separate

collection

systems)

5US

Table of Contents

Unpacking ....................................6

Guide to parts and controls ..........7

Hooking up the system.................9

Positioning the speakers.............12

Listening to the sound................13

Adjusting the sound ...................14

Changing the display..................15

Troubleshooting .........................16

Precautions.................................17

Specifications.............................18

Getting Started

Basic Operations

Additional Information

6US

Unpacking

Check that you have the following items:

• Subwoofer (1)

• Satellite speakers (2)

• Remote Commander (1)

•Audiocord(1)

• Operating Instructions (1)

7US

Guide to parts and controls

Subwoofer

AJOG

Turn to adjust the volume, bass and

treble level.

BIlluminator

Lights up when the system is turned

on.

CMUTING indicator

Lights up when the muting function

is activated.

D"/1 (on/standby) button

(pages 10, 13, 16, 17)

Press to turn the system on or off.

The "/1 indicator lights up when the

system is turned off.

ETREBLE button

Press to enter or exit from the treble

level setting mode.

TREBLE indicator

Flashes during treble level setting

mode.

Lights up when the treble level

setting is done by remote.

FBASS button

Press to enter or exit from the bass

level setting mode.

BASS indicator

Flashes during bass level setting

mode.

Lights up when the bass level setting

is done by remote.

GINPUT button

Press to select the input source.

HINPUT 2 jack (pages 11, 13, 18)

Connect to headphones jack of a

portable audio device, etc.

INPUT 2 indicator

Lights up when INPUT 2 source is

selected.

Ii(headphones) jack (pages 13,

18)

Connect the headphones.

JRemote sensor

Receives signals from remote.

Continued

8US

Remote RM-AS31

A"/1 (on/standby)

Press to turn the system on or off.

BDISPLAY

Press to change the illuminator

pattern around JOG.

CVOLUME +/–*

Press to adjust the volume.

* The VOLUME + button has a tactile dot.

Use the tactile dot as a reference when

operating the system.

DMUTING

Press to turn off the sound.

Press the button again to restore the

sound.

EBASS +/–

Press to change the bass level.

FTREBLE +/–

Press to change the treble level.

GINPUT

Press to select the input source.

9US

Hooking up the system

1To satellite speaker (left)

2To satellite speaker (right)

Getting Started

INPUT 2

– Front panel– Rear panel

Subwoofer

Continued

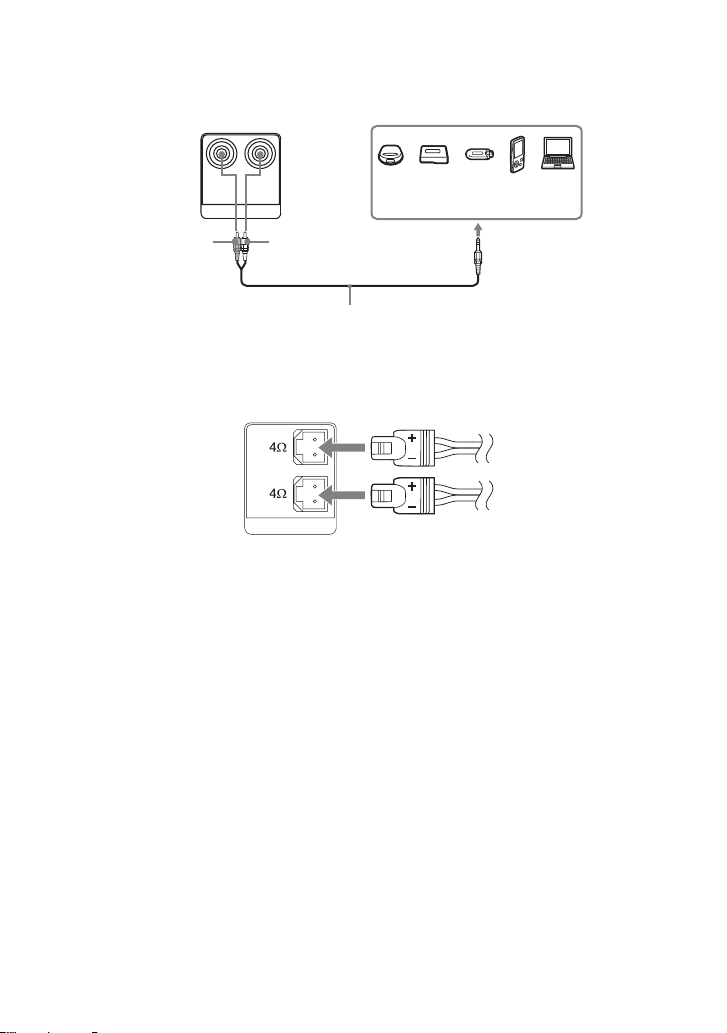

10US

AINPUT 1 L/R jacks

Use an audio cord (supplied) to connect INPUT 1 jack to LINE OUT or headphones jack

of portable audio device, computer, etc.

BSatellite speakers

Be sure to insert the connector straight into the terminals.

CPower

Connect the power cord to a wall outlet after you have make all connections. The "/1

indicator is turned on. When you press "/1, the system turns on and the "/1 indicator is

turned off.

INPUT 1

LR Portable audio device, computer,

etc.

To LINE OUT or

headphones jack

(stereo mini-jack)

Audio cord (supplied)

To INPUT 1

jack

Red White

SPEAKER
