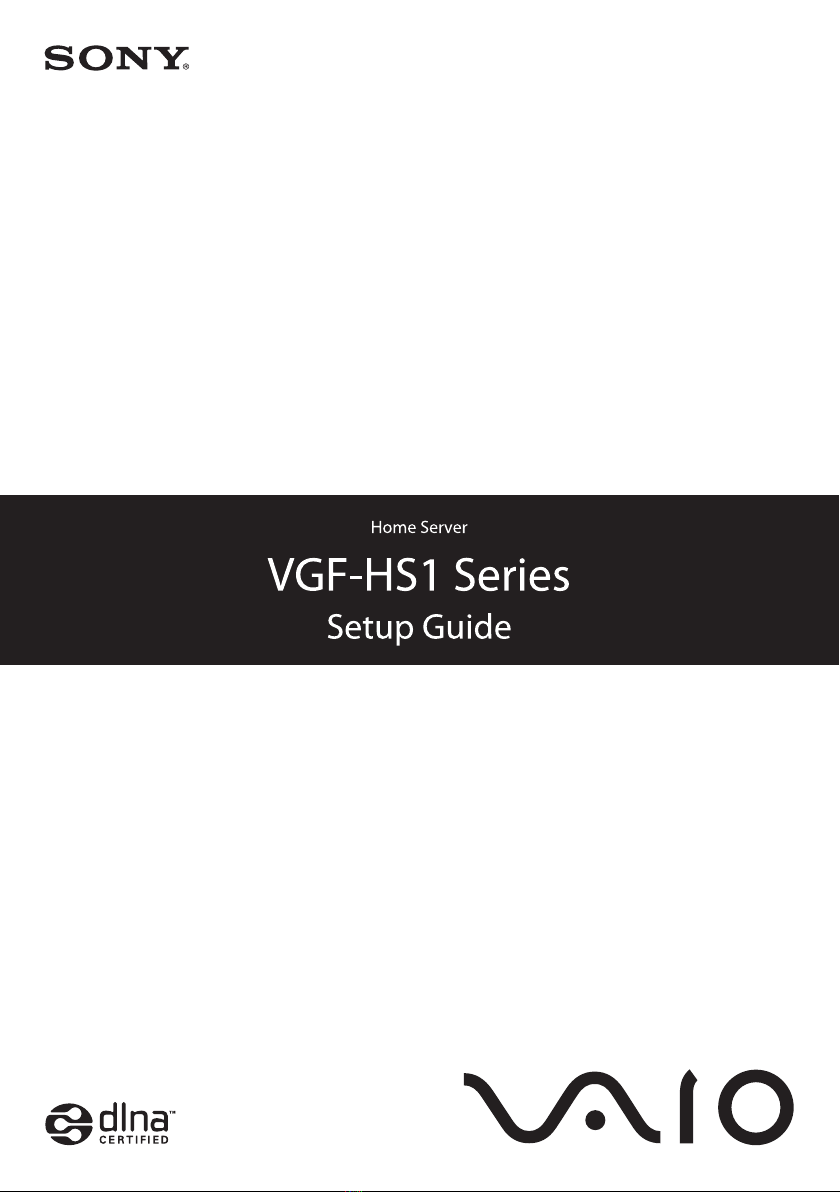

Sony VGF-HS1 - Vaio Home Server Manual de usuario

VGF-HS1 3-298-361-11(1)

Before using your Home Server for the first time

This Setup Guide describes the preparatory process from installing to starting up your Home Server and its

major features of which you can take advantage to get the most out of your Home Server.

Follow the preparation flow below to get your Home Server ready for operation.

1. Hardware connection and setup (See page 11).

Placing your Home Server

Connecting to a network

Connecting to a power source with the supplied AC adapter

Turning on your Home Server

Upon completion of the above, you can: (See page 37).

Use your Home Server as a network storage device.

Let DLNA devices access the content of your Home Server.

Take advantage of the One Touch Copy function.

To use the following additional functions (See page 43), you must install the supplied software and

complete the initial setup of the software.

Back Up

Data Sync

Restore Tool

2. Software installation and initial setup (See page 43).

Installing software with the supplied CD-ROM disc

Completing the initial setup

For changing the software settings or obtaining troubleshooting information after the basic setup, please

refer to the User Guide.

VGF-HS1 3-298-361-11(1)

Illustrations used in this guide

The product illustrations and the screen captures used in this Setup Guide may appear different from the

actual ones.

Table of Contents

Before using your Home Server

for the first time.............................................. 2

What you can do with the Home Server....... 4

Unpacking ......................................................... 9

Getting Started................................................ 10

Operation flow......................................... 10

Hardware connection and setup............ 11

Placing your Home Server...................... 11

Connecting to a network........................ 13

Connecting to a power source ............... 34

Turning on your Home Server............... 36

Using the Home Server features................... 37

Using your Home Server

as a network storage device.................. 37

Letting DLNA devices

to access audio/video content .............. 38

Using the One Touch Copy function .... 41

Software installation and initial setup... 43

Installing software ................................... 45

Configuring the PC Link software........ 46

Manuals

Your Home Server is provided with (1) Quick Start Guide, (2) Setup Guide (this document), and (3) User

Guide. The Quick Start Guide helps you get your Home Server ready for operation. Please read the Quick

Start Guide first to set up the Home Server and reference the Setup Guide and User Guide for more

information.

VGF-HS1 3-298-361-11(1)

What you can do with the Home Server

Your Home Server provides additional storage for a wide variety of data, including music, photo, and video

contents, to personal computers via your home network or the Internet. It lets you access such data from a

TV in your living room or an audio device via the home network or share it with your family and friends in

distant locations via the Internet.

Note

Access to the content of the Home Server can only be made from the network devices that comply with the Digital Living

Network Alliance (DLNA) guideline (referred to as DLNA device, hereinafter).

Data storage Mass data storage Access within

your house

Access from another house

(Remote Home Access functions)

Internet

* VGF-WA1 Wireless Digital Audio: May not be available depending on the country or region of your residency.

What is DLNA?

DLNA stands for Digital Living Network Alliance and represents the organization founded with the aim of implementing

connectivity among digital AV devices and personal computers on a home network. It also represents the standards set by

the organization. As digital video and audio contents are created in compliance with a variety of manufacturer-dependent

standards, the DLNA organization has been in action to build a framework for establishing home networks for sharing

such digital contents by defining a set of standards for file formats.

The devices that are compliant with the DLNA standards are referred to as DLNA devices and these devices are further

categorized into two types: server devices capable of storing digital video and audio contents and client devices capable of

playing such contents.

VGF-HS1 3-298-361-11(1)

Accessing your Home Server within a house

You can access the music, photo, and video contents stored on your Home Server from the following

devices*:

Digital Photo Frame VGF-CP1

TV with a network (LAN) port

PLAYSTATION3

DLNA audio device**

* Actual playback depends on client device functionality.

** With a DLNA audio device that supports the Music channels, you can additionally play music according to your

mood or situation.

***

*** VGF-WA1 Wireless Digital Audio: May not be available depending on the country or region of your residency.

VGF-HS1 3-298-361-11(1)

Accessing your Home Server from other houses (Remote Home Access functions)

You can send video and photo contents to personal computers and VGF-HS1 Series Home Servers of your

family and friends in distant locations via the Internet or let them access your Home Server to view such

contents.

You can let personal computer users access your Home Server with Web browser software and view

albums of photo content (VAIO Picture Lab function).

Additionally, you can set a password to restrict access to your Home Server.

Tip

For further information on the VAIO Picture Lab function, consult the following section in the User Guide: Using the

Remote Home Access Functions - Using the VAIO Picture Lab function.

You can let VGF-CP1 Digital Photo Frame users view photo content on your Home Server (Media Link

function).

Tip

For further information on the Media Link function, consult the following section in the User Guide: Using the Remote

Home Access Functions - Using the Media Link function.

You can establish Data Syncs between your Home Server and other personal computers or Home Servers

for sending and/or receiving video and photo contents (Data Sync function).

Once the video and photo contents that were received from other personal computers or Home Servers

have been stored on your Home Server, the contents will be available for public viewing.

Tip

For further information on the Data Sync function, see page 44 in this guide; or consult the following section in the

User Guide: Using the Remote Home Access Functions - Transferring data to a personal computer or a Home Server

outside your home (Data Sync).

The Internet related features require certain ports to be open.

Using a modem/router with UPnP is recommended.

Otherwise consult the manual that came with your modem/router for configuring port forwarding.

VGF-HS1 3-298-361-11(1)

Storing photos and videos

You can use your Home Server as a mass data storage server.

You can import photos and videos from the connected digital still camera or digital camcorder that

complies with the USB mass storage class specification to your Home Server just by pressing the COPY

button (One Touch Copy function).

You can get data automatically uploaded to your Home Server from the specified folders on your

personal computer (Back Up function).

With the Back Up function, all you have to do is create or edit photo and video contents or import music

files from CD discs. The Back Up function will take care of storing the same data on your Home Server.

The music, photo, and video contents stored on your Home Server will be sorted by date or album for

viewing from DLNA devices or browsing from personal computers.

VGF-HS1 3-298-361-11(1)

Using your Home Server as a network storage device

You can use your Home Server as a storage device on your network that can be accessed from multiple

personal computers at the same time.

You just store data on your Home Server. Then, individual personal computer on your network will be

able to access the data at any time.

To make the stored data available to selected users, set a password to each shared folder and grant the

write and read privilege or the read-only privilege on a per-user basis.

Making backup copies of the data on a personal computer

You can use the Back Up function to specify the folders containing your valuable data on your personal

computer and let the data automatically be uploaded to your Home Server for backup purposes. When the

computer fails, you can use the backup data stored on your Home Server and restore it on the computer.

Making backup copies of your Home Server

You can make backup copies of the data on your Home Server and store it on the connected USB hard disk

drive (not supplied). When the Home Server fails, you can use the stored backup data and restore it on the

Home Server. Additionally, you can copy the backup data from the USB hard disk drive to a personal

computer, using the Restore Tool. (See page 44).

VGF-HS1 3-298-361-11(1)

Unpacking

User Guide

Setup Guide (this document)

Quick Start Guide

Warranty sheet or Guarantee and

Service Support booklet

(depending on the country or region of

residency)

CD-ROM disc

Stored software

PC Link

VAIO Media

Stored content

Sample content

(also stored on your Home Server at the time

of delivery)

Home Server

Rear cover

AC adapter

Power cord

Network (LAN) cable (straight-through

Ethernet cable, 2 m)

VGF-HS1 3-298-361-11(1)

Getting Started

Operation flow

Proceed with the following preparation flow to get started with using your Home Server.

1. Hardware connection and setup (See page 11 to 42).

1. Placing your Home Server

2. Connecting to a network

3. Connecting to a power source with the supplied AC adapter

4. Turning on your Home Server

Upon completion of the above, you can:

Use your Home Server as a network storage device.

Let DLNA devices access the content of your Home Server.

Take advantage of the One Touch Copy function.

For further information on each of the above, see page 37.

To use the following additional functions available through connection with a personal computer, you must

continue with the rest of the preparation. See page 43 for further information.

Back Up

Data Sync

Restore Tool

2. Software installation and initial setup (See page 43 to 47).

1. Installing software with the supplied CD-ROM disc

2. Completing the initial setup

Note

When you have recovered the personal computer that you use to connect to the Home Server, you must install the

software and complete the initial setup all over again.
