Sony VPL-VW500ES Manual de usuario

4K Home Cinema

projector – more

than 4x the quality

of Full HD

VPL-VW500ES

a breathtaking

4K home cinema

experience

Enjoy your favourite movies in astonishing 4K detail

Imagine the fully immersive cinematic quality of 4K in your own

home. Our VPL-VW500ES home cinema projector gives you a

4096 x 2160 resolution picture, over four times better than Full HD.

It’s just like being at the movies.

The exceptionally high dynamic contrast ratio of 200,000:1 with

1,700 ANSI lumens brightness produces stunning detail and rich,

faithful colour – even in well-lit rooms.

Get the very best from your

2D and 3D discs

While more and more native 4K material

is becoming available, the VPL-VW500ES

uses our Reality Creation technology to

upscale Full HD content for an incredible

4K experience. This Super Resolution

feature means you’ll get the very best

from your current Blu-ray Disc™ library,

with fuller colour, greater clarity and more

impact than ever before.

Compact and user-friendly

The VPL-VW500ES is easy to operate, with

a variety of control modes so you get

the very best picture, whatever you’re

watching. With a smaller optical engine

than our leading 4K projector, the

VPL-VW1000ES, its compact design also

offers even greater ﬂexibility for installation.

Shaped by our professional

cinema expertise

With decades of experience

developing technology for the

big screen, we’ve packed

major innovations into the

VPL-VW500ES:

Reality Creation our Super

Resolution upscaler. Enjoy

your existing Full HD Blu-ray™

collection, transformed for an

exceptional 4K experience –

even in 3D.

Advanced native 4K

SXRD panels produce an

ultra-smooth, native 4K by

dramatically reducing the

space between pixels.

TRILUMINOS Display technology

produces a much broader

colour range, reproducing

more tones and textures than

a standard projector system

for greater purity, depth and

realism.

Key Features At a glance VPL-VW500ES

• 4K resolution: 4096 x 2160

• Dynamic contrast ratio:

200,000:1

• Brightness: 1,700 ANSI lumens

• Compact and functional

design

4K LOGO 2012.06.06

4K home cinema projector with 1,700 ASI lumens brightness and 200,000:1 dynamic contrast ratio

4K native resolution:

over 4x better than Full HD

No compromises: the VPL-VW500ES

provides 4096 x 2160 4K resolution (the

DCI standard in digital cinemas). We

used our professional cinema expertise

to develop 4K SXRD panels and

produce a 4K native picture with no

artiﬁcial enhancement of pixels.

TRILUMINOS Display

The VPL-VW500’s optical engine

and SXRD panels incorporate our

TRILUMINOS Display technology to

produce a much broader colour

range, reproducing more tones and

textures than a standard projector

system. The result is greater purity,

depth and realism.

New Motionﬂow

We’ve enhanced our Motionﬂow

technology. ‘Combination’ mode

uses our ‘Film Projection’ and ‘Motion

Enhancer’, adding frames to reduce

blur and maintain brightness in

thrilling, fast-moving scenes. Cinema

purists can choose ‘True Cinema’

to retain the original 24 frames per

second.

Ultra high contrast ratio

and brightness

Drawing on optical technology

developed for the VPL-VW1000ES,

we’ve achieved both high brightness

(1,700 ANSI lumens) and high

contrast (200,000:1 dynamic

contrast ratio) in the VPL-VW500ES.

So, you’ll see crystal-clear, bright,

detail-packed images – even in well-

lit rooms.

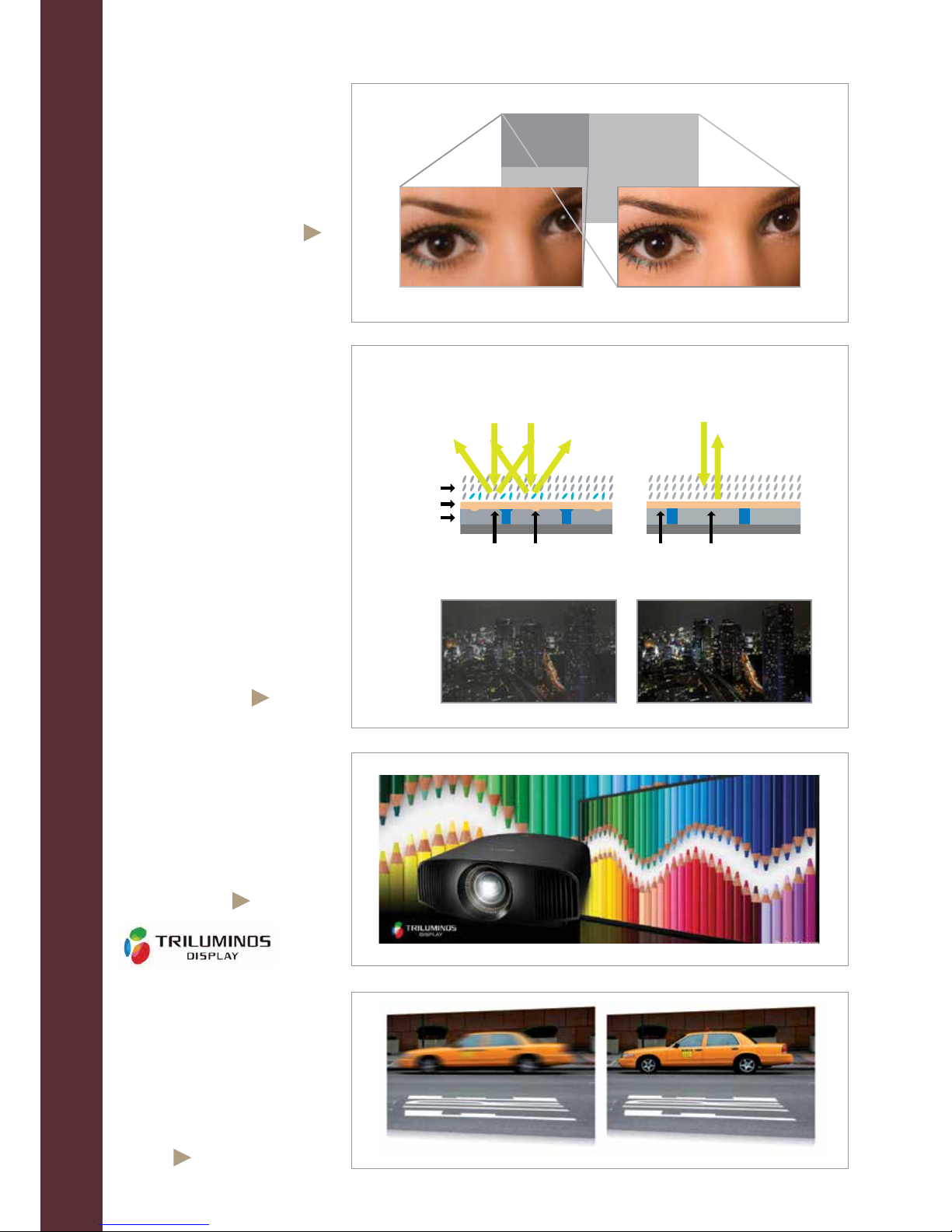

Advanced SXRD panels

4K digital drive panels minimise the

space between pixels in every frame

with an incredible response rate of

2.5-milliseconds. That’s much faster,

and more stable, than an LCD TV

and produces ultra-smooth, dot-free

pictures with natural, ﬂuid movement

– whatever the action.

Simulated images

Full HD 4K

4096 x 2160

(8.8 million pixels)

Full HD

1920 x 1080

(2.1 million pixels)

Conventional panel

Scattered light diminishes black levels High contrast and high reflectivity

New SXRD™

Incident light

Bevelled corner Elimination of

bevelled corners

Elimination of

contact divots

Contact divot

Incident light

Liquid crystal

Alignment layer

Pixel pad

Reflective light Reflective light

Without Motionflow With Motionflow

Industry standard RF 3D

compatible

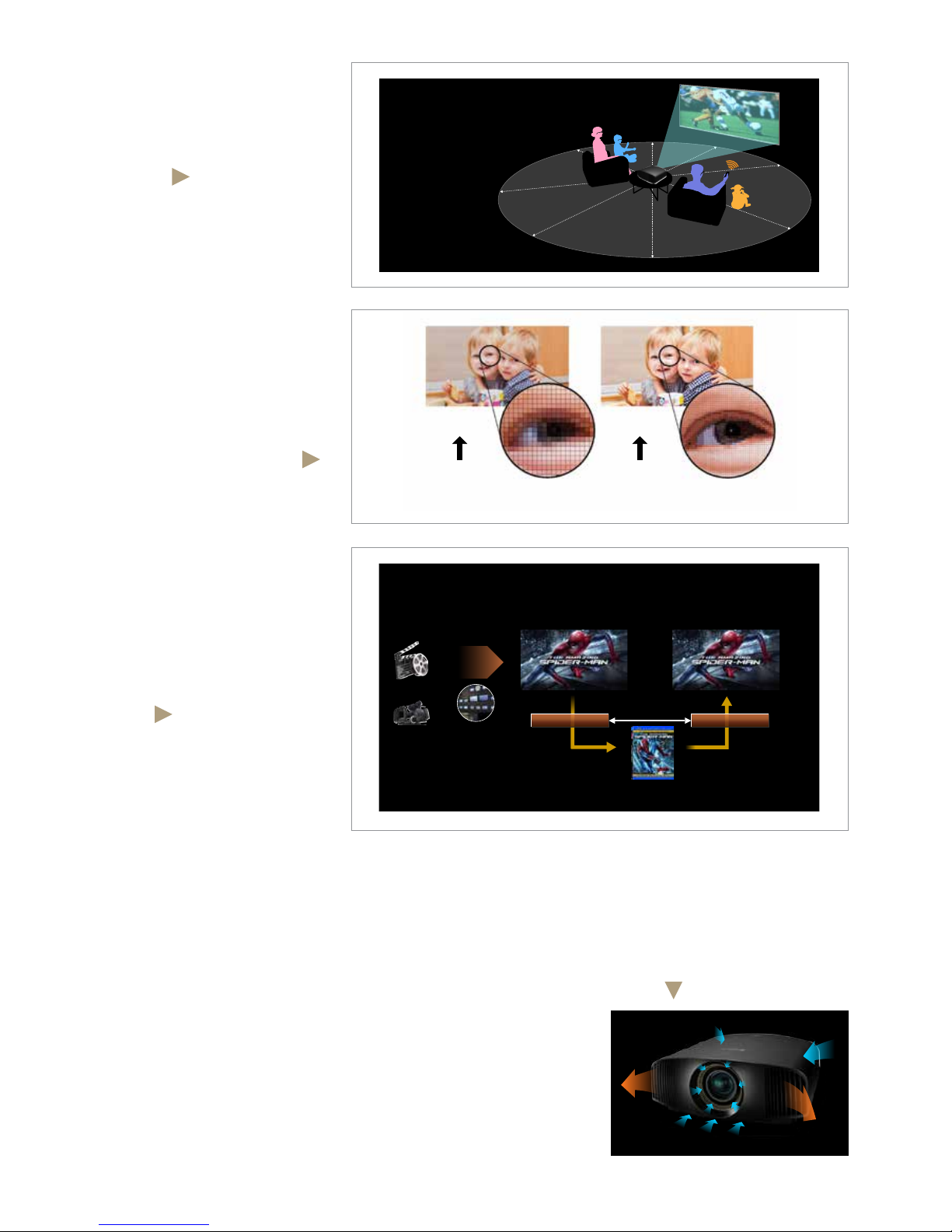

A built-in RF transmitter synchronises

with any RF 3D glasses for wider

coverage, greater stability, and

there’s no need for an external

transmitter.

Reality Creation: upscales

your movies to 4K

As well as native 4K material, you can

see your current Full HD Blu-ray™ or

DVD movie collection upscaled for

a 4K experience. Reality Creation is

a Super Resolution technology that

radically enhances Full HD content,

even upscaling 3D movies for 4K.

Compatible with ‘Mastered in

4K’ Blu-ray™ discs

Drawing on the same technology

used to downscale 4K material for

Full HD, the VPL-VW500ES gives you a

near native 4K experience with discs

‘Mastered in 4K’. It’s as close as you

can get to the 4K-pixel resolution

and expanded colour range of the

original.

Simulated images

The Amazing Spider-Man™ now available on Blu-ray Disc™

and the names and distinctive likenesses of Spider-Man and all other Marvel characters:™

4K Scan

4K Camera

Mastering

Color grading 4K nish

4K up-scaled picture

Faithful reproduction

to original master

Master le (4K)

“Mastered in 4K” BD (2K)

Down-conversion Up-scaling

Same lter

Simulated images

Compatible with ‘Mastered in 4K’ Blu-ray™ discs

“Mastered in 4K” Database

Simulated images

Full HD Panel

Full HD Signal Full HD Signal with

“Reality Creation”

4K Panel

Reduced screen door effect and jagged edges

The latest 4K/60p HDMI

standard: 60 frames per

second

The VPL-VW500ES can show up to 60

frames per second in 4K (at colour signal

YUV 4:2:0 / 8 bit). It’s the new 4K industry

standard and is much higher than the

earlier 24p. The result is a smoother

image with superior colour and realism.

Compact design

A smaller optical engine means the

VPL-VW500ES is approximately 18cm

shorter in length than our leading

projector, the VPL-VW1000ES, so there’s

greater ﬂexibility for installation.

Front-facing fan

Because the fan is positioned at the

front, you don’t need to worry about wall

space and room for air inhale/exhaust

when you install. This helps maximize

the throw distance for bigger projected

images.

RF coverage

•Stable Connection

•Wider Coverage

10 m

4K home cinema projector with 1,700 ASI lumens brightness and 200,000:1 dynamic contrast ratio

Auto calibration

After extended periods, colour can be

automatically calibrated to the original

factory condition. There’s no need

for extra calibration e quipment or

cameras; a built-in colour sensor stores

all the necessary information.

Picture Position Memory

This feature remembers the position

of the zoom lens. You can match it to

a movie’s aspect ratio (including 16:9

and Cinemascope) and store the

settings for a future viewing.

Electronic panel alignment

Ensures the red and blue elements in

each pixel are precisely positioned

against green. Adjustments can be

made by as little as 0.1 pixels for

optimum clarity.

Simulated images

Color difference from initial conditionsSmall Big

Red

Green

Blue

White

Color difference from initial conditions

Color changes Reset to initial

condition

Small Big

Red

Green

Blue

White

Wider zoom and shift lens

A 2.06 motorised zoom lens and wide

lens shift range of up to 85% vertical

and 31% horizontal gives greater

installation ﬂexibility – even when the

ceiling is very high.

Suitable for home automation

The VPL-VW500ES is compatible with

many home automation systems. It has

an RS232 interface, RJ45 control, and

IR-IN terminal.

Manual HSV Colour Correction

A correction tool allows you to adjust

the hue, saturation, and brightness of

each colour to get exactly the picture

you want.

Wireless option

(up to Full HD 60p)

Free yourself from cables and keep

things tidy with an optional wireless

HDMI emitter/ receiver kit. The

VPL-VW500ES can wirelessly connect

to your games console, Blu-ray™ Disc

player and more, and upscales for a

4K experience with Reality Creation.

USB updates

To get the best from your projector,

the VPL-VW500ES has a USB port for the

latest ﬁrmware updates.

2.35:1 With Picture Position Memory

16:9 Without Picture Position Memory

Speciﬁcations

VPL-VW500ES

Display system High Frame Rate SXRD panel

Light Output 1700 lm

Contrast ratio 200,000:1 (Dynamic Contrast)

Display elements

Effective

display size 0.74” x 3

Effective pixels 4K (4096 x 2160) x3 / 26,542,080 pixels

Projection lens Zoom / Focus Electric (Approx. 2.06 x) / Electric

Lens shift Electric, V +85% / -80% H:+/-31%

Light source Ultra High-pressure lamp 265W type

Screen size 60” to 300”

Reality Creation YES (4K Reality Creation)

Compatible with "Mastered in 4K "

Blu-ray YES

4K 60P (YUV) 4:2:0 / 8 bit YES

X.V colour YES

3D capability YES

3D emitter Built-in RF emitter

3D glasses TDG-BT500A (Optional)

Auto Calibration YES

Manual Calibration HSV Colour Correction

Picture Position Memory YES

Wireless HDMI compatibility IFU-WH1 (Optional)

Advanced Iris Ver 3

Picture modes 9 modes

Gamma modes 11 modes

Panel Alignment Yes (Shift / Zone)

Input/Output

HDMI (2 inputs) Digital RGB/Y Pb/Cb Pr/Cr

Remote RS-232C

LAN RJ45, 10BASE-T/100BASE-TX

IR IN Mini Jack

TRIGGER Minijack, DC 12V Max. 100m A

USB DC 5V. MAX. 500mA

Acoustic noise 26dB

Power requirement AC 100 V to 240 V, 3.0 A to 1.3 A,50/60 Hz

Power consumption Max. 375 W

Body Colour Black

Standard outside dimensions W 495.6 x H 195.3 x D 463.6 mm

Weight Approx. 14 kg

Supplied Accessories

Remote Control RM-PJ24

Size AA (R6) manganese batteries (2)

AC Power Cord for projector (1)

Quick reference manual (1)

Operating Instructions (CD-ROM) (1)

The VPL-WV500ES includes our 3-year

PrimeSupport package at no extra

cost as well as 1-year (or 1,000 hours)

lamp cover. Should you experience

a problem, there are no unexpected

costs: simply call our free, multi-

lingual helpline for fast, professional

technical support. If we think a repair

will take more than 10 days, we’ll

supply a loan projector.

PrimeSupport

Optional Accessories

Dimensions

Distributed by

Professional Solutions Europe is the leading supplier of AV/IT solutions to businesses across a wide variety of sectors including, Media and

Broadcast, Video Security and Retail, Transport & Large Venue markets. It delivers products, systems and applications to enable the creation,

manipulation and distribution of digital audio-visual content that add value to businesses and their customers. With over 25 years’ experience

in delivering innovative market-leading products, Professional Solutions Europe is ideally placed to deliver exceptional quality and value to its

customers. Sony’s Professional Services division, its systems integration arm, offers its customers access to the expertise and local knowledge of

skilled professionals across Europe. Collaborating with a network of established technology partners, Professional Solutions Europe delivers end to

end solutions that address the customer’s needs, integrating software and systems to achieve each organisations’ individual business goals. For

more information please visit www.pro.sony.eu

HCT_VPL-HW500ES_J2131_UK_22/08/2013

© 2013 Sony Corporation. All rights reserved. Reproduction in whole or in part without permission is prohibited. Features and specifications are subject to change without notice. All non-metric weights and measurements are

approximate. Sony and make.believe are trademarks of Sony Corporation. All other trademarks are the property of their respective owners.

For further details of how to get a fully immersive 4K cinematic experience for your home visit:

www.pro.sony.eu/homecinemaprojectors

Projector lamp

(LMP-H260)

Wireless HD Unit

(IFU-WH1)

3D Glass

(TDG-BT500A)

495.6

247.8 247.8

202.3

195.3

108

187.9187.9

81.5 81.5

9898

87.3

142.8 150.6

408.9

463.6

7.5

Centre of the lens

Front of the cabinet

Unit: mm Unit: mmFront Bottom

Otros manuales para VPL-VW500ES

Tabla de contenidos

Otros manuales de Proyector de Sony

Sony

Sony VPH-1272Q Manual de usuario

Sony

Sony Superbright VPL-PX40 Manual de usuario

Sony

Sony VPLSW536 Manual de usuario

Sony

Sony KP-43T70C - 43" Projection Tv Manual de usuario

Sony

Sony VPL-W400Q Manual de usuario

Sony

Sony VPL-BW7 Manual de usuario

Sony

Sony VPLVW100 - Full HD Widescreen Projector Guía del usuario

Sony

Sony VPL-VW85 - Bravia Sxrd 1080p Home Cinema... Manual de usuario

Sony

Sony Superbright VPL-PX35 Manual de usuario

Sony

Sony VPL-VW12HT Manual de usuario

Sony

Sony VPL-VW675ES Manual de servicio

Sony

Sony VPL-CX75 Manual de usuario

Sony

Sony VPL-FHZ65 Manual de usuario

Sony

Sony VPH-D50HTU Manual de usuario

Sony

Sony VPL-FHZ85 Manual de usuario

Sony

Sony CPJ-D500 - SVGA LCD Projector Manual de usuario

Sony

Sony VPL-FH500L Manual de usuario

Sony

Sony KP-48V75 - 48" Color Rear Video Projector Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL VW50 - SXRD - Projector Manual de usuario

Sony

Sony VPL-VW665 Manual de servicio

Sony

Sony VPLSW536 Guía

Sony

Sony VPL-FX51 Manual de usuario

Sony

Sony 4-125-572-12 (1) Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario

Epson

Epson PowerLite 810p Manual de usuario

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manual de usuario
